Sida 1/83

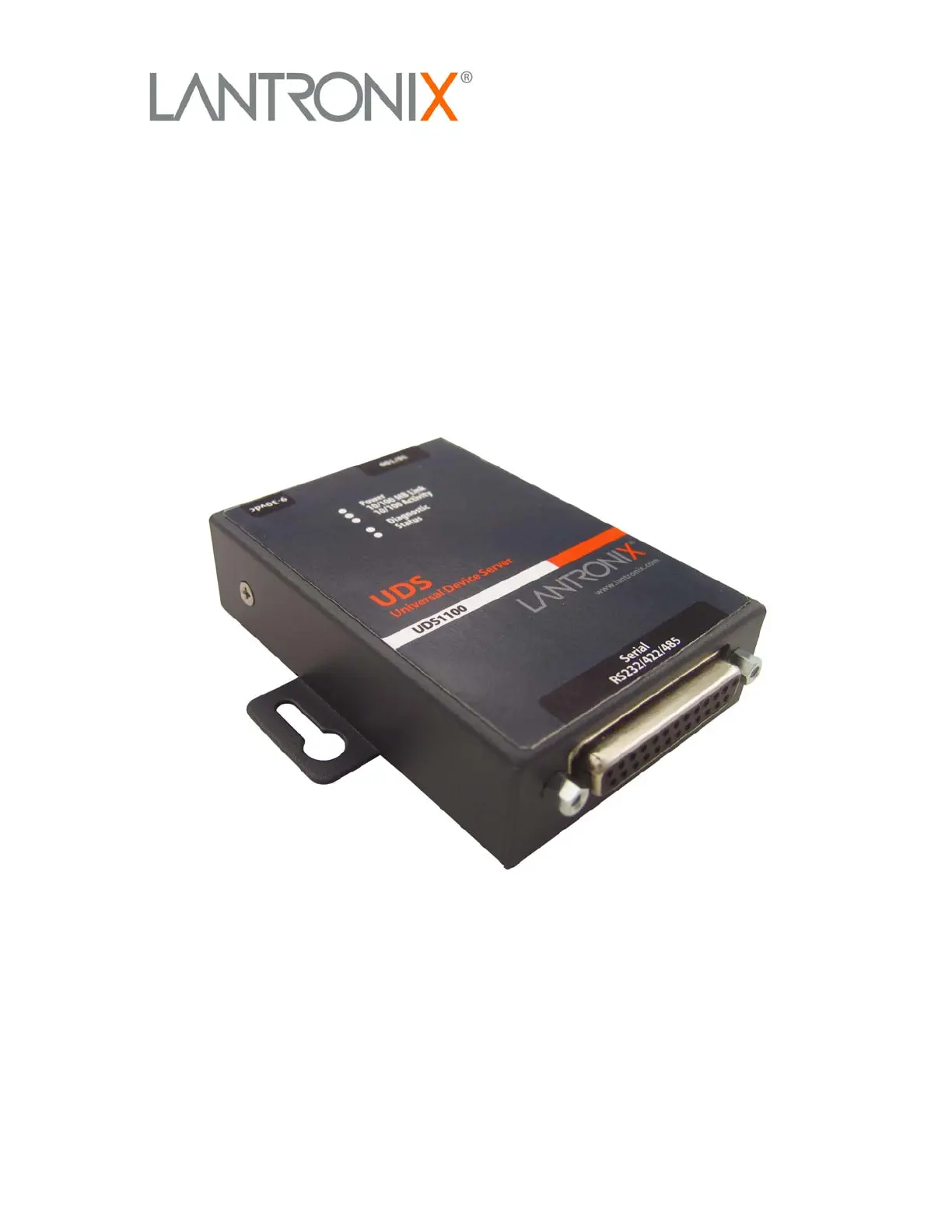

Part Number 900-417
Revision B June 2006
UDS1100
User Guide
UDS1100 User Guide 2
Copyright & Trademark
© 2006, Lantronix. All rights reserved. No part of the contents of this book may be
transmitted or reproduced in any form or by any means without the written permission
of Lantronix. Printed in the United States of America.
Ethernet is a trademark of XEROX Corporation. UNIX is a registered trademark of
The Open Group. Windows 95, Windows 98, Windows 2000, and Windows NT are
trademarks of Microsoft Corp. Netscape is a trademark of Netscape Communications
Corporation.
Contacts
Lantronix
15353 Barranca Parkway
Irvine, CA 92618, USA
Phone: 949-453-3990
Fax: 949-453-3995
Technical Support
Online: www.lantronix.com/support
Email: support@lantronix.com
Sales Offices
For a current list of our domestic and international sales offices, go to the Lantronix
Web site at http://www.lantronix.com/about/contact/index.html
Revisions
Date Rev. Comments
2/06 A Initial document
6/06 B Changes to operating and storage temperatures.
UDS1100 User Guide 3
Contents
1: Using This Guide 7
Purpose and Audience _______________________________________________ 7
Chapter Summary ___________________________________________________ 7
Additional Documentation _____________________________________________ 8
2: Introduction 9
Applications ________________________________________________________ 9
Application Examples ________________________________________________ 9
Protocol Support ___________________________________________________ 11
Additional Features _________________________________________________ 11
Configuration Methods ______________________________________________ 11
Product Information Label ____________________________________________ 12
3: Getting Started 13
Package Contents __________________________________________________ 13
Installing the UDS __________________________________________________ 14
Required Information________________________________________________ 15
Hardware Address ______________________________________________ 15
IP Address ____________________________________________________ 15
Assigning the IP Address: DeviceInstaller________________________________ 16
Installing DeviceInstaller __________________________________________ 16
Assigning an IP Address __________________________________________ 16
Adding the Unit to the Manage List__________________________________ 17
Accessing the UDS1100 Using DeviceInstaller ________________________ 17
Viewing the Current Configuration __________________________________ 17
Next Step _____________________________________________________ 19
Assigning the IP Address: Serial Port Login ______________________________ 19
4: Configuration Using Web-Manager 21
Accessing UDS1100 Using DeviceInstaller_______________________________ 21
Network Configuration_______________________________________________ 22
Automatic IP Address Configuration _________________________________ 23
Static IP Address Configuration ____________________________________ 23
Ethernet Configuration ___________________________________________ 24
Server Configuration ________________________________________________ 24
Host List Configuration ______________________________________________ 26
Channel 1 Configuration _____________________________________________ 27
Serial Settings__________________________________________________ 27
Connection Settings - TCP ________________________________________ 29
Connection Settings - UDP ________________________________________ 32
Apply Settings _____________________________________________________ 34
Apply Factory Defaults ______________________________________________ 34
5: Configuration via Telnet or Serial Port (Setup Mode) 35
Accessing Setup Mode ______________________________________________ 35
Telnet Connection_______________________________________________ 35
