INSTRUCTION / INSTALLATION SHEET
evōQ™ 1000 In-Ceiling and In-Wall
Speakers
IS-0294 Rev. B
301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
©Copyright 2006 by On-Q/Legrand All Rights Reserved. Page 1 of 3

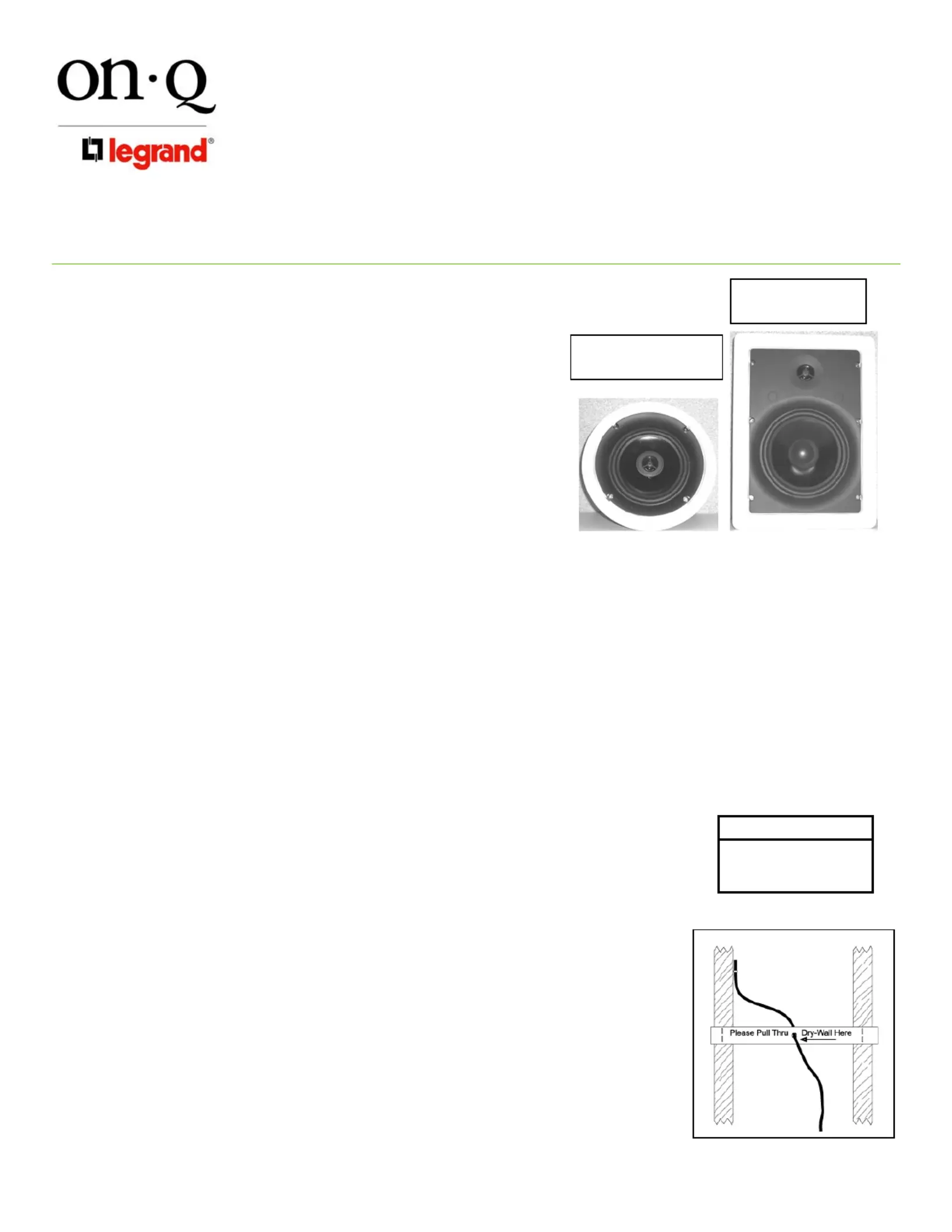

1. Introduction
On-Q/Legrand offers evōQ™ 1000 6.5” In-Ceiling (P/N MS1650)
and In-Wall (P/N MS1651) speakers which are optimized for
audio distribution (central sound). They are 2-way speakers that
feature Poly woofers and Mylar tweeters (see Figure 1). These
speakers come with dual templates with center markings and
paint rings.
Disclaimer: Make sure you are in compliance with local
building codes before installing these speakers. On-
Q/Legrand evōQ™ 1000 Speakers are suitable for moisture
rich environments such as bathrooms, saunas and outdoor
applications (not directly exposed to the weather).
2. Description
The On-Q/Legrand evōQ™ 1000 speakers are made of a tough semi-flexible plastic frames and feature a
perforated metal grill. All evóQ speakers, except sub woofers, are paint-able. They also come with painting
shields to protect the drivers while painting. These speakers are suitable for moisture rich environments.
They also feature flip out tabs for easy installation and removal.
3. Installation
Installation of the evōQ™ 1000 speakers is best accomplished at multiple times during new construction, at
“Rough-in” before the drywall is installed, and at “Trim-out” after the drywall is installed and painted.
A. “Rough-in” steps:
NOTE: It is recommended that a minimum of 16 gauge, 2 conductor wire be
used for most applications from the amplifier or volume control to the
speaker. Different gauges can, and should, be used based upon the
distance of the intended run or quality of installation (see Figure 2).
NOTE: All On-Q/Legrand lyriQ™ Audio components accommodate wire
gauges from 18 to 14.
1. Run x/2 conductor (x=gauge preference) stranded speaker wire from the
distribution/volume control to the speaker location (pre-wiring).
2. When pre-wiring, leave 4 to 6 feet of wire at the speaker’s intended
location. Use a strip of cardboard stapled to the joints/studs with a
hole through it as a wire place holder for the drywall installers (see
Figure 3).
3. Strip off 3 inches or so of the speaker cable jacket to expose the
positive and negative insulated wires.Strip 3/8-1/2 inch of insulation
off of these conductors.
Distance Gauge
<10 Feet 18
10-50 Feet 16
>50 Feet 14
Speaker Wire
Gauge Selection Chart
Figure 3
Figure 2
In-Ceiling Style
(
shown w/o
g
rill
)
In-Wall Style
(
shown w/o
g
rill
)
Figure 1
INSTRUCTION / INSTALLATION SHEET
evōQ™ 1000 In-Ceiling and In-Wall
Speakers
IS-0294 Rev. B
301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
©Copyright 2006 by On-Q/Legrand All Rights Reserved. Page 2 of 3

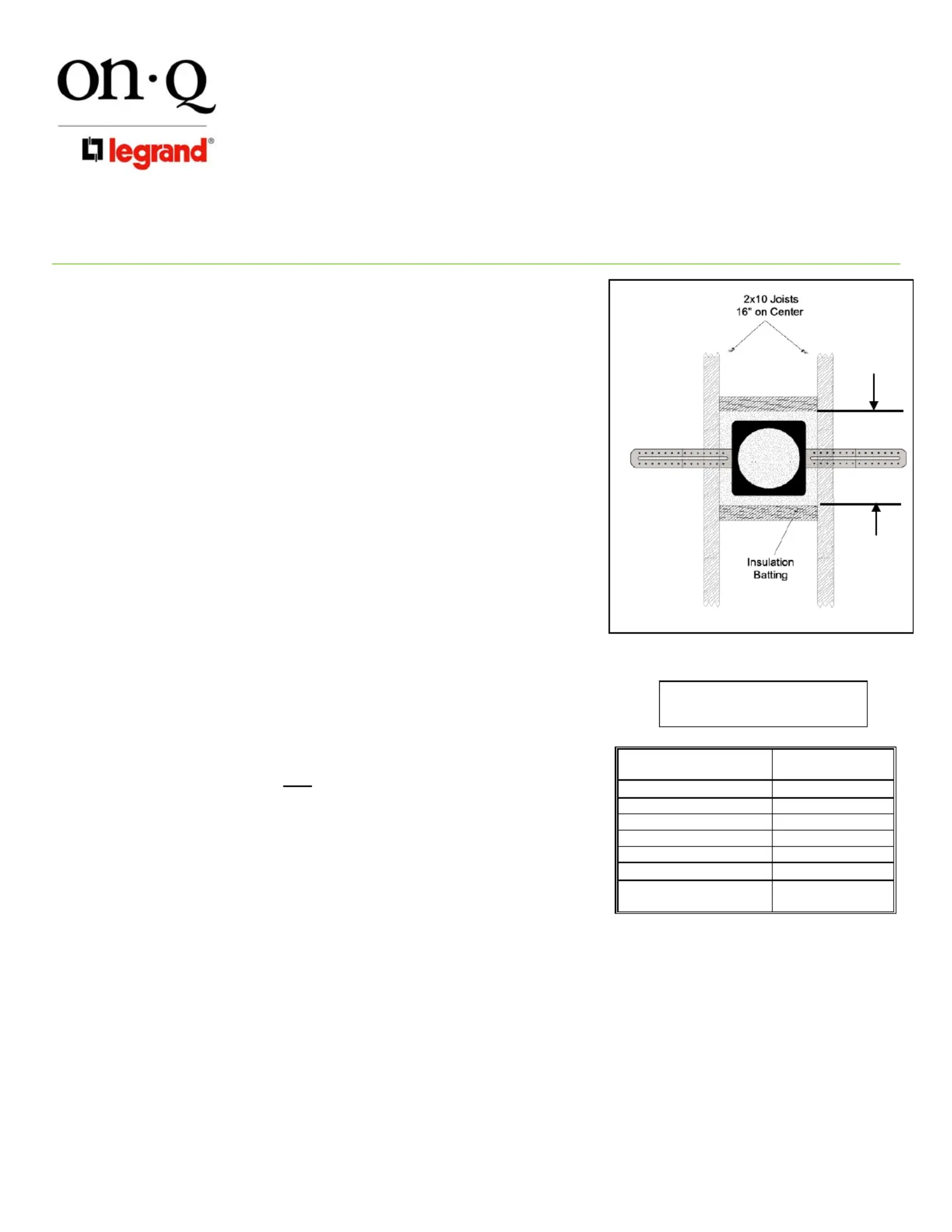

4. It is recommended to place insulation behind the speaker to
provide some damping for the woofer driver. This will yield the
best possible sound. On-Q recommends using poly-
encapsulated insulation such as Johns Manville Comfort
Therm®. If a defined, consistent sound is desired from both
speakers in a space, blocking can be installed to yield the ideal
cubic footage for each driver. Insulation would then be put in
this space during speaker installation. Refer to blocking
chart and Figure 4 for details.
5. If installing speakers in a space with an attic above it is
recommended that the speakers be boxed in with 1/2 inch
MDF (medium density fiber board) or plywood with insulation
installed. This will provide a defined acoustic space and
protect the speaker. The best possible sound will be achieved
by doing this. Refer to the blocking chart and Figure 4 for
details.
Note: Make sure you are in compliance with local building
codes before installing this speaker in an attic space.
B. “Trim-out” steps:
1. After drywall and/or painting is complete, push the speaker wire
through hole, center template over hole, mark with a pencil and
cut out with a dry-wall knife.
2. Hold the speaker with one hand, (if speaker grill is off, pay
careful attention not to push on the woofer’s cone, this can
cause permanent contortion of the voice coil, thus producing
a mechanical rubbing sound or speaker failure), push in the
speaker terminal connectors and insert wires; remove
speaker grill. Be sure to have the positive wire in the RED
terminal and the negative wire in the BLACK terminal.
NOTE: Wiring both speakers identically as the above
instruction states will yield speakers that are “in phase”. If
one speaker is wired opposite of the other, the speakers will
be “out of phase” with one another. If the speakers are “out
of phase” the sound might appear smeared (canned) and a
significant loss of bass might be noticeable due to phase
cancellation. Make sure every installed speaker is correctly
phased.
6.5" SPEAKER (0.7
CUFT)
BLOCKING
DISTANCE
16" on Center, 2x4 24.00"
16" on Center, 2x6 15.25"
16" on Center, 2x8 11.50"
16" on Center, 2x10 9.00"
16" on Center, 2x12 7.50"
24" on Center, 2x4 15.50"
24" on Center, 2x6 10.00"
evōQ™ Speaker Blocking
Chart
Blocking
Distance
Figure 4
INSTRUCTION / INSTALLATION SHEET
evōQ™ 1000 In-Ceiling and In-Wall
Speakers
IS-0294 Rev. B
301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
©Copyright 2006 by On-Q/Legrand All Rights Reserved. Page 3 of 3

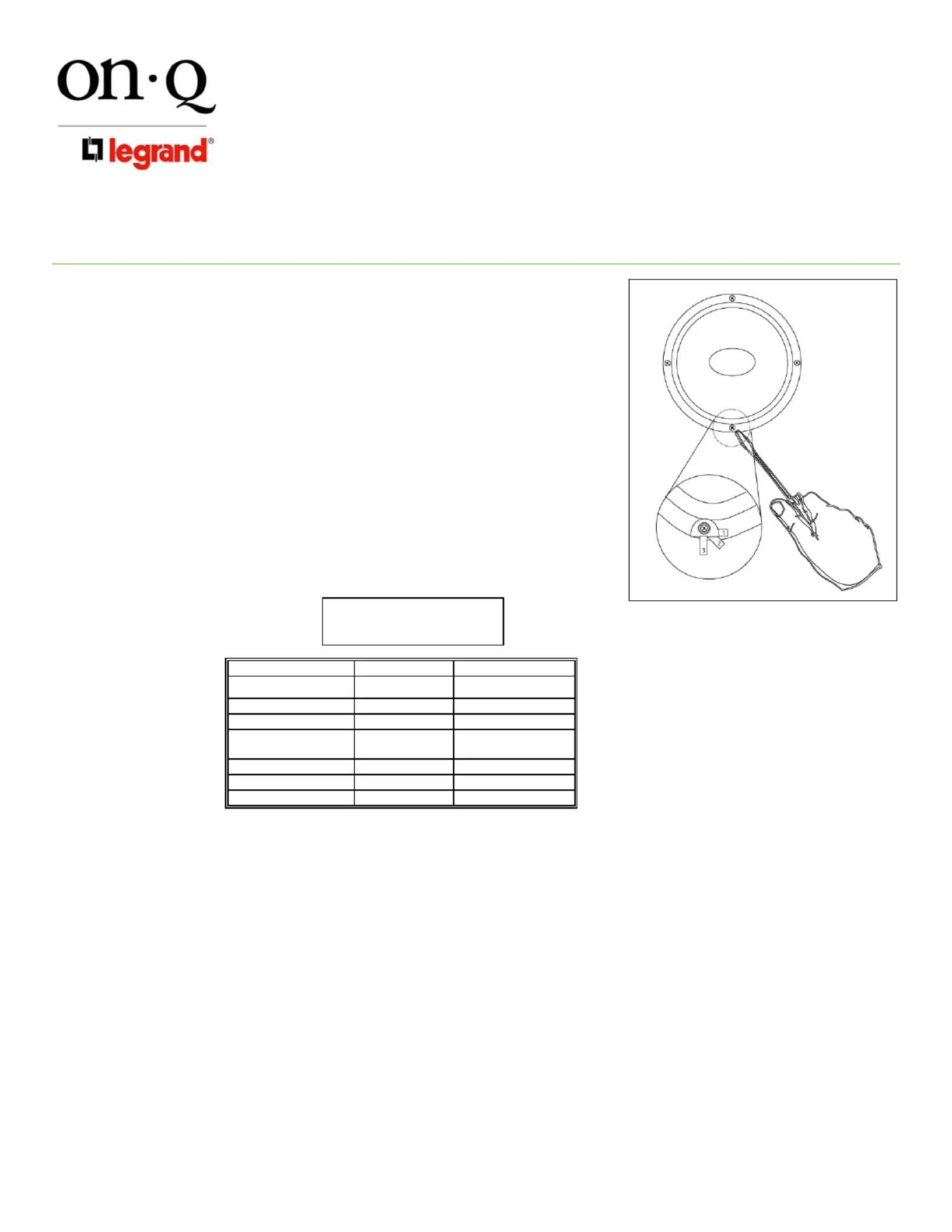

3 Use one hand to push the speaker into the cut out (again, pay
careful attention not to push on the woofer’s cone, this can
cause permanent contortion of the voice coil, thus producing
mechanical rubbing sound or speaker failure) and the other to
turn the screws that engage the installation tabs (see Figure 5).
Tighten the tabs in a cross or X-pattern until “snug”. Be careful
not to over tighten the tabs or damage could result. The speaker
should appear flush to the surface.
NOTE: If using a cordless drill/screwdriver, it is suggested that
the screws be turned until almost tight, then finish tightening
via a hand screwdriver.
NOTE: A strip of grill adhesive is provided to more securely
attach the speaker grills on final installation. Simply insert
several short strips evenly around the grill slot prior to insalling
the grill cover.
Figure 5
evōQ™ 1000 evōQ™ 1000
Size/Type 6.5" In-Ceiling 6.5" In-Wall
Efficiency 90dB 90dB
Power (RMS/Peak) 50W/100W 50W/100W
Frequency
Response
60-20K 60-20K
Woofer Type Poly Poly
Tweeter Type Mylar Mylar
Drywall Hole Size 7.75” dia. 7.5” x 10.75”
Speaker
S
p
ecifications
