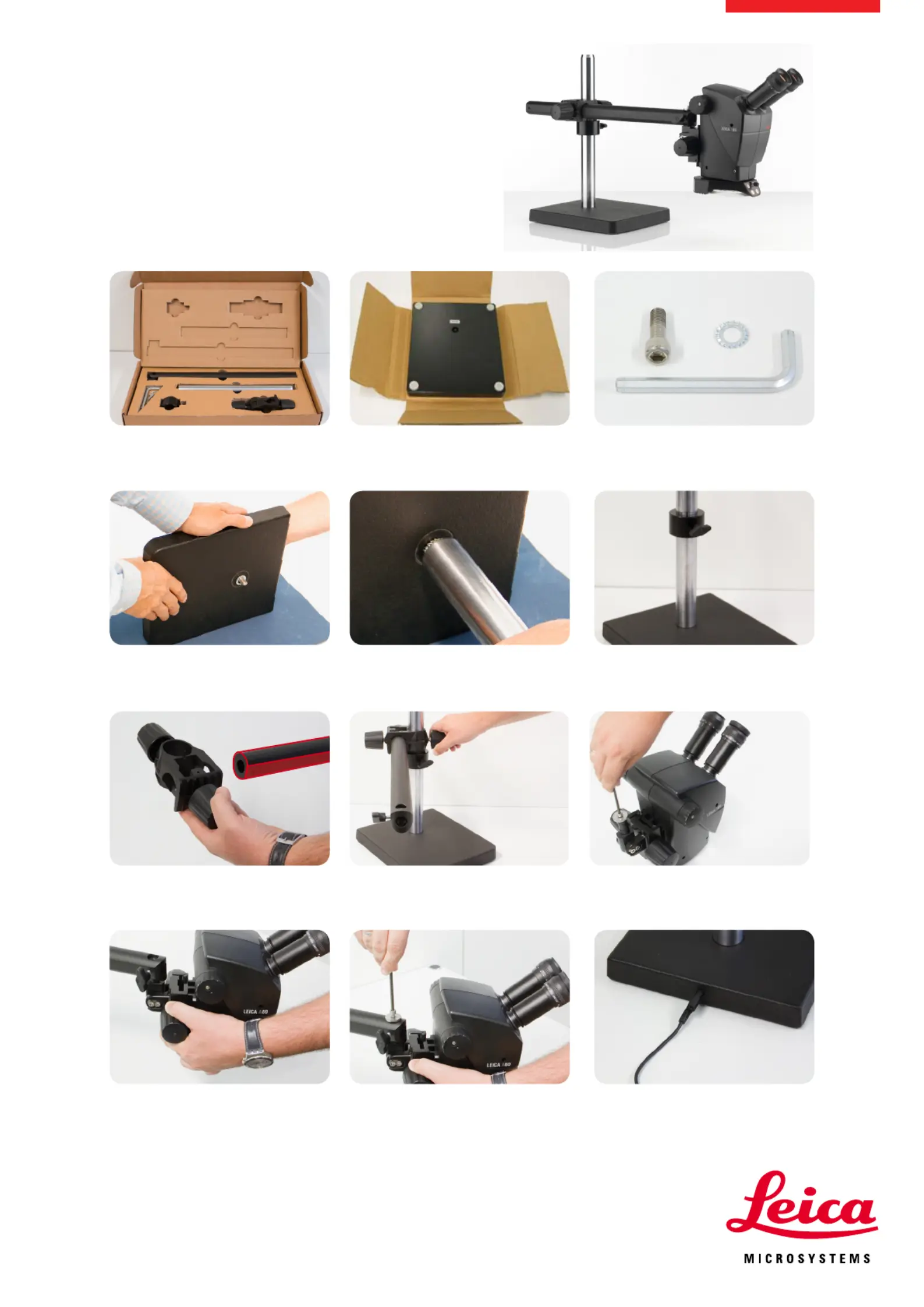

This assembly sheet does replace the complete manual not
on provided CD (i.e. LED illumination installation).
Note: two For safety reasons, it is highly recommend that
people assemble the column to the base plate. One person
should hold the base plate securely on a non-skid surface,
while the second person attaches the column to the base.
Insert horizontal arm into the cross joint
observing the flattening of the arm and
orientation of joint according to image.
Tighten allen screw connecting column
to base. washer must be Attention:
placed between base and column.
Take out parts from boxes. Place base
plate on non skidding surface.
Mount the safety clamp to the column.
One box contains horizontal arm, cross
joint, safety clamp & tools
Allen key, washer and allen screwOne box contains the base plate.
... and immediately secure the
instrument with previously removed
washer and screw.
If necessary connect base plate to
grounding cable with suitable plug.
Mount the Leica A60 to the horizontal
arm from below...
Place the cross joint on top of the
safety clamp on the column and lock
arm with referring knob.
Remove allen screw and washer from
the Leica A60 instrument as shown.
Leica A60 S – Assembly Sheet

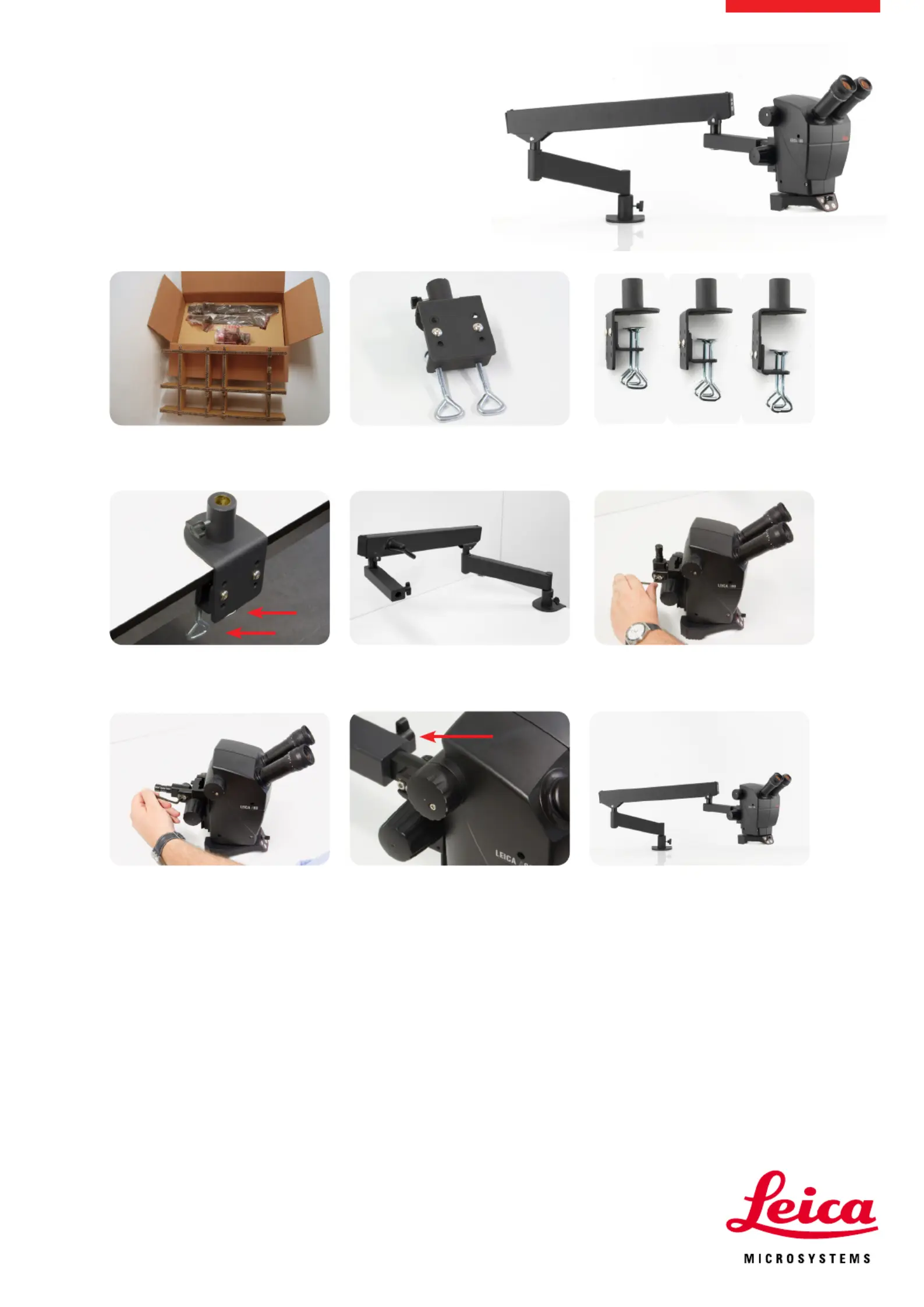

This assembly sheet does replace the complete manual not
on provided CD (i.e. LED illumination installation).
Insert arm into table clamp and tighten
screw.
Take out table clamp from box.
Box contains flex arm and table clamp.
Open the two screws on the focus arm
of the Leica A60...
...and bring pin into horizontal position.
Tighten screws again.
Leica A60 F – Assembly Sheet
Pick one of three positions of the clamp
according to table thickness.
Your instrument is now ready for usage!Attach Leica A60 to flex arm and
tighten knob to secure the instrument.
Choose position on table edge and
tighten well the two screws.
