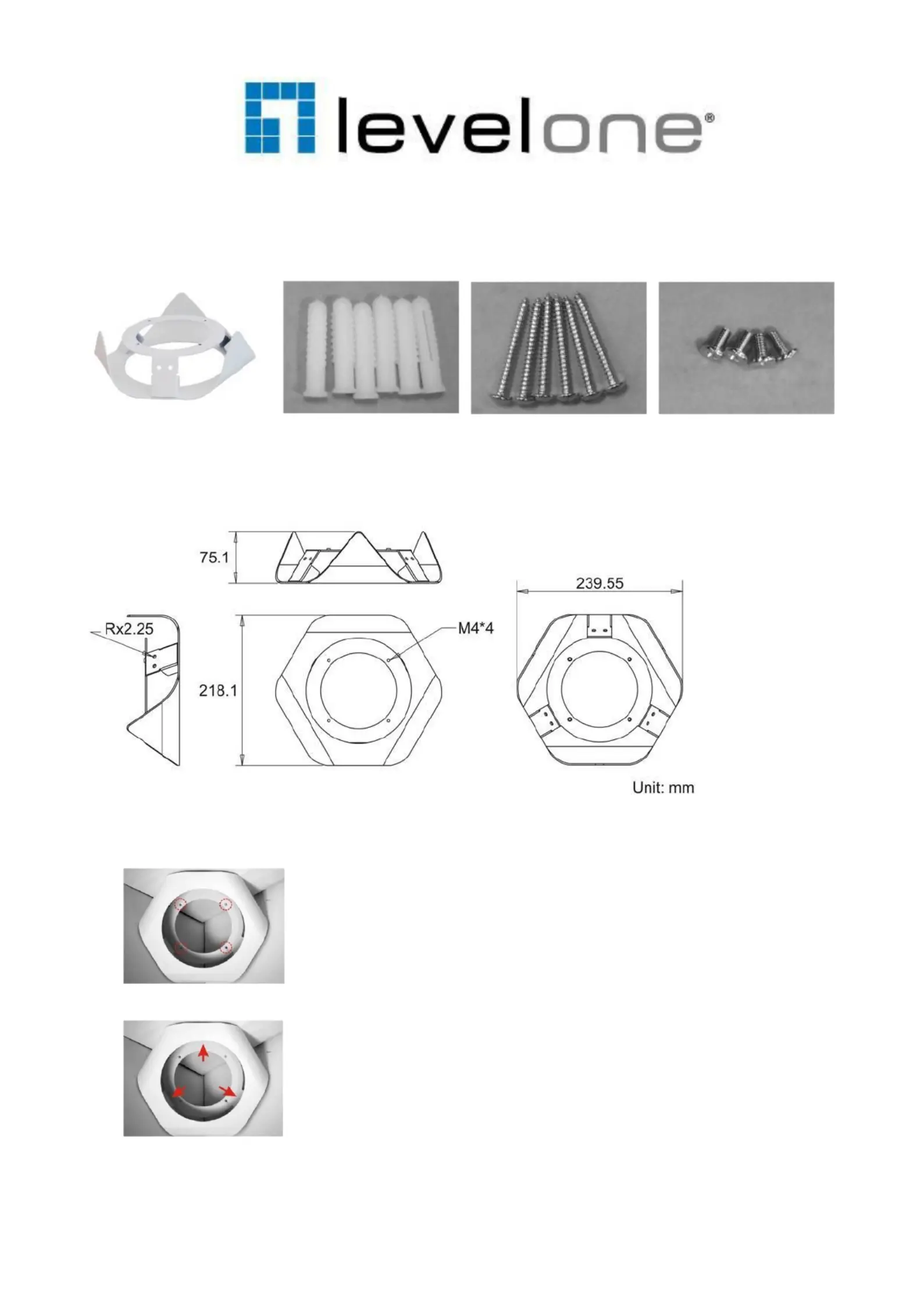

CAS-31 Interior corner mount 01
Corner Mount Kit Package Contents:
Corner Mount M4 Plastic Anchors (x 6) M4 Self-tapping Screws (x 6) M4 Mechanical Screws (x 4)
In-Ceiling Mount Dimension:
Installation steps:
1. Match the Corner Mount at the ceiling corner. Pl Housing/ Plate ease note that the Dome Camera’s
installing holes are in position as the right figure.
2. Drill six holes on the wall and the ceiling to install six M4 plastic anchors.
Fix the Corner Mount on the Ceiling by fastening six M4 Self-tapping Screws in the Plastic Anchors.
3. Place the Dome Housing/ Plate in the Corner Mount. Camera’s
NOTE: Please note that theSnap- Camera Module on is in position figure. as the
4. 45 Thread -the RJ cable through the Dome Camera’s Housing/ Plate.
5. Tighten the four M4 Mechanical Screws to install th e Dome Camera’s Housing/ Plate in the Corner Mount.
6. g/ Plat Place the Camera Module into the Dome Camera’s Housin e until there is a “click” sound.
7. on Tighten the screw on the Camera Module to fix the mera Module Ca the Dome Camera’s Housing/
Plate.
8. Connect the RJ-45 cable to the Camera Module, and then adjust the Dome Camera lens to a desired
angl e.
NOTE: The zoom level and focal length might be different with the Dome Cover on, in this case, adjusting
zoom level and focal length through Dome the Cover is recommended.
9. Install the Inner Cover Camera on the Module.
10. er Place the Dome Cov back in position, tighten the two Torx Screws with the supplied Security Torx.
