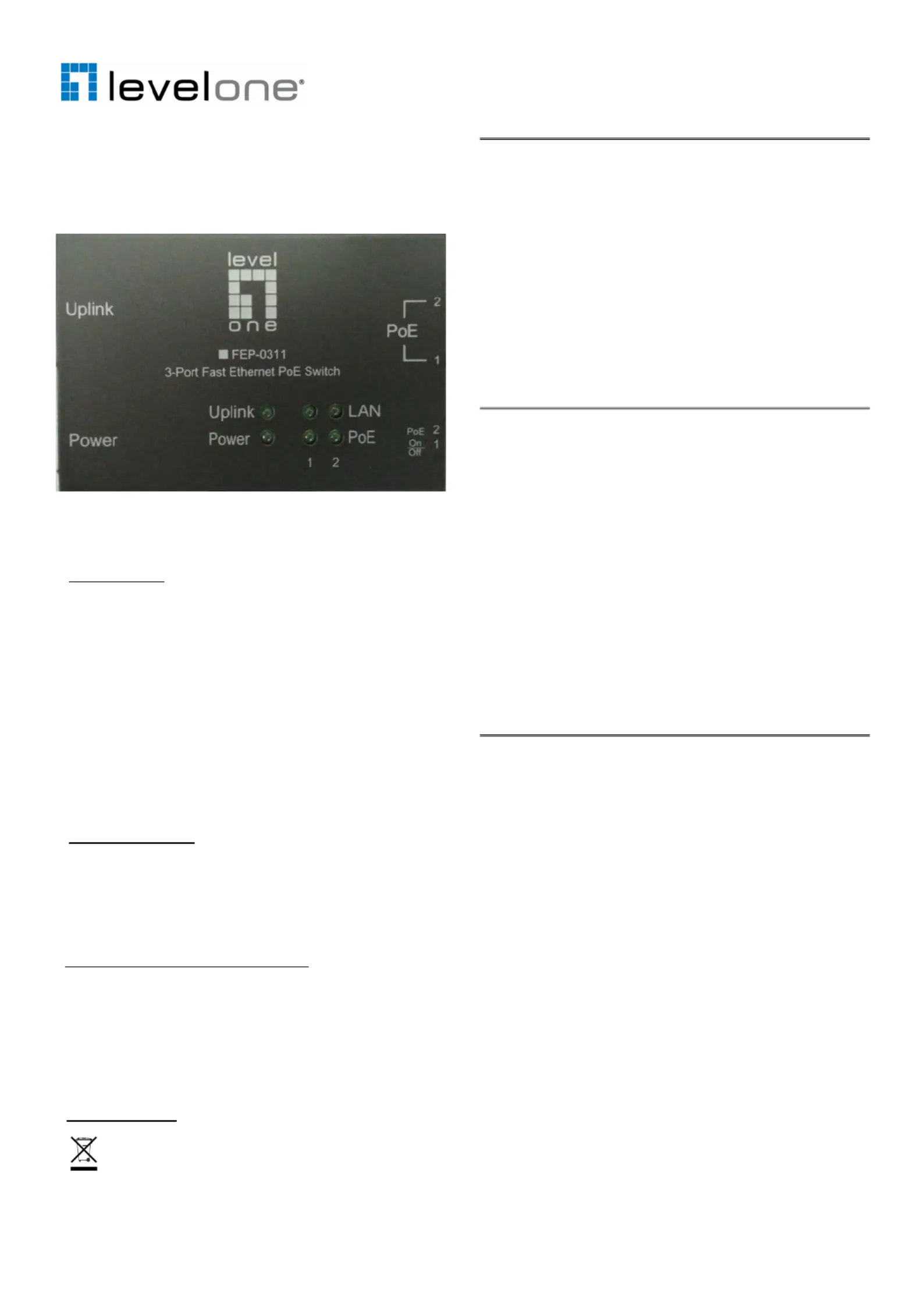

FEP-0311
3-Port Fast Ethernet PoE Switch, 2
PoE Outputs
User s Manual
FCC Warning
This device has been tested and found to comply with limits
for a Class A digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial environment.
This equipment generates and radiates radio frequency
energy and, if not installed and used in accordance with
the user’s manual, it may cause interference in which case
users will be required to correct interference at their own
expenses.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the
user may be required to take adequate measures.
Energy Saving Note of the Device
This power required device doesn t support Standby
mode operation. For energy saving, please remove the
power cable to disconnect the device from the power
circuit. Without removing power cable, the device will
consume power from the power source.
WEEE Warning
Package Contents
Thank you for purchasing our FEP-0311 series PoE
Switch.
Before installation, please check the contents of your
package for the following parts:
1. FEP-0311 x 1
2. User s Manual x 1
3. Power Adaptor x 1
4. Power cord x 1
5. Rubber Feet x 4
Product Introduction
The FEP-0311 series is a 2-Port Adjustable 10/100Mbps
802.3af/at Power over Ethernet + 1-port 10/100Mbps
Uplink switch with a total power of / /90 watts. 36 65
FEP-0311 series features IEEE 802.3af and IEEE 802.3at
High Power PoE capabilities that offer a combined power
output of upto 30w over Cat.5e/6 Ethernet cable. FEP-
0311 series is flexible to adjust PoE on/off via DIP switch
on device itself. Meanwhile, the PoE output could supply
60 watts. max. to powered device when only one PoE port
is enabled. Furthermore, users could also extend wire
coverage up to 600 meters with PoE extender or PoE
repeater in the network.
Key Features
Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u,
100BASE- TX
Complies with IEEE802.3af/at Standard
3-Port 10/100Mbps Fast Ethernet Switch
2-Port supports Power over Ethernet
Supports PoE power up to watts for each PoE port 50
External Power / /90Watts 36 65
Could supply 50 watts max. PoE output when one only
PoE port is enabled
PoE on/off selectable via a DIP switch on the unit
Over Current Protection / Over Temperature Protection /
Over Voltage Protection
Remote power feeding up to 100meters
Could extend up to 600 meters with PoE Extender or
PoE Repeater in the network
Made of metal and desktop / wall-mount design
To avoid the potential effects on the environment and
human health as a result of the presence of
hazardous substances in electrical and electronic
equipment, end users of electrical and electronic
equipment should understand the meaning of
crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste; WEEE has to
be collected separately.
Hardware Installation
1. Plug the included power cord into device and the
other end into an electrical socket. The “Power” LED
will be on
2. Connect other switch / PC / device to Uplink port.
UplinkLED is on
3. ed Connect your IEEE802.3af/at compliant Power
Devices (PD) to port 1 to 2 and the Switch will
automatically supply power through these ports.
Now, L PoEAN” “ and ” LED indicator are on.
Note: The device provides Physical DIP Switch to control PoE
on/off. When the DIP switch is set at off location, it will send data “ ”
only. However, if the DIP switch is set at location, it will deliver on
power and data together to PD devices. is suggested set DIP It to
switch before plug-in Ethernet Cable.
4. Ensure Powered device is on not, please make . If
sure all Ethernet cables are connected correctly and
tightly.
Note: The device is a power-required device, meaning it won ’t work
till it is powered. If your networks should be active all the time, please
consider using UPS (Uninterrupted Power Supply) for your device. It
will prevent you from network data loss or network downtime. In
some areas, installing a surge suppression device may also help to
protect your FEP-0311 from being damaged by unregulated surge or
current to the FEP-0311.
LED Indicators
Note: There are three different LED behaviors when FEP-0311 series connects
to PoE device or non-PoE device.
Application Diagram
Product Specification
Standard IEEE 802.3 10Base-T
802.3u100Base-TX / 100Base- IEEE FX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Copper Ports 3 10/100BASE-T RJ45, auto-MDI/MDI-X
PoE Injector Port 2 ports with 802.3at/af
Switch Architecture Store-and Forward
Address Table 4K entries,
Automatic source address learning
Share Data Buffer 48KB
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Filtering/Forwarding Rates 10Mbps port-14,880pps
100Mbps port-148,800pps
PoE Standard IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
PoE Power Supply Type Mid-span
PoE Power Output Per Port 56V DC, Max. 50 watts 48~
Power Pin Assignment 4/5(+), 7/8(-)
Total Power / / watts 36 65 90
LED Indicators Power plink LAN 2 / PoE 1~2 / U / 1~
Dimension (W x D H) 23 x 90 x 56 x mm
Power Requirement -56VDC / -60Hz External Power Adapter 48 50
Certification FCC/CE
Operating Environment Operating temperature: 0 40°C
Storage temperature: - 70°C 20
Humidity: 20 95% non-condensing
