Appendix Specifications
＊
＊
＊
＊＊
Standard: IEEE 802.3 / EEE 802.3u
＊
＊
＊
＊＊
Connector: 1 SC /ST FC fiber optic;
1 RJ45 jack
＊
＊
＊
＊＊
Max. Distance: Twisted pair (cat5): 100m
- Multi mode fiber optic: 2KM
- : Single mode fiber optic
20/40/60/80/120KM
＊
＊
＊
＊＊
Temperature: Operation: -10 to 50℃
＊
＊
＊
＊＊
Storage: - 40 to 70℃
＊
＊
＊
＊＊
Humidity: 10% 90%( non- - condensing)
＊
＊
＊
＊＊
Dimensions:
External Power: 94*70*26mm ( L*W*H )
Outside Power: 140*110*30mm ( L*W*H )
Fiber Optic Information:
Fiber Optic Retail:
Connector
Type
SC/ST
SC/ST/FC
Fiber Type
Multi Mode
Single Mode
Wavelength
850/1310nm
1310nm
Typical
Distance
2KM
25KM
Min TX
PWR
-18.0dBm
- 15.0dBm
Max TX
PWR
-10.0dBm
-7.0dBm
Sensitivity
- 30.0dBm
- 33.0dBm
Link
Budget
12.0dBm
17.0dBm
Connector
Type
SC/ST/FC
SC/ST/FC
Fiber Type
Single Mode
Single Mode
Wavelength
1310nm
1310nm
Typical
Distance
40KM
60KM
Min TX
PWR
-10.0dBm
- 5.0dBm
Max TX
PWR
-3.0dBm
0dBm
Sensitivity
-3 3.0dBm
-35.0dBm
Link
Budget
23.0dBm
30.0dBm
User's Guide

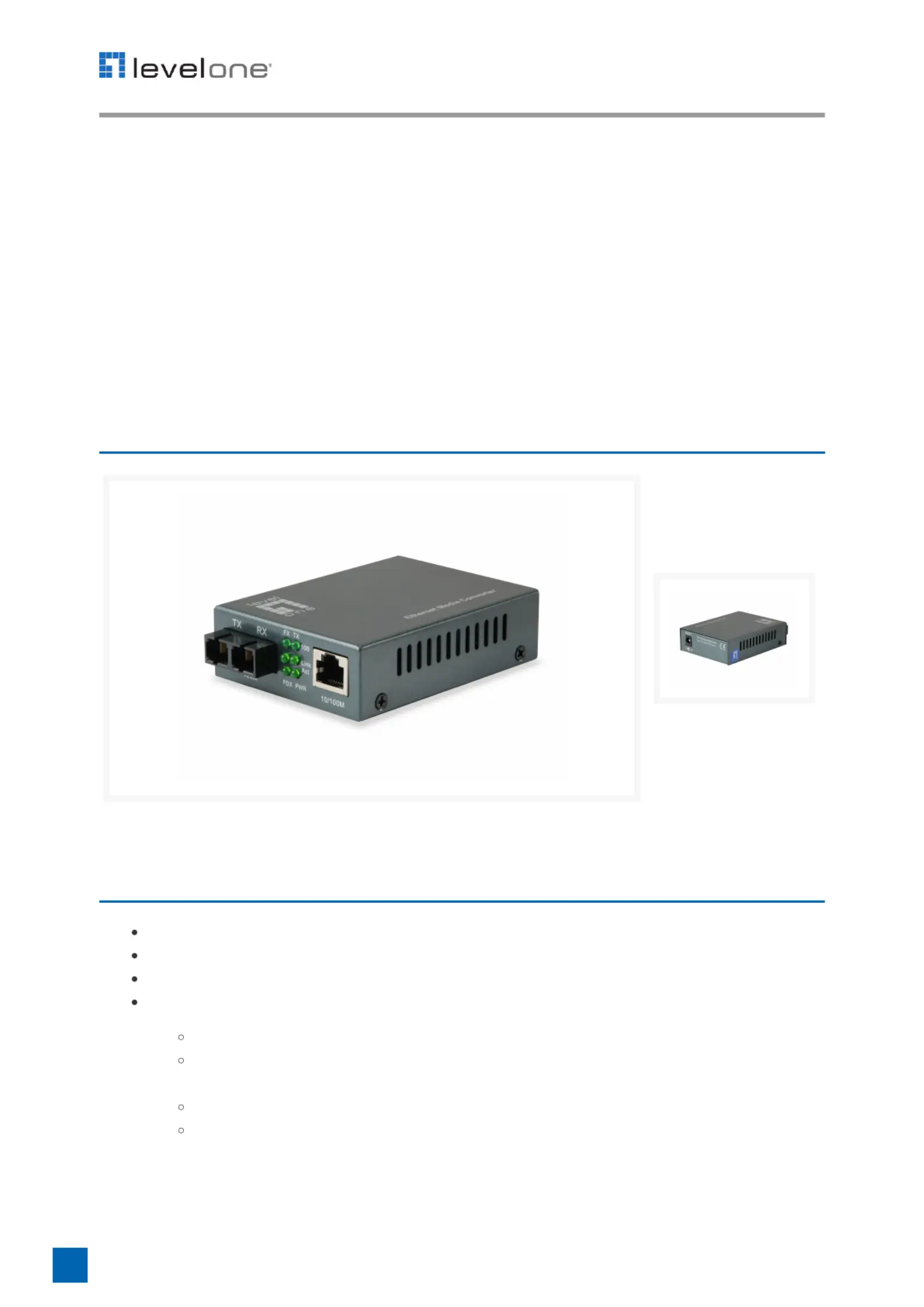

Fast Ethernet Media Converter
Introduction
The 10/100Mbps Fast E thernet converter media
tesb - -etween a 10/100 Base TX segment and a 100Base FX
segment. It is primarily designed for l arge, highermore
speed/bandwidth demandingw orkgroups that require
expansion of the Fast Ethernet network.
Package Contents
Before start using the products, make sure that
W hat you have is what you ordered:
The Converter includes:
＊ Fast Ethernet Media Converter
＊ Power Adapter
＊ ’ User s Guide
＊ Quick Installation Guide
＊ Declaration of Conformity
Features
＊
＊
＊
＊ ＊
Complies with 802.3u 10/100 Base- TX and
100 Base- . FX standards
＊
＊
＊
＊ ＊
Provide one SC fiber connector and one UTP
Connector.
＊
＊
＊
＊ ＊
Auto- detection of half/full duplex transfer
mode for TX port.
＊
＊
＊
＊ ＊
Auto- negotiation of 10/100Mbps rate and
Auto- Crossover for TX port.
＊
＊
＊
＊ ＊
Provide switch configuration of half / f ull
duplex transfer mode for the FX port.
＊
＊
＊
＊＊
Extend fiber distance up to 2KM for multi
- - mode fiber and 20 120KM for the Single Mode
fiber.
＊
＊
＊
＊＊
- – Easy to view LED indicators provide status
to monitor network activity easily.
Appearance Indication
LED indicators
This converter has LED indicators which can provide a real
time report. When you take a look at these indicators, you will
know what s happening on your network.’
LED
Color
Function
FX 100
Green
Lit when 100 Base- FX operation.
FX Link
/ ACT
Green
Lit when fiber cable connection
with remote device is good. Blinks
when any FX traffic is present.
Power
Green
Lit when +5V power is available
FDX /
Col
Green
Lit when Full Duplex Mode is
enable. Blinking when collision is
present.
FX 100
Green
Lit when 100Base- TX operation.
FX Link
/ ACT
Green
Lit when TP cable connection with
remote device is good. Blinks when
any TX traffic is present.
Installation Procedure
1. Converter to 10/100 Base hub or switch) -TX Device (
connection.
＊
＊
＊
＊＊
Make sure that the length of twisted pair cable
( - -category 5) between 10/100Base TX device and converter is
no longer than 100 meters.
＊
＊
＊
＊＊
Connect one end of twisted pair cable to RJ45 jack on the
converter and the other end of the cable to the RJ45 jack on
the 10/100 Base- TX device.
2. 100Base evice Connection Converter to Converter or -FX D
connect one(SC)end of a fiber cable to the SC connector on
the converter end of the cable to the SC connector on the
converter and the other end of the cable to the SC connector
on the other converter or 100Base-FX device.3. Turn on the
power.
Notice:
The WDM Converter A is SC fiber connector works at 1550nm
on transferring data and at 1310nm on receiving data in one
Single Mode fiber.
The WDM Converter B is SC fiber connector, Inversely, works
at 1310nm on transferring data and at 1550 nm on receiving
data in a fiber. So the WDM Converter A and the WDM
Converter B must use as partnership together.
