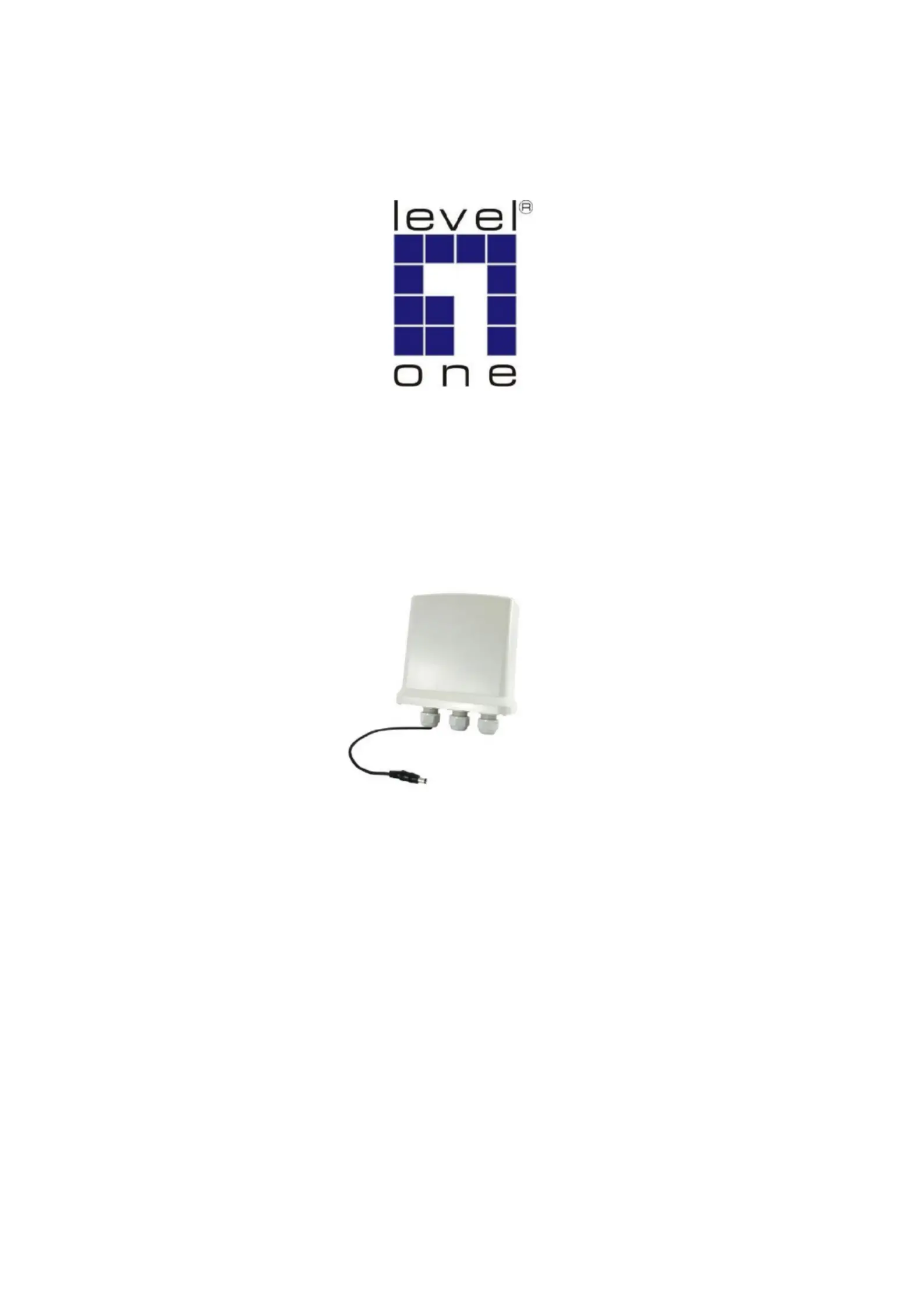

POS-4001
Outdoor High Power PoE Splitter 12V
User Manual
POS-4001 is an outdoor high power PoE Splitter 12V for use in Power over Ethernet systems. With Ethernet
Input (data + power) port and Output (data only) port, POS-4001 may split power from existing LAN cable
and convert up to 12VDC/2.5A for power hungry applications such as Wireless APs, Security cameras and
IP Phones. The internal current limit, short-circuit and overload protection are implemented to provide up
to 12VDC/2.5A for use of DC output power.
POS-4001 can work in pair with POI-4000, a high power PoE Injector, to deliver up to 12VDC/2.5A for use of
high power devices. POS-4001 itself is powered by POI-4000 and so requires no separate power
connection in the middle of the cable, making it extremely easy to connect and power IP cameras.
The POS-4001 is compliant to IP-66 weather proof from snow, rain, typhoons, desert heat, etc. this Outdoor
PoE Splitter POS-4001 is up to the challenge for deployment in any harsh weather condition.
Advantages:
12VDC 2.5A High Power PoE Power Splitter
Split Power Over Ethernet (POE) to remote devices
DC OUTPUT: 12VDC (default), 9, 6, 5, 3.3VDC(Optional)
Ethernet 100Mbps Wire Speed
Simple to install – Plug & Play
IP66 weatherproof design
Technical Specifications:
LAN Interface:
IEEE 802.3x, Auto-Detection for 10/100BaseT and full/half duplex
Standard Straight-through, or Cross-over CAT 5 cable
Automatic MDIX function
RJ-45 Connector x 2
POWER:
OUTPUT: DC12V/2.5A at full load
Regulations & Approvals:
FCC Rules Part 15 Class A
CE
Physical Dimension:
WxDxH: 180 x 165 x 95 (mm)
Operating Environment:
Humidity: 5% to 90% non-condensing
Temperature: 0 ~ 50 degree C
Application Diagram:
RJ-45 CONNECTOR & PINOUT
RJ-45 Input (Data + Power) RJ-45 Output (Data Only)
Pin Symbol Description Symbol Description
1 Rx+ Data Receive Rx+ Data Receive
2 Rx- Data Receive Rx- Data Receive
3 Tx+ DataTransmit Tx+ Data Transmit
4 -Vdc_return(+) Feeding power(+) NC Not Connected
5 -Vdc_return(+) Feeding power(+) NC Not Connected
6 Tx- Data Transmit Tx- Data Transmit
7 -Vdc Feeding power(-) NC Not Connected
8 -Vdc Feeding power(-) NC Not Connected
V1.0
POI-4000 PoE Injector & POS-4001 Outdoor PoE Splitter
Ethernet Switch
POI-400 POS-4001
100 m
DC
Power
12VDC 2A
(Maximum)
