Modular Projector Brackets

Manual

English

LINDY No. 40846, 40847, 40848 & 40849

www.lindy.com

User Manual

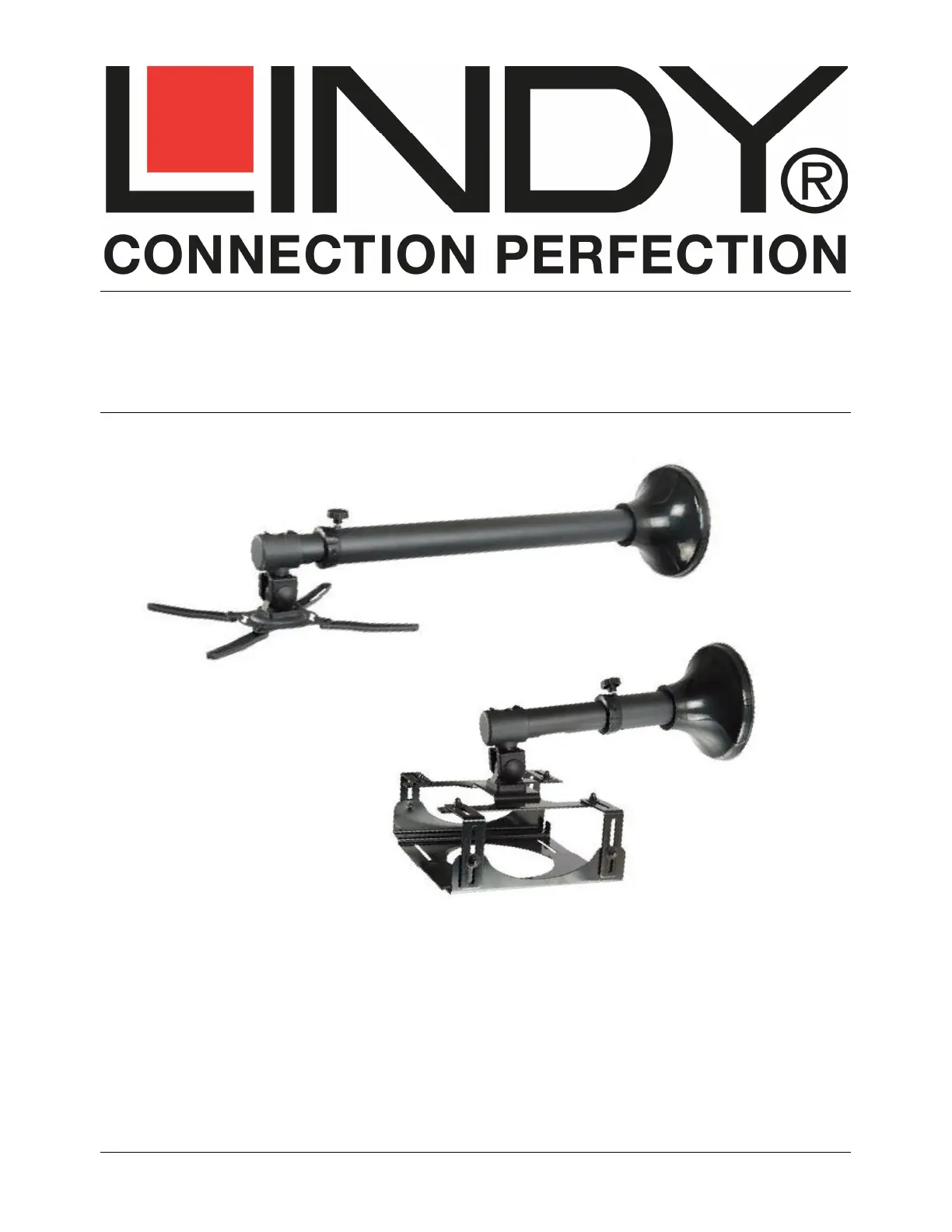

Thank you for purchasing the LINDY modular solution for mounting projectors in your

home, office or AV multimedia setup. Both products are universal and can support

most projectors up to a weight of 11.5Kg. The brackets and poles all have the same

black finish and also have the added benefit of a cable management system built in to

the poles.

This manual will show you how to assemble and adjust both types of bracket using

either the long or short pole. Please take note of the maximum weights supported by

the brackets to avoid any damage to your installation or equipment.

Both the long and short poles attach to the ceiling or wall in the same manner.

40846: 73 to 123cm from the wall/ceiling 31 to 41cm from the wall/ceiling 40847:

Each pole has its own cable management system. Using a conduit up the centre of

the pole you can hide unsightly power and video cables from view.

The diagram below shows how the cable is fed through the pole and can either go up

through the ceiling or out through the side of the cable cover for a tidier appearance.

Assembling the “box” bracket: 40848

The “box” bracket comes with the following pieces:

–

123cm

–

41cm

User Manual

Note: you will need to adjust the size of the “box” bracket by loosening and

tightening nuts (C) depending on the size of your projector.

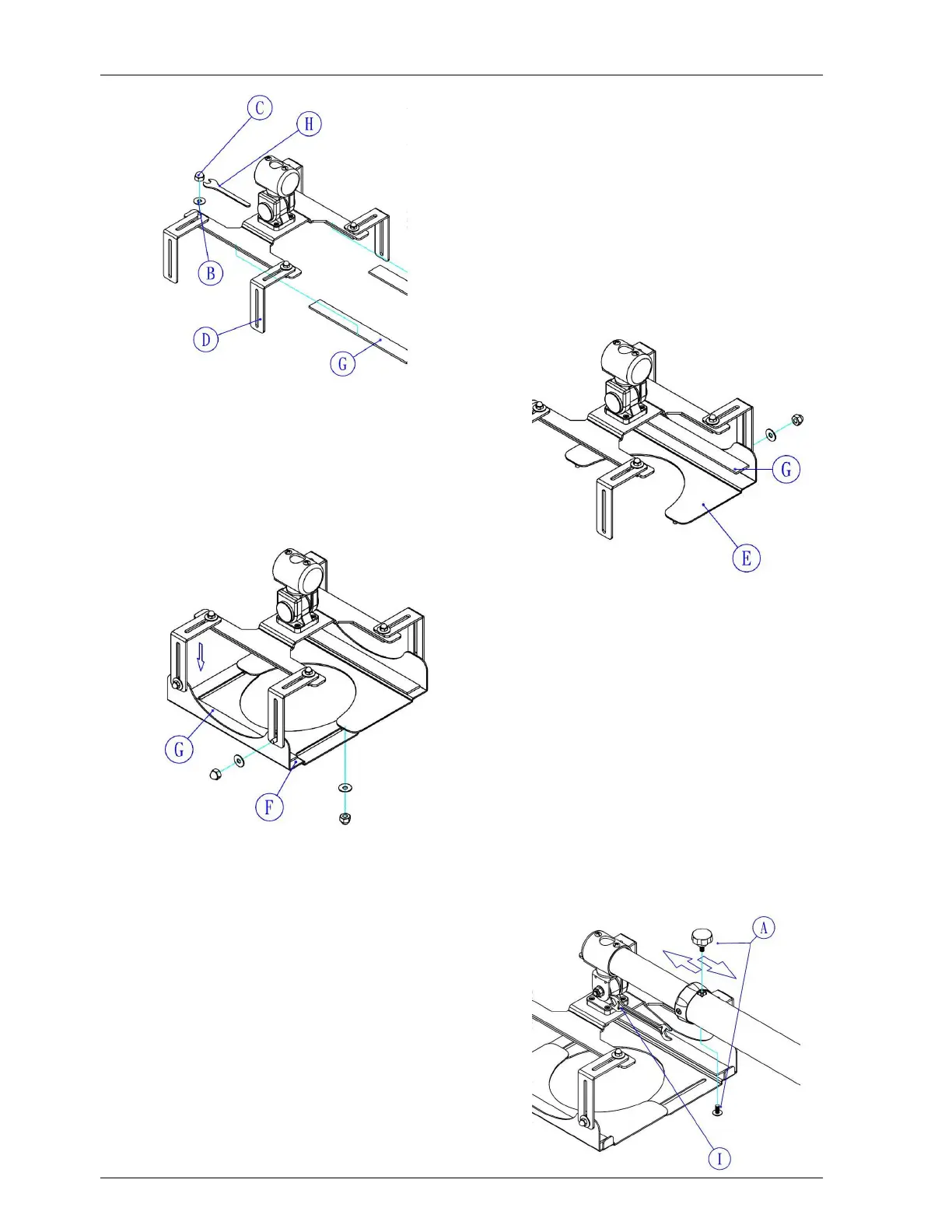

Step 1

Attach 2 foam strips (G) to the underside of

the main bracket as shown. This will

protect your projector from scratching

against the metal surfaces. Connect the 4 L

pieces (D) to each corner of the main

bracket using nuts (C), washers (B) and

tighten with

spanner (H).

Step 2

Attach the foam strip (G) as shown, to

bottom bracket (E). Using nuts (C) and

washers (B), attach the first part of the

bottom bracket (E) to the L piece (D).

Step 3

Attach the last foam strip (G) to the

second bottom bracket (F). Then attach

(F) to the L pieces (D) using the nuts (C)

and washers (B). The remaining nuts and

washers are to connect the two bottom

brackets (E) as shown.

Step 4

After attaching the main bracket to the

pole you can adjust the length of the

pole and lock it with screws (A).

Adjusting the bolt with the spanner (I)

will allow you to tilt and adjust your

projector to fit your requirements.
