MoonLite
INTRODUCTION
Thank you for buying a LumenRadio CRMX MoonLite product. This guide is intended to give you a quick
start to experience the benets of LumenRadio’s CRMX system.
The CRMX product you just purchased are designed to give you the highest reliability on the market
and are fully compatible with other CRMX products in entertainment lighting (CRMX Nova,
CRMX Outdoor, CRMX Slim, CRMX OEM). Through this you are able to expand
your wireless system with units from our other product lines as well as
with those of our partners. For the latest updates please visit
the LumenRadio website www.lumenradio.com.
The information furnished in this start guide is for informational use only and is subject to change without notice. Please
check www.lumenradio.com for latest version. LumenRadio AB assumes no responsibility or liability for any errors or
inaccuracies that may appear in this start guide.
All information and graphics are property of LumenRadio AB, Svangatan 2B, SE-416 68 Gothenburg, Sweden.
lumenradio
Creating Connectivity for a Better Tomorrow
Right green >80%
Mid green >60%
Left green >40%
Amber >20%
Red <20%
Link button - press
to link with, or unlink
from, another unit.
LED indicators - Mode, Status, Data
(See specications below)
We hope that you will enjoy
our products and that they
will bring benets and positive
experiences.
Mode (M)
BLE on (TX mode)
BLE on (RX mode)
RX mode
TX mode
RX mode
TX mode
Linked and synced
Transmitting
Linking or linked but not synced
Linking
color of ST = universe color selected by user
(green by default)
Not linked
DMX present
RDM, no DMX
RDM, with DMX
No DMX
when D = green, level bar displays battery level
when D = amber, level bar displays signal quality
Level indicators
- Signal quality and battery level
(See specications below)

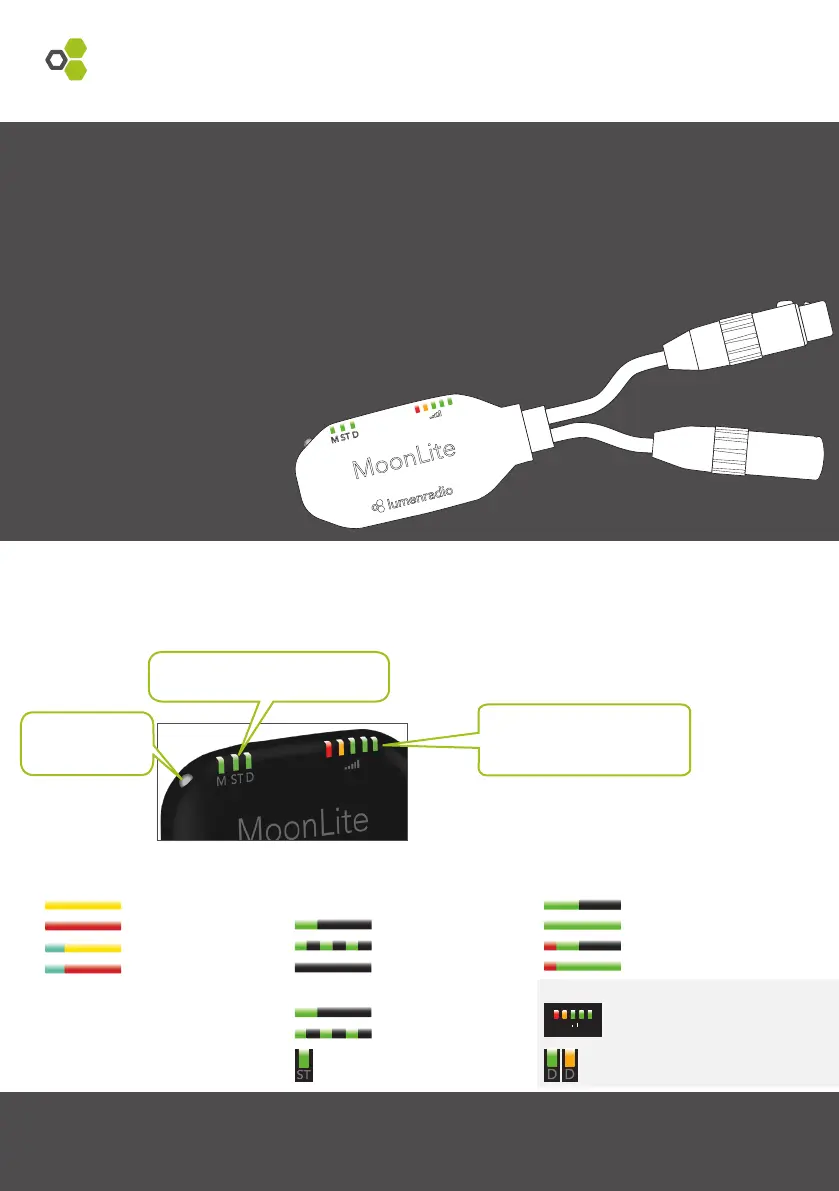

CRMX MOONLITE CONTROL PANEL
See the operation section for details on how to link and unlink CRMX MoonLite units.
Indicators turn off after 30 sec inactivity when running on battery, press the button to wake up.
Status (ST) Data (D)
Level indicators
LINKING
MoonLite can link with any other LumenRadio CRMX unit.
POWER ON/OFF
Power on the device by pressing and holding its link button for 5 seconds until the LEDs lights up.
Power off the device by pressing and holding its link button for 5 seconds until the LEDs turn off.
FLEX MODE CHANGING
MoonLite offers the ultimate exibility to operate as either a transmitter or a receiver. (RX by default)
The Mode LED indicator shows different colors depending on the units current conguration
Mode LED displays yellow: Receiver mode selected
Mode LED displays red: Transmitter mode selected
The mode can be changed in the CRMX Toolbox app. You can also switch mode by using a manual button
press sequence (see below).
MANUAL CHANGE OF MODE
1. If LEDs are off – press the link button once to wake up the device.
2. Press and release the link button ve times in succession, then immediately press and hold the button
for three seconds (until ST LED is lit).
3. You can now change the Flex mode as desired. The mode LED will indicate the selected mode by
blinking in the modes corresponding color (red/yellow).
• To step between Flex modes: Press and release the link button to move to the next mode.
• To save changes: Press and hold the link button for three seconds. The unit will revert to normal oper-
ation using the newly selected mode.
• To exit without saving changes: The unit will revert to normal operation if you do not press the link
button within fteen seconds.
The unit will continue to act as congurated until you activly change the mode (even if you turn the unit off).
MANUAL RESET OF PIN CODE
If LEDs are off – press the link button once to
wake up the device. Press and release the link
button seven times in succession. Then immedi-
ately press and hold the button for three seconds.
You have now successfully reseted the pin code.
SWITCHING BLUETOOTH ON/OFF
If LEDs are off – press the link button once to wake
up the device. Press and release the link button.
Then immediately press and hold the button for three
seconds. For full DMX integrity we recommend to
switch off Bluetooth during operation.
TO LINK
1. Power on the MoonLites you would like to connect.
2. Congure the MoonLite for RX/TX mode (see instructions below)
3. Ensure that the Status LED indicators on all receivers are off to
indicate that the receivers are ready to be linked. (If necessary,
follow the unlink procedure.)
4. On the transmitter, press and release the link button.
5. The transmitter will search for any unlinked receivers. Its Status
LED indicator will ash for 10 seconds and normal operation will
resume.
6. Status LED will display (in the selected universe color)
on successfully linked receivers.
TO UNLINK
• : Unlink one
On the receiver, press and hold
its link button for more than 3
seconds (until ST LED is lit) to
unlink it from a transmitter. The
Status LED indicator will turn off.
• : Unlink all
On the transmitter, press and
hold its link button for more
than 3 seconds (until ST LED is
lit) to unlink all of its receivers.
Link button
Male XLR
DMX passthrough
Status LEDs
USB Micro-B
Female XLR
Velcro fastening
MOUNTING
MoonLite comes with a velcro strap to
simplify mounting.
CHARGING
If you are running low on battery MoonLite can be charged
through the Micro USB port. The adaptor used for charging can
be any standard 5V USB with minimum 500mA output capability.
Charging time is about 3h.
During charging MoonLite will be fully functional and can be
powered through the Micro USB.
PRODUCT SPECIFICATIONS
MoonLite comes with Bluetooth connectivity and an internal
antenna. The rechargeable battery provides up to 12h operation
in receiver mode, with a charging time of only 3h.
UNIVERSE COLOR
To keep track of wich MoonLites belongs to which universe you can use the color pairing function available
in the CRMX Toolbox app.
1. Open the app and select the MoonLite congured for TX mode.
2. In the settings for this unit, select the color of your choice in the options shown.
3. The Status LED on your TX will now display your selected color.
4. All RX units linked to this TX will also show your selected color.
Until selecting a color, all units will have the green color by default.
