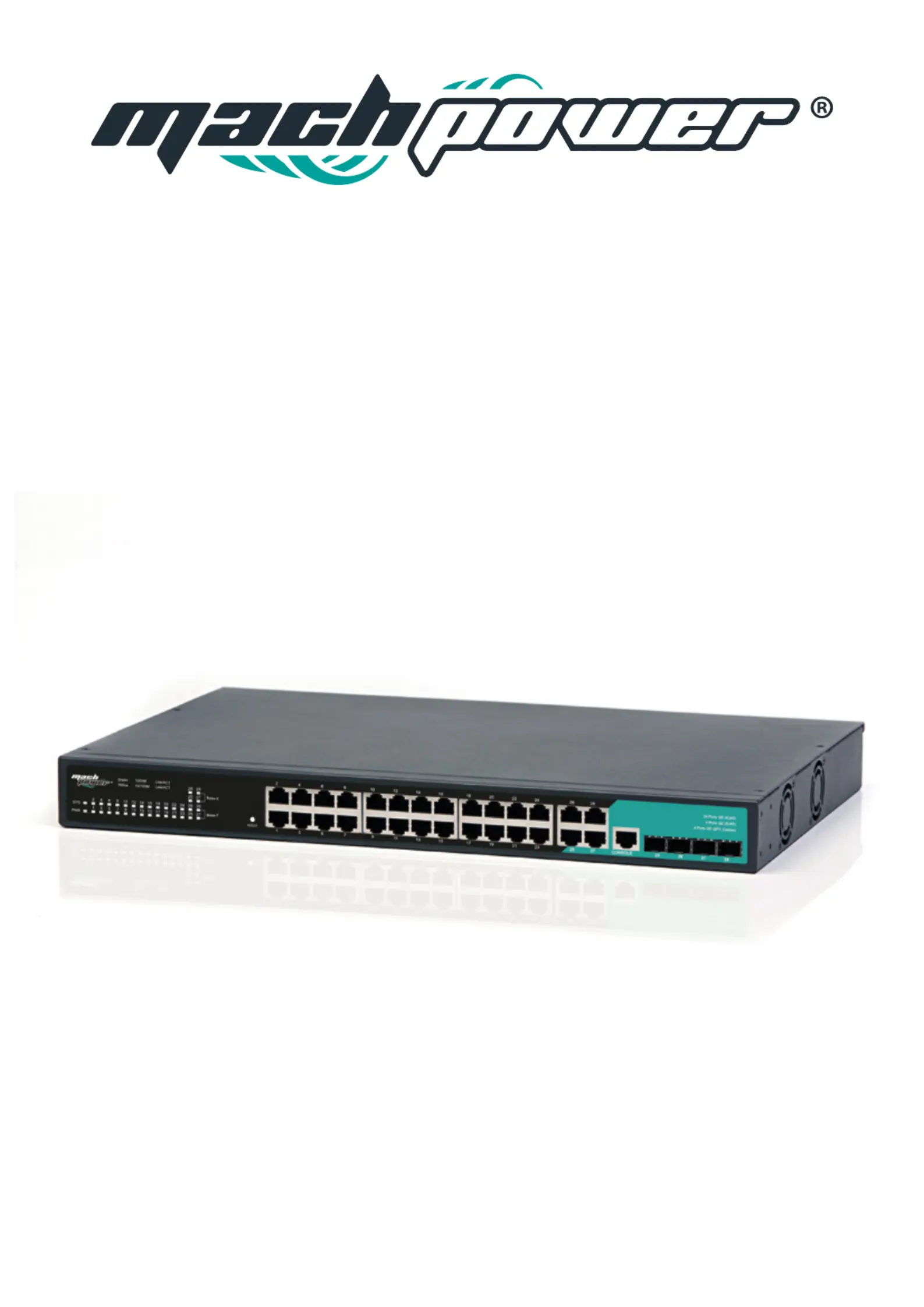

28-Port Gigabit L2
Managed Switch
SW-MG28L4F-073
Description
The switch is a full Gigabit management switch, which uses the unique optical port design of the industry,
breaking through the limitations of traditional multiplexing ports; reliable switching engine, broadband
telecommunication power supply design, fast and efficient loop protection function, escorting the stable
operation of your network; international "EEE" environmental protection and energy saving Standard design,
effectively saving electricity and money for users.
This series of products provide users with brand-new technical characteristics and solutions in the aspects of
security, reliability, multi-service integration, easy management and maintenance. It is the ideal convergen-
ce of office network, service network and resident network, access switch and the core switch of small and
medium-sized enterprises and branches.
Main Features
Non-blocking High-speed Forwarding
Support L2 level wire-speed port switching, which enables all ports to forward packets without blocking.
High Speed and Efficiency Ring Protection
Real-time Monitoring: Built-in configuration-free ring protection, can provide real-time monitoring and find
the network rings without delay.
Quick Alarm: The built-in buzzer quickly alarm when a ring is found , to warn the network administrator of
ring problems.
Precise Localization: The ring problem interface indicator will flash slowly and periodically to help the
network administrator precisely localize the ring port without any delay.
Intelligent Blocking: The switch can automatically block ring port when detect a ring problem, which can
efficiently avoid broadcast storm caused by ring problem and secure the normal network communication.
Auto-recovery: After the ring problem is removed, the network will recover automatically, the buzzer stop
alarming and ring port back to normal work.
Comprehensive Security Control Policies
Support link aggregation to enhance the network bandwidth and defend the network security with link
backup.
Support multiple spanning tree protocols: STP, RSTP,provide rapid convergence and improved fault-tole-
rant capacity. The network sable operation and load balance are well guaranteed, also improved the reaso-
nable use of network channels and redundant link.
Support the binding of user access interface, IP addresses and MAC addresses, to defend against inner
network ARP attacks and Dos attacks.
Support the Back-pressure traffic control under Half-Duplex mode and IEEE 802.3x traffic control under
Full-Duplex mode. The heavy traffic data peak can be switched stably without the concern of network paraly-
sis caused by overload.
Convenient and Quick Management and Maintenance
Adopt simple visual Web-based interface, which helps users to handle various functions easily and conve-
niently.
Support Simple Network Management Protocol (SNMP) that the devices are convenient to configure and
manage. Small and medium-sized enterprise customers can centralized manage the switch easily.
Support CLI command line management, suitable for professional network administrators.
Support Port Mirror Function, can monitor the ingress, egress or bi-direction packets.
Support resetting to factory defaults, make the maintenance more easily.
Innovative Energy Saving Design, the leader of low-carbon communication
Supports IEEE 802.3az(Energy Efficient Ethernet), port energy detection, CPU variable-frequency and device
hibernate technology, greatly reducing energy consumption and noise without compromising performance
and stability.
Technical Specification
Hardware Specifications
Fixed Ports
Consloe
Reset
Port Switching capacity
Forwarding Rate
Flash/RAM
Temperature
Humidity
Dimensions
Power
Power consumption
Weight
Lightning protection
MAC address table
LED Indicator
Software specifications
Forwarding mode
Protocol and Standards
MAC Address
VLAN
Spanning Tree
Port Aggregation
Port Mirroring
28 x 10/100/1000 Base-T ports
4 x 1000 Base-X SFP ports(Combo)
1
1
56Gbps
42Mpps
16MB/128MB
Operating temperature: (-10 - 50)°C
Storage temperature: (-40 - 70)°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) % RH, non-condensing
440(L) x 205(W) x 44(H) mm
AC: 100 ~ 240VAC, 50 ~ 60Hz, 5V/6A
30W
<3.5Kg
6KV
8K
Power,System ,Link/Act
Store-and-forward
IEEE 802.3, 10 Base-T Ethernet;
IEEE 802.3u,100 BASE-TX;
IEEE 802.3ab,1000 BASE-T;
IEEE 802.3z,1000 BASE-X;
IEEE 802.3az,EEE(Energy Efficient Ethernet);
8K MAC addresses,Support auto-update, two-way learning
Based Port VLAN
Up to 4096 VLAN
VLANs based on IEEE 802.1q
STP Spanning Tree Protocol
RSTP Rapid Spanning Tree Protocol
8 aggregation groups,each containing up to 8 ports;
Send and receive two-way port mirroring
