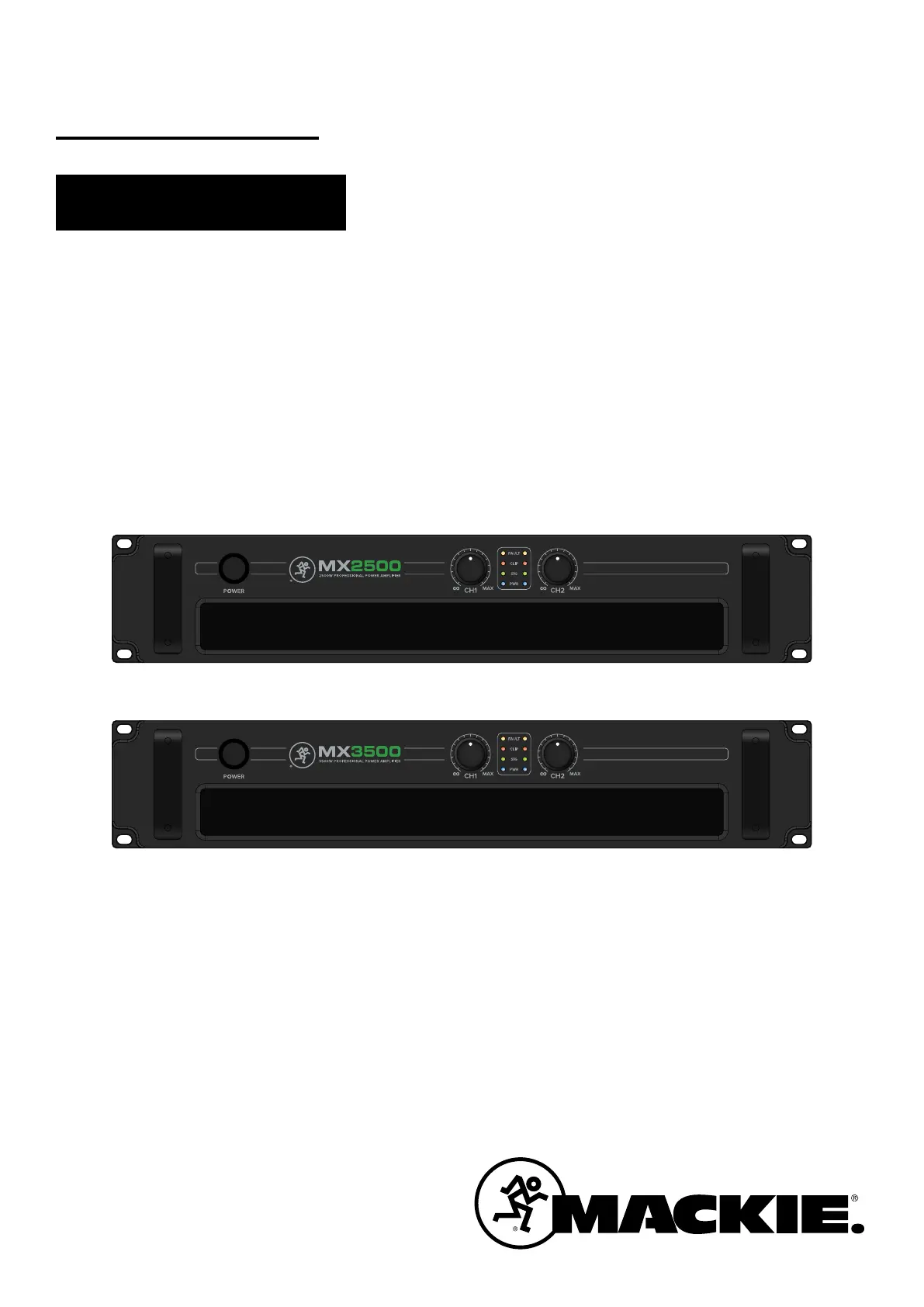

O W N E R ’ S M A N U A L

Professional Power Amplifiers

MX2500 • MX3500

MX Series Professional Power Amplifiers

2MX Series Professional Power Amplifiers

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8. Minimum distance (5 cm) around the apparatus for sucient ventilation.

The ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, table-cloths, curtains, etc.

9. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including ampliﬁers) that produce heat.

10. No naked ﬂame sources, such as lighted candles, should be placed

on the apparatus.

11. Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. A grounding-type

plug has two blades and a third grounding prong. The wide blade or the third

prong are provided for your safety. If the provided plug does not ﬁt into your

outlet, consult an electrician for replacement of the obsolete outlet.

12. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

13. Only use attachments/accessories speciﬁed by the manufacturer.

14. Use only with a cart, stand, tripod, bracket, or table

speciﬁed by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

15. Unplug this apparatus during lightning storms or when

unused for long periods of time.

16. Refer all servicing to qualiﬁed service personnel. Servicing

is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been exposed to rain

or moisture, does not operate normally, or has been dropped.

17. This apparatus shall not be exposed to dripping or splashing, and no object ﬁlled

with liquids, such as vases or beer glasses, shall be placed on the apparatus.

18. Do not overload wall outlets and extension cords as this can result in a risk

of ﬁre or electric shock.

PORTABLE CART

WARNING

CAUTION

The lightning ﬂash with arrowhead symbol within an equilateral

triangle is intended to alert the user to the prescence of uninsulated

“dangerous voltage” within the product’s enclosure, that may be of

signiﬁcant magnitude to constitute a risk of electric shock to persons.

RISK OF ELECTRIC SHOCK! DO NOT OPEN!

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL.

The exclamation point within an equilateral triangle is intended

to alert the user of the prescence of important operating and

maintaining (servicing) instructions in the literature accompanying

the appliance.

WARNING — To reduce the risk of ﬁre or electric shock, do not

expose this apparatus to rain or moisture.

CAUTION — To prevent electric shock hazard, do not connect

to mains power supply while grille is removed.

Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan.

Apparatet må tilkoples jordet stikkontakt.

Apparaten skall anslutas till jordat uttag.

19. This apparatus has been designed with Class-I construction and

must be connected to a mains socket outlet with a protective earthing

connection (the third grounding prong).

20. This apparatus has been equipped with a rocker-style AC mains power

switch. This switch is located on the front panel and should remain readily

accessible to the user.

21. The MAINS plug or an appliance coupler is used as the disconnect device,

so the disconnect device shall remain readily operable.

22. The use of apparatus is in tropical and/or moderate climates.

23. NOTE: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit dierent from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modiﬁcations to this device not expressly approved CAUTION:

by LOUD Audio, LLC could void the user’s authority to operate the equipment

under FCC rules.

24. This apparatus does not exceed the Class A/Class B (whichever

is applicable) limits for radio noise emissions from digital apparatus

as set out in the radio interference regulations of the Canadian Department

of Communications.

ATTENTION

— Le présent appareil numérique n’émet pas de bruits

radioélectriques dépassant las limites applicables aux appareils

numériques de class A/de class B (selon le cas) prescrites dans

le réglement sur le brouillage radioélectrique édicté par les ministere

des communications du Canada.

25. Exposure to extremely high noise levels may cause permanent hearing loss.

Individuals vary considerably in susceptibility to noise-induced hearing loss,

but nearly everyone will lose some hearing if exposed to suciently intense

noise for a period of time. The U.S. Government’s Occupational Safety and

Health Administration (OSHA) has speciﬁed the permissible noise level

exposures shown in the following chart.

According to OSHA, any exposure in excess of these permissible limits

could result in some hearing loss. To ensure against potentially dangerous

exposure to high sound pressure levels, it is recommended that all persons

exposed to equipment capable of producing high sound pressure levels

use hearing protectors while the equipment is in operation. Ear plugs or

protectors in the ear canals or over the ears must be worn when operating

the equipment in order to prevent permanent hearing loss if exposure is in

excess of the limits set forth here:

Duration, per

day in hours

Sound Level dBA,

Slow Response Typical Example

8 90 Duo in small club

6 92

4 95 Subway Train

3 97

2 00 Very loud classical music

.5 02

 05 Matt screaming at Troy about deadlines

0.5 0

0.25 or less 5 Loudest parts at a rock concert

Correct disposal of this product: This symbol indicates that this product should not be disposed of with your household waste, according to the WEEE directive (202/9/EU)

and your national law. This product should be handed over to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste

could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation

in the correct disposal of this product will contribute to the eective usage of natural resources. For more information about where you can drop o your waste equipment for recycling, please

contact your local city oce, waste authority, or your household waste disposal service.

Owner’s Manual

Contents Features

Part No. SW1269 Rev. A 01/19

• Aordable, reliable power perfect for DRM Series Passive

Loudspeakers, installations, and production audio systems

• Ultra-lightweight switching power supply for maximum

eciency and minimal heat

• Forced-air ventilation keeps the ampliﬁer running cool

• MX2500 Power output:

o 500W Continuous power @8 per channelΩ

o 750W Continuous power @4 per channelΩ

o 1500W Continuous power @ 8 bridgedΩ

• MX3500 Power output:

o 1000W Continuous power @8 per channelΩ

o 1350W Continuous power @4 per channelΩ

o 2700W Continuous power @ 8 bridgedΩ

• Selectable parallel/stereo/bridged operating modes

• Independent level control per channel

• Selectable input sensitivity

• Signal, Clip, and Fault LEDs per channel

• Short, under-impedance, over-current and thermal protection

• XLR Input and Thru per channel

• NL4 outputs

• Robust, impact-resistant, all-steel 2U rackmount chassis

Not available in the USA, Canada, China, Japan and other

100 – 120V countries

Like us

Watch our dang videos

Important Safety Instructions 2 ...........................................

Contents / Features 3 ............................................................

Introduction / Getting Started 4 ...........................................

Hookup Diagrams 5 ...............................................................

MX Series Ampliﬁers: Rear Panel Features.....................10

1. Power Connection 10 ...................................................

2. Circuit Breaker .......................................................10

3. XLR Inputs 10 ..............................................................

4. XLR Thru Outputs 10 ...................................................

5. NL4 Speaker Outputs 10 .............................................

6. Amp Mode Switch................................................... 11

7. Sensitivity Switch 11 ...................................................

8. Fan Vents 11 ................................................................

MX Series Ampliﬁers: Front Panel Features 12 ....................

9. Power Switch 12 ..........................................................

10. Level Controls 12 .......................................................

11. LEDs 12 .......................................................................

General Precautions 13 ..........................................................

AC Power Requirements 13 ............................................

Thermal Considerations 13 ............................................

Rack Mounting 13 ...........................................................

Care and Maintenance 13 ......................................................

Appendix A: Service Information 14 ......................................

Appendix B: Technical Information 16 ..................................

MX Series Ampliﬁers Dimensions.............................17

MX Series Ampliﬁers Block Diagram 18 ........................

Limited Warranty 19 ...............................................................
