MAGMATICEFFECTS.COM
1 1 - 27 - 202 3 MAG MAT I C E F FEC T S
MAGMA FOG 1500 IP-II
SPECIFICATIONS / TECHNICAL DATA
PRODUCT SPECIFICATIONS
PERFORMANCE
Rated Power: 1500W
Max Output: 60,000 CFM* (cu ft/min.)
Ready Time: Initial = 14 Minutes*
Fluid Capacity: 1.32 gallons (5 liters)
Fluid Consumption: 6.76 oz/min (200 ml/min)
*approximate
COMPATIBLE FLUID
Atmosity Extreme Filtered Fog Fluid (AEF-2L, AEF-4L, AEF-20L)
Atmosity Quick Fog Fluid (AFF-2L, AFF-4L, AFF-20L)
CONSTRUCTION
Thermally Protected Heat Exchanger
Rugged Case Design
Convenient Carry Handles
CONTROL
3 DMX Channel Modes (1 / 2 / 4)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and MAGREMOTE Wired Remotes
PRODUCT DESCRIPTION
The MAGMA FOG 1500 IP-II™ is a 1500W water based, IP67 rated fog machine with a
maximum output of 60,000 CFM (cu ft/min). Features include an easy-to-use onboard LCD
touch screen, an intuitive DMX-512 and RDM control, and optional wired and wireless remote-
control. Each MAGMA FOG 1500 IP-II comes equipped with a thermally protected heat
exchanger that has an initial warm up time of 14 minutes, with a fluid consumption rate of 6.76
oz (200 ml/min). This unit is designed with a durable aluminum housing, IP67 locking power in,
IP67 locking 5pin XLR connectors (DMX In/Out), a 5-liter (1.32 gallon) tank, two heavy duty carry
handles, and a hanging bracket for truss mounting.
KEY FEATURES
1500W IP67 water-based fogger
60,000 CFM (cu ft/min) maximum output
40 second burst @ 100% output
Continuous burst @ 20% output
Thermally protected heat exchanger
Intuitive DMX-512 and RDM control
Onboard LCD touch screen
Optional wireless and wired remotes
MAGMATICEFFECTS.COM
1 1 - 27 - 202 3 MAG MAT I C E F FEC T S
SPECIFICATIONS / TECHNICAL DATA
CONNECTIONS
Locking 5pin XLR Connector, DMX In/Out
IP67 Locking Power Connector In
With Wired Digital Communication Network
Locking 4pin XLR Connector for Manual Remote
SIZE / WEIGHT
Length: 25.5 in. (648mm)
Width: 13.3 in. (337mm)
Height: 16.2 in. (411mm)
Weight: 74.3 lbs. (33.7kg)
ELECTRICAL
AC120V 60Hz (US Version)
AC230V 50Hz (EU Version)
20A @ 120VAC(NFB)
10A @ 230VAC - 240VAC
Max Power Consumption: 1600W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 149°F (65°C)
ACCESSORIES
MagFLY (MSR934) Wireless DMX Transceiver Module
MagRF (MSR912) RF Module and Wireless Remote
APPROVALS / RATINGS
CE | IP67
Specifications and documentation subject to change without notice.

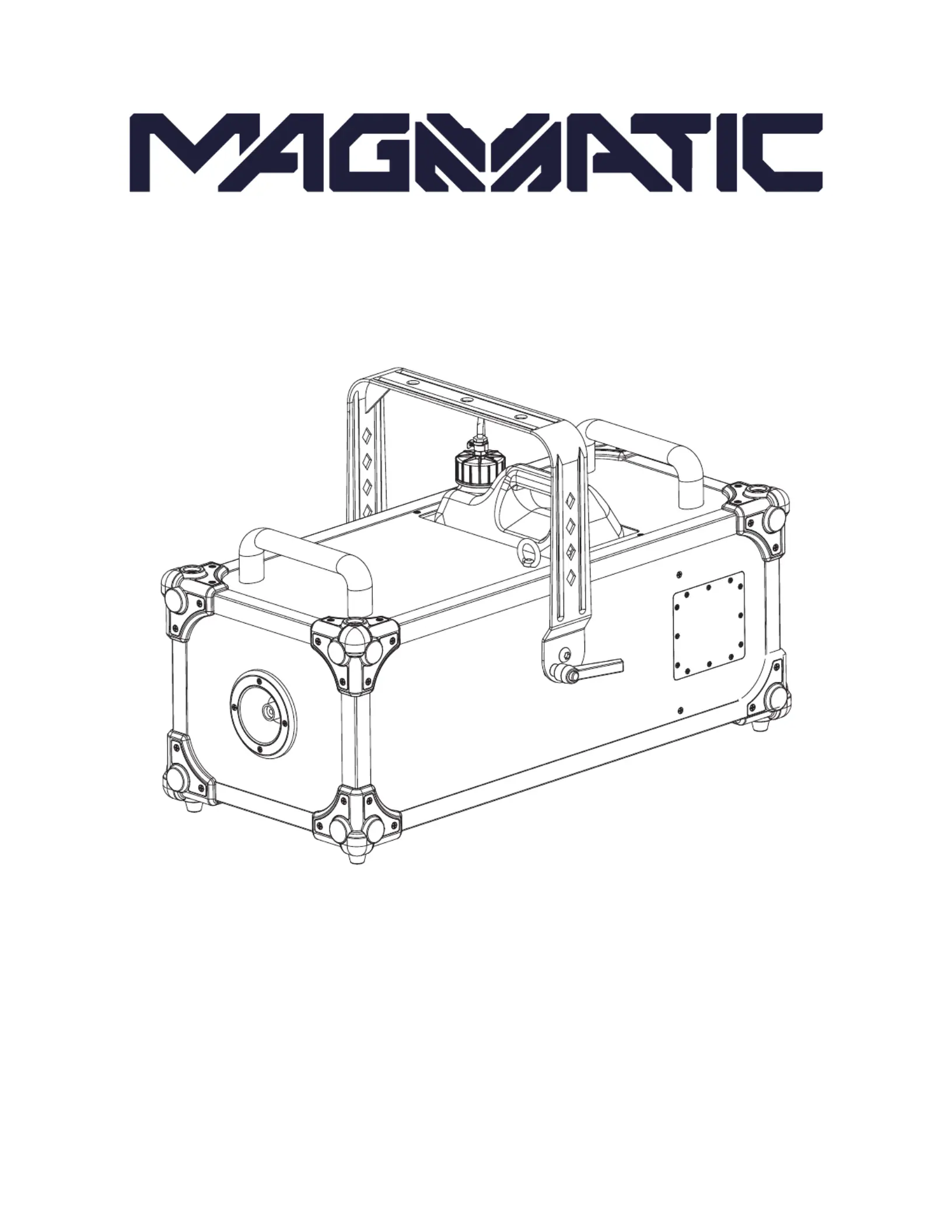

648 mm
( 25.5 in.)
337 mm
( 13.3 in.)
411 mm
( 16.2 in.)
MAGMA FOG 1500 IP-II
