Sida 1/12

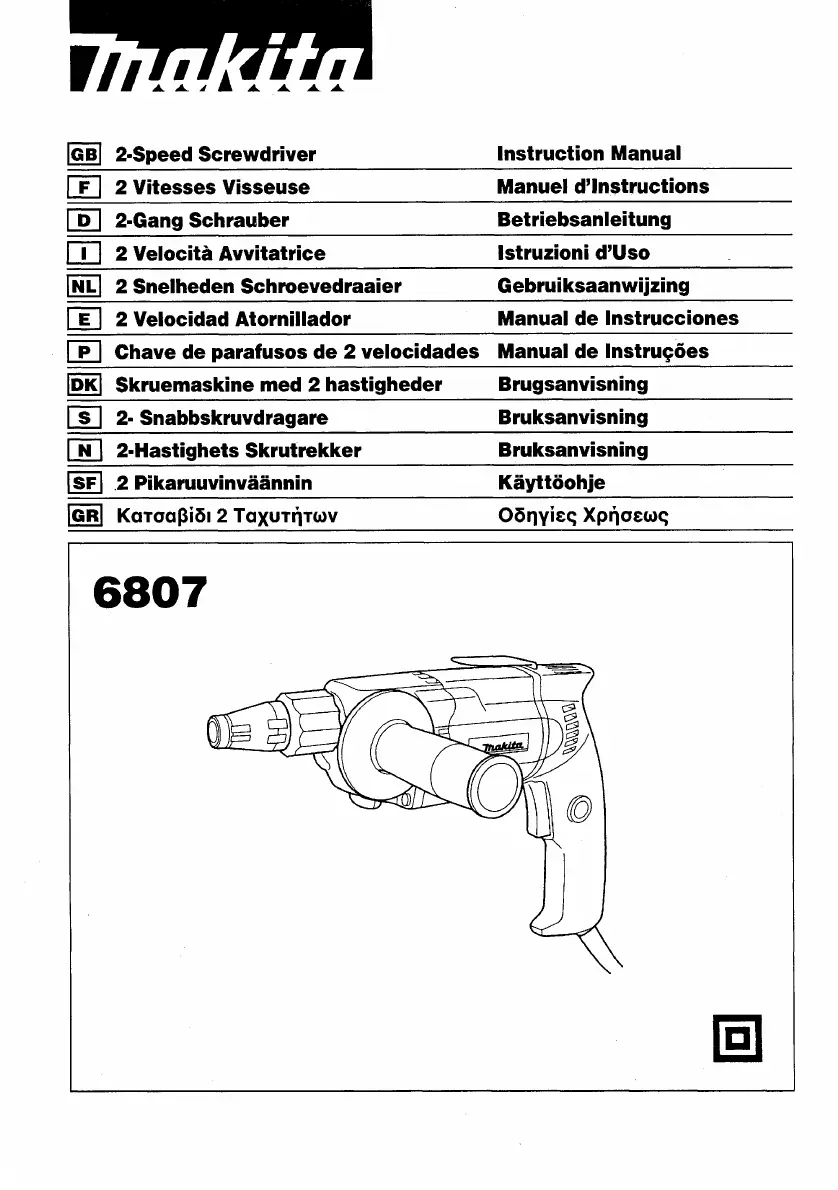

GB 2-Speed Screwdriver
Instruction Manual
F 2 Vitesses visseuse
Manuel d’instructions
D 2-Gang Schrauber
Betriebsanleitung
I 2 Velocità avvitatrice
Istruzioni per l’uso
NL 2 Snelheden schroevedraaier
Gebruiksaanwijzing
E 2 Velocidad atornillador
Manual de instrucciones
P
Chave de parafusos de 2 velocidades Manual de instruções
DK
Skruemaskine med 2 hastigheder Brugsanvisning
S
2- Snabbskruvdragare Bruksanvisning
N
2-Hastighets Skrutrekker Bruksanvisning
SF
2 Pikaruuvinväännin Käyttöohje
GR Κατσαβίδι 2 ταχυτήτων Οδηγίες χρήσεως
6807
2
1 2
3 4
5 6
7 8
9 9 1010
8-28-1
8
BA
6
7
5
4
3
1
3
2
3
2
3
1
A
B
3
ENGLISH
Explanation of general view
1 Locking sleeve
2 Approximately 1 mm
3 Locator
4 Bit
5 Magnetic bit holder
6 Switch trigger
7 Lock button
8 Reversing switch lever
9 Speed change knob
10 Pointer
SPECIFICATIONS
Model 6807
Capacities
Self drilling screw ........................................High: 6 mm
Low: 8 mm
Drywall screw .............................................High: 5 mm
Low: 5 mm
No load speed (min–1) .............................High: 0 – 2,200
Low: 0 – 1,000
Overall length .....................................................318 mm
Net weight .............................................................. 2.0 kg
• Due to our continuing program of research and devel-
opment, the specifications herein are subject to change
without notice.
• Note: Specifications may differ from country to country.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and can
only be operated on single-phase AC supply. They are
double-insulated in accordance with European Standard
and can, therefore, also be used from sockets without
earth wire.
Safety hints
For your own safety, please refer to the enclosed safety
instructions.
SPECIFIC SAFETY RULES
GEB017-1
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict
adherence to screwdriver safety rules. If you use
this tool unsafely or incorrectly, you can suffer
serious personal injury.
1. Hold power tools by insulated gripping surfaces
when performing an operation where the cutting
tool may contact hidden wiring or its own cord.
Contact with a “live” wire will make exposed metal
parts of the tool “live” and shock the operator.
2. Always be sure you have a firm footing. Be sure
no one is below when using the tool in high loca-
tions.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. Do not touch the bit or the workpiece immedi-
ately after operation; they may be extremely hot
and could burn your skin.
SAVE THESE INSTRUCTIONS.
WARNING:
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious per-
sonal injury.
OPERATING INSTRUCTIONS
Depth adjustment
The depth can be adjusted by turning the locking sleeve.
Turn it in “A” direction for less depth and in “B” direction
for more depth. One full turn of the locking sleeve equals
1.5 mm change in depth. (Fig. 1)
Adjust the locking sleeve so that the distance between
the tip of the locator and the screw head is approximately
1 mm as shown in Fig. 2 or 3. Drive a trial screw into your
material or a piece of duplicate material. If the depth is
still not suitable for the screw, continue adjusting until you
obtain the proper depth setting. (Fig. 2 & 3)
Removing or installing bit (Fig. 4 & 5)
Important:
Always be sure that the tool is switched off and
unplugged before removing or installing the bit.
To remove the bit, first pull the locator out of the locking
sleeve. Then grasp the bit with a pair of pliers and pull the
bit out of the magnetic bit holder. Sometimes, it helps to
wiggle the bit with the pliers as you pull.
To install the bit, push it firmly into the magnetic bit
holder. Then install the locator by pushing it firmly back
onto the locking sleeve.
Switch action (Fig. 6)
CAUTION:
Before plugging in the tool, always check to see that the
switch trigger actuates properly and returns to the “OFF”
position when released.
To start the tool, simply pull the trigger. tool speed is
increased by increasing pressure on the trigger. Release
the trigger to stop.
For continuous operation, pull the trigger and then push
in the lock button. To stop the tool from the locked posi-
tion, pull the trigger fully, then release it.
NOTE:
Even with the switch on and motor running, the bit will not
rotate until you fit the point of the bit in the screw head
and apply forward pressure to engage the clutch.
