Important:

Read this instruction manual carefully before putting the chain saw into operation and strictly observe the

safety regulations!

Keep this instruction manual!

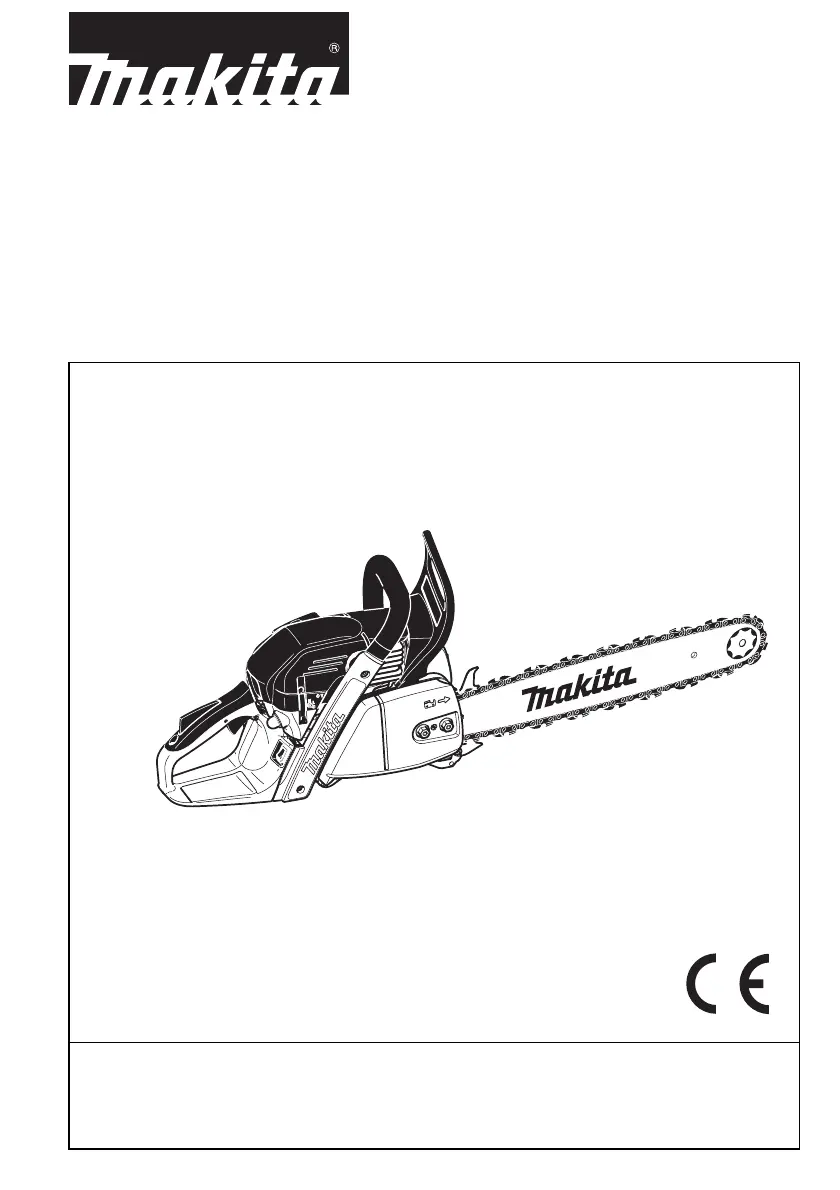

EA6100P

EA6101P

Instruction Manual

Original Instruction Manual

Thank you for purchasing a MAKITA product!

Congratulations on choosing a MAKITA chain saw! We are

conÞ dent that you will be satisÞ ed with this modern piece of

equipment. The EA6100P, EA6101P are very handy and robust

chain saws with a new Design.

The automatic chain lubrication with variable-ß ow oil pump

and maintenance-free electronic ignition ensure trouble-free

operation, while the hand-saving anti-vibration system and

ergonomic grips and controls make work easier, safer, and

less tiring for the user.

The Featherlight-Start system lets you start the saw effortlessly

with a spring-loaded starting assist.

MAKITA chain saw EA6100P, EA6101P are equipped with the

latest safety features and meet all national and international

standards. These features include: hand guards on both handles,

grip throttle lever lock, chain catch, safety saw chain, and chain

brake. The chain brake can be actuated manually, and is also

inertia-actuated automatically in case of kickback.

The following intellectual property rights and associated

other rights are applied in this equipment: DE 20301181,

DE20301182, US 7028658, US 7287505, DE 202008015755,

US 20100126455, DE 20314982, US 7191751 DE 10132973,

US 6648161, DE 202010016017, US 20120132180, DE

2007034181, US 7543554, DE 10191359, US 7033149,

DE 102006056924, US 7556020, DE 202008006013, DE

202012101134, DE 202009011430, US 20110048359.

In order to ensure the proper functioning and performance

of your new chain saw, and to safeguard your own per-

sonal safety, it is imperative that you read this instruction

manual thoroughly before operation. Be especially careful

to observe all safety precautions! Failure to observe these

precautions can lead to severe injury or death!

Table of contents Page

Delivery inventory .............................................................. 3

Symbols ............................................................................... 3

SAFETY PRECAUTIONS

General precautions .......................................................4

Protective equipment ...................................................... 4

Fuels / Refuelling ............................................................ 5

Putting into operation ...................................................... 5

Kickback .........................................................................6

Working behavior/Method of working ...........................6-7

Transport and storage .....................................................8

Maintenance ...................................................................8

First aid ...........................................................................8

Technical data .....................................................................9

Packing ................................................................................ 9

Denomination of components ......................................... 10

PUTTING INTO OPERATION

Mounting the guide bar and saw chain .................... 11-12

Tightening the saw chain .............................................. 12

Checking the chain tension ........................................... 13

Retightening the saw chain ........................................... 13

Chain brake ..................................................................13

Fuels ........................................................................14-15

Refuelling ...................................................................... 15

Checking the chain lubrication ......................................16

Adjusting the chain lubrication ...................................... 16

Starting the engine ........................................................17

Cold start ......................................................................17

Warm start .................................................................... 17

Stopping the engine ......................................................17

Checking the chain brake ............................................. 18

Working in winter ............................................................. 18

Handle heating .............................................................. 18

Adjusting the carburetor .................................................. 19

MAINTENANCE

Sharpening the saw chain .......................................20-21

Cleaning the inside of the sprocket guard .................... 22

Cleaning the guide bar ..................................................22

Replacing the saw chain ...............................................23

Cleaning the air Þ lter ..................................................... 24

Replacing the spark plug .............................................. 25

Checking the ignition spark ...........................................25

Checking the mufß er screws ......................................... 25

Replacing the starter cable/Replacing the return spring

cassette/Replacing the Featherlight -Start spring ....26-27

Mounting the fan housing ............................................. 27

Cleaning the air Þ lter compartment/fan compartment ... 28

Cleaning the cylinder Þ ns ..............................................28

Replacing the suction head .......................................... 28

Instructions for periodic maintenance ........................... 29

Service, spare parts and guarantee ................................ 30

Trouble shooting ..............................................................31

Extract from spare parts list ....................................... 32-33

Accessories .............................................................32-33

EU conformity declaration ............................................... 34

5 6 7

Delivery inventory

1. Chain saw

2. Guide bar

3. Saw chain

4. Chain protection cover

5. Universal wrench

6. Offset screwdriver

7. Screwdriver for carburetor adjustment

8. Instruction manual (not shown)

In case one of the parts listed should not be included in the

delivery inventory, please consult your sales agent.

Symbols

You will notice the following symbols on the saw and in the Instruction Manual:

Caution, kickback!

Chain brake

Fuel and oil mixture

Normal / Winter operation

Carburetor adjustment

Chain oil Þ ll/oil pump

Saw chain oil

adjustment screw

First aid

Recycling

CE - Marking

Read instruction manual and

follow the warning- and safety

precautions!

Particular care

and caution!

Forbidden!

Wear protective helmet,

eye and ear protection!

Wear protective

gloves!

No smoking!

No open Þ re!

Stop engine!

Start engine

Combination switch (Choke/ON/

STOP/Ignition current interrupted)
