LCD TV Converter/Tuner • User Manual English
Thank you for purchasing the MANHATTAN® LCD TV Converter/Tuner, Model 176156.
To view a datasheet with a detailed list of specications, go to
www.manhattan-products.com.
package contents
• LCD TV Converter/Tuner with stand
• Remote control (battery included)
• 8-pin to HD15 and audio cables
• Power adapter
• User manual
hardware installation
1. Turn o the power on the LCD TV Converter/Tuner and the computer monitor.
2. Connect the LCD TV Converter/Tuner to the computer and the monitor.
3. Connect the sound enclosure or any other device that has a sound input jack (such
as a sound card’s Line In port) to the converter/tuner’s Line Out port.
4. Connect the cable TV antenna to the converter/tuner’s antenna input.
5. Connect the AC/DC power adapter to the converter/tuner, then plug the power
adapter into an AC power outlet. The converter/tuner will automatically power up.
6. Connect the Video and/or S-Video Input to the Video Ouput jack of the selected
video unit (DVD, VCD, VCR, PS2, Gamestation, etc.).
IMPORTANT: It is necessary to initialize the LCD TV Converter/Tuner prior to use. First,
go to the menu and select “Search,” then click “Menu.” This starts a one-time auto-scan
of all channels. The procedure should take 5-10 minutes. The Status LED will blink
during the procedure.

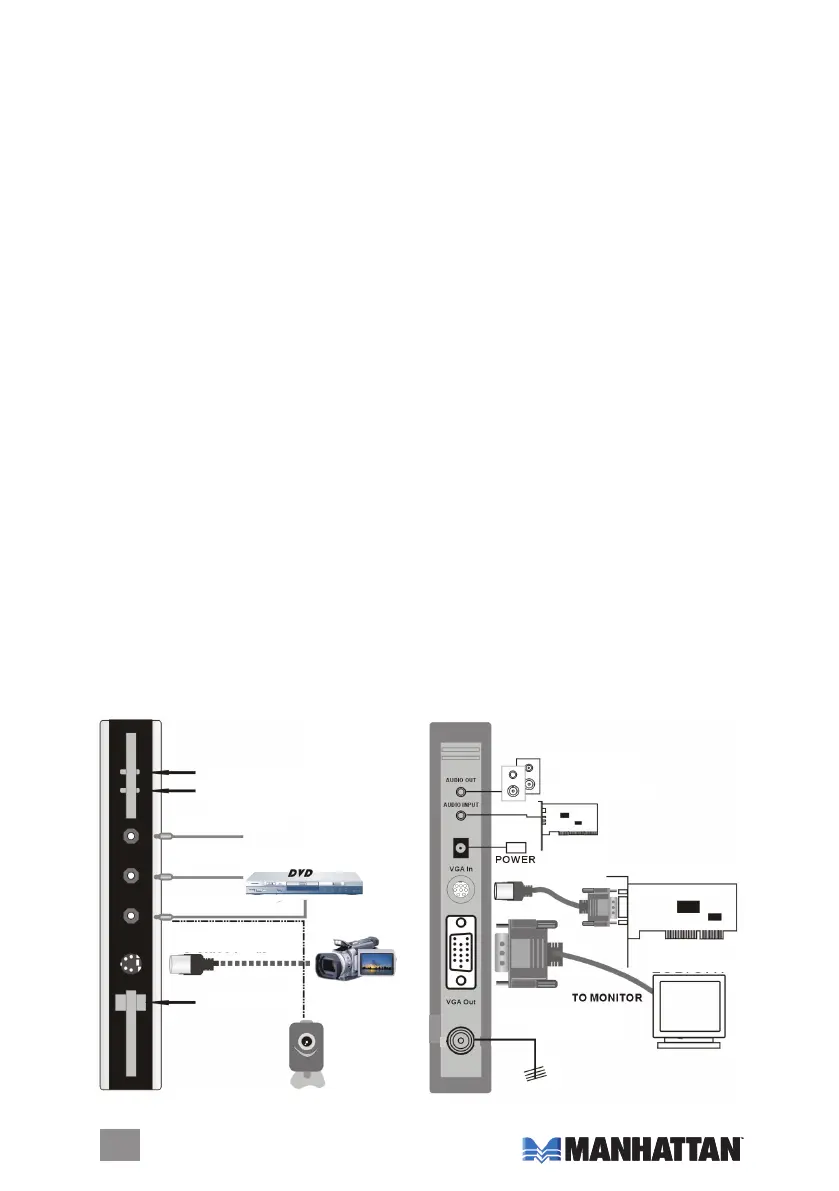

POWER /
STATUS
LEDs
CVBS VIDEO
ANT
Front
View
Back
View
AUDIO INPUT
AUDIO INPUT
IR WINDOW
VgA INTERfACE
VgA CARD DISPLAy
TO PC
SOUND CARD
SPEAkER
S-VIDEO INPUT
LCD/CRT
3
eNglish
remote control buttons & key identification
menu options
Press the “Menu” button to use the menu. Press the “Channel
up/down” buttons to highlight the option you want, then
press “Menu” to select that option. Press the “Volume up/
down” buttons to change the values/settings of the menu
option, then highlight “Exit” and press “Menu” when done.
Color options: Brightness; Contrast; Saturation; Hue.
Video options: Standard (PAL/NTSC/SECAM); Return (up to
previous menu level).
Channel options: TV System Standard (NTSC/PAL, M/PAL,
N/PAL, B-G/PAL, D-K depending on the tuner); Auto Scan
(for channel viewing: high speed recommended); Full Scan
(full frequency scan: low speed); Fine Tune (for nely
adjusting the frequency of the current channel); Skip (the
current channel); Return.
Display options: VGA (640 x 480); SVGA (800 x 600); XGA (1024 x 768); SXGA (1280 x 1024);
W1440S; W1280S; W1440P; Return.
OSD options: Pos. X (On-Screen Display movie X); Pos. Y (On-Screen Display movie Y);
Return.
Language options: English; Chinese; Portuguese.
troubleshooting
Problem: No picture or sound (not even “noise”).
• If the Power LED is o, check the connection of the AC/DC power adapter.
• If the Power LED is on, check the connections to the monitor and sound device.
Problem: The picture is okay, but there is no sound (not even “noise”).
• Check the connection to the sound device.
• Check the volume settings (including the Mute function).
Problem: The sound is okay, but there is no picture.
• Check the connection between the monitor and the LCD TV Converter/Tuner.
• Check that the monitor is on and not in a power-saving mode.
• Conrm that the monitor can support high resolution: Press “Res” and wait a moment
to see if it’s okay, or press “Res” again to change to a dierent setting.
Problem: There is no color in the picture.
• Check the Saturation setting.
• Increase the TV cable signal.
1 Mute on/o
2 Power on/o
3 Channel number keys
4 Single/double/triple digit
5 Return to previous channel
6 System time display
7 Current channel/info display
8 Default picture settings
9 Menu enter/exit
10 Video source
11 Channel up/down, volume
up/down and menu select
12 Multiple-picture preview
13 Resolution
14 Picture-In-Picture activation with
left and right positioning
9
2
10
12
7
6 8
4 5
1
3
13
11
14
