Model MOUNT20 User Guide

For 11/ /15 eries VP- 12 S Projector

MOUNT20

PROJECTOR MOUNT

INSTALLATION INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ BEFORE INSTALLING EQUIPMENT

This product was designed and manufactured to meet strict

quality and safety standards. There are, however, some

installation and operation precautions which you should be

particularly aware of.

Read instructions -

All the safety and operating instructions

should be read before the product is operated.

Retain instructions -

The safety and operating instructions

should be retained for future reference.

Heed warnings -

All warnings on the product and in the

operating instructions should be adhered to.

Follow instructions -

All installation instructions should

be followed.

Use only the parts provided with the mount, along with any

parts (commercially available) that are speciﬁed in this manual.

Do not modify the mount or the parts provided with the mount.

Do not use damaged parts. if any parts become damaged,

contact your dealer.

All bolts and screws must be tightened securely.

Make sure not to block any ventilation openings when installing

the projector.

11.

Once the projector is installed, safety checks should be conducted

on a regular basis.

10.

Special techniques and experience are required when installing

the projector with this mount. Contact your dealer to install the

projector for you.

Warning

Hardware List

Adjustment Ranges and Load Allowances

The ceiling should be capable of supporting a weight

of at least ﬁve (5) times the projector(s) weight.

If it cannot, the ceiling must be reinforced. Proper

installation procedure by qualiﬁed personnel as outlined

in the installation instructions must be adhered to.

Failure to do so could result in serious personal injury.

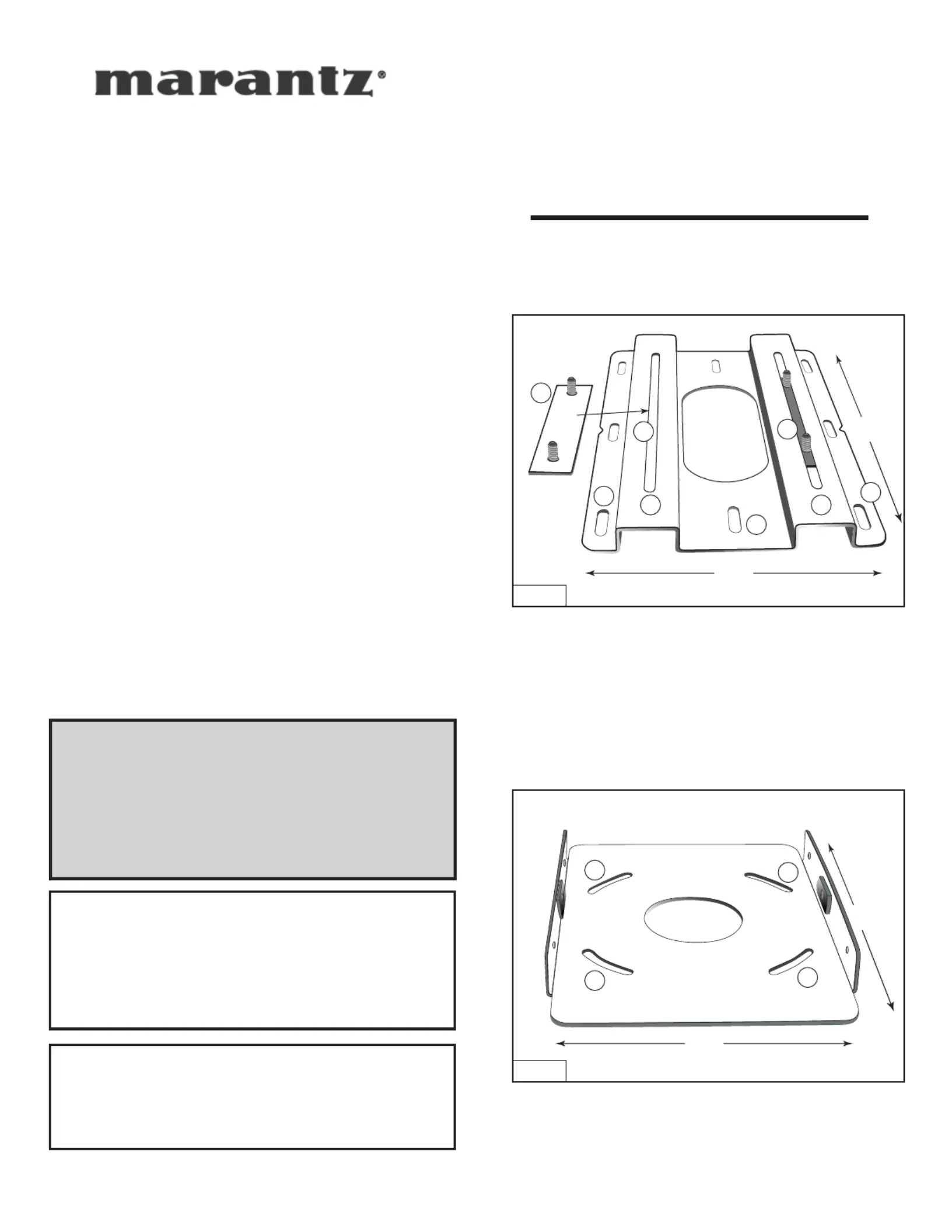

Step 1

Step 2

Figure 2

Figure 1

2 3 3

Wire

Access

14"

8 5/8"

Base Plate Connectors #1

Projector Mount Ceiling Plate 1

Plate 1

Plate 2

Base Plate Connectors #1 and Projector Mount Ceiling

Plate 1 with

ceiling mounting holes #2.

Horizontal Adjustment Plate 2 (Base Plate Connector

Holes #3).

Ceiling Wire

Access

7 5/8"

10 5/8"

Insert Base Plate connectors #1 into the lateral positioning slots

#3 as shown in

#4 from the underside of Plate 1. The lateral positioning

slots will give you 2 1/4" inches of lateral adjustment for projector

alignment.

Base plate connector holes #3 provide 15 degrees of horizontal

rotation adjustment.

Attach horizontal adjustment Plate 2 to projector mount ceiling

Plate 1 using the four (4) 3/8" (inch) nuts and washers provided.

1. Four (4) 3/8 (inch) nuts

2. Four (4) 3/8 (inch) ﬂat washers

3. Two (2) 8 (mm) screws

4. Eleven (11) 6 (mm) screws

5. Eight (8) 6 (mm) rubber washers

6. One (1) Ceiling Mount #1

7. Two (2) Base Plate Connectors

8. One (1) Horizontal Tilt Plate #2

9. One (1) Horizontal Tilt Plate #3

10. One (1) Projector Plate #4          

Horizontal Tilt (yaw)  +/- 10 degrees

Vertical Tilt (tilt)    +/- 20 degrees

Rotation    +/- 15 degrees

Lateral Shift    +/- 2 1/4 inches

Maximum Load Allowance   450 Lbs.

MOUNT20 PROJECTOR MOUNT INSTALLATION INSTRUCTIONS continued

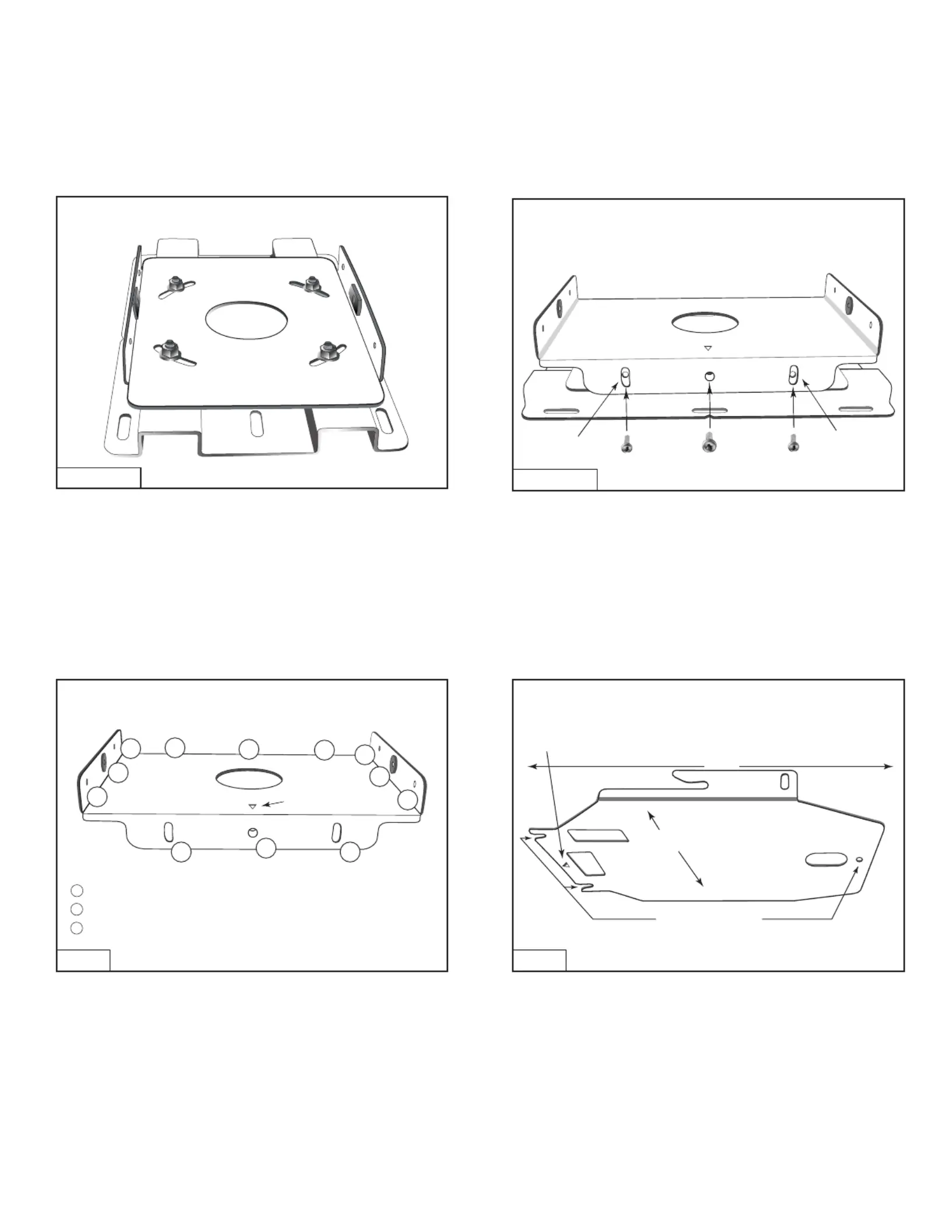

Step 3

Step 2 B

Step 3 B

Figure 3

Figure 4 Figure 6

Figure 5

Step 4

Wire

Access

Wire

Access

2 2

Plate 3 Plate 4

Plates 1 & 2 Plate 3

Horizontal Adjustment Plate 2 (Figure 2) attached to

Projector Mount Ceiling Plate 1.

Horizontal Tilting Plate 3 Projector Mounting Plate 4

Install the combined plates (above) securely to the ceiling

structure in accordance with local commercial building

standards.

Use suitable hardware in adequate quantity and size depending

on the installation requirements. (Please note that Projector

VP-12SX weighs 28.6 lbs. (13 kgs).

Attach Horizontal Tilting Plate 3 to the previously combined

plates (already installed on ceiling) using the two (2) 8 (mm)

screws and four (4)

(mm) screws provided, as indicated

in Figure

4. Install two (2) 6 (mm) screws with rubber

spacers and

metal washers into the welded metal studs

(indicated #1).

Holes for 6mm screws

Holes for 8mm screws

Holes for 6mm screws with rubber washer and steel washer

Indicates Forward

Positioning of Mount

Indicates Forward

Positioning of Mount

Tilting Capability

Horizontal Tilting Plate 3 Attached to Plates 1 and 2.

The newly combined Plate 3 provides 10 0 degrees of

horizontal tilt. When positioned, tighten with screws

provided.

12 1/4"

17"

continued over

Invert the projector and place it on a soft and ﬂat

surface. Align the three (3) rubber spacers provided

with the three (3) 6(mm) mounting holes on the

projector and secure with three (3) 6(mm) screws

provided.

mounting holes
