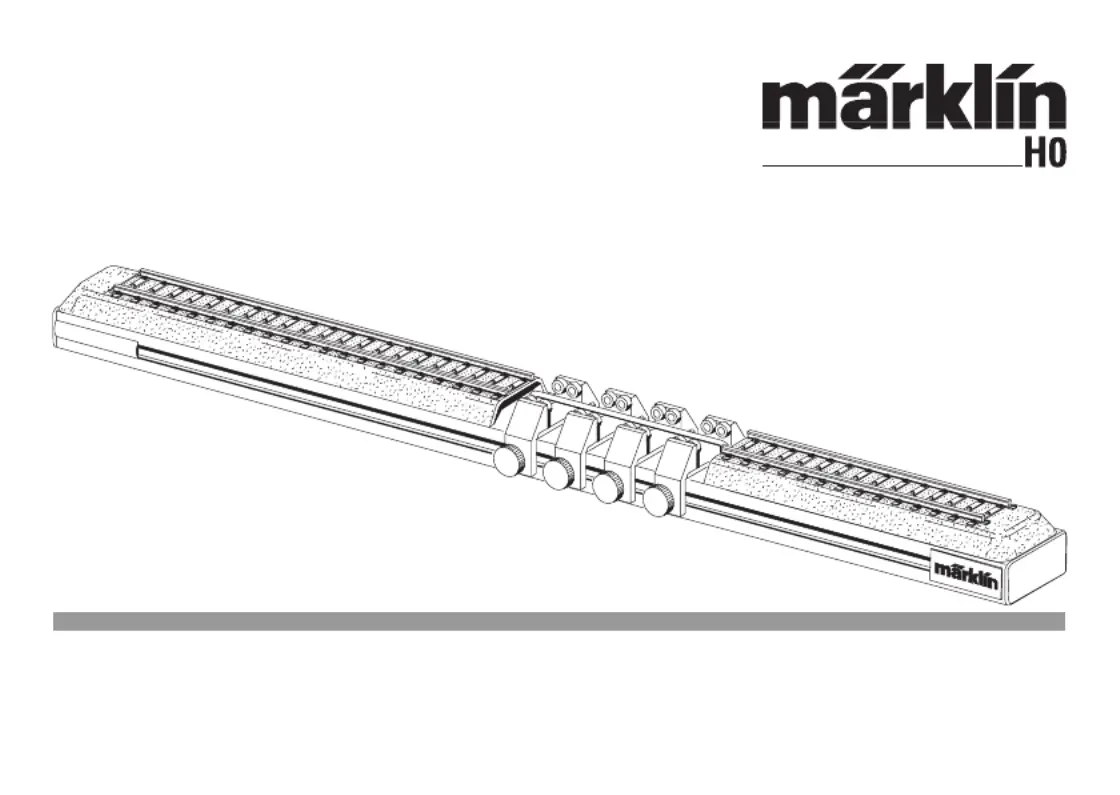

Rollenprüfstand H0
Funktion
Rollenprüfstand zum Austesten oder Präsentieren
der Fahrfunktionen von H0-Fahrzeugen.
Geeignet für Lokomotiven nach dem Mittelleiter-
system (Märklin H0) und Zweischienensystem
(Trix H0).
Geeignet für die Versorgung mit Gleichstrom
(max. 14 V), Wechselstrom (max. 16/24 V)
oder einem Mehrzugsystem (z. B. Märklin Delta
oder Digital, Trix Selectrix).
Serienmäßig mit 4 Rollenbockpaaren für je eine
angetriebene Achse. Die Position dieser Bock-
paare ist variabel. Die Anzahl der montierten
Rollenbockpaare kann verändert werden.
Zusätzlich 2 Gleisstücke zur Aufnahme von nicht
angetriebenen Achsen (Tender einer Dampflok, Vor-
oder Nachlaufgestell etc.). Das längere Gleisstück
(auf der Seite mit den Anschlussbuchsen) ist an
den Fahrstrom angeschlossen und muss daher
angeschlossen bleiben. Das kürzere Gleisstück
am anderen Ende kann entfernt werden und ggf.
mit weiteren Rollenbockpaaren ersetzt werden.
Erweiterbar mit dem Rollenbockpaar 78110 für
Modelle mit mehr als 4 angetriebenen Achsen.
Erweiterbar mit dem Anzeigegerät 78111 zur
Ermittlung diverser Geschwindigkeits- und
Zeitgrößen. Ein weiteres Rollenbockpaar mit
Sensor zur Geschwindigkeitsermittlung gehört
zum Lieferumfang von 78111.
Länge des Rollenprüfstands: 400 mm.
Maximale Nutzlänge: 350 mm.
2
Function
Static roller test stand to test or demonstrate
the drive functions of H0 vehicles.
Suitable for locomotives using the central power
rail system (Märklin H0) and two-rail system
(Trix H0).
Suitable for supply with DC current (max. 14 V),
AC current (max. 16/24 V) or use with a multiple
train system (e.g Märklin Delta or Digital,
Trix Selectrix).
Comes as standard with 4 pairs of rollers for
each powered axle. The positioning of these pairs
of rollers can be varied. The number of installed
pairs of rollers can be changed.
In addition, there are 2 track sections to accom-
modate non-powered axles (the tender on a
steam locomotive, front or rear bogie, etc.) The
longer track section (on the side with the connec-
tor boxes) is connected to the drive current and
must therefore remain attached. The shorter track
section on the other end can be removed and, if
necessary, further pairs of rollers can be added.
Can be expanded using the additional pair of
rollers 78110 for models with more than 4 powered
axles.
Can be expanded with the display device 78111
to show various speeds and times. An additional
pair of rollers with a sensor to calculate the speed
is included in what is supplied with 78111.
Length of the static roller test stand: 400 mm.
Maximum usable length: 350 mm.
3
