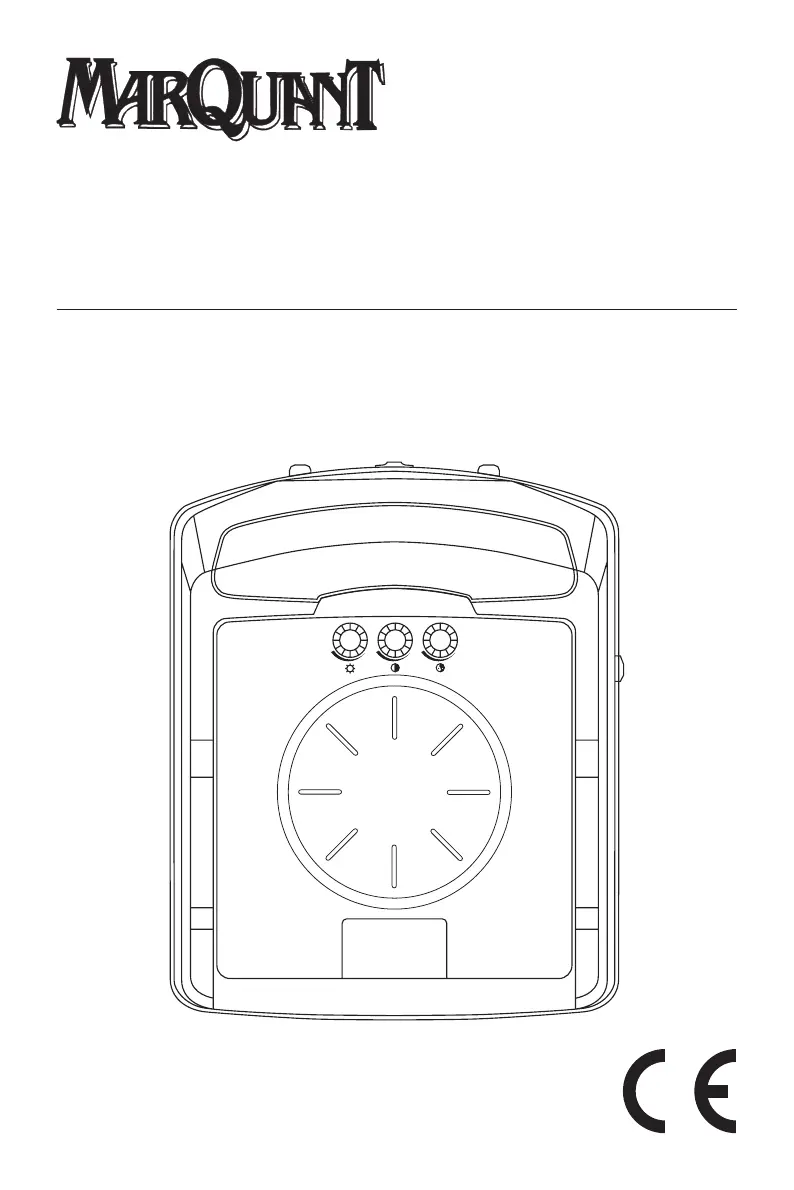

OWNER’S MANUAL
FLIP DOWN TFT MONITOR
®
MTS - 3
2
INSTALLATION
Desk-top Installation
1. Determine the mounting location and drill four mounting holes.
2. Attach the bracket to the holes with the tapping screws (M4x10).
3. Let the two levers aim at the fixing holes on the bottom of the base to fix the display
unit.
4. Attach the TV unit to the preferred location with the mounting bolts (M3x6).
5. For the convenience of fixing the unit, you can turn the display left or right to show
the holes on the base.
(See the arrowhead symbol named 1).
6. When the installation has completed, you can turn the display upward or downward,
left or right to adjust the viewing angle.
(See the arrowhead symbol named 2 and 1).
Fig. 1
Mounting Bolts (M3x6)
2
Tapping Screw (M4x10)
Bracket
Levers
1
3
INSTALLATION
Ceiling-on Installation
1. Determine the mounting location and drill four mounting holes.
2. Attach the bracket to the holes with the tapping screws (M4x10).
3. Let the two levers aim at the fixing holes to fix the display unit.
4. Attach the unit to the bracket with the mounting bolts (M3x6).
5. When the installation has completed, you can also turn the display upward or
downward, left or right to adjust the viewing angle.
(See the arrowhead symbol).
Fig. 2
Bracket Levers
Tapping Screws (M4x10)
Fixing holes
Mounting Bolts (M3x6)
