Sida 1/10
Martin Professional A/S,Olof Palmes Allé 18, DK-8200,Aarhus N
Phone: +45 87 40 00 00 Internet: www.martin.dk

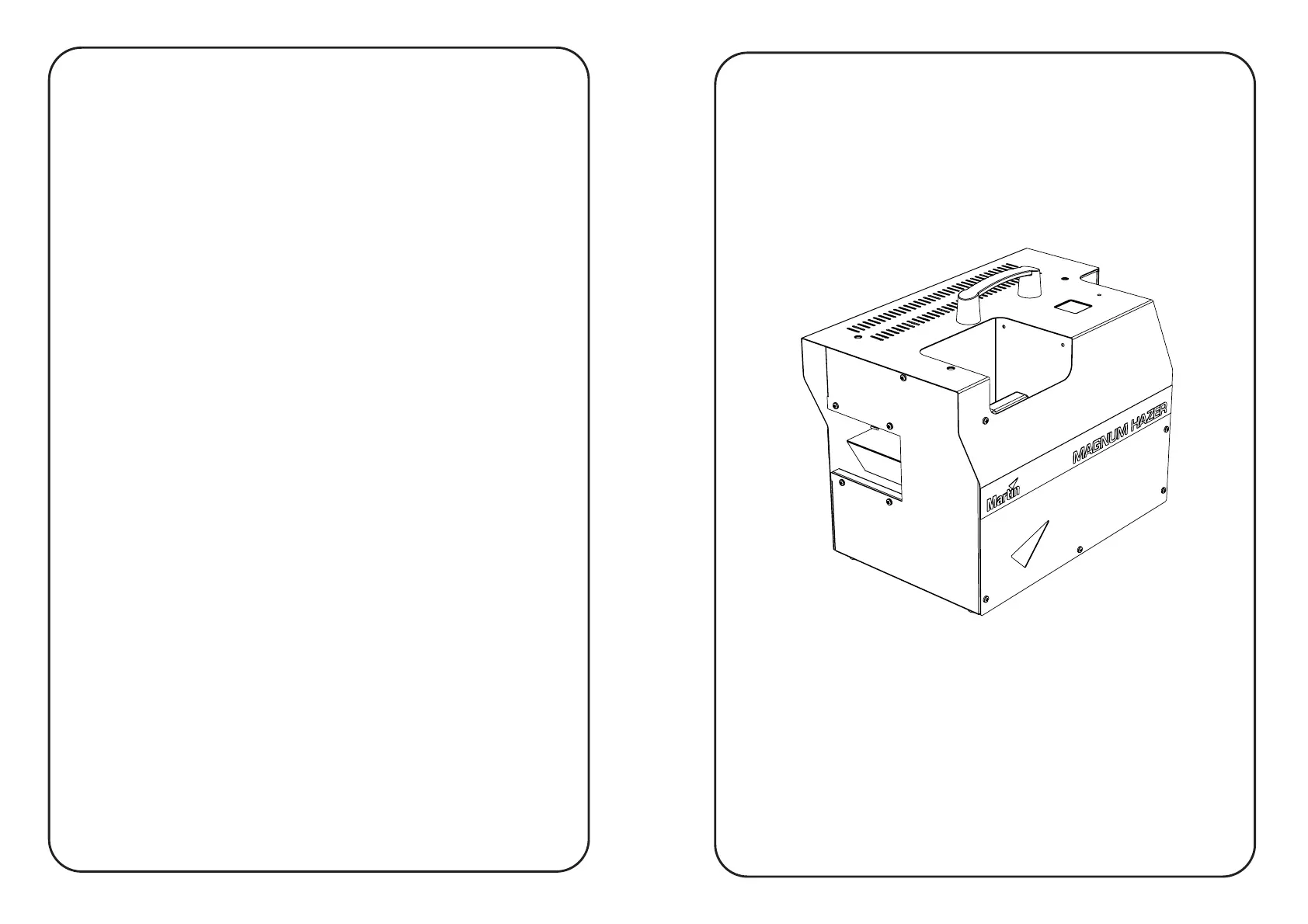

Magnum
Hazer
USER GUIDE
VERSION 1.1
NOTE! The warranty on this machine is conditional on the use of
genuine JEM / Martin fluid only. Other fluids may represent a health
hazard when used in this machine, and may damage the internal
components.
Fluids Suitable for this machine:
Pro-Haze
Fluid
Magnum Hazer
CONNECTIONS
17
FUSE RATINGS
The Magnum uses three fuses.
They should be replaced with the value and type detailed below:
Power PCB
F1 6.3AT
F2 3.15AT
Main Fuse (IEC inlet)
6.3AT
Two of these fuses are located internally and should not be
accessed without first disconnecting the power supply.
230V model
115V model
Hazer
Power PCB
F1 10AT
F2 3.15AT
Main Fuse (IEC inlet)
10AT
The DMX connections and Status LEDs are mounted on the panel below the
control panel. The following drawing shows the functions and connections.
LED FUNCTIONS
Power LED:
Fluid Cal LED
Temp Cal LED
Shows that the main power supply is operating.
: Not used on this model.
: Shows that the system is calibrating the temperature control
system.
Magnum Hazer
DMX LED
INOUT
1 GND
2 COLD
3 HOT
POWER
FLUID CAL
TEMP CAL
AVR PORT
SPECIFICATION
HEAT EXCHANGER
900W
Wide bore steel vaporizing coil
Non resettable over-temperature protection
Electronic Temperature control using thermocouple
FLUID SYSTEM
Electronic low fluid detection
2.5L fluid container
DMX512 decoder:
Required Channels = 2
Output is proportional for all levels above 8%
Channels supported = 1 to 509
Valid start codes = 0 (dimmer data only)
Full framing error detection implemented
Digital control via Digital Controller.
CONTROL PANEL
Analogue control panel with 2 button keypad
Output level control from 0 to 10/prime
Fan speed control from 0 to 10/auto
Timer range:
Delay time (toF) 90 - ton
Run time (ton) 0 seconds - 90 seconds
OUTPUT DIRECTION CONTROL
Airflow inclination can be set in the range 0 to 60 degrees.
POWER REQUIREMENTS (dependant on model)
Input voltage 200 - 250Vac
Input power (max) 975W @ 230V
Main fuse 6.3AT
Input voltage 100 - 130Vac
Input power (max) 975W @ 115V
Main Fuse 10AT
Frequency 50/60Hz both models
Maximum fluid consumption 410mL/hour (Haze fluid)
REMOTE CONTROL OPTIONS
USER
GUIDE
16
Magnum Hazer Magnum Hazer
USER
GUIDE
USER GUIDE CONTENTS
Introduction 2
Features 2
Safety Guidelines 3
Machine Layout 4
Commissioning The Machine 5
Remote Control Options 5
DMX Operation 6
The Control Panel 8
The Remote Control 10
The Timer 11
Basic Operation 12
The Fluid System 13
Error Conditions 14
Basic Fault Finding 15
Specification 16
Connections 17
Fuse Ratings 17
1
© Martin Professional A/S, Denmark.2003
All rights reserved. No part of this manual may be reproduced, in any form or
by any means, without permission in writing from Martin Professional A/S,
Denmark.
