McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com

S2 K

2 K

2 KP S 2 K

P O W E R E D S U B W O O F E R

O W N E R ’ S M A N U A L

Thank You from all of us at McIntosh

You have invested in a precision instrument that

will provide you with many years of enjoyment.

Please take a few moments to familiarize yourself

with the features and instructions to get the

maximum performance from your equipment.

If you need further technical assistance, please

contact your dealer who may be more familiar with

your particular setup including other brands. You

can also contact McIntosh with additional questions

or in the unlikely event of needing service.

McIntosh Laboratory, Inc.

2 Chambers Street

Binghamton, New York 13903

Technical Assistance (607) 723-3512

Fax (607) 724-0549

Customer Service (607) 723-3515

Fax (607) 723-1917

Email support@mcintoshlabs.com

www.mcintoshlabs.com

Please Take A Moment

For future reference, you can write down your

serial number and purchase information here.

We can identify your purchase from this informa-

tion if the occasion should arise:

Serial Number: __________________________

Purchase Date: ___________________________

Dealer Name: ___________________________

Table of Contents

Thank You from all of us at McIntosh .. .. .. .. 2

Introduction.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2

Important Information .. .. .. .. .. .. .. .. .. .. 3

Packing and Unpacking the PS2K.. .. .. .. .. .. 3

Performance Features.. .. .. .. .. .. .. .. .. .. .. 4

Front View Features .. .. .. .. .. .. .. .. .. .. .. 5

Connector Information .. .. .. .. .. .. .. .. .. .. 5

XLR Connectors. .. .. .. .. .. .. .. .. .. .. .. .. 5

Power Control Connectors.. .. .. .. .. .. .. .. .. 5

RCA Connectors. .. .. .. .. .. .. .. .. .. .. .. .. 5

Dimensions .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 6

Installation .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 6

Locating the PS2K.. .. .. .. .. .. .. .. .. .. .. .. 6

Signal Flow Block Diagram .. .. .. .. .. .. .. .. 7

Rear Panel .. .. .. .. .. .. .. .. .. .. .. .. .. .. 8-9

How to Connect .. .. .. .. .. .. .. .. .. .. .. .. ..10

Connection Diagram: Subwoofer/LFE .. .. .. ..10

Home Theater Connection.. .. .. .. .. .. .. .. ..10

Home Music System Connection .. .. .. .. .. ..10

Connection Diagram: Chain .. .. .. .. .. .. .. ..11

Connection Diagram: Two Channels . .. .. 12-13

Home Music System Connection .. .. .. .. .. ..12

Specifications .. .. .. .. .. .. .. .. .. .. .. .. .. ..14

General Specifications .. .. .. .. .. .. .. .. .. ..14

Packing Instructions .. .. .. .. .. .. .. .. .. .. ..15

Part List .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..15

Introduction

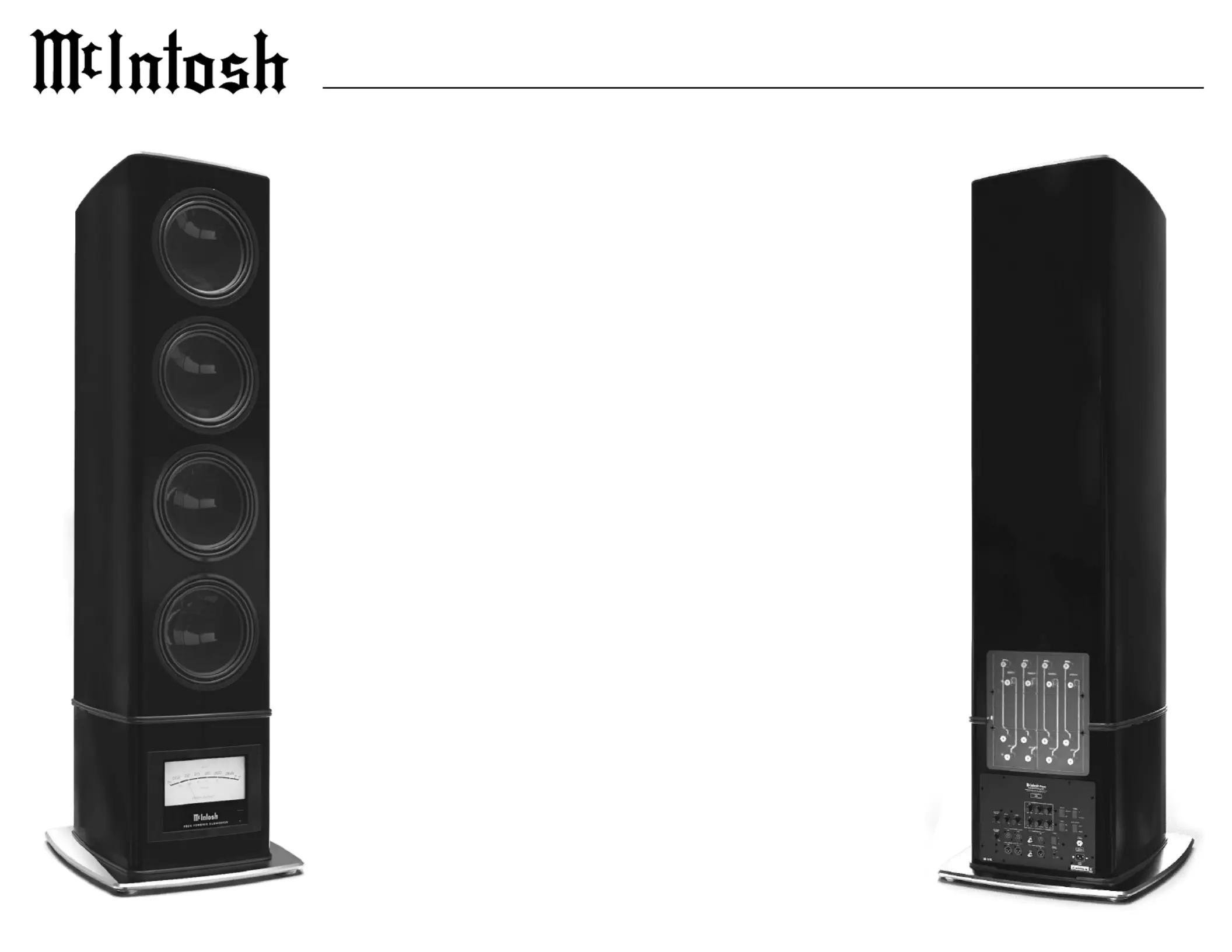

The McIntosh PS2K Powered Subwoofer is designed

for Home Theater and Music Reproduction. It has

a four 13 inch LD/HP woofers, each powered by its

own 500 watt amplier, plus built-in High and Low

Pass Filters and two Parametric Equalizer Filters for

subwoofer room correction.

The PS2K Powered Subwoofer complements the

capabilities and the remarkably low distortion of

McIntosh Power Ampliers and loudspeaker systems.

Each component in the PS2K has been carefully

designed for durability, eciency, and above all, low

distortion. The McIntosh PS2K Powered Subwoofer

will reproduce music accurately and function as an

excellent Powered Subwoofer.

Safety First

Please read the safety instructions included in a

separate document called Important Additional

Operation Information Guide.

Safety Cover

The PS2K is factory equipped with a clear safety

cover on the rear surface. Do not remove this cover

for any reason, and never make any other electrical

connection to the terminals inside.

P S 2 K

Important Information

1. The following Connecting Cable is available from

the McIntosh Parts Department: Power Control

Cable Part No. 170202 Six foot, 2 conductor

shielded, with two 1/8 inch stereo mini phone plugs.

2. The PS2K’s Power Control Input will function

within a 5 to 20 DC Voltage range. The Power

Control Output will only send a signal if a source is

connected to the Power Control Input.

3. To avoid damage, do not connect the speaker level

output terminals from any receiver, amplier or

integrated amplier to the inputs of the PS2K

Powered Subwoofer.

4. The PS2K needs to be connected to a dedicated

circuit with AC outlet. The type and size of the

dedicated AC circuit with outlet needs to be in

accordance with the local electrical wiring codes.

Always contact your McIntosh dealer and certied

electrician for additional information and assistance.

Note: 20 Amp, 120 volt AC circuit for use in the United States and

Canada only.

Packing and Unpacking the PS2K

Warning: The PS2K is very heavy. Please refer to

Unpacking instructions located in a envelope

attached to the shipping crate. Be sure to have the

appropriate manpower available to handle safely.

The PS2K is nished in a highly polished but durable

paint. However, it can be scratched, so please ensure

all sharp objects like rings, belt buckles, watches,

etc are removed prior to handling. Also please note

the PS2K has no protective covers or grilles over the

woofers. So please ensure not to reach and grab the

product woofers.

Once removed and placed in your listening area, the

protective lm may be removed by slowly peeling

o, all around the speaker. Also remove the protec-

tive rubber ring on the metal base.

Packing the PS2K is the reverse of unpacking, so

please be sure to save all instructions and materials.
