Memphis Audio MXA46SB28 Bruksanvisning

Memphis Audio Soundbar MXA46SB28

Läs nedan 📖 manual på svenska för Memphis Audio MXA46SB28 (5 sidor) i kategorin Soundbar. Denna guide var användbar för 8 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF

Sida 1/5

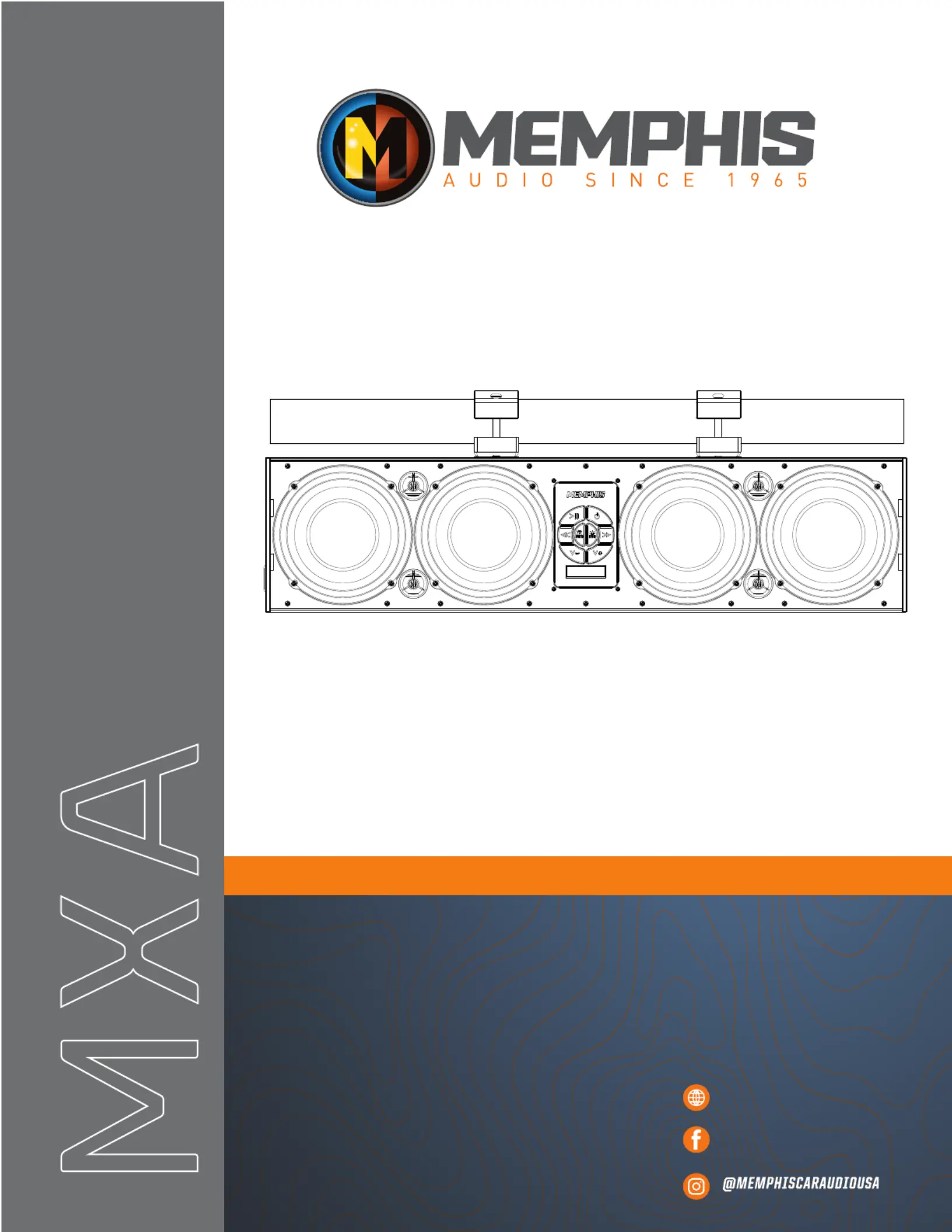

M E M P H I S

X T RE M E A U D I O

M X A 46 SB 2 8

2 8 ” A P P C O N T R O L LED

O V E R H E A D S O U N D B A R

SHOW US YOUR INSTALL

WWW.MEMPHISCARAUDIO.USA

@MEMPHISCARAUDIO

Electronics limited warranty (including Memphis accessories) When purchased from an Authorized Memphis Dealer, Memphis warrants this product to be free from

defects in material and workmanship under normal use for a period of ONE (1) YEAR from date of original purchase (receipt required),THREE (3)YEARS years if installed by

an authorized Memphis dealer (receipt required). If this product is identified as “Refurbished” or “B Goods”, the warranty is limited to a period of THREE (3) MONTHS from

date of original purchase. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or

malfunction during the warranty period, Memphis will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replace-

ments may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. Warranty is valid only for the original

purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the

express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product

thereafter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving

antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet or a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to this unit not expressly approved by the part responsible for

Compliance could void the user's authority to operate the equipment.

FCC Radiation Exposure Statement

This equipment complied with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum

distance 20cm between the radiator & your body.

Warranty

The MXA46SB28 App Controlled Overhead Soundbar is an extremely innovative soundbar solution for powersports machines.

Traditional soundbars are capable of streaming music from a Bluetooth device. The MXA46SB28 features a unique app controlled

interface allowing you to use the soundbar as a hub for an entire audio system. The app allows you to select between five sources

including Bluetooth, FM, AM, AUX, Weatherband radio. The app also enables users to control EQ settings, set radio presets , adjust

fade/balance and more from the convenience of their Bluetooth devices interface. This unit features a slightly wider body than

traditional soundbars allowing for 4 rich 6.5” mid bass drivers and 4 tweeters to crank out massive sound that it is unrivaled by

anything in its class. If you need even more output, the MXA46SB28 features Front, Rear, and Sub outputs allowing you to expand your

audio into a massive multi speaker set up which can be controlled via the app making this unit one of the most unique and versatile

powersports solutions on the market.

App Controlled Overhead Soundbar

• 8 Speaker Soundbar System: 4 - 6.5” Mids 4 - Tweeters

• RGB LED included in speakers

• App Controlled Soundbar Features 5 Source options: AUX, BT, AM/FM, Weatherband

• USB Charging

• 6 Channel output: Front/Rear/Subwoofer

• 2.5-Volt preamp output

• Conformal coated PCB IP66 rated

• Protective aluminum mesh grill included

• AUX input

• 300w Power Rating

Features

• RGB Settings

• Custom EQ settings

• Balance, fade, subwoofer control

• AM/FM Preset Control

• Radio search settings

• Manual/Seek/Presets

App Controls The Following

Hold the power button to turn the unit on. The indicator light will begin flashing blue. On your Bluetooth device, search for Bluetooth

devices. When you see MXA46SB28 click connect. The blue light will stay solid blue when connected. When connected via Bluetooth

you can stream music to your MXA46SB28 soundbar.

The MXA46SB28 Overhead soundbar can be connected via AUX or Bluetooth like a traditional soundbar. It is also capable of pairing

with the MEMPHIS RADIO app which allows you to maximize your control over your audio system. See below for pairing instructions.

Button Function

The Memphis App is available on iOS & Android in the app store. Search for

“MEMPHIS RADIO” and locate the MEMPHIS RADIO App. Download and

install the app to begin controlling your MXA46SB28.

Downloading Memphis App

App Controls

Bluetooth Pairing (Audio Streaming Only)

To control you MXA46SB28 unit’s settings and radio stations via the MEMPHIS RADIO App, you must establish a Bluetooth connection

using the MEMPHIS RADIO App. Open the BLUETOOTH SETTINGS menu on the MEMPHIS RADIO App and follow the instructions on the

next page to pair your MEMPHIS RADIO App with you MXA46SB28 unit.

Bluetooth Pairing The APP

1. Play Music / Pause Music // MUTE(AUX Mode Only )

2. Long Push: Power ON and OFF // Short Push: Change Source

3. Previous/Next Track

4. Short Push: RGB ON / Change Color // Long Push: RGB OFF

5. Volume Down/Up

6. Dome light ON/OFF

6 4

CONTROLS

1. AUX Line Input

2. Front Output

3. Rear Output

4. Subwoofer Output

5. USB For Charging

6. Antenna Input

7. 12V + (Yellow)

8. Remote Turn On (blue)

9. Ignition (Red)

10. Ground (Black)

11. In-Line 15A Fuse and Fuse Holder

12. Quick connect/disconnect

Connections

13. RGB LED Output
