Memphis Audio NANO110P Bruksanvisning
Memphis Audio
Subwoofer
NANO110P
Läs nedan 📖 manual på svenska för Memphis Audio NANO110P (5 sidor) i kategorin Subwoofer. Denna guide var användbar för 7 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/5
A U D I O S I N C E 1 9 6 5
NANO110P

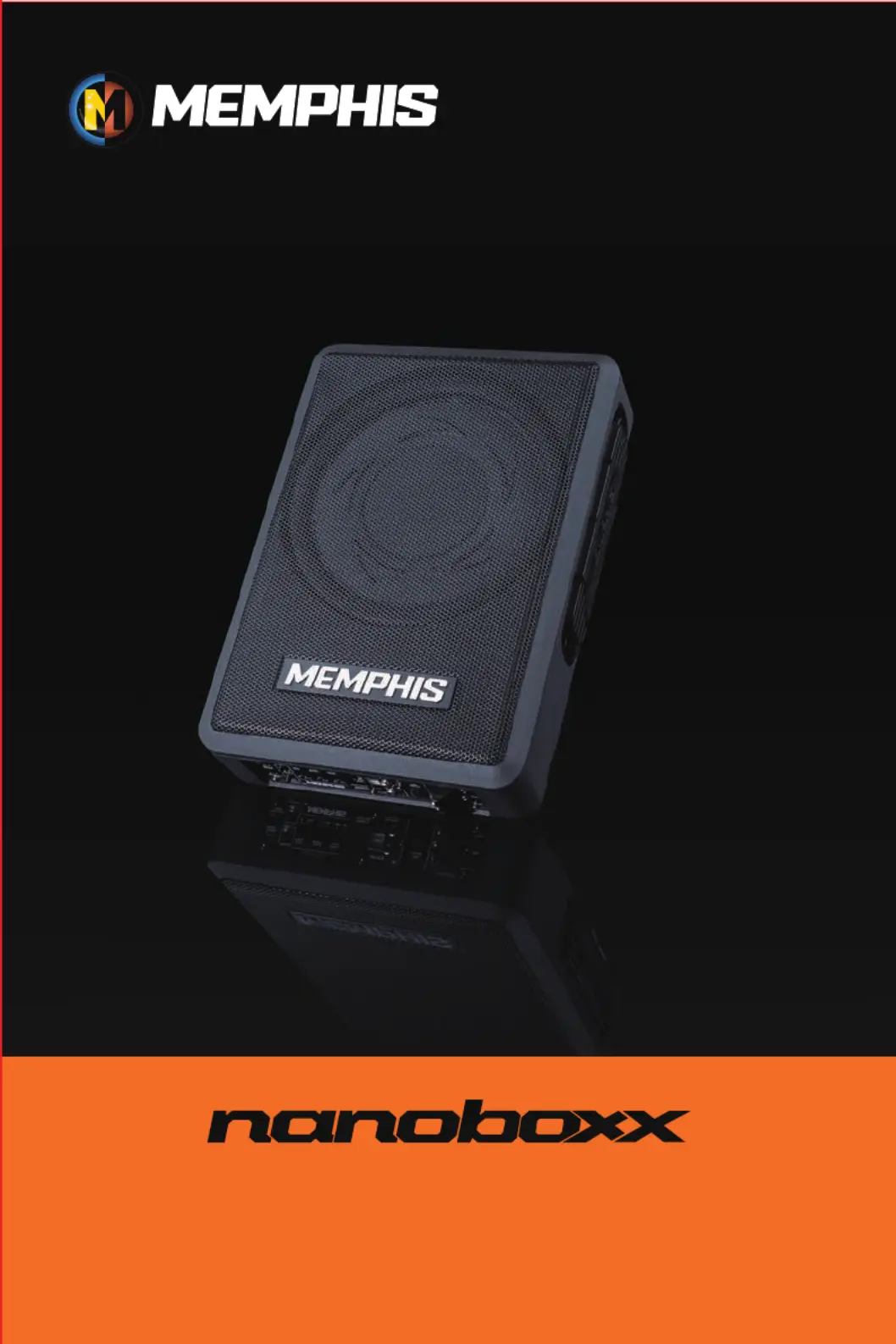

10” Under Seat Powered Bass System
NANO110P
B
A
C D E F G H I J K
A. POWER STATUS LED
The LED indicator light glows GREEN when power is ON and
no problems are present. If one of the protection circuits
comes on, the light will change to RED
B. PHASE SHIFT
Use this switch to compensate for time alignment
issues. These issues are usually the result from having
the subwoofer at a different distance from the listener
than the other speakers in the system.
C. AUTO POWER ON
NOTE: If you experience a POP noise from the subwoofer
when powering ON/OFF, confirm you have it wired to the
remote output of the head unit as shown in FIGURED 4.
NOTE: The low pass filter frequency can be higher or lower
than the standard. There is a +/- 20% tolerance.
The AUTO POWER ON (ON/OFF) is for high level
(speaker-level) connections. When the switch is in the ON
position, the subwoofer will AUTO POWER ON when there is
signal input present. If the amplifier does not detect a
signal, the amplifier will auto turn OFF. If you prefer to
use the remote turn on/off connection, switch can be
changed to OFF.
D. LOW PASS FILTER
This control allows for the adjustment of the frequency
range you want the subwoofer amplifier to receive. The
subwoofer will reproduce all sounds BELOW the frequency
you set on the LPF.
E. BASS BOOST
The BASS BOOST feature will increase the sound level in
the bass frequencies.
F. INPUT GAIN CONTROL
After you’ve installed your system, turn this co
minimum.
Turn the head unit ON (the subwoofer will turn
remote connection). Turn the head unit volume
level.
Slowly turn up the subwoofer input gain contro
hear a small amount of distortion. Begin reduci
level until the distortion is completely gone. Le
control at this setting.
G. REMOTE LEVEL CONTROL
Attach the included remote level control to con
volume level of the subwoofer independently.
H. HIGH LEVEL (SPEAKER LOW
If your head unit does not have RCA outputs, y
the speaker outputs for the audio source for the
subwoofer. Use the supplied cable and wire har
connect the outputs properly as shown in the co
diagram in this manual.
I. LOW LEVEL RCA INPUTS
Low level inputs are the recommended way to
the audio signal to the subwoofer. If RCA outp
present on your head unit or other signal source
(processor etc) this is the preferred way to conn
NANOBOXX
J. FUSE
DO NOT USE A FUSE WITH A DIFFERENT
replace the fuse with a wire, coin or anything o
the recommended fuse rated for this device.
Be certain all power connections are mounted s
and use the correct gauge wire for the NANOB
K. POWER INPUT TERMINAL
NOTE: Do NOT connect BOTH the high level and low level inputs from your receiver to your amplifier
TO AUDIO OUTPUTS OF HEAD UNIT OR SIGNAL PROCESSOR
TO SPEAKER TERMINALS OF HEAD UNIT
LOW LEVEL INPUT WIRING
Low-level RCA input wiring is preferred for the best audio performance. Always use a high qu
to your NANOBOXX for the best quality performance. Memphis Connection wires are the pre
the high performance signal you need.
NOTE: Do NOT connect BOTH the high level and low level inputs from your receiver to your amplifier
HIGH LEVEL INPUT WIRING
The high level input(s) should only be used when your head unit lacks RCA outputs. If the RCA
the speaker outputs from the receiver to the high level input connector of the amplifier. Be sure
audio phase issues.
FIGURE 1
FIGURE 2
WHITE L +
GREY R +
WHITE/BLACK L -
GREY/BLACK R -
Produktspecifikationer
| Varumärke: | Memphis Audio |
| Kategori: | Subwoofer |
| Modell: | NANO110P |
