Sida 1/8

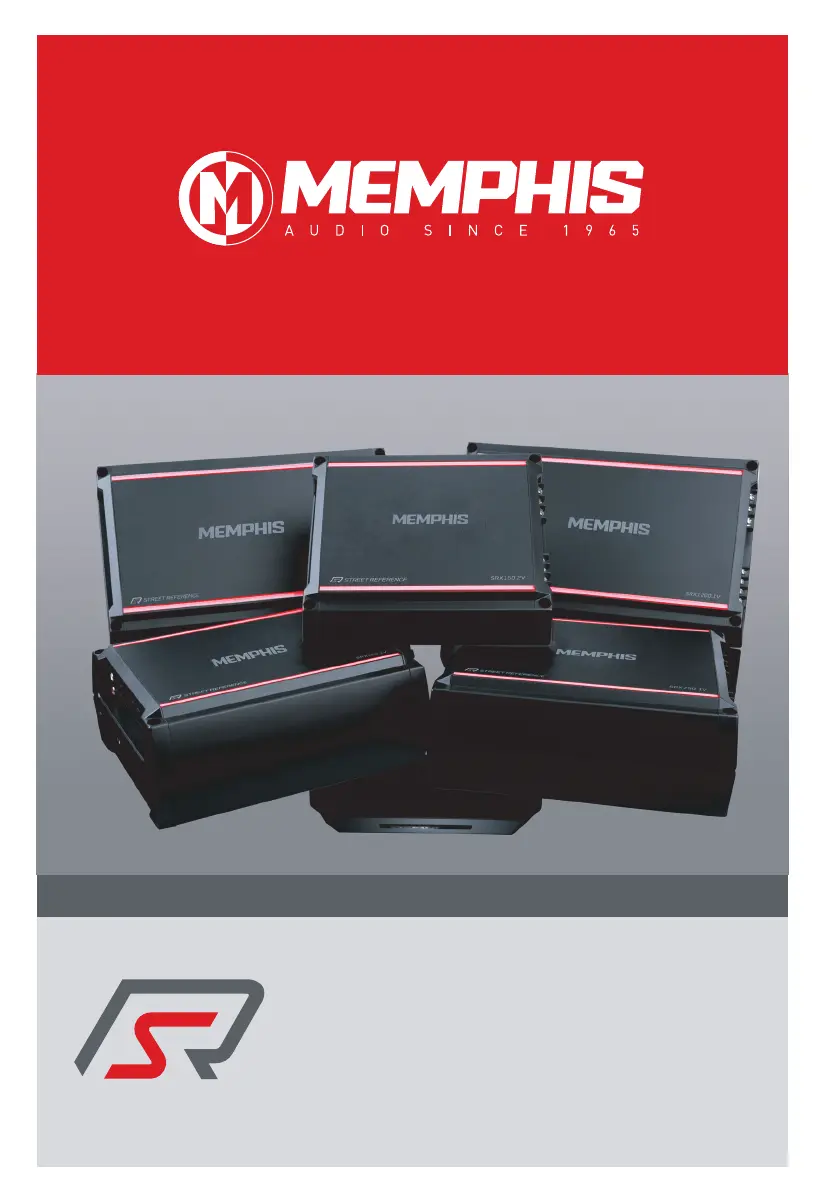

MONO AMPLIFIER

INSTRUCTION MANUAL

STREETREFERENCE

MODELS: SRX1200.1V, SRX750.1V, SRX500.1V, SRX250.1V

Features

Memphis Audio built a 50 year legacy in the audio industry engineering the highest quality products to produce

the best possible listening experience for our fans and loyal supporters. To fully appreciate our products we

recommend taking the time to read and follow the instructions in this manual. As always, we recommend all

installations and service be performed by an authorized Memphis Audio dealer.

• 2 stable (SRX1200.1V 1 stable) ˜ ˜

• High & low level inputs

• Bass boost 45Hz 0/6/12dB

• Variable subsonic filter (15Hz - 50Hz)

• Variable low pass filter (5 0Hz-250Hz)

• Protection circuitry: overload, short, thermal & reverse polarity

Nickel Plated Connectors

Ensures solid electrical connection that resist corrosion

Fully Variable High & Low Pass Crossovers

Fully variable crossovers promote installation ease and save the cost of outboard crossovers. Additionally, thy may be used in

conjunction with outboard passive or active crossovers depending on the complexity required by the system. The 12dB per octave

slope offers roll-off above or below the selected frequency.

Protection Circuitry

Protects against overload, short circuit, thermal and reverse polarity. These protection features are designed to protect the

amplifier from misuse as well as from common causes of amplifier failure.

LED Light

Blue light indicates that the amplifier is working normally. If the light is not illuminated or is glowing red, consult the

troubleshooting section of the manual.

Subsonic Filter

A subsonic filter has been provided to filter out unwanted subsonic bass frequencies below the audible range of the subwoofer.

This feature helps improve the amplifiers overall performance since power is not wasted reproducing frequencies beyond the

speaker operating range

Remote Level Control

Remote allows you to control the level of the subwoofer remotely by controlling the output level of the amplifier

For optimal performance, Memphis recommends using only Memphis Connection accessories. Outfitting

your system with properly sized Memphis Connection wire and accessories will dramatically boost your

listening experience and increase the durability of your Memphis Audio products.

Check out our full line of Street Reference speakers and subwoofers to create a complete Memphis

Street Reference system.

Street Reference amplifiers feature a MOSFET power supply with a 12dB per octave crossover to ensure the most

accurate musical reproduction. All models feature a fully variable crossover with 12db per octave slopes allowing

you the ability to tailor the sound to best fit your speakers and listening preferences.

STREET REFERENCE MONO AMPLIFIERS

SRX250.1V // SRX500.1V // SRX750.1V // SRX1200.1V

STREETREFERENCE

• Textured aluminum heatsink

• Selectable bass boost

• Ultra-bright LED accent light strip

• Remote level control included

When troubleshooting your amp, speaker and speaker wires should be tested first.

For your safety, always inspect the mounting location carefully to ensure you are not drilling into any electrical,

hydraulic, fuel or fluid lines. Always check your speaker load with a multi-meter before connecting the amplifier.

Connecting any speaker load lower than the rated impedance of the amplifier will result in damage to the amplifier.

Damage of this nature is NOT covered under warranty. Please pay close attention to what connections are made to

the amplifier.

If you are uncertain or uncomfortable proceeding with your installation, please contact your local

authorized Memphis Audio Dealer

No Output:

• Confirm all wiring is firmly connected.

Both +12V and REM terminals must have +12 Volts present and GND must be connected to chassis’ ground or to

the negative battery terminal.

• Confirm the signal source is connected and supplying an output signal. To confirm the amp is working, connect

an RCA patch cord to the line inputs of the amplifier (do not connect the other end of the patch cord). Briefly tap

the center pin of each disconnected RCA with your finger. This should produce a noise (brief static or hum) in

the speakers.

• If the amp is hot, check the speaker impedance or load. The total minimum impedance of all speakers should

not be lower than the rating of the amp.

Only One Channel Works:

• Confirm the speaker terminal strip connections are firmly connected.

• Check “balance” control on your signal source.

• If using RCA Low-Level inputs, reverse the input plugs at the amplifier. If the channel that is silent reverses

position, the problem is in the source unit or connecting cable.

Weak Output

• Check input sensitivity control adjustment.

Unwanted Noise

• Whine that increases and decreases with engine speed - confirm the Amp & Source unit are grounded properly.

• Clicking or popping noise at a rate that follows engine speed - this is often induced by the vehicles ignition system.

Confirm that the vehicle is equipped with resistor spark plugs and wires. The ignition system may need service.

• Noise can be caused by routing speaker input wires too close to the light wires and other accessory wires in the

vehicle. Re-route wires to avoid unwanted interference.

• If above steps do not improve/reduce noise, the system should be checked by a professional audio installer at a

Memphis Authorized Dealer.

Red LED is Illuminated

• Speaker or wire is shorted • Battery voltage too low

• Battery voltage too high • Amplifier has overheated due to improper ventilation

Troubleshooting

Warning

Installation Information

Memphis Audio recommends the installation of our products to be performed by an Authorized dealer. Attempting

an installation project on your own or through an unauthorized source may result in damage to your products and

may potentially void your warranty.

Amplifiers are generally mounted in the hatch/trunk area of your vehicle or behind the seat of most pick up trucks.

Select a location that provides adequate ventilation. Amplifier should be secured using the screws provided.
