MIA Laboratories 925 Compressor MkII Bruksanvisning
MIA Laboratories
Programvara för ljud
925 Compressor MkII
Läs nedan 📖 manual på svenska för MIA Laboratories 925 Compressor MkII (11 sidor) i kategorin Programvara för ljud. Denna guide var användbar för 7 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/11

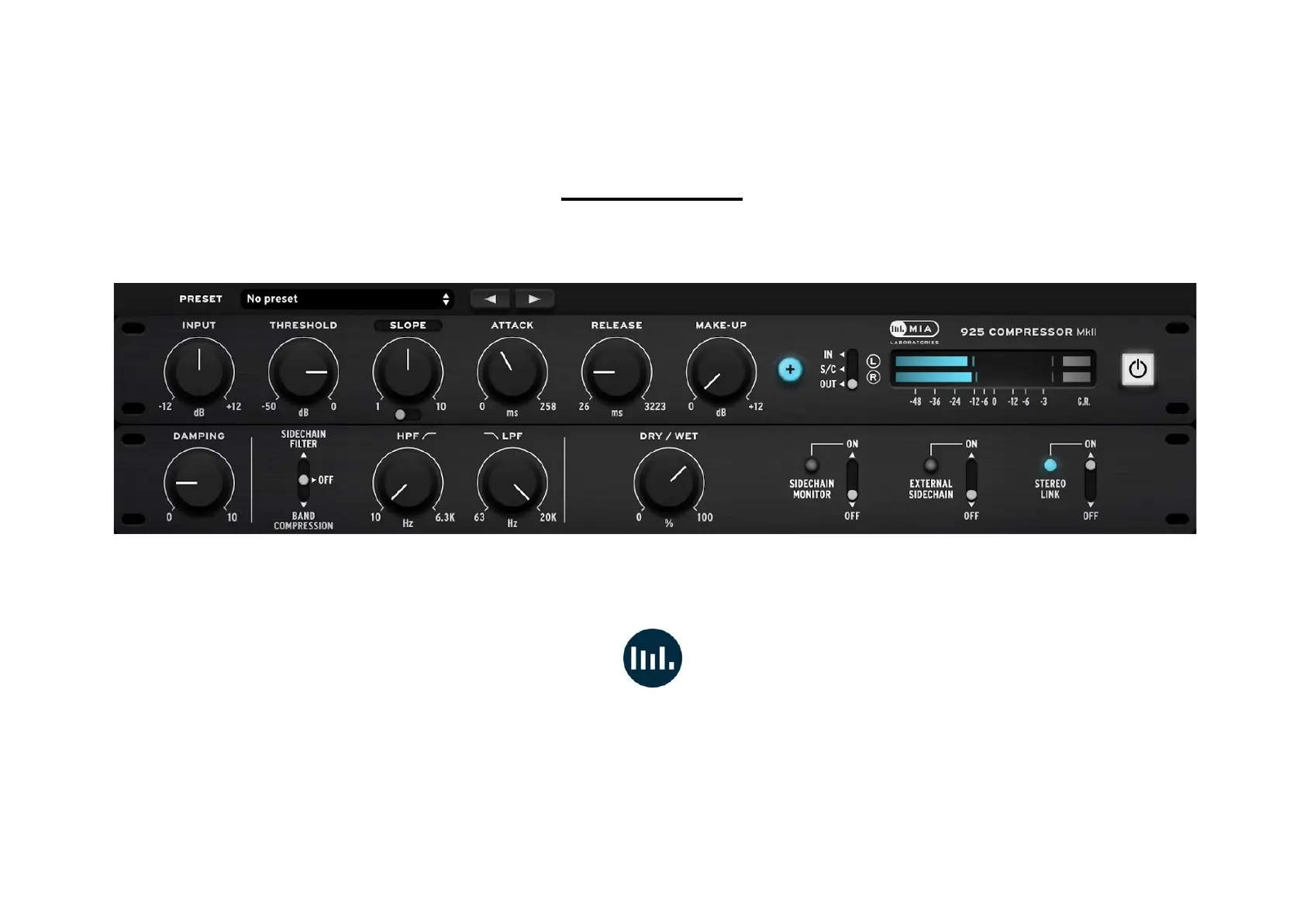

925 Compressor ΜκΙΙ
User Guide
MIA LABORATORIES
Greetings and Welcome!
Thank you for choosing MIA Laboratories.
Please take the time to read through this user guide in order to get familiar with the components and use of the 925 Compressor ΜκΙΙ.
Overview:
925 Compressor MkII is the second generation of our preferred main-mix compressor. This plugin is designed using physical modelling
principles.
Its characteristic dynamic response stems from the sidechain detection stage, which is based on the basic analog envelope detector circuit:
The high speed of this compressor’s detector allows it to follow the actual waveform instead of the envelope of the program material and -along
with the Logarithmic gain reduction- produce more natural compression. This is often the case in hardware vintage and modern equipment, and
has resulted in the 925s’ broad range of compression characteristics. It is especially suited for main-mix applications but also buss-mix or
multiple separate channels.
925 features Variable knee response, allowing more compression to be applied, especially on high-transient sounds like percussion, samples,
vocals etc. In this version, we are introducing the Slope / Ratio mode selection, which significantly changes 925’s compression curve, resulting
in completely different character and dynamic response.
The specially developed ‘Damping’ control is also introduced in 925 MkII, which allows for smoothing and fine-tuning the detector’s response,
adding to the versatility of this tool and providing the user with greater control and shaping of the signal’s envelope.
29 carefully tuned Presets provide a solid starting point for a variety of use cases. A host of new features has also been included in MkII,
including Sidechain Filtering, Band Compression and Dry/Wet control.
Features
Slope / Ratio
Toggling between Slope and Ratio changes the compression curve. ‘Slope’ is more sensitive but tends to result in smoother compression, while
‘Ratio’ is more precise with a sharper knee. In contrast to fixed-value switch ‘preset positions’, the Slope / Ratio is controlled by a continuously
adjustable dial allowing accurate and ‘tunable’ setting of the compression slope.
Stereo Link Operation
In “Stereo Linκ” mode, the same amount of compression is applied to both Left and Right channels, based on the sum of the two. With Stereo
Link disabled, compression takes place independently for each channel, whilst retaining common controls for both.
Damping
This control limits how quickly gain reduction is varied, according to the signal’s envelope. Ranging from 25μs to 0.5ms (0 - 10 in the control)
controls the minimum rise-time of the detector output. Increasing this control gradually thickens-up and ‘sets’ together the process producing
smoother compression, also changing the timbre and character of the actual content.
*By design, the compression response of 925 tends to produce a subtle distortion effect when used in extreme settings on bass-heavy sounds
with long sustain. You can use this Damping control to reduce or even tune this distortion, according to your program material.
External Sidechain
Use any other channel of your mix as an input to the side-chain of 925 Compressor MkII
Sidechain Filter
Applies a 12dB/oct High Pass and Low Pass filter to the sidechain’s input. These filters are only applied to the sidechain of the compressor and
do not affect the audio being processed directly. The actual filter response can be auditioned by pressing the “Sidechain Monitor”.
Band Compression
Utilises the 12dB/oct High Pass and Low Pass filters to compress a single band, leaving the rest of the signal untouched. The actual filter
response can be auditioned by pressing the “Sidechain Monitor”.
Sidechain Monitor
Enabling “Sidechain Monitor” allows the user to actually hear and closely examine the input of the sidechain, by routing it to the output for
Produktspecifikationer
| Varumärke: | MIA Laboratories |
| Kategori: | Programvara för ljud |
| Modell: | 925 Compressor MkII |
