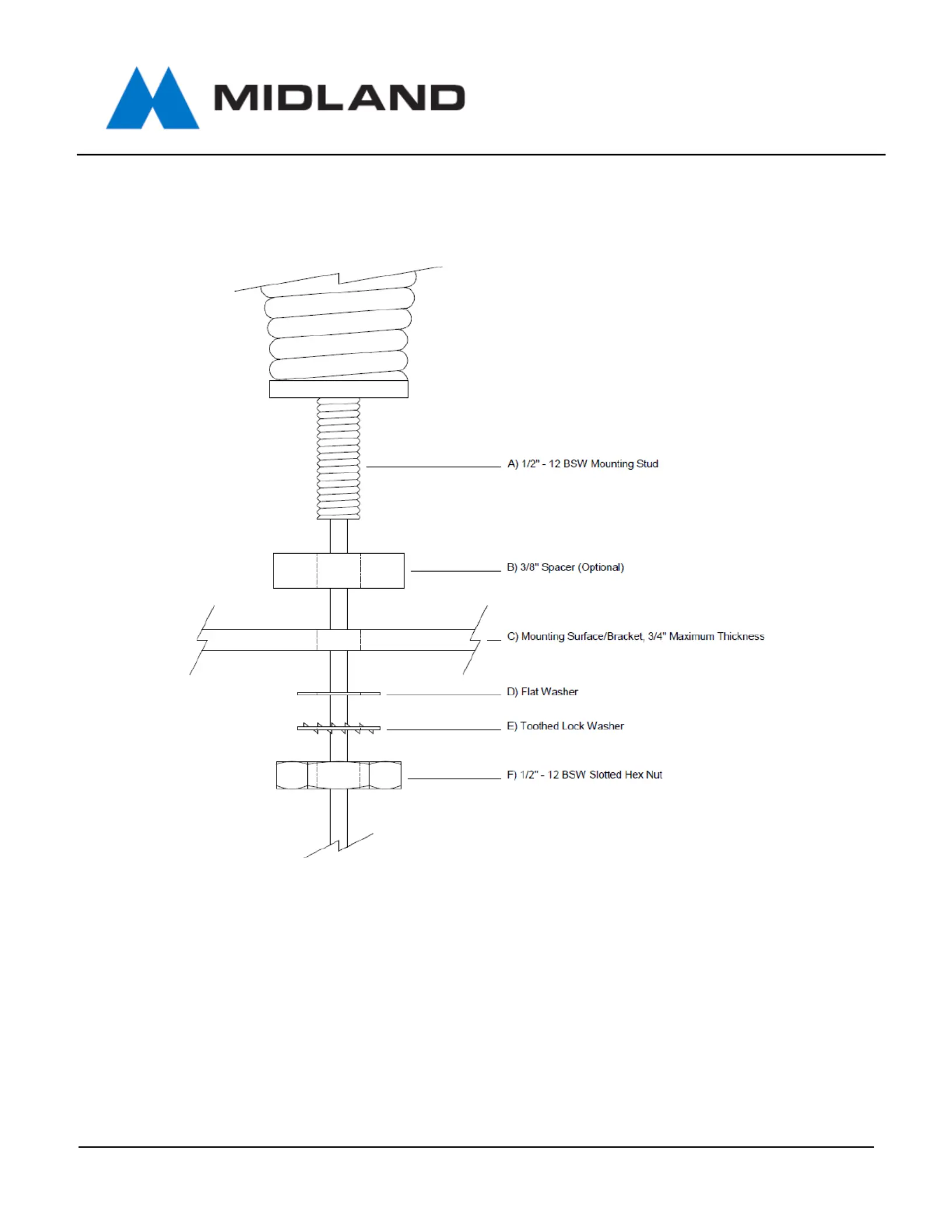

MXAT04 and MXAT05 Assembly Diagram
1. The MXAT04 and MXAT05 are designed for mounting brackets or surfaces up to 3/4" thick. substantial
2. The MXAT04 and MXAT05 are designed to be installed in a 1/2" hole.
3. Part B, 3/8” spacer, is optional for mounting brackets or surfaces up to 3/8” thick. Part B, 3/8” spacer,
should be removed for brackets or surfaces more than 3/8” thick.
4. Remove the FME to PL259 adapter on the end of the coaxial cable so the washers and hex nut can be slid
off the coaxial cable. Also remove the 3/8” spacer, Part B, if not being used.
5. Route the coaxial cable from the topside through the mounting hole in the bracket or surface, Part C .
6. he Slide t at washer, lock washer and hex nut, Parts D, E and F, back on the coaxial cable in the order
shown.
7. Hold the antenna assembly in position while tightening the hex nut, Part F. Maximum torque 35 - . lb ft
8. Finish routing the coaxial cable through the vehicle to the radio, before reinstalling the FME to PL259
adapter.
