Sida 1/20

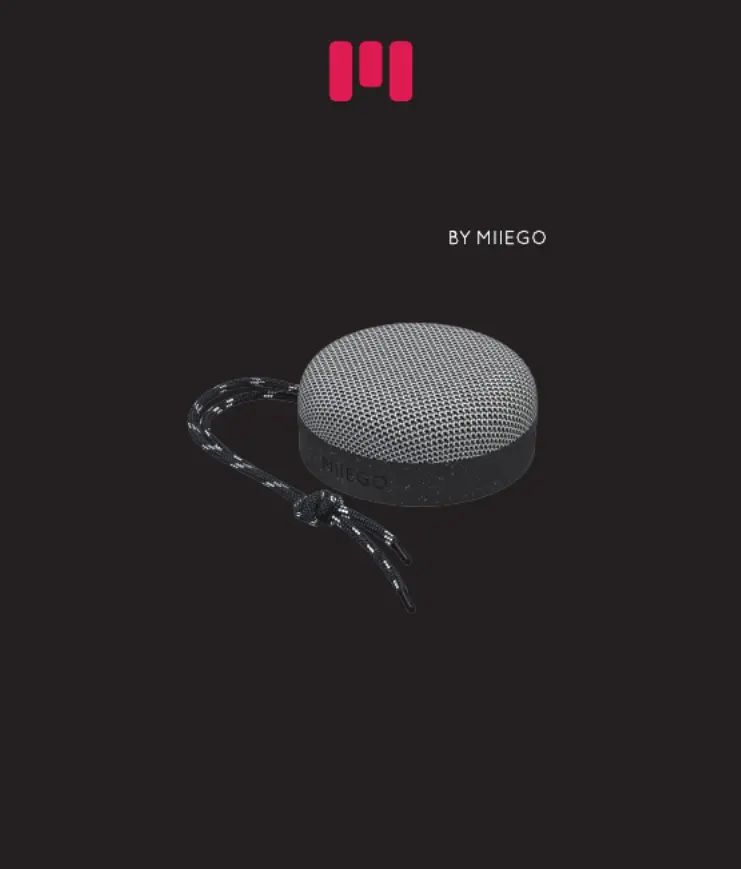

Quick Start Guide
M + RE:DUCE1
WIRELESS SPEAKER
ENG
DK
NOR
SE
1 - 2
3 - 4
5 - 6
7 - 8 ED
FR -
10
9
NL 11 21-
EST 31 14-
51 17-
ENG
1
2
3
5
4
SPECIFICATIONS
CARE, MAINTENANCE, SAFETY
1
This device contains a lithium accumulator.
Improper use can cause erheating and fire. ov
Reflective hanger
-Volume Down / Previous Song
Press once / Hold
Play button: Play, pause,
answer call, TWS.
+ Volume Up / Next Song
Press once / Hold
Power button: Power on/off,
Reset.
Microphone
LED indicator for charging
and wireless connection
Charging port
AUX IN port
Any modification of the product may have consequences for safety, warranty
and proper functioning. Keep out of reach for children and animals. Product
storage and working temperature: from -10 celsius degrees to +40. Do not
expose the product to direct sunlight, heat or naked flames as it may cause
damage or explosion. Do not use the product if a part is damaged or defective.
Replace a damaged or defective device immediately. Disconnect the product
from the electrical outlet and other equipment if problems occur. Do not
charge when the product is wet. Do not leave a battery on prolonged charge
when not in use. Do not dismantle, open or shred batteries. Do not drop the
product and avoid bumping. This product may only be serviced by a qualified
technician for maintenance to reduce the risk of electric shock etc.
6
7
8
9
Rechargeable 800 mAh Li-ion battery. Full charging time: around 2.5 hours.
Frequency range: 2402-2480MHz. Freq. Response: 90Hz-20 KHz.
Charging input power: 5V DC/1A. RMS audio output: 5W. Impedance: 4 .Ω
1
7
6
542389
ENG
2
Pairing your M1+ RE:DUCE Wireless speaker
Charging the M1+ RE:DUCE speaker
Next time charging
Turning Your M1+ RE:DUCE On and Off
Activate Siri on iOS-device: Double press the PLAY button (works only in
BT mode).
Play music from AUX mode
Pairing and connecting 2 x M1+ RE:DUCE speakers with TWS
1: Make sure the speaker is charged and turned OFF.
2: Press and hold the button for 3 seconds until the indicator light flashes
WHITE (pairing mode).
3: Activate BT on your phone or other device and search for new device and
select: It may take some seconds before it shows.M1+ by MIIEGO.
When M1+ RE:DUCE is connected the WHITE LED light is constantly on.
The speaker will remember your phone/device and automatically reconnect
the next time you turn it on.
An unpaired speaker will automatically turn off after 6 minutes.
Use a 5V/1A USB adapter (not included) for charging.
During charging the red light is on. When fully charged the red light is off.
Wireless Charging of the speaker: Make sure to place the speaker correctly
on the wireless charging plate/charger.
When you hear a warning tone every 180 seconds, the battery status is
low and needs charging.
ON: Press the Button for 3 seconds until a tone is heard.
OFF: Press the Button until a tone is heard.
Insert AUX audio cable on the side of the speaker.
(in AUX mode switching songs on +/- buttons is unavailable)
TWS only works when connecting two M1+ RE:DUCE by MIIEGO® together.
There needs to be free distance between them.
1: Turn on both speakers (BT mode). Make sure they are unconnected.
2: Press and hold the PLAY button on one speaker for 2 seconds. The product
emits a tone to indicate entering TWS-pairing mode.
3: The product then emits three tones and the LED indicator light (7) will be
constantly on. This is then the slave speaker. LED indicator light on master
speaker will flash to indicate successful TWS-pairing.
4: Activate BT on your phone/device and connect with the master speaker.
