Miiego MiiSOUND XXL Bruksanvisning

Miiego Hörlurar MiiSOUND XXL

Läs nedan 📖 manual på svenska för Miiego MiiSOUND XXL (20 sidor) i kategorin Hörlurar. Denna guide var användbar för 7 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF
Sida 1/20
Quick Start Guide
ENG
DK
NOR
SE
1 - 2
3 - 4
5 - 6
7 - 8
FR
-
1
211
-
1
09
DE - 1413
LN

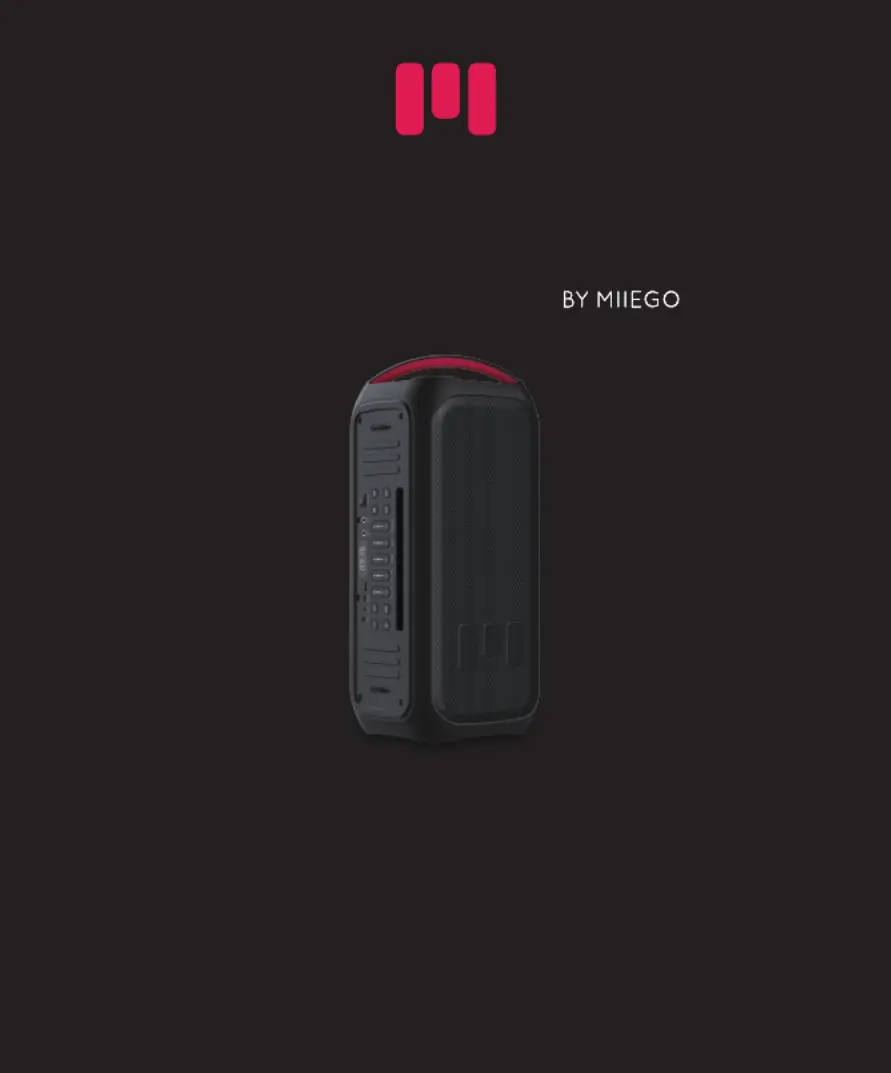

MiiSOUND XXL
WIRELESS PORTABLE SPEAKER
ENG
1
2
3
5
8
9
10
11
4
7
6
SPECIFICATIONS
CARE, MAINTENANCE, SAFETY
1
Any modification of the product may have consequences for safety, warranty
and proper functioning. Keep out of reach for children and animals. Product
storage and working temperature: from -5 Celsius degrees to +40. Do not
expose the product to direct sunlight, heat or naked flames as it may cause
damage or explosion. Do not use the product if a part is damaged or defective.
Replace a damaged or defective device immediately. Disconnect the product
BT v5.0 . Rechargeable 7.4V/ 6000 mAh Li-ion battery.
Full charging time: 4 hours. Battery playing time: up to 8 hours per charge
(with party lights off). Frequency range: 2.402-2.480 MHz. Freq.
Response: 60Hz-12 KHz. Charging input power: 12/9V DC/1.5A.
RMS audio output: 40W. Output Peak Power: 2*50W. Impedance: 4 . Ω
12
13
14
15
16
17
18
19
20
21
22
TWS
MIC1 ECHO
Party Lights control-button
Bass Boost (Standard/Bass)
MIC1 Volume control-button
MIC2 Volume control-button
TREBLE control-button
Bass control-button
Volume
Previous song
Next song
Mode (BT/ AUX/ USB/ TF).
Play / Pause
Power On/ Off.
Wired Microphone Port 2 (MIC2)
Wired Microphone Port 1 (MIC1)
Display
TF card slot
USB port in
AUX IN
Charging Port
LED-indicator for Charging
1
2
3 4 10 11
141516171819
20
21
22
12
13
56789
This device contains a lithium accumulator.
Improper use can cause erheating and fire. ov
ENG
2
Pairing your MiiSOUND XXL wireless speaker
1: Make sure the speaker is charged and turned OFF.
2: Press the ON/OFF switch (14) to turn the speaker on.
3: Activate BT on your phone (or other device) and search for new device and
select: . MiiSOUND XXL
The speaker will remember your phone/device and automatically reconnect
the next time you turn it on.
Charging the MiiSOUND XXL speaker
Use a 12/9V DC/1.5A adapter for charging.
When the Red light is on, the speaker is charging.
When the Green light is on, the speaker is fully charged.
Full charging time is around 4 hours.
Next time charging
When you see the “battery low” message on the display (17), and the battery
LED indicator light (22) keeps flashing every second, the battery status is low
and needs charging.
You will then also hear a battery warning tone every 180 seconds.
Pairing and connecting 2 x MiiSOUND XXL speakers with TWS
TWS only works when connecting two together. MiiSOUND XXLs
1: Turn on both speakers (BT mode). Make sure they are unconnected and
within 10 meters distance.
2: Press button 1 (TWS) once on one speaker. The speaker emits a tone to
indicate entering TWS-pairing mode.
3: The other speaker will then automatically wirelessly connect to the first
speaker.
4: Then activate BT on your phone and connect with the other speaker.
from the electrical outlet and other equipment if problems occur. Do not
charge when the product is wet. Do not leave a battery on prolonged charge
when not in use. Do not dismantle, open or shred batteries. Do not drop the
product and avoid bumping. This product may only be serviced by a qualified
technician for maintenance to reduce the risk of electric shock etc.

Produktspecifikationer

Varumärke: Miiego
Kategori: Hörlurar
Modell: MiiSOUND XXL
