LDF series

The LDF (Lite dish feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite

offset dish antennas. The device comes preinstalled with RouterOS and is ready to use.

Assembly

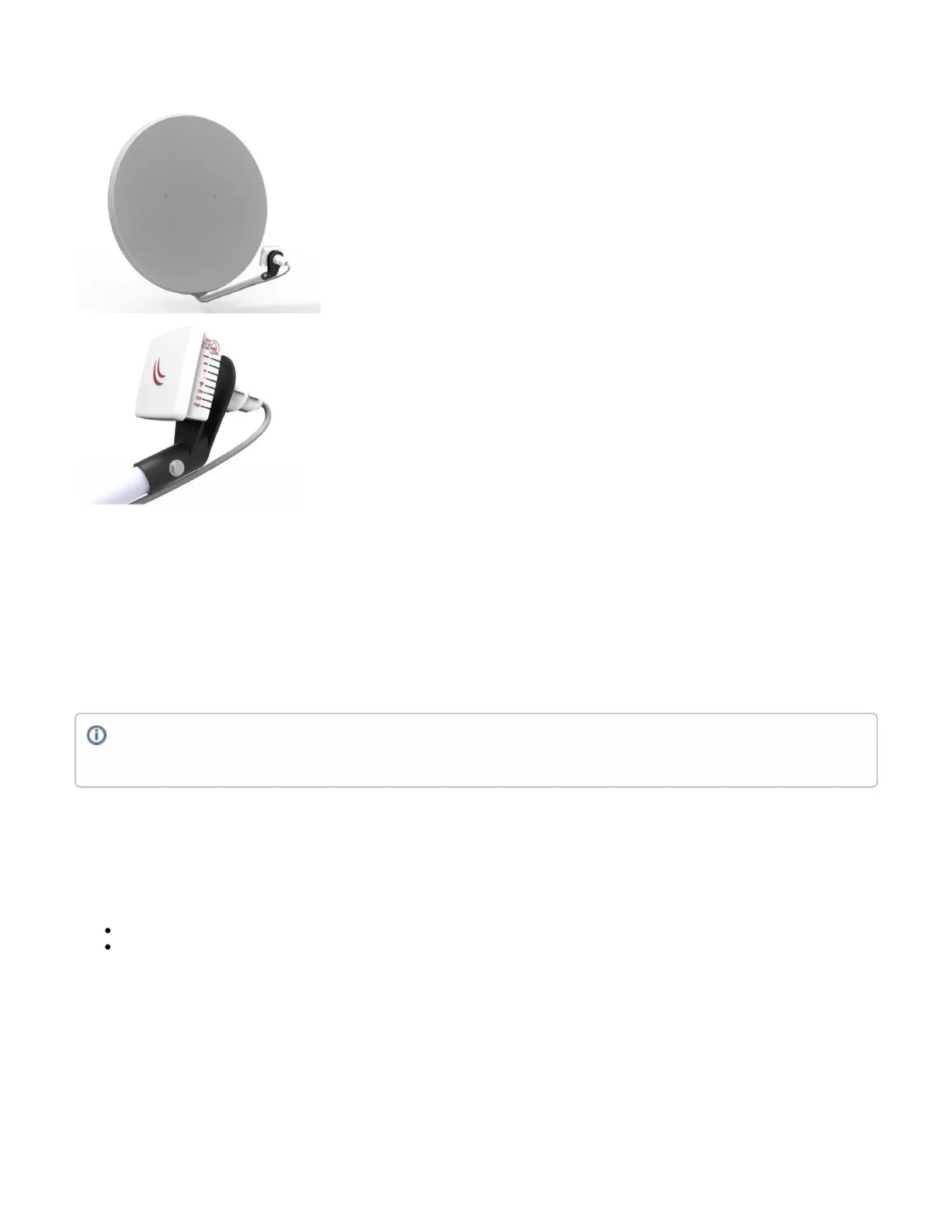

The device is compatible with standard offset dishes, commonly used for satellite television. The offset mount is

universal at 40mm diameter, and the LDF can easily be placed inside it. !

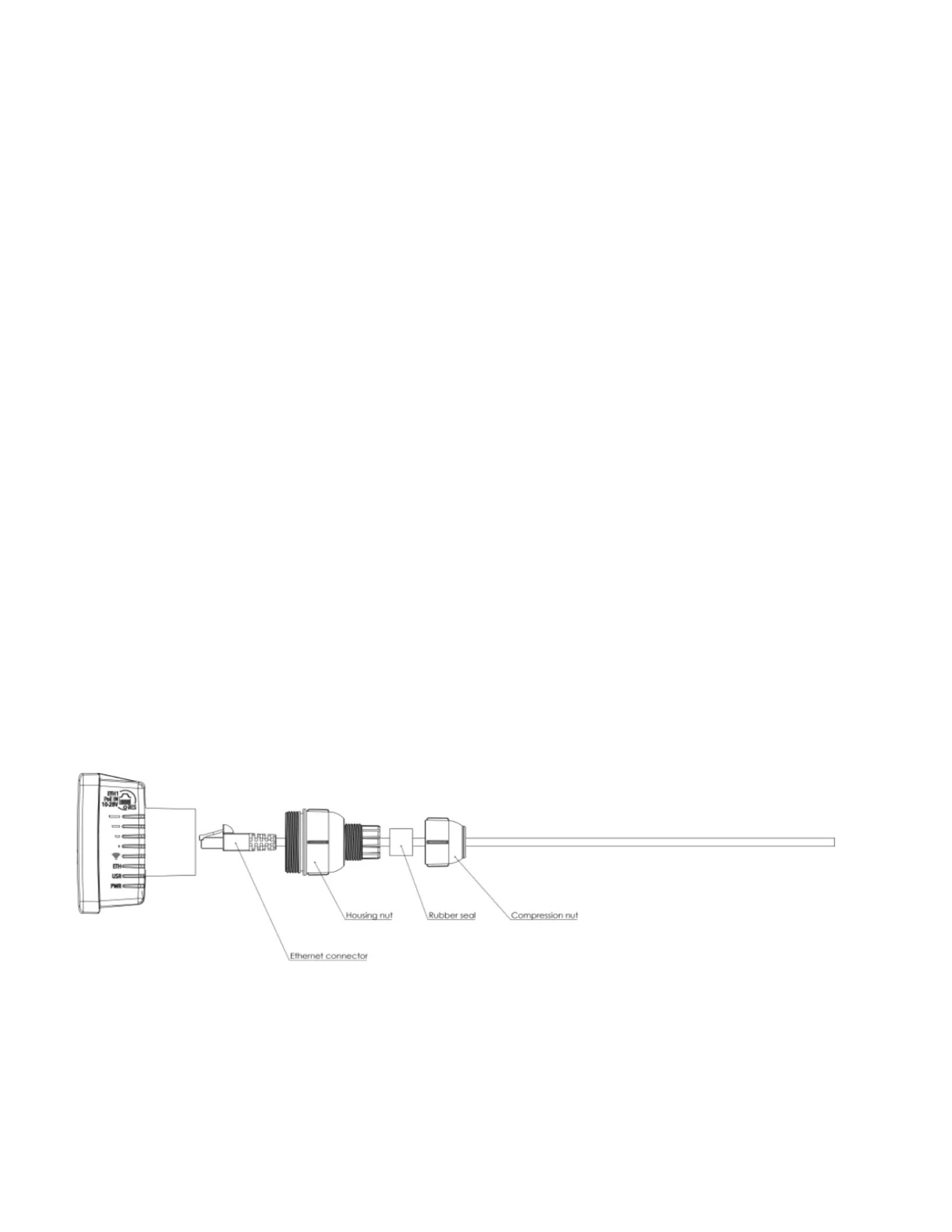

To attach the ethernet cable to the LDF unit, follow these steps:

1. Assemble all components as shown in the illustration. If using pre-made cables, cut the rubber seal on one

side, to put it onto the cable. Self crimped cables should be crimped after the seal is on the cable

2. Connect ethernet cable to ethernet connector on LDF

3. Attach Housing nut to LDF body by rotating clockwise

4. Slide rubber seal into housing nut

5. Enclose the waterproof gland by turning compression nut clockwise

Powering

The device accepts 10-28V DC input from passive Power over Ethernet injectors. The device does not work with

IEEE802.3af compliant 48V power injectors. A PoE injector is included in the package.

Connecting

1. Connect an ethernet cable to the ethernet port, connect the other end of the Ethernet cable to a PoE injector.

Plug the PoE injector into your PC or into your local network switch.

2. Set your computer IP configuration to (DHCP). automatic

3. Default IP address of the unit is 192.168.88.1, open this address in your web browser to start configuration.

The username is and there is admin no password. !

See RouterOS documentation for more information about features and their configuration options: !

http://wiki.mikrotik.com/wiki/Manual:TOC

Extension Slots and Ports

• One Integrated Wireless 5GHz 802.11a/n, 2x2 MIMO with built in antenna, max gain 9dBi + the gain of the

dish that it is mounted in.

• One 10/100 Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can use

either straight or cross-over cables for connecting to other network devices.

See www.routerboard.com for more information. Contact support@mikrotik.com for support questions. 26/09/2016

Resetting the device

You can use the reset button if you have forgotten the password to access the device, or simply wish to return the

unit to its default configuration state. The reset button is located below the ethernet port, and has three functions:

• Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configu-

ration (total 5 seconds)

• Keep holding for 5 more seconds, LED turns solid, release now to turn on CAPs management mode !

(total 10 seconds)

• Or Keep holding the button for 5 more seconds until until LED turns off, then release it to make the Router-

BOARD look for Netinstall servers (total 15 seconds)

Operating System Support

Currently tested operating system is MikroTik RouterOS (starting from version v6.37).

Federal Communication Commission Interference Statement

FCC ID: TV7LHG5ND. This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instructions, may cause harmful interference to radio communications. However, there is no guaran-

tee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation. This device and

its antenna must not be co-located or operation in conjunction with any other antenna or transmitter.

IMPORTANT: Exposure to Radio Frequency Radiation. 13 cm minimum distance has to be maintained between the

antenna and the occupational user and 28 cm to general public. Under such configuration, the FCC radiation expo-

sure limits set forth for an population/uncontrolled environment can be satisfied.

Antenna Installation. WARNING: It is installer's responsibility to ensure that when using the authorised antennas

in the United States (or where FCC rules apply); only those antennas certified with the product are used. The use

of any antenna other than those certified with the product is expressly forbidden in accordance to FCC rules

CFR47 part 15.204. The installer should configure the output power level of antennas, according to country regula-

tions and per antenna type. Professional installation is required of equipment with connectors to ensure compliance

with health and safety issues.

Industry Canada (IC: 7442A-LHG5ND)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following

two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ-

ing interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)

l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

See www.routerboard.com for more information. Contact support@mikrotik.com for support questions. 26/09/2016
