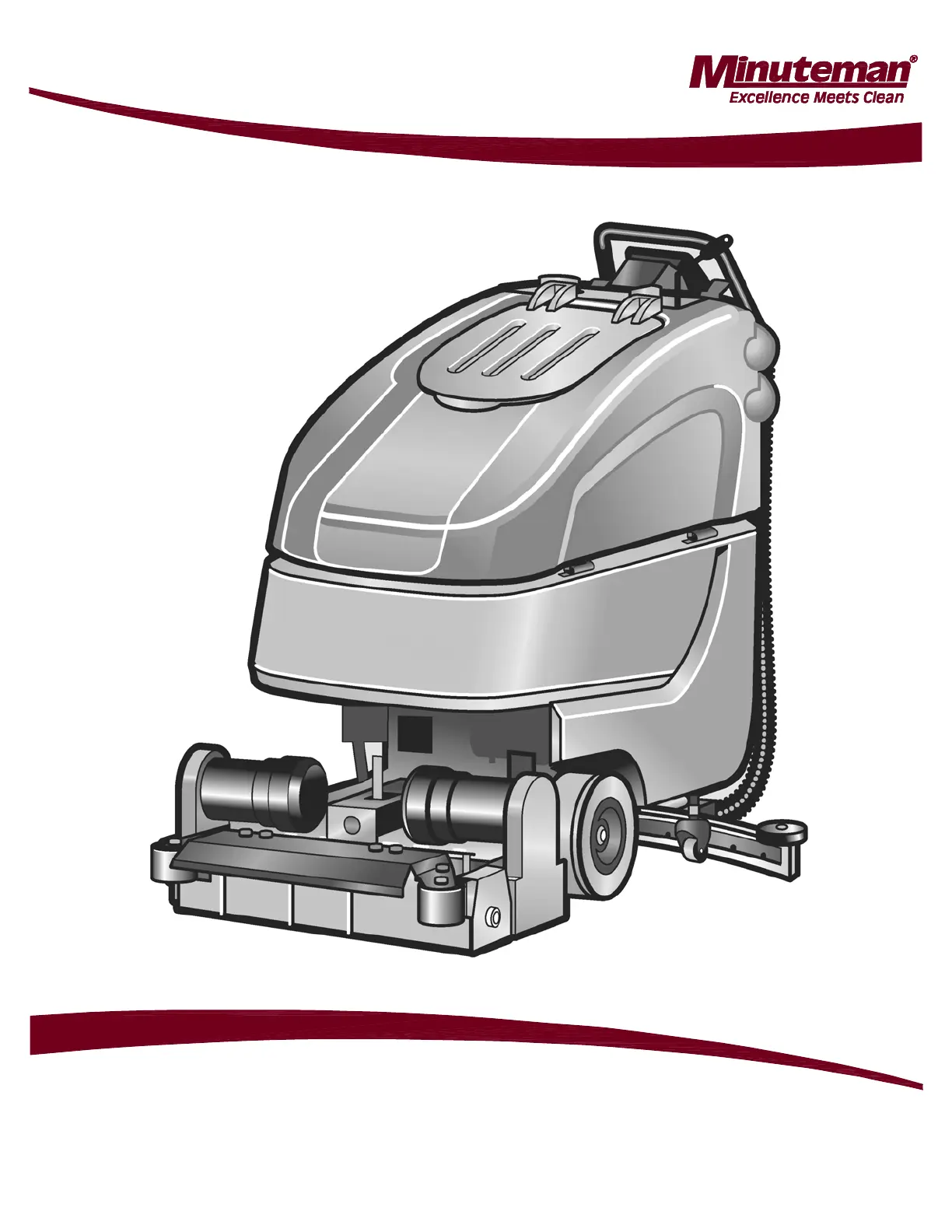

Parts Manual
E28 Walk-Behind Scrubber
Parts Manual - E28 Walk Behind Scrubber
• Stop on level surface.
Disconnect the power to the machine by pulling the red Battery Connector located under the recovery tank
near the batteries.
Avoid moving parts. Do not wear loose jackets, shirts, or sleeves when working on machine.
Avoid contact with battery acid. Battery acid can cause burns. When working on or around batteries, wear
protective clothing and safety glasses. Remove metal jewelry. Do not lay tools or metal objects on top of
batteries.
• Do not clean machine with a pressure washer.
Authorized personnel must perform repairs and maintenance. Use Minuteman supplied replacement parts.
For Safety When Servicing or Maintaining Machine
Parts Manual - E28 Walk Behind Scrubber
Table of Contents
Chassis Assembly I .............................................................................................................................. 1
Lift Pedal Subassembly ................................................................................................................... 2
Chassis Assembly II ............................................................................................................................. 3
Traction Drive Motor Subassembly ................................................................................................. 4
Chassis Assembly III ............................................................................................................................ 5
Water Supply Subassembly I .......................................................................................................... 6
Water Supply Subassembly II ......................................................................................................... 7
Squeegee Connection Subassembly I ............................................................................................ 8
Squeegee Connection Subassembly II ........................................................................................... 9
Battery Tray Assembly ........................................................................................................................ 12
Solution Tank Assembly ...................................................................................................................... 13
Recovery Tank Assembly .................................................................................................................... 14
Vacuum Motor Assembly .................................................................................................................... 15
Squeegee Lift Handle Assembly ......................................................................................................... 16
Squeegee Lock Assembly .................................................................................................................. 17
Squeegee Assembly I ......................................................................................................................... 18
Squeegee Assembly II ........................................................................................................................ 19
Control Panel Assembly ..................................................................................................................... 20
Console Subassembly................................................................................................................... 21
Electrical Assembly I........................................................................................................................... 22
Retainer Subassembly .................................................................................................................. 23
Electrical Assembly II.......................................................................................................................... 24
Battery Charger Assembly .................................................................................................................. 25
Machine Labels .................................................................................................................................. 26
Cylindrical Scrub Deck Assembly ....................................................................................................... 27
Brush Deck Assembly I ....................................................................................................................... 28
Dirt Hopper Subassembly ............................................................................................................. 29
Brush Deck Assembly II ...................................................................................................................... 30
Carrier Subassembly ..................................................................................................................... 31
Brush Deck Assembly III ..................................................................................................................... 32
