Sida 1/3
WWW.MONACOR.COM
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
ELAX-2000BX
Bestell-Nr. • Order No. 0180156
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
Copyright
© by MONACOR INTERNATIONAL. All rights reserved. A-2050.00.01.02.2020
Zusatzinformation
Signalformat einstellen
Bei der Kamera ELAX-2000BX wird das
Signalformat für den Videoausgang mit
den Bedientasten auf der Kamerarück-
seite eingestellt. Dazu die entsprechende
Taste ca.5Sekunden gedrückt halten, bis
auf dem Monitor das Kamerabild kurz
dunkel wird.
Taste Signalformat
L FBAS
R AHD
U HD-CVI
D HD-TVI
Nach dem Umschaltvorgang erscheint
das Bild im gewählten Signalformat.
Alle weiteren Einstellungen erfolgen
über das Bildschirmmenü der Kamera,
das sich z. B. mit der mittleren Bedien-
taste E einblenden lässt.
Änderungen vorbehalten.
Additional Information:
Setting the Signal Format
Use the control buttons on the rear
side of the camera ELAX-2000BX to set
the signal format for the video output:
Keep the corresponding button pressed
for approx. 5 seconds until the camera
image on the display briefly goes dark.
Button Signal format
L CVBS
R AHD
U HD-CVI
D HD-TVI
Then the image will be shown in the sig-
nal format selected.
For any other settings, use the OSD
menu of the camera; it can, for example,
be called up by means of the centre con-
trol button E.
Subject to technical modification.
Deutsch
English
21
Specifications

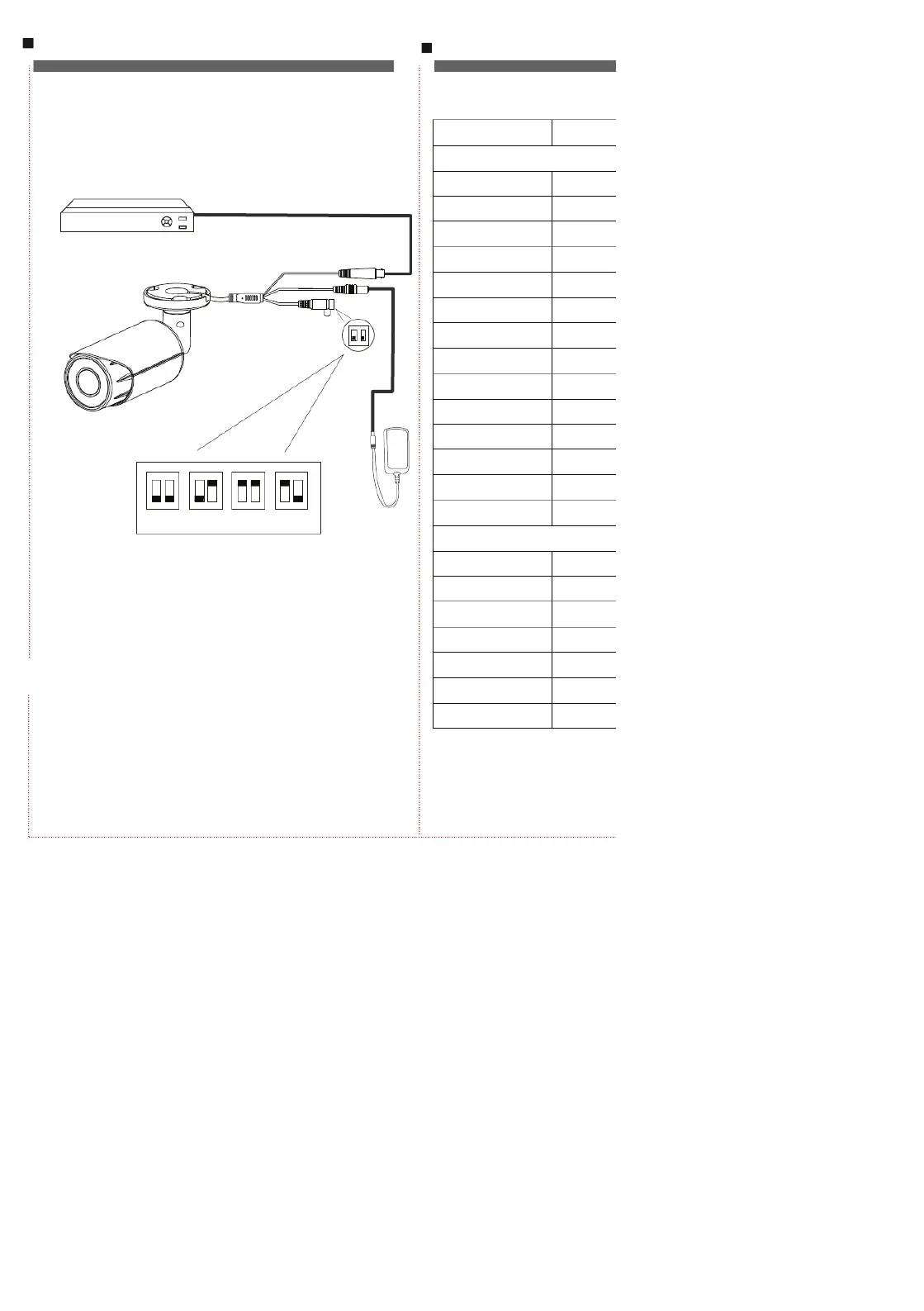

Connection diagram
1080P DVR
video out
12V DC
mode swich
1 2
on
ON
21
ON
21
ON
21
ON
HD TVI HD CVI Analog AHD
Cautions:
Make sure the power supply is matched with the camera power
input to avoid damage. Neither of the power adapter nor video
cable should not be beyond the longest transportation limit.
Model
Image Sensor
Chipset
Effective Pixels
Lowest illumination
Electronic Shutter
Video System
Video Frame Rate
Video Output
Video Switch
Smart IR Control
Day/Night
WDR
OSD Menu
Other Function
Power Supply
Power Consumption
Working Environment
IR LED
IR Distance
Lens
Transmission Distance
1
0.02Lux
1 channel
Support, coa
-30
24
10/1
3.
Ov
Camera
General
1.Image black/white, roll over
1) check the camera rear mode switch cable, adjust it and
make sure the video output is matched for your DVR.
2) go to the camera menu and change the PAL/NTSC mode.
2.Video signal shows horizontal ribbon disturbed area
1)
2)
check the power supply cable, it should not be too long,
or change a high quality power adapter to replace.
Make sure the DVR BNC port connected stable and the
DVR housing GND grounded.
3.Camera keep white/black , IR led not working or keep on,
glass cover broken, etc.
1) Call the franchiser to repair. Please do not open or try
repairing it without permission.
power adapter
coaxial cable
OSD Menu Control
Functions brief OSD Me
*
*
*
*
*
*
*
HD CMOS sensor
Within high sensitivity CMOS image sensor, 1080P video
output , very low illumination Prefect image quality emerge
both on day and night environment
4-in-1 Multiply Video modes output
Support 4 HD signals switch output, AHD/HDCVI/HDTVI/
CVBS, easy to use switch cable
OSD menu control up the coaxial cable(UTC)
Camera parameters can be setup via built-in menu. All the
configuration can be changed by back-end DVR directly
up the coax. No need press the cable button
Over 300 meters long distance video signal transportation
Smart IR control, AGC, D-WDR, DNR
Wide range voltage adaptation, Lightning protection
Strong and pretty housing, installations angles can be
adjusted
This series HD camera can su
by reusing the video cable. It
without menu button, the cam
( the DVR also should suppo
convenient for site adjustment
How to enter to the camera m
In general, the DVR must hav
to the PTZ control window and
camera menu.
The menu contents is listed a
AE: auto image enhancement
WB: white and black balance
DAY-NIGHT: day and night sw
VIDEO SETTING: video basic
DNR adjus
LANGUAGE: menu language
RESET: reload factory default
SAVE-EXIT: save all settings
Please install this device in appropriate temperature,
-30 - 60 or -22 - 140 , keep away from ℃ ℃ ℉ ℉
corrosive gas and liquid.
Don’t put the camera direct to the sunlight, it is
recommended installing it under a sun shade.
Caution :
