Sida 1/4

Specifications

Connection diagram

Cautions:

Make sure the power supply is matched with the camera power

input to avoid damage. Neither of the power adapter nor video

cable should not be beyond the longest transportation limit.

Model

Image Sensor

Lowest illumination

Electronic Shutter

Video System

Video Frame Rate

Video Output

Video Switch

Smart IR Control

Day/Night

WDR

OSD Menu

Other Function

Power Supply

Power Consumption

Working Environment

IR LED

IR Distance

Lens

Transmission Distance

1080P 4-IN-1 HD Camera

2.1 Mega pixels CMOS

0.01Lux@ F1.2,AGC ON , 0 Lux with IR（）

AUTO, 1/50s~1/60,000s

PAL/NTSC

25/30fps@1920×1080P

1 channel, HDCVI / HDTVI/AHD/CVBS optional

OSD keys or bit switch

Support

Auto(ICR) / Color / B/W / Ext

Support

Support, coaxial cable control via DVR directly (UTC)

AWB, AGC, BLC, DNR, Mirror, MD, Defog

DC12V±10%

< 5W

-30°C~+60°C / Less than 95%RH

Array IR LED, small IR LED optional

10/15/20/30/50/80 meters selectable

Fixed / VF / AF lens optional

Over 300m via 75-3 coaxial cable

Camera

General

1.Image black/white, roll over

1) check the camera rear mode switch cable, adjust it and make sure

the video output is matched for your DVR.

2) go to the camera menu and change the PAL/NTSC mode.

2.Video signal shows horizontal ribbon disturbed area

1) check the power supply cable , it should not be too long, or change

a high quality power adapter to replace.

2) Make sure the DVR BNC port connected stable and the DVR

housing GND grounded.

3.Camera keep white/black , IR led not working or keep on,

glass cover broken, etc.

1) Call the franchiser to repair. Please do not open or try

repairing it without permission.

LEFT

U P

R IG H T

D OW N

SET

CV BS

HDCVI

AHD

HDTVI

SET

UP DOWN LEFT RIGHT SET

Zoom In Zoom Out M-Focus M-Focus OSD menu

Key press:

If you choose single signal output. NO OSD key on cable.

(AF Only)

1080P HD CCTV Camera

AHD CVBS HDCVI HDTVI

Thank you for purchasing our product. If there are any questions,

please read this user manual at first, and do not hesitate to contact us.

Note:

This manual may contain some incorrect places, even though it was

published with our carefully proofreading. The new updates will be

added to the next release without notice. Your valuable advice is really

appreciated.

V5.1

4-IN-1

*Yellow BNC analog output and dip switch are optional

1080P DVR

HD video

12V DC

OSD MENU

power adapter

coaxial cable

CVBS output

yellow

green

mode switch

1 2

HD TVI HD CVI Analog AHD

*Mode Switch style may change without noce, please refer to the ﬁnal product

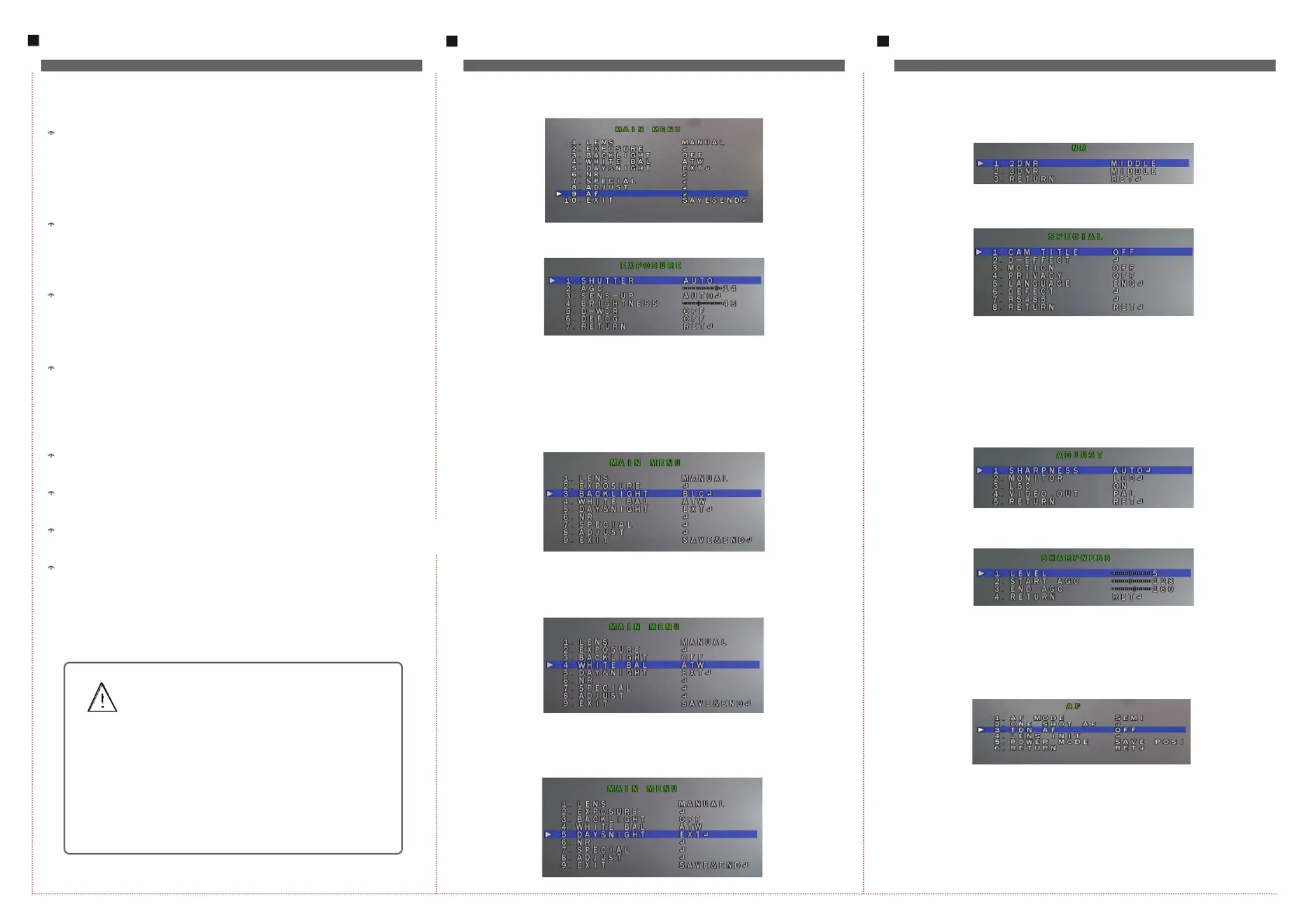

OSD Menu Control

Functions brief OSD Menu Control

HD CMOS sensor

Within high sensitivity CMOS image sensor, 1080P video

output , very low illumination Prefect image quality emerge

both on day and night environment

4-IN-1 Multiply Video modes output

Support 4 HD signals switch output, AHD/HDCVI/HDTVI/

CVBS, easy to use switch cable

*AF Zoom ,OSD menu control over coaxial cable (UTC)

Motorized auto focus HD lens, auto trigger focus after zoom

(AF lens only)

OSD menu control up the coaxial cable(UTC)

Camera parameters can be setup via built-in menu. All the

configuration can be changed by back-end DVR directly

up the coax. No need press the cable button

Over 300 meters long distance video signal transportation

Smart IR control, AGC, D-WDR, DNR

Wide range voltage adaptation, Lightning protection

Strong and pretty housing, installations angles can be

adjusted

Please install this device in appropriate temperature,

-30 - 60 or -22 - 140 , keep away from ℃ ℃ ℉ ℉

corrosive gas and liquid.

Don’t put the camera direct to the sunlight, it is

recommended installing it under a sun shade.

Caution :

1. Main Menu

5. Day & Night

6. NR

7. Special

8. Adjust

9. AF

10. Exit

2. Exposure

3. Backlight

4. White Balance

1) SHUTTER: electric shutter exposure control

2) AGC: automatic gain control

3) SENS-UP: electronic sensitivity

4) BRIGHTNESS

5) D-WDR: digital wide dynamic range

OFF BLC HSBLC

ATW AWB INDOOR OUTDOOR MANUAL

EXT AUTO COLOR B/W

1) CAM TITLE:

2) D-EFFECT: Mirror, Flip, Rotate

3) MOTION:

4) PRIVACY:

5) LANGUAGE: ENG/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/

TUR/KOR/JPN/HEB/ARB

1) SHARPNESS

2) MONITOR

3) LSC

4) VIDEO OUT

1)AF MODE: SEMI / AUTO / OFF(AUTO: keep tracking focus)

2)ONE SHOT AF: (Press and start a focus)

3)DTN AF: ON / OFF (On: trigger AF when day and night switch)

4)LENS INIT: (Press to calibrate the AF lens if lens can not auto focus)

5)POWER MODE: SAVE POSITION / WIDE / OFF

(AF lens only)

SAVE AND EXIT / EXIT / RESET

36-00-R41107
