Sida 1/8
O w n e r s M a n u a l
SOUNDBAR SERIES
Р у к о в о д с т в о п о э к с п л у а т а ц и и
I n s t r u k c j a u ż y t k o w n i k a
G u i d e d ' u t i l i s a t i o n
M a n u a l e U t e n t e
B e d i e n u n g s a n l e i t u n g
M a n u a l d e u s u a r i o
M a n u a l d o U t i l i z a d o r
G e b r u i k e r s h a n d l e i d i n g
オ ー ナ ー ズ マ ニ ュ ア ル
  
用 户 手 册
Introduction
Congratulations and thank you for your purchase from the Passive Soundbar Series of loudspeakers. We
are confident they will provide years of enjoyment and pleasure as only high quality components have been
used throughout.
Please follow this user manual carefully as it contains important information about set up procedures.
Set Up and Positioning
The Passive Soundbars are designed to be mounted on a wall using our Soundbar Bracket (sold
separately), a third party bracket system (for example Sanus), or sit on a shelf using the integrated feet.
The Soundbar should be positioned as close to the TV as possible to minimise any potential “gaps” in
sound, and ensuring the dialogue sound appears to originate from the TV itself.
Being a complete front soundstage in a single cabinet, there are no other set up procedures to follow.
Suggested surround speakers can be seen below.

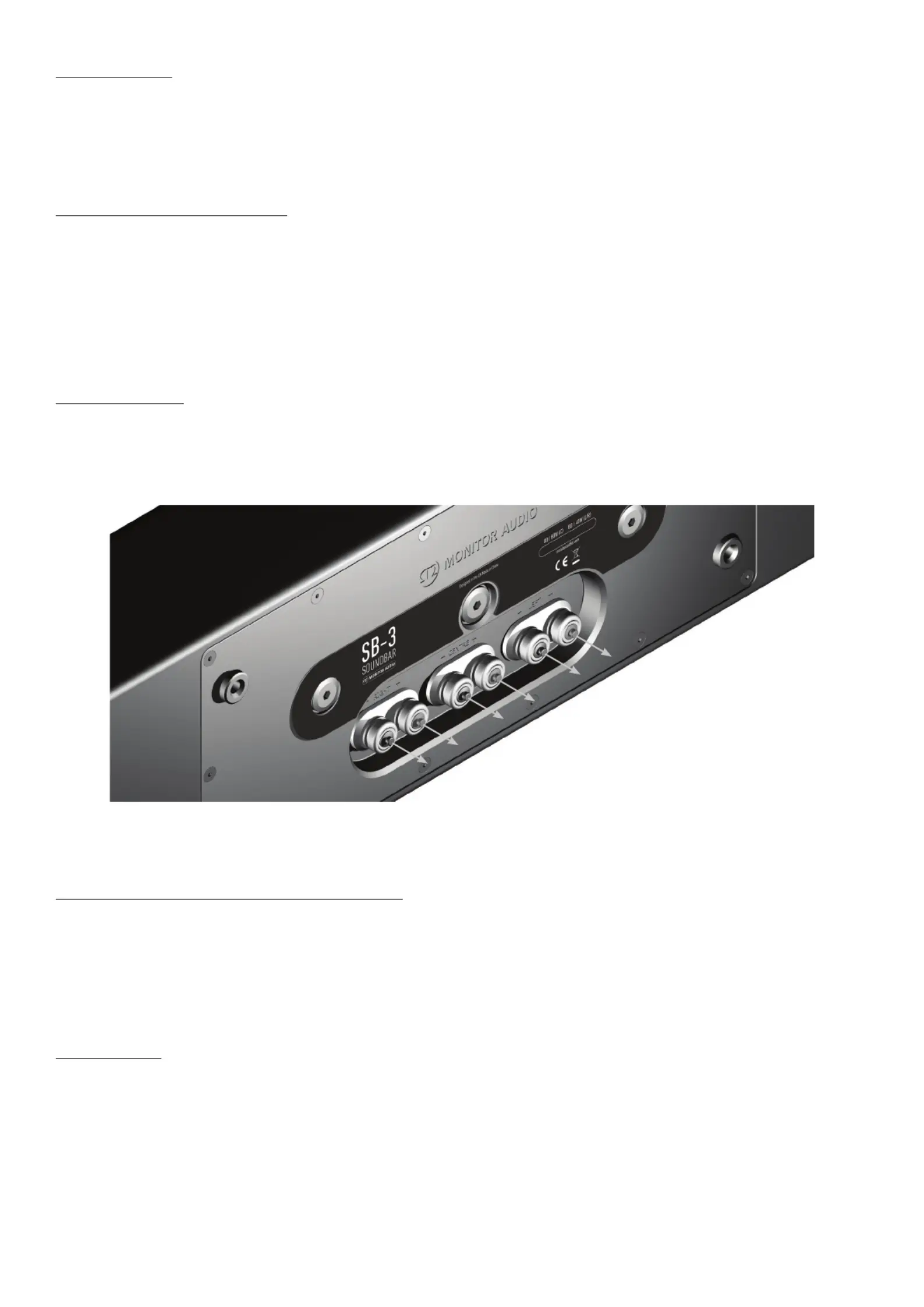

Connections
Either bare wire, banana plugs or spade connectors can be used to connect the Soundbars. When wall
mounting, we recommend using bare wire due to the limited space at the rear of the cabinet.
When using banana plugs, remove the red and black plastic terminal plugs using fingers or pliers.
Connect the Left, Centre and Right hand speaker cables from the AV Amplifier to the corresponding input
on the Soundbar.
Surround Speakers & Subwoofers
Surround speakers to match the Soundbar Series products would be determined to system requirements.
Recommended timbre matched partners would be MASS10’s, Radius 90’s and speakers from the Custom
Install 200 Series and Control Performance 200 Series.
Recommended subwoofers would be from the MASS, Bronze, or Radius Series, or if positioned in a large
room, the Silver or Apex Series.
Guarantee
Both the craftsmanship and the performance of this product is guaranteed against manufacturing defects
for the period of years from the date of purchase (see conditions in the Important Safety Instructions five
booklet), provided that the product was supplied by an authorised Monitor Audio retailer under the
consumer sale agreement.
To verify your manufacturer’s warranty, please visit the online registration form at: www.monitoraudio.com
2 Soundbar Series
monitoraudio.com 3
Specifications
Model SB-2
Left - Centre - Right
SB-3
Left - Right Centre
SB-4
Left - Centre - Right
Frequency Response (-3dB) 90Hz – 30kHz 80Hz – 30kHz 70Hz - 30kHz
Sensitivity (1W@1M) 84dB 84dB 87dB 87dB
Nominal Impedance 8 Ohms 8 Ohms 8 Ohms
Power Handling Single (RMS) 40W 40W 80W 80W
System Power Handling
(RMS)
100W
(High pass filter set to
100Hz)
100W
(High pass filter set to 100Hz)
100W
(High pass filter set to
100Hz)
Recommended Amp
Requirements 30 - 100W 30 - 100W30-100W
Recommended High Pass
Crossover Frequency 80 - 120Hz 80 - 120Hz 80 - 120Hz
Maximum SPL 104dBA
(108.8 all channels driven)
104dBA
(108.8 all channels driven)
104dBA
(108.8 all channels driven)
Bass Alignment Auxiliary Bass Reflex (ABR)
Loading Auxiliary Bass Reflex (ABR) Loading Auxiliary Bass Reflex (ABR)
Loading
Drive Unit Complement
3 x 4” (100mm) C-CAM
cone bass/ mid driver.
3 x 1" (25mm) C-CAM gold
dome tweeter
2 x 4” (100mm) C-CAM
cone bass/ mid driver.
2 x 1" (25mm) C-CAM gold
dome tweeter
2 x 4” (100mm) C-CAM
cone bass/ mid driver.
1 x 1" (25mm) C-CAM gold
dome tweeter
2 x 4” (100mm) C-CAM
cone bass/ mid driver.
2 x 1” (25mm) C-CAM gold
dome tweeter
Cabinet Dimensions
(H x W x D).
145 x 1110 x 89mm
(5 11/16 x 43 11/16 x 3 1/2")
145 x 1310 x 89mm
(5 11/16 x 51 9/16 x 3 1/2")
145 x 1562 x 89mm
(5 11/16 x 61 9/16 x 3 1/2”)
External Dimensions Inc
Bracket.
(H x W x D).
145 x 1110 x 100mm
(5 11/16 x 43 11/16 x 3 15/16")
145 x 1310 x 100mm
(5 11/16 x 51 9/16 x 3 15/16")
145 x 1562 x 100mm
(5 11/16 x 61 9/16 x 3 15/16”)
Weight (each) 7.64Kg (16lb 12oz) 9.1Kg (20lb) 12Kg (26lb 7Oz)
Finishes Black cloth with brushed aluminium end trims
