Installation
Instructions
31-10689
04-08 JR
30", 36" and 48"
Professional Ranges
Cuisinières professionnelles
de 30’’ (76 cm) 36" (91 cm)
et de 48" (121 cm)
Instructions d’installation
La section française commence à la page 24
Cocinas profesionales
de 30", 36" y 48"
Instrucciones de instalación
La sección en español empieza en la página 46
2
Installation Instructions
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT — Save these instructions for
local inspector’s use.
•IMPORTANT — Observe all governing
codes and ordinances.
• —Note to Installer Be sure to leave these
instructions with the Consumer.
• —Note to Consumer Keep these instructions
with your Owner’s Manual for future reference.
• —Completion Time 1 to 3 hours.
• Proper installation is the responsibility of the
installer. Product failure due to improper
installation is not covered under the warranty.
See Owner’s Manual for warranty information.
WARNING:
This appliance must be properly grounded.
See ”Electric Supply.”
For Monogram local service in your area,
1.800.444.1845.
For Monogram Service in Canada, call
1.800.561.3344.
For Monogram Parts and Accessories, call
1.800.626.2002.
If you received a damaged range, you should
contact your dealer.
In the Commonwealth of Massachusetts:
• This product must be installed by a licensed
plumber or gas fitter.
• When using ball type gas shut off valves, they
shall be T-handle type.
• A flexible gas connector, when used, must not
exceed 3 feet.
Vent hood Combinations:
It is recommended that these ranges be installed
in conjunction with a suitable overhead vent hood.
• Install a hood with at least 1200 CFM above a 48"
wide range.
• Install a hood with at least 600 CFM above a 30”
or 36” range.
Due to the high heat capacity of this unit, particular
attention should be paid to the hood and ductwork
installation to assure it meets local building codes.
WARNING:
Clearances to horizontal surfaces above the range,
measured to the cooking surface:
• Installations without a hood require 48” minimum
to combustibles.
• A custom hood installation with exposed
horizontal combustibles surfaces must have
an Auto-On feature.
• For other installations with a hood, refer to hood
installation instructions for specific hood
clearances.
CAUTION:
These ranges weigh up to 700 pounds. Some
disassembly will reduce the weight considerably.
Due to the weight and size of the range and to
reduce the risk of personal injury or damage to
the product:
TWO PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION OF 36" AND 30" RANGES.
THREE PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION OF 48" RANGES.
WARNING:
All ranges can tip. Injury could result. Install the
supplied Anti-Tip Bracket provided. See instructions
in this manual or with the bracket.
Leak testing of the appliance shall be conducted
according to the manufacturer’s instructions.
Installation must conform with local codes. In the
absence of local codes, the range must comply with
the National Fuel Gas Code, ANSIZ223.1/NFPA 54,
latest edition and National Electrical Code
ANSI/NFPA 70 latest addition. In Canada, installation
must conform with the current Natural Gas
Installation Code, CAN/CGA-B149.1 or the current
Propane Installation Code, CAN/CGA-B149.2, and
with local codes where applicable. This range has
been design-certified by CSA International according
to ANSI Z21.1, latest edition and Canadian Gas
Association according to CAN/CGA-1.1 latest edition.
30" to 36" Adjustable Height
Backsplash With Shelf
ZXADJB48PSS, for 48" wide ranges
ZXADJB36PSS, for 36" wide ranges
ZXADJB30PSS, for 30" wide ranges
12" High Backsplash
ZX12B48PSS, for 48" wide ranges
ZX12B36PSS, for 36" wide ranges
ZX12B30PSS, for 30" wide ranges
CONTENTS
Design Information
Models Available......................................................................3
Backsplash Accessories ......................................................3
Product Dimensions and Clearances........................4-7
Tools and Materials Required .......................................... 8
Installation Preparation
Power Supply Locations ..............................................9, 10
Installation Instructions
Step 1, Remove Packaging ..............................................11
Step 2, Move Range Indoors ..........................................12
Step 3, Install Anti-Tip Device ........................................13
Step 4, Connect Range to Gas........................................14
Step 5, Connect Electrical ................................................14
Step 6, Roll Range into Position ....................................14
Step 7, Level the Range ....................................................15
Step 8, Replace Oven Doors............................................15
Step 9, Check Burners ........................................................16
Finalize Installation ..............................................................16
Installation Checklist ..........................................................16
Accessories..............................................................................17
Accessory Installation ................................................18–20
Gas Conversion ............................................................21-23
MODELS AVAILABLE
These Monogram ranges ar set for eithere factory
natural gas or LP gas. Order the model for your
installation situation.
48" Natural Gas Models:
ZDP484NG – 4 gas burners, grill and griddle
ZDP486NR – 6 gas burners and grill
ZDP486ND – 6 gas burners and griddle
48" LP Gas Models:
ZDP484LG – 4 gas burners, grill and griddle
ZDP486LR – 6 gas burners and grill
ZDP486LD – 6 gas burners and griddle
36" Natural Gas Models:
ZDP366N – 6 gas burners
ZDP364NR – 4 gas burner and grills
ZDP364ND – 4 gas burner and griddles
36" LP Gas Models:
ZDP366L – 6 gas burners
ZDP364LR – 4 gas burners and grill
ZDP364LD – 4 gas burners and griddle
30" Natural Gas Model: ZDP304N
30" LP Gas Model: ZDP304L
3

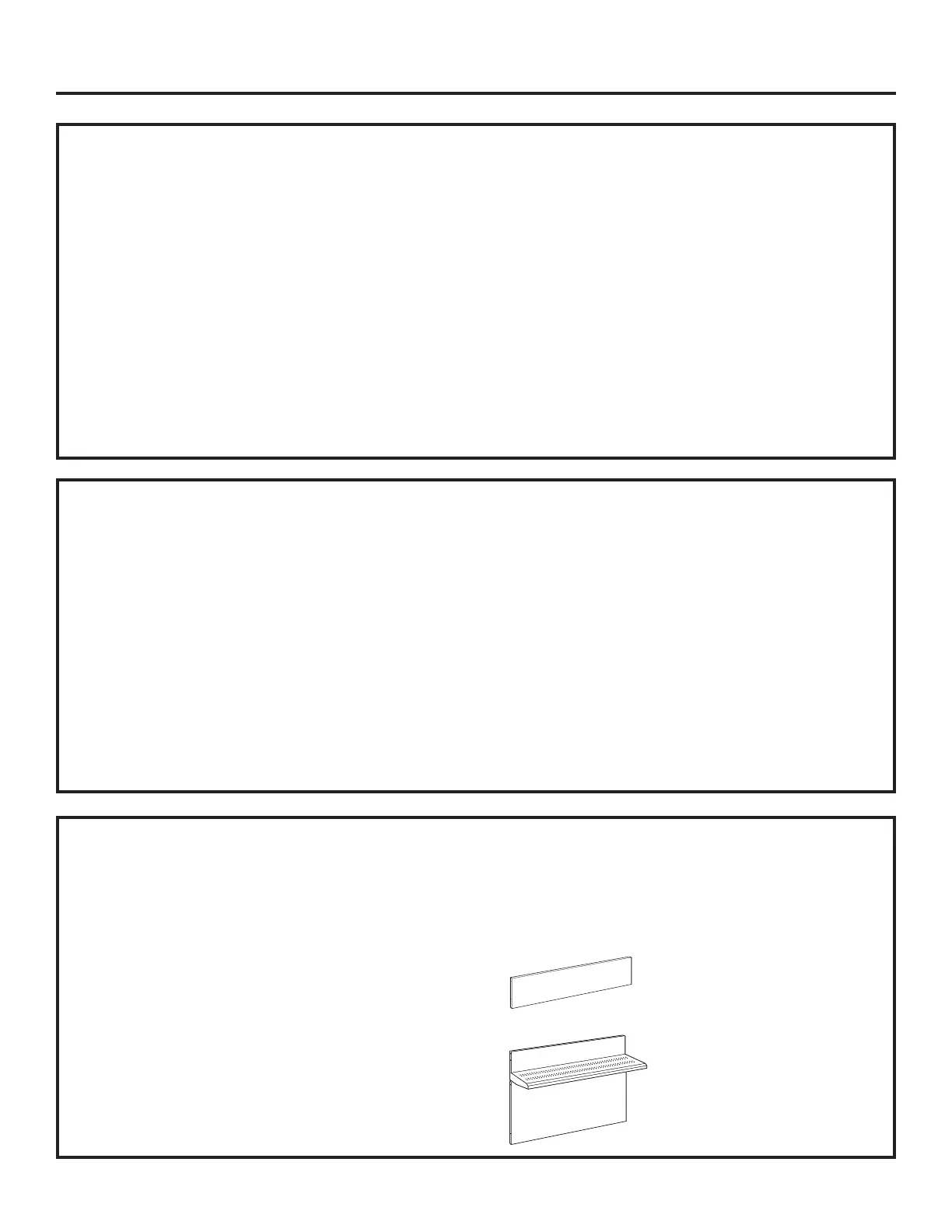

BACKSPLASH ACCESSORIES
All models require 12" minimum clearance to a
vertical combustible surface at the rear. If clearance
is less than 12”, the entire surface of the back wall
above and the full width of the range must be
protected by a backsplash. The backsplash must be
constructed of non-combustible material, such as
metal, ceramic tile, brick, marble or other stone.
Two Backsplash Accessories Available:
• The 12" high stainless steel backsplash accessory
is available. Use this backsplash in combination
with a custom, non-combustible backsplash built
beyond the 12” height. The combined height of
the backsplash accessory and the custom
backsplash must reach the bottom of a hood,
or when ther is no hood, to 48” above the e
cooking surface.
Design Information
• An adjustable 30" to 36" high backsplash with
shelf is also available. This backsplash fills in the
space between the top of the range and the
bottom of the hood. The shelf is positioned so that
heat lamps from the bottom of a Monogram
professional hood are directed towards the shelf.
