Sida 1/16
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
• ,03257$17³ Save these instructions
for local inspector’s use.
• ,03257$17³ Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with Consumer.
• Note to Consumer – Keep these instructions
for future reference.
• Skill level – Installation of this appliance
requires a qualified installer or electrician.
• Proper installation is the responsibility
of the installer.
• Product failure due to improper installation
is not covered under Warranty.
• Product is for indoor use only.
Installation Instructions
27” & 30” Electric Built-In Wall Ovens
FOR YOUR SAFETY:
WARNING
:
Before beginning the installation, switch power off at the service panel and
lock the service disconnecting means to prevent power from being switched on accidentally. When the
service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag,
to the service panel.
Be sure the oven is securely installed in a cabinet that is firmly attached to the house structure.
Weight on the oven door could cause the oven to tip and result in injury. Never allow anyone to climb, sit,
stand or hang on the oven door.
Make sure the wall coverings, counters and cabinets around the oven can withstand the heat
(up to 200°F [93.3°C]) generated by the oven.
Questions? Call 1.800.GE.CARES (1.800.432.2737) or visit www.GEAppliances.com
In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca
MATERIALS YOU MAY NEED
Junction Box
Wire Nuts
Strain Relief Clamp for 1/2” Conduit
TOOLS YOU MAY NEED
1/8” Drill Bit and Electric or Hand Drill
T20 Screwdriver
Phillips Screwdriver
Wire Strippers
1 REMOVE PACKAGING MATERIALS
Failure to remove packaging materials could result in damage to the appliance. Remove all packing
parts from oven, racks and heating elements. Remove protective film and labels on the outer door
and control panel. Also, remove plastic on trims and panel, all tape around the oven and any shipping
screws securing the oven to the base pad. Open oven door and remove literature pack and oven
racks. Remove the bottom trim from the top of the oven. It will be installed at the end of the installation
process. The trim is wrapped separately and taped to the top of the unit. Remove pedestal rails from
seperate box and set aside (30” Double Wall Ovens Only).

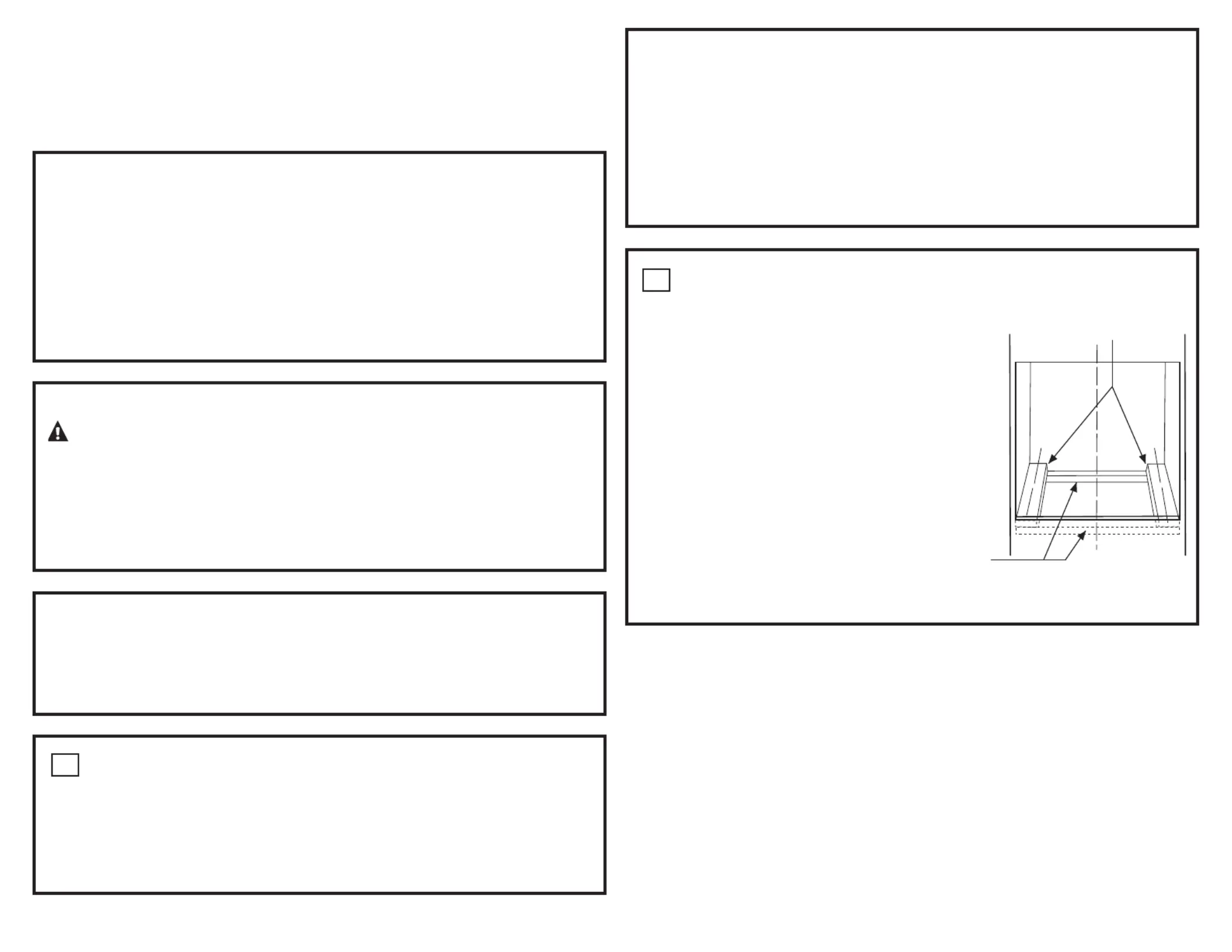

2 PREPARE THE OPENING
NOTE: If the cabinet does not have a solid bottom, two
braces or runners must be installed to support the weight
of the oven. For single ovens, the runners and braces
must support 220 lbs (99 kg). For double ovens, the
runners and braces must support 400 lbs. (181 kg).
NOTE: If marks, blemishes or the cutout opening are
visible above the installed oven, it may be necessary to
add wood shims under the runners and front trim until
the marks or opening are covered.
NOTE: If the cabinet does not have a front frame and
the sides are less than ¾” (1.9 cm) thick, shim both sides
equally to establish the cutout width.
ATTENTION INSTALLER: All electric wall ovens must be hard-wired (direct-wired) into an
approved junction box. A plug and receptacle is NOT permitted on these products.
Suitable
Bracing
to Su
pp
ort
C
L
2" x 4" (5 cm x 10 cm)
or Equivalent Runners Level
with Bottom of Cutout
and Flush with Sides of Cutout
DESIGN INFORMATION
SINGLE OVEN INSTALLATIONS
The single oven may be installed in a cabinet alone or above a warming drawer. The single oven may also
be installed below a countertop or below specified cooktops. See the label on top of the oven for approved
models.
DOUBLE OVEN INSTALLATIONS
A double oven may be installed in a cabinet alone or above a warming drawer. See the label on top of the
oven for approved models.
IMPORTANT: Always refer to individual installation instructions packed with each product for specific
requirements.

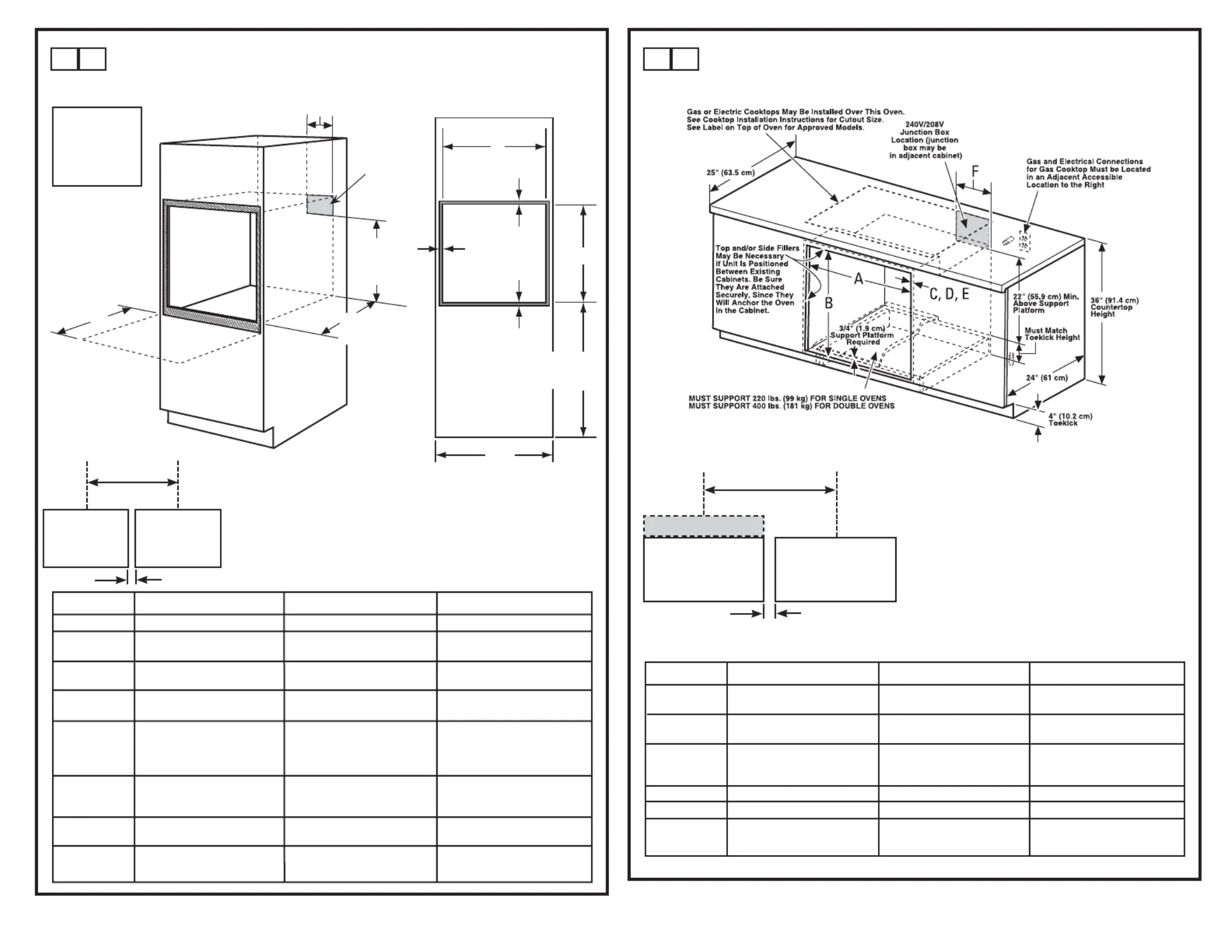

2 A CUTOUT FOR SINGLE OVENS IN WALL CABINET
NOTE: If the cabinet does not have a front frame and the sides are less than ¾” (1.9 cm) thick, shim
both sides equally to establish the cutout width.
These ovens
are not
approved for
stackable
installations.
Cutout –
observe all
dimensions and
requirements.
Cutout –
observe all
dimensions and
requirements.
2” (5.1 cm) Min.
30.5” (77.5 cm)
30” models
27” (68.58 cm)
27” models
Center Line Center Line
Side-by-Side Installations
Install two ovens in separate cutouts.
Dimension Dimension Description 27” Single Oven 30” Single Oven
A Cabinet Width 27” (68.6 cm) 30” (76.2 cm)
B Cutout Width 25” (63.5 cm) min. 281ø2” (72.4 cm) min.
251ø4” (64.1 cm) max. 285ø8” (72.7 cm) max.
C Cutout Height 275ø8” (70.2 cm) min. 271ø4” (69.2 cm) min.
281ø8” (71.4 cm) max. 275ø16” (69.4 cm) max.
D Overlap of Oven Over 1” (2.5 cm) 11ø16” (1.75 cm)
Side Edges of Cutout
E Clearance to 23” (50.8 cm) min. 23” (53.3 cm) min.
Adjacent Corners,
Drawers, Walls, etc.,
When Door Is Open
F Overlap of Oven 1” (2.5 cm) min. 1” (2.5 cm) min.
Top of Cutout (11ø4” (3.2 cm) for PT9050,
ZET1S and ZET1P)
G Overlap of Oven 1” (2.5 cm) min. 11ø4” (3.2 cm)
Bottom of Cutout
H Junction Box Location 83ø4” (22.2 cm) max. 9 1
ø2” (24.1 cm) max.
right side only right side only
2 B CUTOUT FOR SINGLE OVENS – UNDER COUNTER
NOTE: These ovens are only approved to be installed under the specific models as labeled on the unit.
Dimension Dimension Description 27” Single Oven 30” Single Oven
A Cabinet Width 25” (63.5 cm) min. 281ø2” (72.4 cm) min.
251ø4” (64.1 cm) max. 285ø8” (72.7 cm) max.
B Cutout Height 275ø8” (70.2 cm) min. 271ø4” (69.2 cm) min.
281ø8” (71.4 cm) max. 275ø16” (69.4 cm) max.
C Unit Overlap Top 1” (2.5 cm) 1” (2.5 cm)
(11ø4” (3.2 cm) for PT9050
ZET1S and ZET1P)
D Unit Overlap Bottom 1” (2.5 cm) 11ø4” (3.2 cm)
E Unit Overlap Side Edges 1” (2.5 cm) 11ø16” (1.75 cm)
F Junction Box Location 83ø4” (22.2 cm) max. 9 1
ø2” (24.1 cm) max.
right side only right side only
Continue to Section 4.
NOTE: One cooktop may be centered over either oven in
the side-by-side installation.
Cutout – observe
all dimensions and
requirements.
2” (5.1 cm) Min.
30.5” (77.5 cm) 30” models
27” (68.58 cm) 27” models
Center Line Center Line
Side-by-Side Installations
Install two ovens in separate cutouts.
Cooktop
Cutout – observe
all dimensions and
requirements.
H
B
F
GC
D
A
E
Junction
Box
Location
(junction
box may
be located
in adjacent
cabinet)
22” (55.9
cm) Min. to
Bottom of
Junction
Box
Cutout Depth
23-1/2”
(59.7 cm) Min.
Recommended
Cutout Location
from Floor
32-1/2” (82.6 cm)
Opening
Between Inside
Walls Must be
at Least 28-1/2”
(72.4 cm) Wide
Note: Allow
1/4” (0.64 cm)
clearances
from side
edges of oven
door.

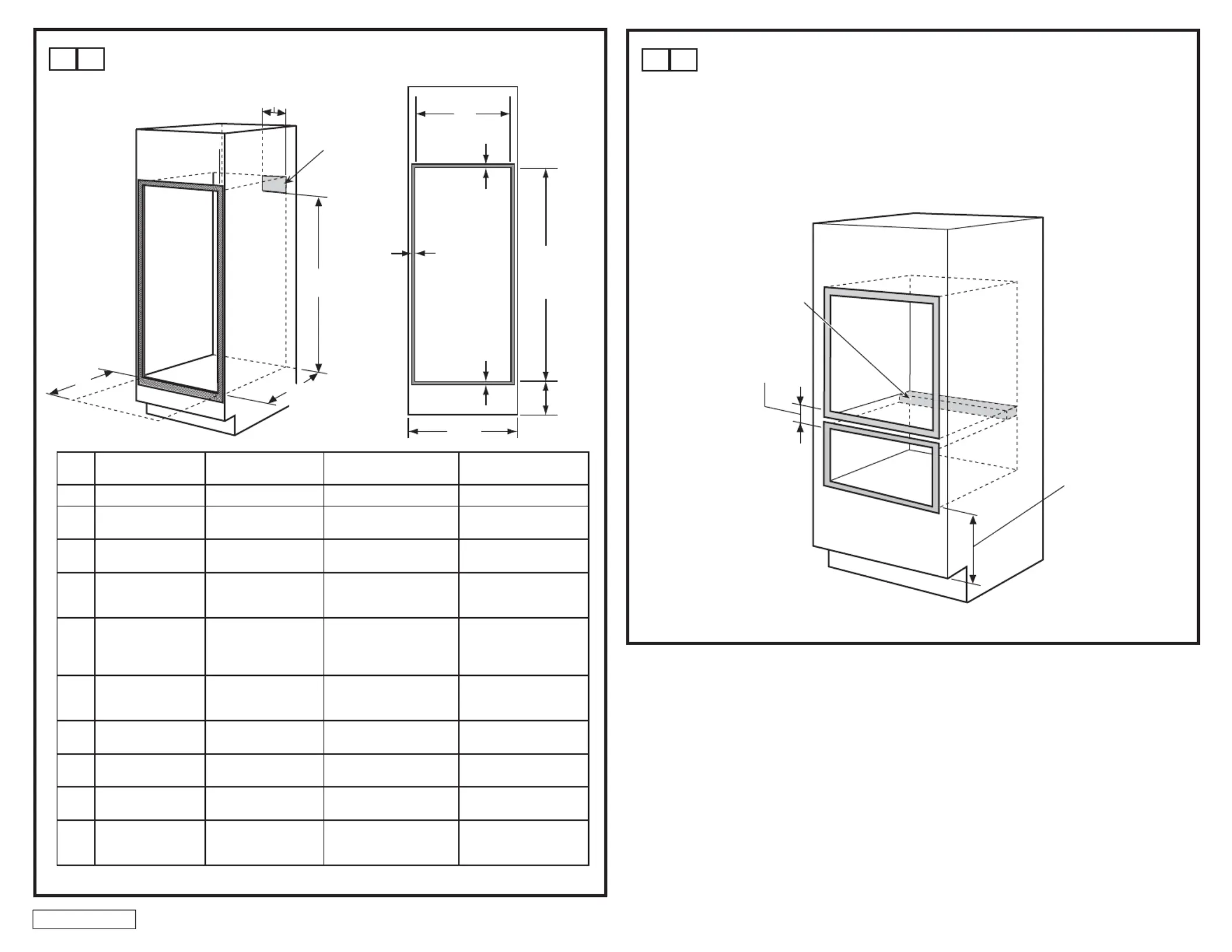

2 C CUTOUT FOR DOUBLE OVENS
(2 THERMAL OVENS)
NOTE: If the cabinet does not have a front frame and the sides are less than ¾” (1.9 cm) thick, shim
both sides equally to establish the cutout width.
Dim. Description 27” Double Oven 30” Double Oven with
Pedestal
30” Double Oven
without Pedestal
A Cabinet Width 27” (68.6 cm) 30” (76.2 cm) 30” (76.2 cm)
B Cutout Width 25” (63.5 cm) min.
251ø4” (64.1 cm) max.
281ø2” (72.4 cm) min.
285ø8” (72.7 cm) max.
281ø2” (72.4 cm) min.
285ø8” (72.7 cm) max.
C Cutout Height
4911
ø16” (126.2 cm) min.
501ø8” (127.3 cm) max.
5113ø16” (131.6 cm) min.
5115ø16” (131.9 cm) max. 50 ¼” (127.64cm)
D Overlap of Oven
Over Side Edges
of Cutout
1” (2.5 cm) 11ø16” (1.75 cm) 11ø16” (1.75 cm)
E
Clearance to
Adjacent Corners,
Drawers, Walls, etc.,
When Door Is Open
23” (50.8 cm) min. 23” (53.3 cm) min. 23” (53.3 cm) min.
F Overlap of Oven
Top of Cutout
1” (2.5 cm) min. 1” (2.5 cm) min.
(1
1
ø
4
” (3.2 cm) for PT9550,
ZET2S and ZET2P)
1” (2.5 cm) min.
(1
1
ø
4
” (3.2 cm) for PT9550,
ZET2S and ZET2P)
G Overlap of Oven
Bottom of Cutout
1” (2.5 cm) min. 11ø4” (3.2 cm) 11ø4” (3.2 cm)
H Junction Box
Location
83
ø4” (22.2 cm) max.
right side only 91ø2” (24.1 cm) max.
right side only 91
ø2” (24.1 cm) max.
right side only
J Height to Bottom
of Junction Box
44” (111.8 cm) 47” (119.4 cm) 47” (119.4 cm)
K Recommended
Cutout Location
from Floor
131ø4” (33.7 cm) 12” (30.5 cm) 12” (30.5 cm)
2 D CUTOUT FOR INSTALLATION OVER A WARMING DRAWER
NOTE: Install the oven only with specific models listed on the label located on top of the oven.
NOTE: Additional clearances between cutouts may be required. Check to be sure the oven supports
above the Warming Drawer location do not obstruct the required interior depth and height.
When installing a Warming Drawer below a single or double oven, a separate 120V, 60 HZ, properly
grounded receptacle must be installed. Refer to installation instructions packed with
the Warming Drawer for specific installation requirements.
Anti-Tip Block Against
Rear Wall Per Warming
Drawer Requirement
2" (5.1 cm)
Min.
Per Warming
Drawer
Requirement
Continue to Section 3 for DWO with Pedestal. Otherwise, continue to Section 4.
Continue to Section 3.
HB
C
K
F
G
D
A
J
E
Junction
Box
Location
(junction
box may
be located
in adjacent
cabinet)
Cutout Depth
23-1/2”
(59.7 cm) Min.
31-10979 07-14 GE
