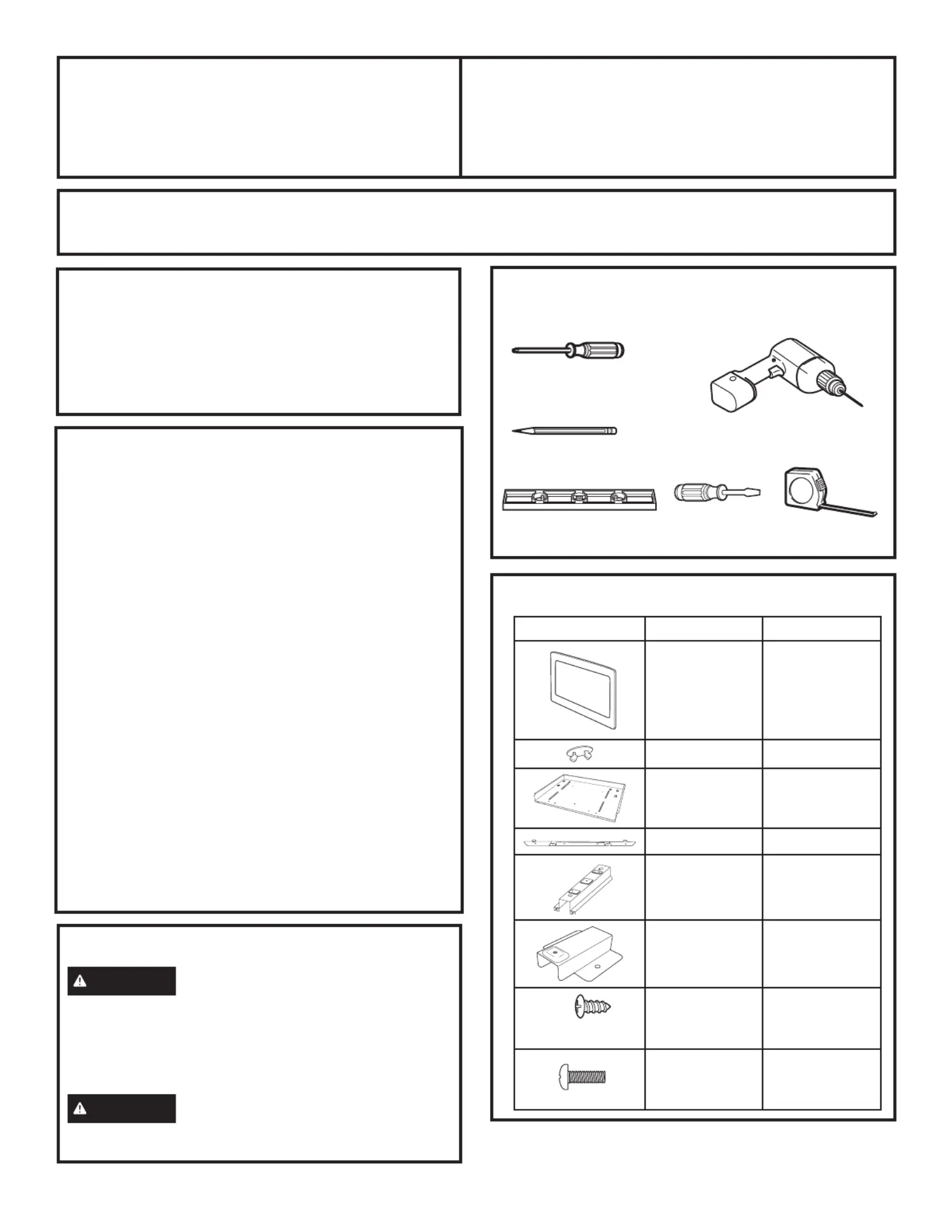

Part Quantity

Trim Frame 1

Screw Covers 4

Base Pan 1

Upper Bracket 1

Rail 2

Bottom

Bracket 2

Phillips Round-

Head Screws

(19 required

for installation)

Phillips Round-

Head Flat-

tipped Screws

(4 required for

installation)

PARTS INCLUDED

Questions? Call GE Answer Center at 800.626.2000 or Visit our Website at:

www.GEAppliances.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

Installation Built-In Trim Kits

Instructions

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these

instructions for local inspector’s use.

• IMPORTANT – Observe all

governing codes and ordinances.

• Be sure to leave these Note to Installer –

instructions with the Consumer.

• Keep these instructions Note to Consumer –

for future reference.

• For easier installation and personal safety, we

recommend that two people install this microwave oven.

• Unplug the microwave oven before attempting

installation of this kit.

• Skill level – Installation of this appliance requires

basic mechanical and electrical skills.

• Completion time – 1-3 hours

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not

covered under the Warranty.

• This kit and microwave are approved for installation

alone or above any single electric wall oven. Do not

mount adjacent (within 2 feet) to any range, cooktop,

gas oven, or other microwave.

TOOLS YOU WILL NEED

#2 Phillips

screwdriver

Pencil

Tape measure

Level Small flathead

screwdriver

Drill with 7»64” bit or #35

FOR YOUR SAFETY

WARNING Before beginning the installation,

switch power off at service panel and lock the

service disconnecting means to prevent power from

being switched on accidentally. When the service

disconnecting means cannot be locked, securely

fasten a prominent warning device, such as a tag, to

the service panel.

WARNING This oven must be plugged into a

properly grounded 3-hole, 120 volt receptacle as

required by the National Electric Code.

MODELS

30” Profile Kit: JX7230DLWW, JX7230DLBB,

JX7230ELES, JX7230SLSS, JX7230BLTS

27” Profile Kit: JX7227DLWW, JX7227DLBB,

JX7227ELES, JX7227SLSS, JX7227BLTS

Monogram Kit: ZX2130SLSS, ZX2127SLSS

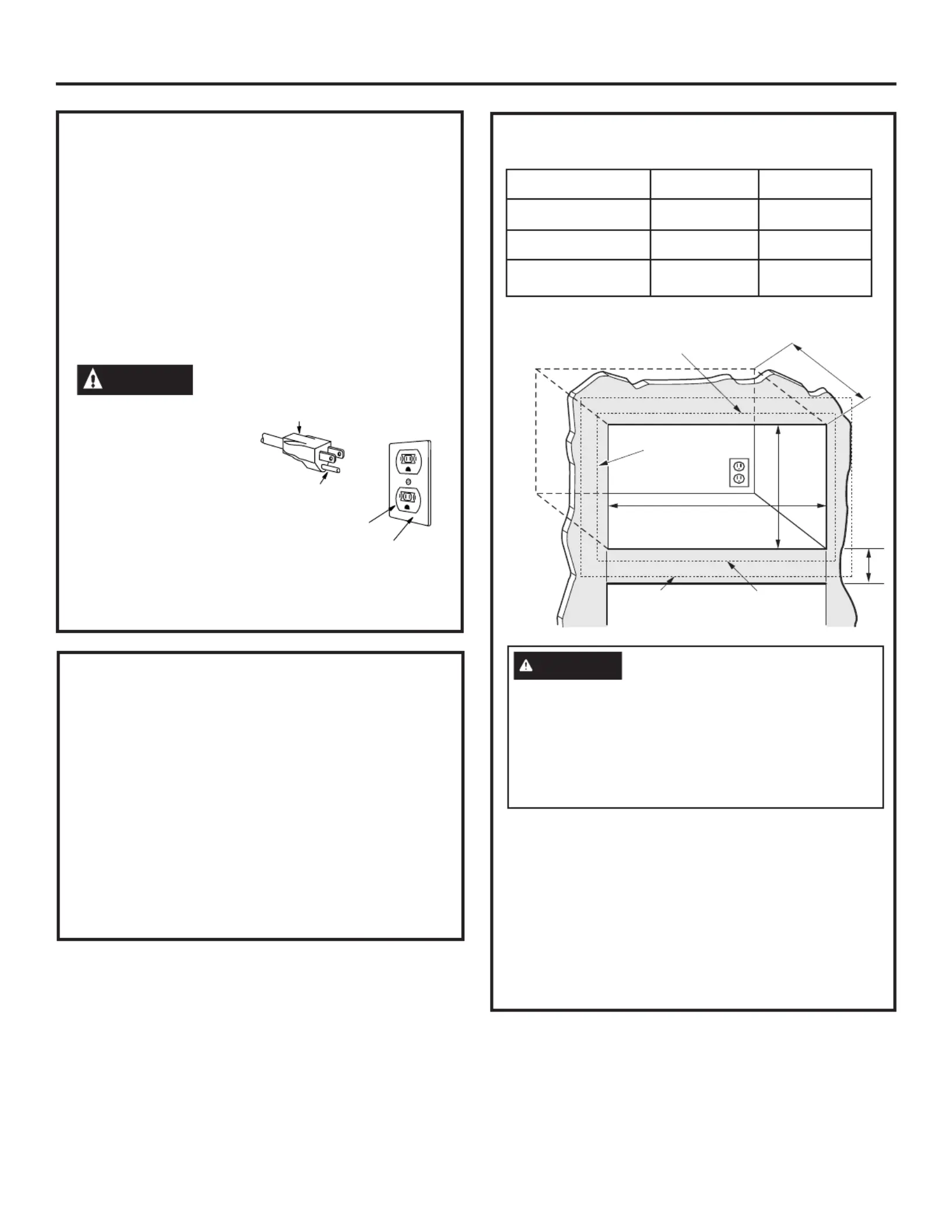

CUTOUT DIMENSIONS

* Min. depth with receptacle outside cabinet 191»2”

Min. depth with receptacle inside cabinet 22”

Installation Instructions

Models 27” 30”

Height 163»4” 163»4”

Width 251»2” 251»2”

Depth (min.)* 191»2” or 22” 191»2” or 22”

On 27” models, allow 11»4” at the top, 9»16” on the sides

and 1” at the bottom for overlap of the Trim Frame

over the edges of the cutout.

On 30” models, allow 11»4”at the top, 21

»8” on the sides

and 1”at the bottom for overlap of the Trim Frame

over the edges of the cutout.

For ADA Compliance, the microwave must be

installed no higher than 361»4”.

Depth

Height

1”overlap

Width

11»4” overlap

1” Clearance

beyond Trim Frame

(on all sides)

27” Models: 9»16”overlap

30” Models: 21

»8” overlap

3” min.

CAUTION

This trim kit uses air flow from the top, bottom and

sides of the trim frame. Blocking the air flow can

cause the microwave to function improperly and

may cause damage to the microwave.

Allow a 1” clearance beyond the edge of the Trim

Frame to provide proper air flow.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of

an electrical short circuit, grounding reduces the risk

of electric shock by providing an escape wire for

the electric current. This appliance is equipped with

a cord having a grounding wire with a grounding

plug. The plug must be plugged into an outlet that is

properly installed and grounded.Consult a qualified

electrician or serviceman if the grounding instructions

are not completely understood, or if doubt exists as to

whether the appliance is properly grounded.

Improper use of

the grounding plug

can result in a risk of

electric shock.

Do not use an

extension cord. If the

power supply cord

is too short, have a

qualified electrician

or serviceman install

an outlet near the

appliance.

Permanent and Correct

Installation

3-Prong plug

Grounding pin

3-Prong receptacle

Grounded receptacle box

WARNING

ELECTRICAL REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz, 14.5 amps

and 1.70 kilowatts. This product must be connected to

a supply circuit of the proper voltage and frequency.

Wire size must conform to the requirements of the

National Electrical Code or the prevailing local code

for this kilowatt rating. The power supply cord and

plug should be brought to a separate 15 to 20 ampere

branch circuit single grounded outlet. The outlet box

should be located in the cabinet above the oven. The

outlet box and supply circuit should be installed by

a qualified electrician and conform to the National

Electrical Code or the prevailing local code.

Installation Instructions

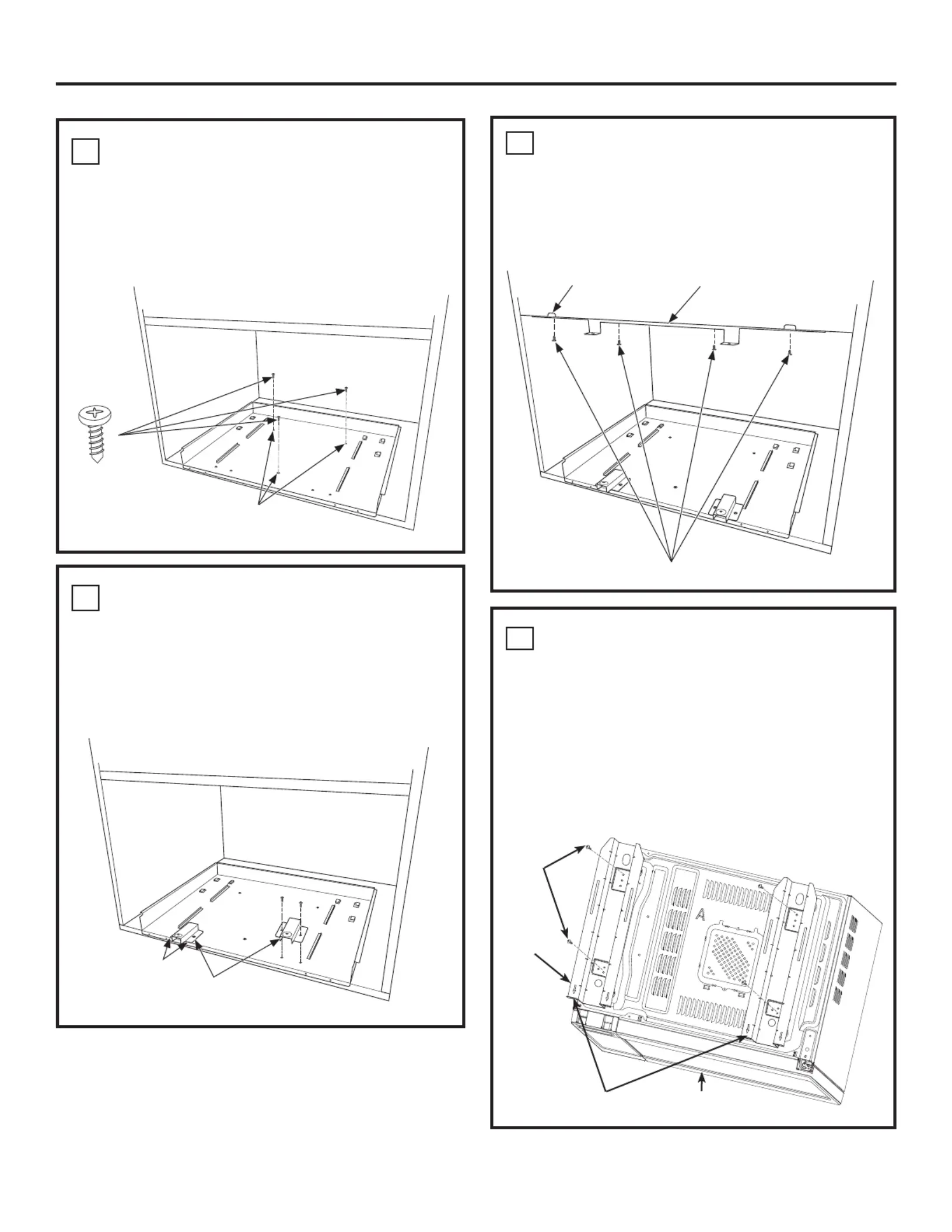

LOCATE AND INSTALL

BASE PAN

Set Base Pan into the front cabinet microwave oven

cutout and center it right and left. Push back until the

front flange is against the cabinet front wall. Mount

the Base Pan using 3 short screws.

INSTALL BOTTOM BRACKETS

Set the two bottom brackets onto the Base Pan

making sure the front flanges are against the cabinet

front wall and the edge of the Base Pan. Align the

brackets with the corresponding holes and mount both

brackets using 4 short screws, two screws for each

bracket.

INSTALL THE RAILS

Remove everything out of the microwave oven,

including packing, Owner’s Manuals, turntable and

turntable support. A protective film has been applied

to some microwave oven and trim kits. If applied,

remove the film. Turn over the microwave oven and

secure the rails to the base of the oven by inserting 4

short screws in locating hole number 33. Be careful

not to scratch the microwave oven.

3 INSTALL UPPER BRACKET

Install the Upper Bracket on the top of the cabinet.

Center the Upper Bracket in the top of the cabinet

cutout making sure the front flanges are against the

cabinet front wall. Once centered, secure the Upper

Bracket using 4 short screws.

Microwave

Oven Bottom

Rail

Short

Screw

Flanges Door

Short

Screws

Base Pan

Mounting Holes

Bottom

Brackets

Flanges flush with

cabinet front wall

and edge of Base

Pan

Short Screws

Upper Bracket

Front Flanges against

cabinet front
