built-in cooktops

NÁVOD NA POUŽITÍ

Plynová varná deska

INSTRUCTIONS BOOKLET

Important warnings and tips for use

IMPORTANT!

This manual constitutes an integral part of the appliance. It must be kept intact and within

easy reach during the entire life of the cooktop. Please carefully read this manual and all the instructions

contained herein before using the appliance. Keep any spare parts supplied with the appliance.

Installation and all gas/electric connections must be carried out by a qualiﬁed technician in accordance

with the manufacturer's instructions and in full compliance with current laws and safety regulations.

This appliance is intended solely for domestic use and is designed for the following functions:

cooking and reheating food. Any other use is considered as improper.

The manufacturer declines all liability resulting from poor installation, tampering,

inexpert use and use for purposes other than those speciﬁcally stated.

Check that the appliance has not been damaged during transport; Keep all packaging materials

(plastic bags, polystyrene foam, nylon, etc.) away from children, as they are potentially dangerous.

The packaging material is recyclable, and marked with the recycling symbol

Dispose of the appliance responsibly

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance

Electrical safety can only be guaranteed if the product is connected to a suitable earth connection.

After using the cooktop, ensure the indicator on the knob is turned to the "oﬀ" position.

Should you decide not to use the appliance any longer, before scrapping it make it unusable in accordance

accordance with current environmental health and safety laws, ensuring any parts which might

constitute a danger to children are rendered harmless.

Warning: in case of disassembly, maintenance and cleaning of the appliance, be careful

Please use suitable prevention and protection equipment

The label with technical speciﬁcations is placed under the bottom and in the manual. Do not remove it.

Never place inﬂammable object on the hob.

FIRE HAZARD!

When a cooking zone is turned oﬀ, it remains hot for a while. During this time avoid touching the hot zone.

Do not use aluminium foil or plastic containers (the protective ﬁlms are not suitable for this hob)

If there is a drawer under the hob, it is advisable not to keep inﬂammable objects or spray cans in it.

The power supply cable must never touch hot cooking zones, it might get damaged.

The cooking zone and pan bottom must always be dry and clean.

If you ﬁnd cracks on the appliance; if the cooking zones are overheated; if the display or the knobs does

not work or if the hob turn-oﬀ by itself: immediately turn-oﬀ the appliance and call the assistance service.

In case of any malfunction, do not attempt to repair the hob by yourself, but contact the assistance service

Do not cook with empty pan, especially if it is an enamelled or aluminium pan.

Pan bottoms and ceramic glass could be damaged. Use only stainless steel pots and pans

Never place hot pans, frying pans, hard or poinjted objects on the control panel, knobs area or the frame

Sugar and other food with high sugar content will damage the hob. Any spilt food must be removed

immediately with a scraper for glass. Warning !!! The optional scraper for glass has a sharp blade.

The following damages will not aﬀect the correct functioning or the stability of the appliance:

The formation of gelatinous residues due to melted sugar or food with a high sugar content; Scratches

due to salt, sugar or sand grains or rough pan bottoms; metal colour from pan stands.

Only use warm water with a mild detergent. Do not use corrosive or abrasive products,

as they could damage the surfaces. Warning: a steam cleaner is not to be used to clean the appliance.

Declaration of Conformity

This appliance is in compliance with the following European Directives:

93/68/CE : General regulations

2006/95/CE : Concerning low tensions

2009/142/CE : Concerning gas appliances

89/336/CE : Electromagnetic compatibility

CE Regulation n° 1935/2004: this appliance is suitable to come in contact with food products.

These instructions are valid only for those countries whose ID initials appear on the

data plate found on the instructions handbook and on the appliance.

Warnings:

This appliance is designed to be built into a housing unit.

The installation class is type 3 for gas and type Y for electric parts.

Housing units must be designed to withstand temperatures of up to 90°C or over.

For correct installation, refer to the relevant paragraph and reference drawings.

The use of a gas cooking appliance produces heat and humidity in the room in which it is

installed. Ensure the kitchen is well ventilated: keep natural ventilation openings open, or install

a mechanical ventilation device (extractor hood with exhaust duct). In the case of intensive or

prolonged use of the appliance it may be necessary to provide additional ventilation, for example,

by opening a window, or more eﬃcient ventilation, for example by increasing the hood speed.

This handbook is valid for several types of cooktop.

Refer to the data plate on the back in order to identify the model that corresponds to your appliance.

These informations, together with the instructions and the illustrations in the following paragraphs

will show you the characteristics of your appliance.

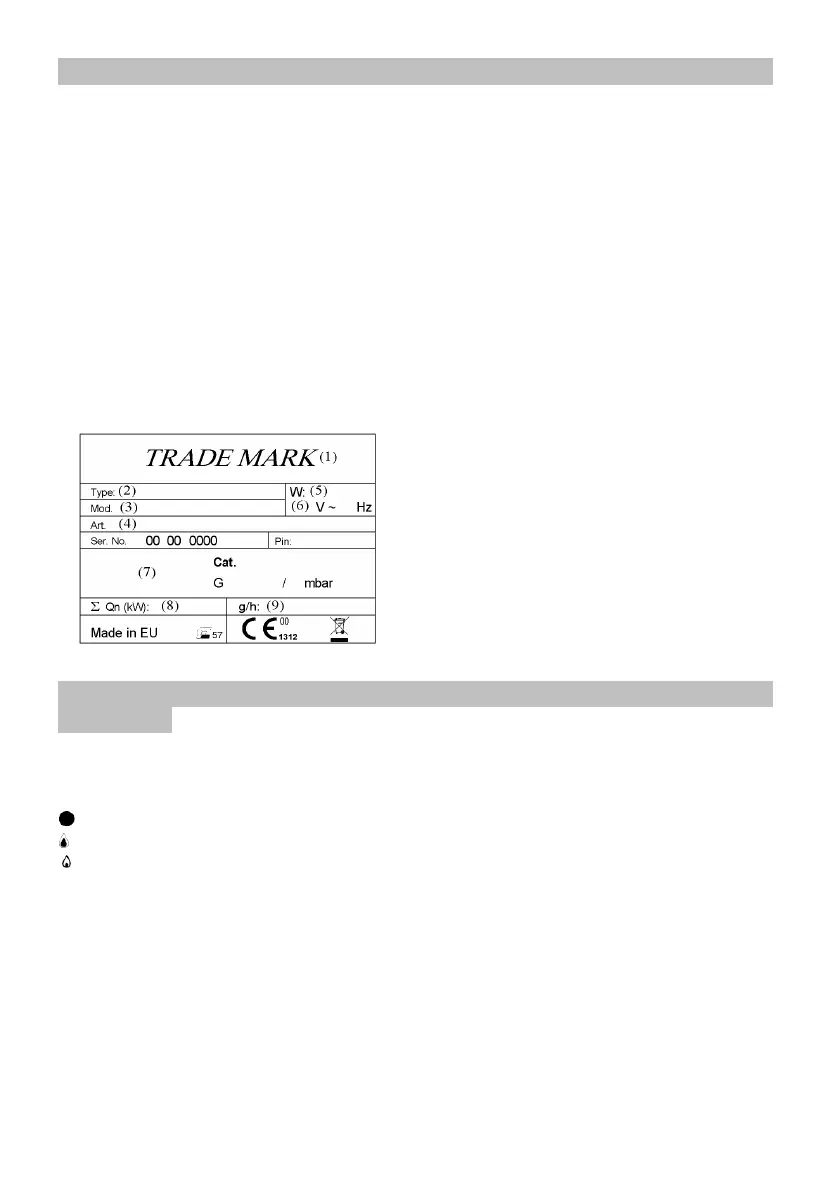

An Example:

Legend:

Trade Mark

Corresponding model

Technical code

Customer code

Power inputs

Voltage and frequency data

Country of target market and gas details

Gas burners power

Gas burners consumptions

Gas burners

The delivery of gas to the burners is controlled by the knobs shown in ﬁg.2 that in turn control the taps.

The symbols, depending on the various versions, may be printed over or under the knobs.

By moving the indicator to coincide with the printed symbols, the following adjustment can be made:

Tap closed, no gas delivery

Maximum capacity, maximum gas delivery

Minimum capacity, minimum gas delivery

Burners ignition

These models are equipped with safety valves which automatically shut oﬀ the gas delivery

in the event the burner should, for any reason, go out. To relight the burner, turn the knob to

position "tap closed" and repeat the ignition procedure explained in the following paragraph:

For light one burner, turn the gas tap knob to the maximum

delivery position, then press and hold down it for about 4÷5 seconds.

Warnings:

Once the burner is light on, adjust the ﬂame by turning the knob to obtain the desired intensity.

The setting must always be positioned between the maximum and minimum, and never

between the maximum setting and the oﬀ position.

COOKTOP SPECIFICATIONS

(1)

(2)

(9)

USING THE COOKTOP

(7)

(8)

(3)

(4)

(5)

(6)
