Sida 1/2
please contact us
(Mount-It!) for assistance.
(Mount-It!) for a replacement.
please contact us
SKU: MI-397
TV Wall Mount with Extra Long Extension

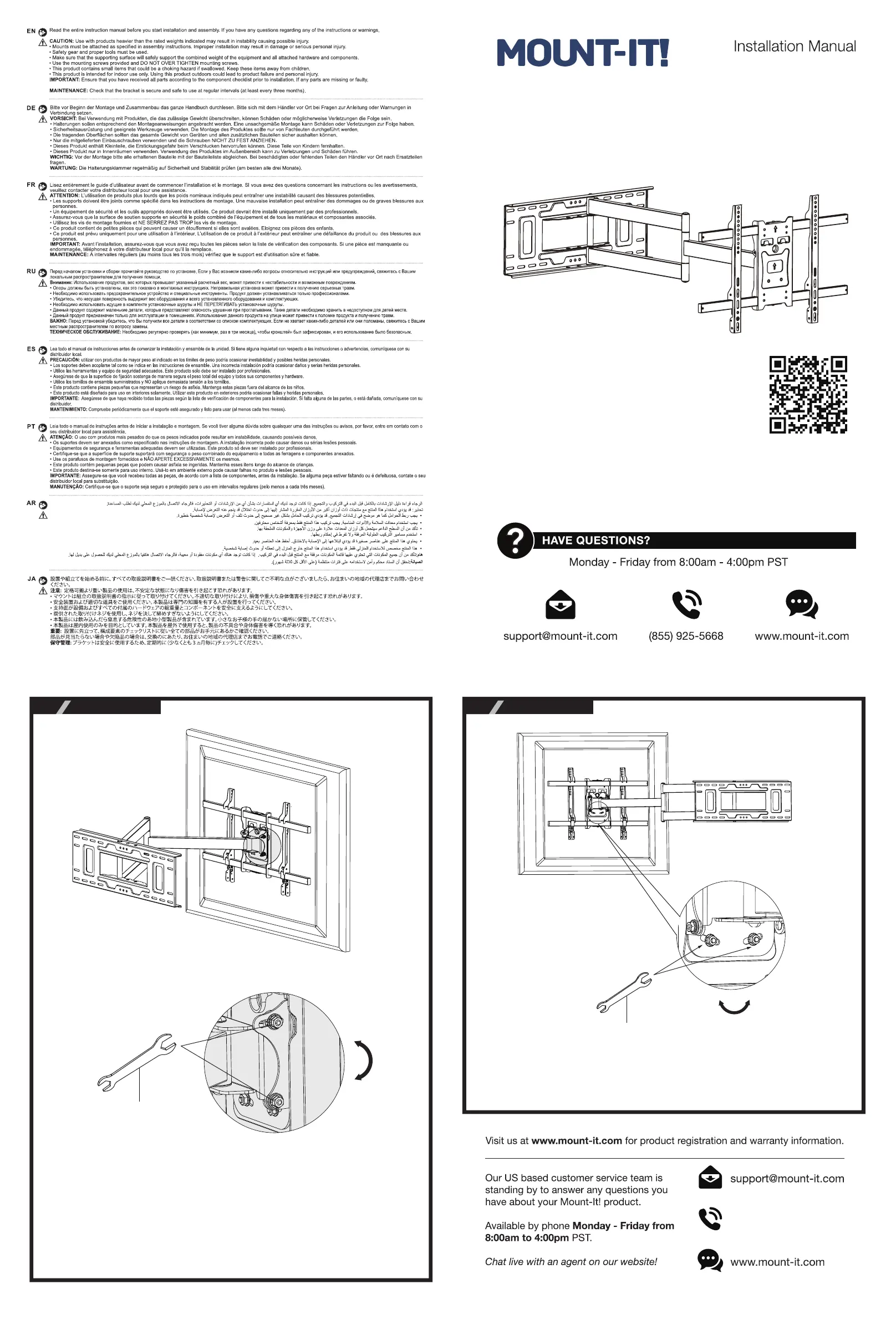

The angle of the screen can be adjusted down up to 10 degrees and up 5 degrees. To adjust the tilt angle
of the TV, loosen the tilt adjustment nuts shown here then adjust the tilt to the desired angle then tighten the
nuts back down.
Note: If the screen tilts down slowly over time adjust the screen back to the proper angle and ensure the tilt
adjustment nuts are firmly tightened.
The mount allows up to 3 degrees of levelling adjustment post installation. To adjust the level of the TV
loosen the 2 nuts located behind the rectangular VESA plate, level the TV then tighten the 2 nuts again to
secure the TV in position.
Tilt Adjustment
4Levelling Adjustment
5
We recommend using professional installation services if you are unable to follow the instructions provided in this manual.
(855)- 925-5668
Please scan this QR code
to visit the product page.
+5°
-10°
S-5
-3° +3°
S-5
ø 6mm
(ø 1/4")
90mm
(3.5")
Wood Stud Installation Option
Attach the TV to the VESA Arms (No Spacers)
Attach the TV to the VESA Arms (With Spacers)
MI-397 80
WARNING: This installation manual is intended to provide guidance on how to install the TV mount and the TV on a suitable wall.
Please contact a qualified professional if you are unsure of the steps described in the manual or have doubts about the safety of the
installation. Improper installation may cause damage or serious injury. We cannot be held liable for damage or injury caused by
improper mounting. Incorrect assembly, inappropriate use or for use cases not explicitly specified in this document. If unsure, please
contact us at www.mount-it.com. Email at support@mount-it.com, or call us at 1 (855)- 925-5668

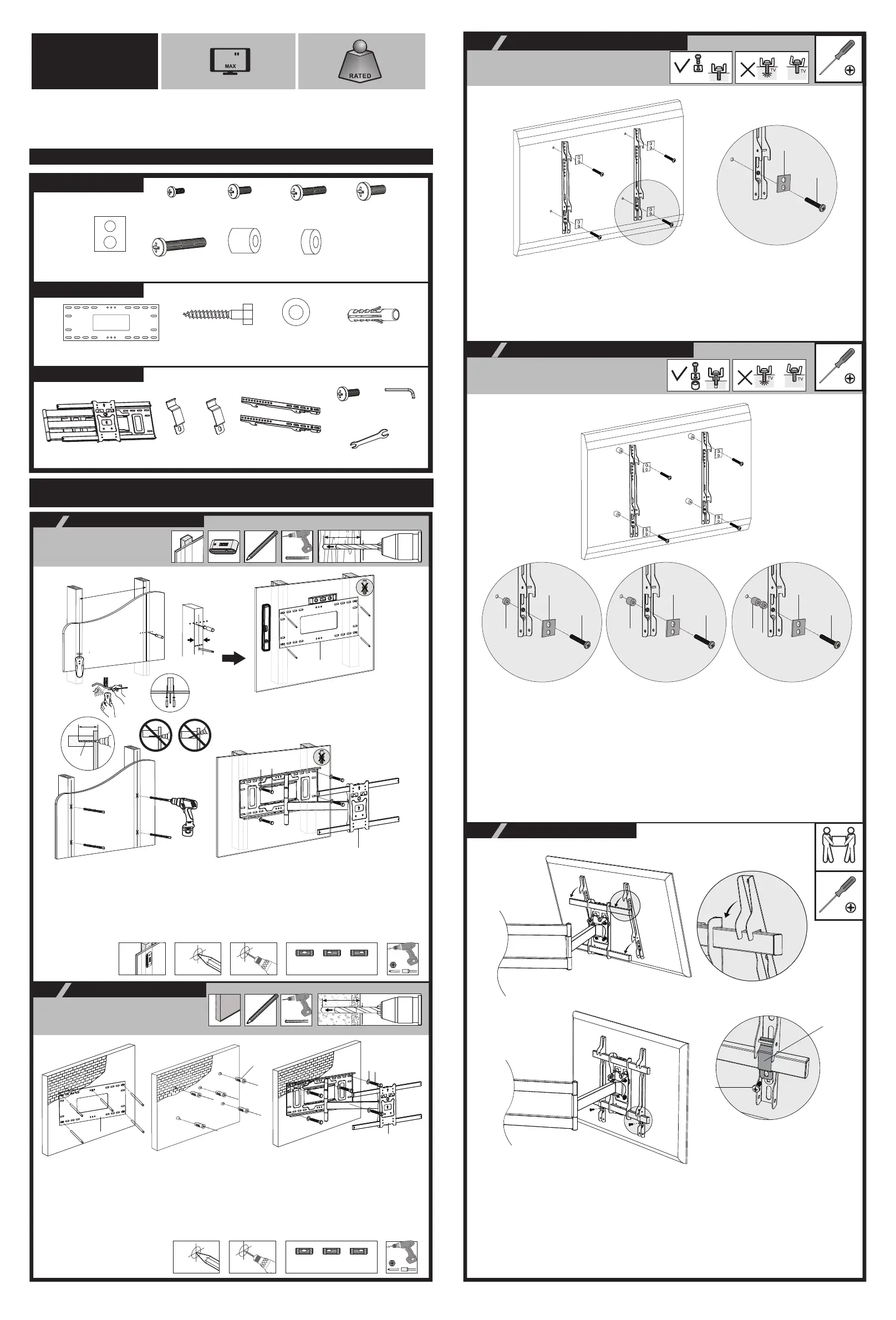

Mount and Accessories
TV Mounting Hardware
Wall Mounting Hardware
CHOKING HAZARD. Package includes small parts. Not for children under 3 years. Adult supervision is required
Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
Use the correct monitor mounting hardware suitable for your installation.
1. Use a stud finder to locate the wall studs and mark their location with a pencil.
2. Hold, tape or secure the Wall Template (#L) to the wall at the desired installation location. Use a bubble
level to ensure the straightness of the Wall Template (#L) and on the center of the studs mark the locations
for the 4 Lag Screws as shown. Once marked, remove the Wall Template.
3. Use a 1/4” drill bit and drill on the marked locations to a depth of 3.5”.
4. Hold the Mount (#M) to the wall over the holes and secure to the wall using all 4 Lag Screws (#A) and
Lag Washers (#B).
Select the appropriate size Mounting Bolt (Select one size #D, #E) and Square Washer (#C) for your
display’s mounting holes and verify the length of the VESA bolt is not too long. If you are unsure of the
correct bolt size for your display refer to your TV user manual or contact the TV manufacturer for sizing
information. Attach the 2 VESA Arms (#N) to the back of your TV using the selected bolts and washer.
If necessary, use the included spacers (#I, J) between the mount and the screen as shown above to adjust
the length of the mounting bolt. Multiple spacers can be used in combination to achieve the desired bolt
depth.
Select the appropriate size Mounting Bolt (Select one size #F, #G,#H) and Square Washer (#C) for your
display’s mounting holes and verify the length of the VESA bolt is not too long. If you are unsure of the
correct bolt size for your display refer to your TV user manual or contact the TV manufacturer for sizing
information. Attach the 2 VESA Arms (#N) to the back of your TV using the selected bolts, washer and
spacers.
Hang the TV on the mount arms as shown in the diagram. Caution: Use the help of a second person for
safe lifting and easier installation.
Attach the Safety Clips (#S-1 and #S-2) to the bottom of the VESA arms as shown here, and secure them
in place using Safety Bolts (#S-3).
1.Hold, tape or secure the Wall Template (#L) to the wall at the desired installation location. Use a bubble
level to ensure the straightness of the Wall Template and mark the locations for the 5 Lag Screws as
shown, then remove the template.
2.Use a 2/5” drill bit and drill on the marked locations to a depth of 3.7”. Note: Do not drill mounting holes
into mortar (such as between bricks or stones) only drill and install into solid stone or concrete surfaces.
3.Clear any dust and debris from the holes and insert the 5 Concrete Anchors (#K). Hold the Mount (#M) to
the wall over the holes and secure to the wall using all 5 Lag Screws (#A) and Lag Washers (#B).
Hang the TV on the Mount Arms
3
1a
2a
2b
55kg
(121lbs)
Wall Mount
M (x1)
VESA Arms
N (x2)
Wall Template
L (x1)
Hex Wrench
S-4 (x1)
S-1 (x1)
Security Clips
S-2 (x1)
Security Bolt
S -3 (x2)
Wrench
S-5 (x1)
Square Washer
C (x4)
15mm Spacer
I (x4)
5mm Spacer
J (x4)
Concrete Anchor
K (5)
M4 14x (x4)
D
M6 14x (x4)
E
M6 30x (x4)
F
M8x20 (x4 )
G
M8 45x (x4)
H
Lag Screw
A(x5)
Lag Washer
B (x5)
132
X X
√
L
16/24 inches
Level the wall plate
M
6mm(1/4”)
B A
90mm (3.5”)
Concrete/Stone Installation Option
1b 95mm
(3.7")
ø 10 mm
(ø 2 /5")
LM
BA
K
2
1
X X
√
TV
D/E
C
TV
G
C
J
F
C
I
F/H
C
IJ
S-1/S-2
S-3
