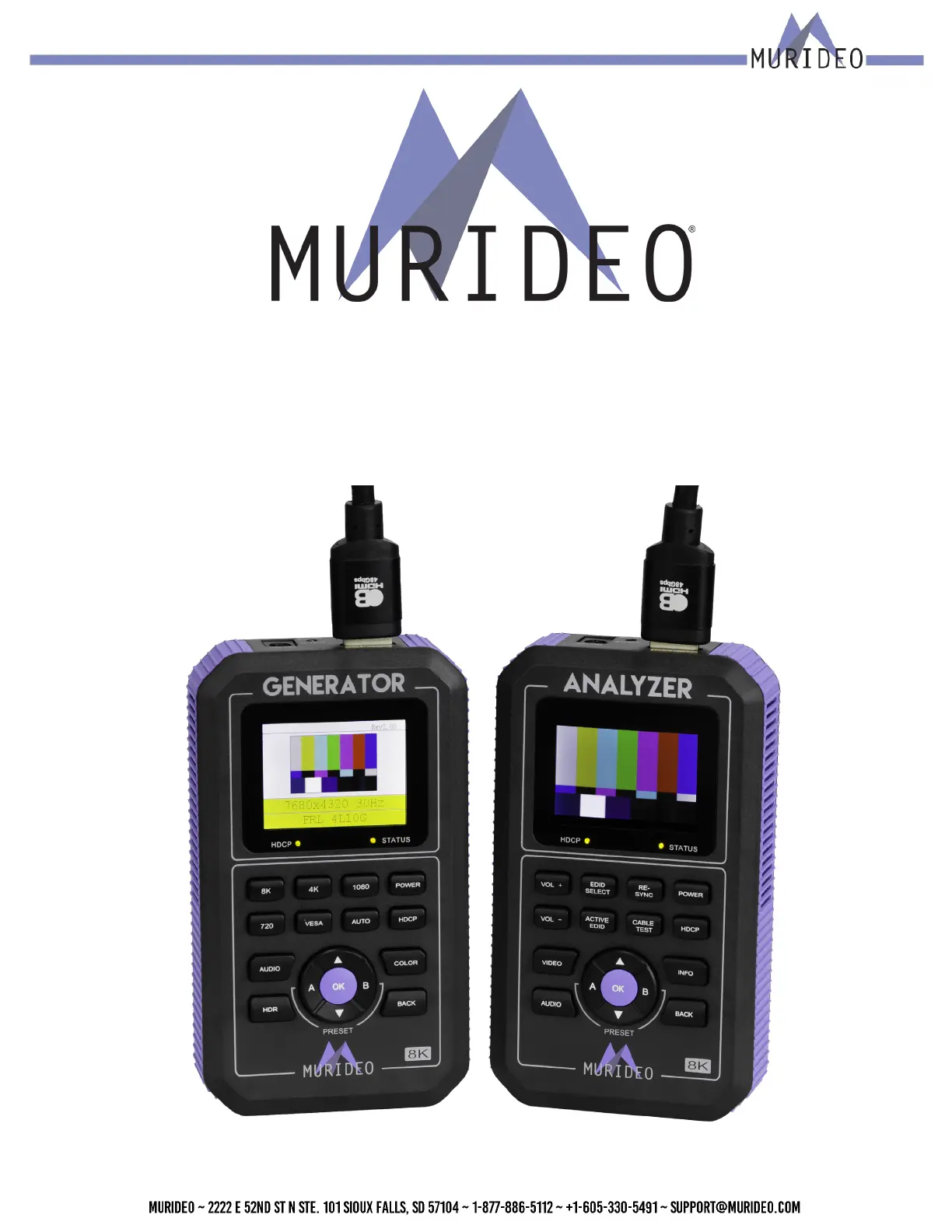

Sida 1/32
1
Fox & Hound 8K Test Kit
MU-FXHD-GEN-8K
HDMI 2.1 40Gbps FRL Audio/Video Generator & Analyzer
INTRODUCTION .............................................................................. 3
FOX/GENERATOR FEATURES ............................................................... 3
HOUND/ANALYZER FEATURES ............................................................. 3
WHATS IN THE BOX ......................................................................... 4
SPECIFICATIONS ............................................................................. 4
A U D I O / V I D E O D I S T R I B U T I O N S Y S T E M S - O V E R V I E W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
F R O N T P A N E L O V E R V I E W : F OX / G E N E R AT O R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
F R O N T PA N E L O V E R V I E W: H O U N D / A N A LY Z E R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
V I D E O G E N E R AT O R : T I M I N G & R E S O L U T I O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2
V I D E O G E N E R AT O R : A U T O B U TT O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 4
V I D E O G E N E R AT O R : H D C P B U TT O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 5
V I D E O G E N E R AT O R : H D C P I N D I CAT O R L E D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 5
V I D E O G E N E R AT O R : A U D I O B U TT O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 6
V I D E O G E N E R AT O R : C O L O R B U TT O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 6
V I D E O G E N E R AT O R : H D R B U TT O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 7
V I D E O G E N E R AT O R : B A C K B U TT O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 7
B A S I C T R O U B L E S H O O T I N G - H D M I C A B L E T E S T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 8
T R O U B L E S H O OT I N G D I S T R I B U T E D S Y S T E M - H D C P I S S U E . . . . . . . . . . . . . . . . . . . . . . . 2 0
B A S I C T R O U B L E S H O O T I N G A D I S T R I B U T I O N S Y S T E M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 2
T R O U B L E S H O OT I N G D I S T R I B U T E D S Y S T E M - E D I D I S S U E . . . . . . . . . . . . . . . . . . . . . . . 2 4
R E A S O N S TO C O P Y A N E D I D T O T H E A N A LY Z E R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 6
C O M M O N I S S U E S D I A G N O S E D E A S I LY W I T H T H E F O X A N D H O U N D T R O U B L E -
SHOOTING KIT ............................................................................. 27
TROUBLESHOOTING TIPS ................................................................ 28
WARRANTY AND GETTING HELP ........................................................ 29
O B TA I N I N G T H E W A R R A N T Y S E R V I C E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 0
DISCLAIMER OF WARRANTY ............................................................. 31
GETTING HELP .............................................................................. 32
LEGAL NOTICES ............................................................................ 32
2
Introduction
This 40Gbps Generator and Analyzer Testing Kit from Murideo was built as the ideal testing unit
for all custom and commercial integrators. The Fox & Hound comes with a 40Gbps Generator and
40Gbps Analyzer. These tools allow you to conrm correct bandwidth, HDCP, resolution, timing, HDR
metadata and many more options that could cause system hiccups if not treated correctly.
With devices like 8k displays and sources becoming normal for all video distribution systems, tons of
new video formats are coming with it. How are you going to test those new signals? That is why we
set out to develop a simple, aordable solution to troubleshoot system issues for today’s integrator.
The 8K Fox & Hound: A/V Testing and Troubleshooting Kit is a product that can produce and analyze
the newest and highest resolutions – 8k resolutions and refresh rates up to 120hz at 40Gbps. It’s also
aordable enough for every integrator to have on any install/service call!
3
·HDMI 2.1 Support 40Gbps Fixed Rate Link (FRL)
·8K@60 4:2:0 10-bit Maximum Resolution
·Selectable Color Space
·Auto Detect (read EDID, generate preferred format)
·High Bit Depth – 8, 10, and 12 bit per pixel support
·HDR (High Dynamic Range) Support; HDR10 and HLG
·Selectable HDCP up to 2.3
·Portable - Battery Operated > Rechargeable batteries
included make eld troubleshooting much easier.
·Optimized Ergonomics – 2” LCD display and simple
menu system makes Fox very user friendly.
·Includes audio condence test tones > to make sure
audio is active on the HDMI line
·HDMI 2.1 Support 40Gbps Fixed Rate Link (FRL)
·Test HDMI Cables up to 40Gbps FRL, full TMDS testing
·View up to 40Gbps Video Content and Format Info
·Audio Condence Tests (2-Channel & Multichannel)
·Read, Write/Save any EDID (x2 savable Presets)
·Selectable HDCP up to 2.3
·Portable - Battery Operated > Rechargeable batteries
included make eld troubleshooting much easier.
·Optimized Ergonomics – 2” LCD display and simple
menu system makes Hound very user friendly.
·HDR (High Dynamic Range) Support
Fox/Generator
Features
Hound/Analyzer
Features
Questions regarding terminology in this manual please refer to the Murideo Support Community for
more information.
·Knowledge Base - Contains Technical Tips, Training Materials, and Articles.
·Community - Forum based community.
·Ticket System - Request support via our Ticket System.
