Sida 1/2

1. Do not attempt to modify the unit, modifying the unit may cause an accident.

2. Installation or servicing of the unit by persons without training and experience

in electronic equipment and automotive accessories may be dangerous and

could expose you to the risk of electric shock or other hazards.

3. Stop the vehicle before carrying out any operation that could interfere with

your driving.

4. Keep the volume at a level which you could hear sounds from outside the

vehicle.

5. Do not work in extremely high or low temperature. Be sure the temperature

inside the vehicle is between +60°C and -10°C before turning on your unit.

6. When replacing the fuse(s), the replacement must be of the same amperage

as shown on the fuse holder.

7. Do not block vents or radiator panels. Blocking them will cause heat to build up

inside and may result in re.

8. Using this unit without running the engine can result in battery drainage.

9. Use only in cars with a 12 volt negative ground.

10. After completing the installation or replacing the car battery you need to

RESET the unit before using it. Remove the front panel and press button RESET

on the base with pointed object (such as ball-point pen) to reset the unit to its

initial settings.

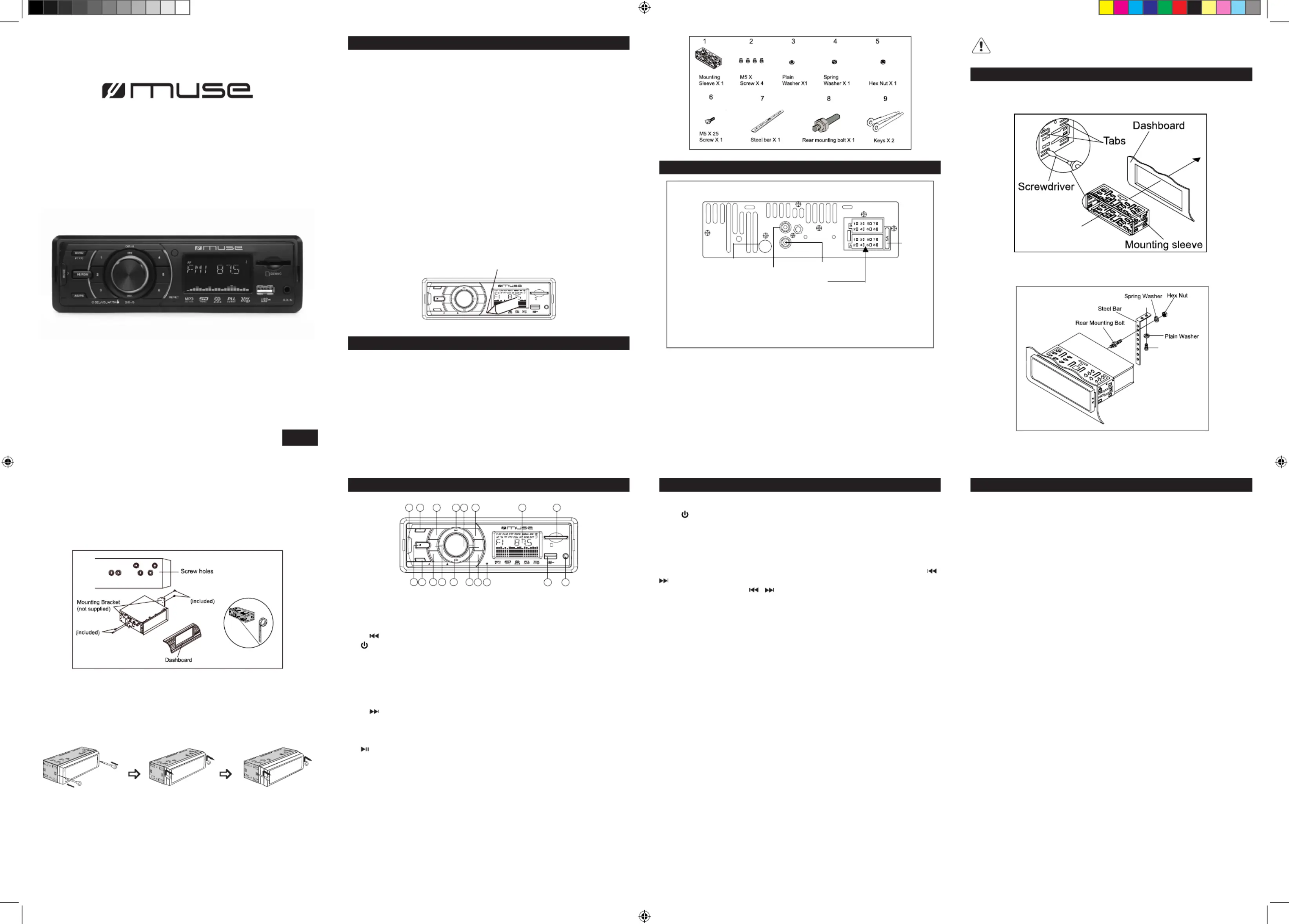

M-090 MR

GB - 1

User Manual

CAR RADIO WITH USB & SD

Please read the instruction carefully

before operating the unit.

PRECAUTIONS

English GB - 2 GB - 3

CONNECTION

Caution!

- Make sure to connect the color coded leads according to the diagram. Incorrect

connections may cause the unit to malfunction or damage the vehicle’s electrical

system.

- Make sure to connect the speaker (-) leads to the speaker (-) terminal. Never

connect the left and right channel speaker cables each other or to the vehicle body.

- Make sure all the connections are completely correct before turning on your unit.

- Before wiring, disconnect the cable from the negative battery terminal.

Do not connect the ignition wire (red) and the battery wire (yellow), it may

cause a short circuit, even result in re.

GB - 4 GB - 5 GB - 6

UNPACK YOUR UNIT

When you unpack your new car radio, make sure that you have removed all the

accessories and information papers:

Main unit

User manual

Accessories:

Install the unit

- Method 1: DIN Front - Mount

INSTALL AND REMOVE THE UNIT

GB - 7

MODE

BA ND

AUX IN

DIR-/8

RESET

SD/MMC

AS/ PS

DIR+/9

PTY/0

SEL/VOL /AF /TA

Reset

5.5

1. Insert the mounting sleeve to the car. Bend the claws outward for a tight t, if

necessary.

M5 x 25 Screw

2. Combine mounting blot, steel bar, spring washer and Hex nut. Then combine

the unit and dashboard with M5x 25 screw and plain washer.

- Method 2 DIN Rear-mount (For Japanese car)

1. Select a position where the screw holes of the mounting bracket supplied with

the car and the screw holes of the main unit become aligned (are tted).

M5X5.5 Screw

2. Tighten the screws. And then fasten them to the car.

Detach the Unit

Insert the keys supplied on the both sides of the unit (shown as illustrated)

until they click. Pulling the keys and makes them to remove the unit from the

dashboard.

LOCATION OF CONTROLS

MOD E

BA ND

AUX IN

DIR -/8

RESET

SD/MM C

AS /PS

DIR +/9

PTY/0

SEL/VOL/ AF /TA

1 2 3 4 5 6 7 17

16 15 14 13 12 11 10 18 9 8

1. button7/MODE

2. button0/BAND/PTY

3. numeric button1

4. button (Skip backward /Directory down)8/ /DIR-

5. /SEL/VOL/ AF/TA knob (Power/ Select setting/Volume)

6. numeric button4

7. LCD display

8. AUX IN jack

9. USB port

10. numeric button6

11. numeric button5

12. button (Skip forward /Directory up)9/ /DIR+

13. numeric button2

14. numeric button3

15. buttonAS/PS

16. / button (Play/ Pause/Random)RDM

17. SD/MMC card slot

18. button RESET

BASIC OPERATIONS

Turn on/off the unit

Press button (5) to turn on the unit. Press and hold this button again to turn off

the unit.

To display and adjust the current time

In standby mode, the current time will be displayed automatically.

Turn on the unit, press and hold button (1) until clock time appears. Long MODE

press /MODE button (1) again ,the hour digits will ash, set the HR. hour with

button (4/12).Then shortly press MODE button (1), the minute digits will ash,

set the MIN. minutes with / button (4/12).

Note: It will return to normal display mode if no key is pressed within 5 seconds.

Mode selection

Repeatedly press MODE (1) button to select different sourcing mode: Radio→

USB →SD/MMC →AUX.

Reset the unit

Operating the unit for the rst time or after replacing the car battery, you must

reset the unit. To set the unit to initial status, press button (18) with a RESET

pointed object. When some errors occur in display, you can also reset the unit,

but it will erase the clock setting and some memorized functions.

SOUND FEATURES

Volume:

To increase or decrease the sound level, rotate knob (5) clockwise or SEL/VOL

counter-clockwise.

Sound Settings

Repeatedly press knob (5) to select the desired mode in the following SEL/ VOL

order: “BAS” (Bass) -> “TRE” (Treble) -> “BAL” (Balance) -> “FAD“ (Fader) ->”

LOUD”(LOUD ON/OFF) -> “LOC”(LOC ON/OFF) -> “AF” (Alternative frequency)

-> “TA” (Traffic announcement) -> “REG” (REG ON/OFF) ->”EON” (EON ON/

OFF) -> “VOL” (Volume). After selecting the desired mode, you can adjust the

current level by rotating knob (5). SEL/ VOL

Note:

- The unit will return to the previous mode if no adjusting happens within 5

seconds.

- Refer to radio section for LOC, AF, TA ,REG and EON.

Switching Loudness On/off

Repeatedly press knob (5) until “LOUD” shows on display, rotate SEL/VOL

SEL/VOL knob (5) to select “LOUD ON” mode to activate LOUDNESS function.

By this function, you can increase the low frequency, which can improve sound

sensitivity. Repeatedly press this button again ,then rotate knob (5) to SEL/VOL

select “LOUD OFF” mode to cancel LOUDNESS function.

CONNECTOR A

4. +12V CONSTANT POWER SUPPLY

5. POWER ANTENNA / AMPLIFIER TURN ON

7. +12V ACCESSORY/SWITCH

8. GROUND

CONNECTOR B

1. REAR RIGHT SPEAKER (+)

2. REAR RIGHT SPEAKER (-)

3. FRONT RIGHT SPEAKER (+)

4. FRONT RIGHT SPEAKER (-)

5. FRONT LEFT SPEAKER (+)

6. FRONT LEFT SPEAKER (-)

7. REAR LEFT SPEAKER (+)

8. REAR LEFT SPEAKER (-)

FIXED ISO FEMALE CONNECTOR

ANTENNA

SOCKET

RCA AUDIO OUT

R (RED)

FUSE

HOLDER

L (WHITE)

WIRING DIAGRAM

AR-3453 IB MUSE 001 REV0 GB.indd1 1 2013-5-3 9:15:13

GB - 15GB - 13GB - 12

GB - 10GB - 9GB - 8 GB - 11

GB - 14

Alternative frequency (AF)

The AF function switches to a different frequency on the same network in order to

maintain optimum reception. In FM mode, repeatedly press button (5) SEL/VOL

until “AF” appears in the display, rotate SEL/VOL knob (5) to turn “ON” the function

,certain program will be automatically searched and received. If the reception of

the current broadcast station deteriorates, “AF” icon appears in the display and

the radio searches for the same program on another frequency. Repeatedly press

SEL/VOL button (5) until “AF” appears in the display, rotate knob (5) to SEL/VOL

turn “OFF” the function.

When reception is bad, the “ ” icon will blink.AF

Trafc alarm (TA)

In the TA standby mode, when a trafc announcement broadcast starts, the trafc

announcement broadcast is received as top priority regardless of the function mode

so you can listen to it. Trafc program (TP) automatic tuning is also possible.

Repeatedly press button (5) until “TA” appears in the display, rotate SEL/VOL

SEL/VOL knob (5) to turn “ON” the function , when LCD shows “TA” icon, trafc

program will be automatically searched and saved, when LCD shows “TP” icon,

this means that the RDS broadcast station being received has trafc announcement

programs.

If you select TA fuction while a trafc announcement broadcast is being received,

the trafc announcement broadcast reception is cancelled and the unit goes into

the TA standby mode.

If a TP station is not received, the unit continues searching.

Repeatedly press button (5) until “TA” appears in the display, rotate SEL/VOL

SEL/VOL knob (5) to turn “OFF” the function , “TA” icon goes off.

ALARM

“ALARM” will be displayed when an emergency broadcasting is received;

meanwhile sound output level will be adjusted to the preset output level

automatically when the volume control is set at minimum.

Program type selection (PTY)

Long press button (2) to select “PTY” function .When is selected, PTY PTY

the radio starts to search corresponding PTY information, and stops when the

corresponding PTY information is detected.

If corresponding PTY information does not exist any more, PTY is automatically

stopped to normal mode.

LISTENING TO USB DEVICE OR SD/SDHC/MMC CARD

To insert a USB device (not included)

Connect your USB device to the USB port (9), the set will switch to “USB” mode

automatically. If USB has already been inserted, press MODE button (1) to switch

to USB mode.

To insert a SD, SDHC or MMC card (not included)

Insert your SD, SDHC or MMC card in the card slot (17), the set will switch to

“SD-MMC” mode automatically. If a card has already been inserted, press MODE

button (1) to switch to card mode.

Basic player functions

Play/Pause: press (16) to suspend momentarily the track playback. Press (16)

again to resume playback.

Skip/Fast search: press button (12) to skip forward to next track and (4)

to skip backward to previous track.

Random playback: RDM Press button (16), all tracks will be played randomly.

Press it again to cancel this function.

Select A Directory: DIR+ DIR- press and hold button (12) or button (4) to select

directory upward or downward. If the MP3 contents does not have any directory,

DIR + DIR- (12) and (4) buttons are inactive.

Searching a track in MP3-USB/SD

1. Press button (15) once, AS/PS

2. Use the numeric keys to enter the track number,

3. Press knob (5) to start playing.SEL/VOL

Exit USB/SD card mode

To exit USB or card mode, disconnect your USB device or your card from the

unit, the set will switch to tuner mode automatically.

Note

* There are many USB devices or SD/SDHC/MMC card in the market. We cannot

guarantee to support all different models. Please try another USB device or SD/

SDHC/MMC card if yours is not supported.

* The unit might not support all the multimedia les stored in SD/SDHC/MMC

card or USB because it includes some special playback procedure which might

not be compatible with the procedure of this unit.

LISTENING TO AUXILIARY SOURCE

1. Connect your auxiliary source (e.g. MP3 player) to the AUX IN jack (8)

2. Press and hold (5) button to turn the unit on.

3. Press (1) to select AUX mode.MODE

4. Start playback from your auxiliary source.

5. Adjust the volume (5) to desired level.

6. To stop, disconnect your auxiliary source from the Aux in jack (8), press MODE

button (1) to select other source.

MAINTENANCE

Precaution

- Clean the front panel with a soft cloth, or damp chamois leather. Never use

solvents.

• Do not expose to rain or water;

• Do not drop or apply shock.

- Make sure that you keep your set away from water and high temperatures.

- The use of apparatus in moderate climates.

- Do not be exposed to dripping or splashing, and that no object lled with liquids,

such as vases, shall be placed on the apparatus.

- No naked flame sources such as lighted candles should be placed on the

apparatus.

Replacing the Fuse

Make sure the amperage matches the specied value when replacing the fuses.

If the fuse is blown, check the power connection and replace with a new one. If

the same problem occurs, it could be caused by an internal malfunction. In such

cases, please consult the nearest service dealer.

TROUBLE SHOOTING GUIDE SPECIFICATIONS

General

Power Requirement

Load Impedance

Max. Power Output

Tone Controls

Dimensions

Weight

FM radio

Tuning Range

IF Range

Usable Sensitivity (-30dB)

Signal-to-noise Ratio

Stereo Separation

USB/SD MP3 player

Signal-to-noise Ratio

Separation

Distortion

Frequency Response

12V DC (11-16V allowable)

4 Ω

20W x4

±10 dB

Bass at 100 Hz

Treble at 10 kHz

Approx. 178 x 97 x50 mm (d/w/h)

Approx. 0.7 kg

87.5-108 (MHz)

10.7 MHz

15 dBuV

50 dB

25 dB

60 dB

40 dB

<=1%

40-20000Hz

Note:

Due to continuous product improvement, specications and design are subject to

change without prior notice.

CAUTION! The unit conforms to the international safety specifications and to

guide lines of the European community and also complies with current standards

concerning electrical safety and electromagnetic compatibility EMC.

SYMPTOM

No power.

No sound.

The operation

keys do not work.

The radio does

not work. The

automatic radio

station selection

does not work.

The built-in microcomputer

is not operating properly.

The antenna cable is not

connected. Insert the antenna cable firmly.

Select a station manually.The signals are too weak.

Press the RESET button.

Front panel is not properly fixed

into its place.

The car ignition switch

is not on.

The fuse is blown.

Volume is in minimum.

Wiring is not properly

connected.

Adjust volume to a desired level.

Check wiring connection.

Replace the fuse.

If the power supply is connected to

the car accessory circuits, but the

engine is not moving, switch the

ignition key to “ACC”.

CAUSE SOLUTION

WARNINGS

ATTENTION: To reduce the risk of electric shock, do not

remove the cover. There are no user serviceable parts inside

the unit. Refer all servicing to qualied personnel.

The lightening flash with arrowhead symbol within the triangle is a

warning sign alerting the user of “dangerous voltage” inside the unit.

The exclamation point within the triangle is a warning sign alerting the

user of important instructions accompanying the product.

WARNING - To reduce the risk of fire or electric shock, do not expose this

appliance to rain or moisture.

If at any time in the future you should need to dispose of this product

please note that Waste electrical products should not be disposed of

with household waste. Please recycle where facilities exist. Check with

your Local Authority or retailer for recycling advice. (Waste Electrical

and Electronic Equipment Directive)

NEW ONE S.A.S

10, Rue de la Mission, 25480 Ecole Valentin, France

Using numeric button to Select Program1-6

1) Long press button (2) once. When “PTY” appears on display, press PTY

number button repeatedly to select below programs:1-6

Button 1: NEWS/ AFFAIRS / INFO

Button 2: SPORT / EDUCATE / DRAMA

Button 3: CULTURE / SCIENCE / VARIED

Button 4: WEATHER / FINANCE / CHILDREN

Button 5: SOCIAL / RELIGION / PHONE IN

Button 6: TRAVEL / LEISURE / DOCUMENT

2) Long press button (2) twice, press number button repeatedly to select PTY 1-6

below programs:

Button 1: POP M / ROCK M

Button 2: EASY M / LIGHT M

Button 3: CLASSICS / OTHER M

Button 4: JAZZ / COUNTRY

Button 5: NATION M / OLDIES

Button 6: FOLK M

Then the unit will start searching for the corresponding program automatically.

Long press button (2) for the third time to exit the PTY mode.PTY

LOC ON/OFF

Repeatedly press SEL/VOL knob (5) to select “LOC” mode. When ON, the strong

signal local stations can be received, when OFF, the week signal out-of-town

stations may be received.

EON (Enhances Other Network Information)

Repeatedly press knob (5) until “EON” appears in the display, rotate SEL/VOL

SEL/VOL knob (5) to switch between “EON ON” and “EON OFF” mode. When

receive the EON information, the EON indication is on. With EON facility, it offers

the ability for local stations to “break into” a national station’s broadcast for the

duration of a Trafc Announcement.

Region ON / OFF (REG)

Repeatedly press button (5) until “REG” appears in the display, rotate SEL/VOL

SEL/VOL knob (5) to switch between “REG ON” and “REG OFF” mode.

REG ON: should be selected to listen to the REGIONAL broadcast of the current

station, even if there is a national broadcast of this station.

REG OFF: should be selected to listen to the national broadcast of this station.

LISTENING TO THE RADIO

Band selection

In tuner mode, repeatedly press button (2) to select bands: FM1-> FM2 -> BAND

FM3.

Station search

- Manual Tuning

Press and hold button or (4/12) until “MANUAL” shows on display, then

press button or (4/12) continuously to select a station downward or

upward. Press and hold button or (4/12) to tune to a station with a faster

speed.

Note: The unit will return to the “AUTO” scanning mode if no adjusting happens

within 5 seconds.

- Automatic Tuning

Press or (4/12) once, the radio automatically searches a station downward

or upward respectively and plays when it nds a station. Press or (4/12)

again to stop scanning.

Scanning and memorizing stations

Automatic memory storing

In tuner mode, press and hold (15) button for 3 seconds to start automatic AS/PS

scanning and station store on numeric buttons . 1-6

- Preset scan

Press (15) button shortly to start preset stations scan. All preset stations AS/PS

are scrolled during few seconds. To remain on a station, press again the AS/PS

(15) button.

- Preset buttons (3/13/14/6/11/10)1- 6

1. Tune to a station with or (4/12).

2. Press and hold one of the 1- 6 preset buttons for 2 seconds until LCD shows the

corresponding number, which indicates that station is stored on this number.

3. In radio mode, press preset buttons to listen to stored stations.1- 6

Note: The unit can be stored up to 6 stations for each band.

-- RDS (Radio Data System) Operations --

This unit has a built-in RDS decoder system that supports broadcast stations

transmitting RDS data. This system can display the name of the broadcast station

being received and can automatically switch to the broadcast station with the best

reception as you travel on long distances (AF switching). A trafc announcement

broadcast from a RDS station, no matter what mode you are. Additionally, if EON

information is received, enables automatic switching of other preset stations on the

same network and interruption of the station being received with trafc information.

This function is not available in some areas.

AR-3453 IB MUSE 001 REV0 GB.indd2 2 2013-5-3 9:15:15

Produktspecifikationer

Varumärke:	Muse
Kategori:	bilradio
Modell:	M-090 MR

Behöver du hjälp?

Om du behöver hjälp med Muse M-090 MR ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

bilradio Muse Manualer

Muse M-205 BT Bruksanvisning

5 December 2024

Muse M-715 DR Bruksanvisning

4 Oktober 2024

Muse M-198 DAB Bruksanvisning

26 September 2024

Muse M-095 Bruksanvisning

13 September 2024

Muse M-195 BT Bruksanvisning

16 Augusti 2024

Muse M-090 MR Bruksanvisning

14 Augusti 2024

Muse M-1228 BT Bruksanvisning

29 Juli 2024

bilradio Manualer

Nyaste bilradio Manualer

Boss MR63UAB Bruksanvisning

11 December 2024

Kenwood KDC-130UG Bruksanvisning

9 December 2024

Kenwood KDC-X5200BTM Bruksanvisning

9 December 2024

Alpine MRP-M850 Bruksanvisning

8 December 2024

Alpine CTA-1505R Bruksanvisning

8 December 2024

Audio-Technica AT-RX80 Bruksanvisning

7 December 2024

Pioneer AVH-A240DAB Bruksanvisning

7 December 2024

Pyle PLMR14BW Bruksanvisning

6 December 2024

Pyle PLMR2DNBK Bruksanvisning

6 December 2024

Pyle PLTS73FX Bruksanvisning

6 December 2024
