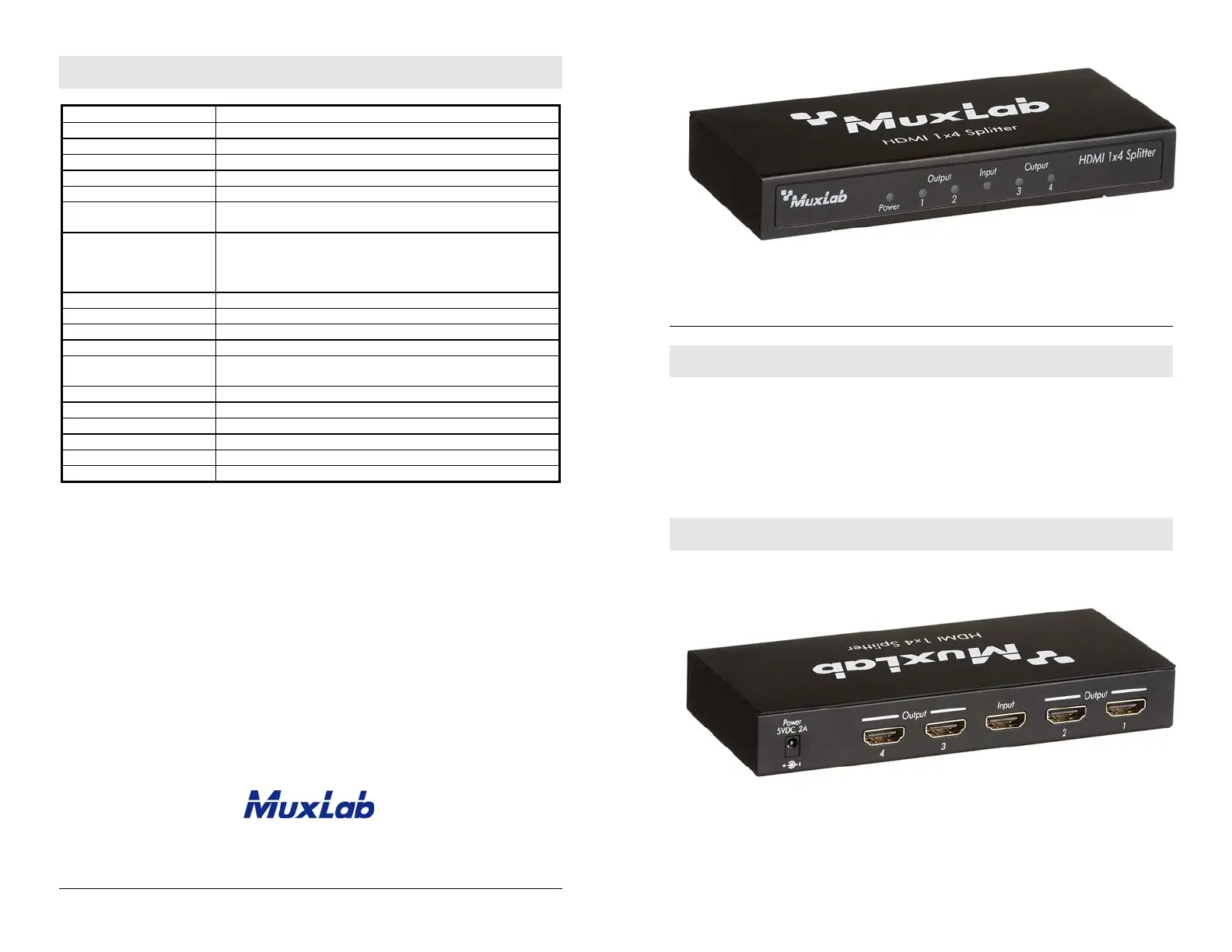

Sida 1/2

8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5

Tel: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

E-mail: videoease

muxlab.co

URL: www.muxlab.co

Specifications

Environment HDMI 1.4 (3D)

Devices DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops

Transmission Transparent to the user

Frequency 25 to 340 MHz

Signals HDMI 1.4 protocol

Connectors HDMI receptacle.

LEDs Power: Green

Input & Output Link: Blue

Resolution 480i to 1080p @ 50/60 FPS

1080p @ 24/50/60 FPS

3840 X 2160 @ 24/25/30 FPS

VGA to UXGA

Color 8, 10 & 12 bit

Audio LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio

HDCP Revision 1.3

Cable HDMI Cable

Temperature Operating: 0° to 40°C Storage: -20° to 60°C

Humidity: up to 90% non-condensing

Enclosure Metal enclosure

Dimensions 6.06” x 2.76” x 1.00” (154 mm x 70 mm x 24 mm)

Weight 1.4 lbs (0.64 Kg)

Compliance Regulatory: FCC, CE, RoHS

Warranty 2 years

Order Information 500421 HDMI 1X4 Splitter, 2K-4K

HDMI 1X4 Splitter, 2K-4K (500421)

Quick Installation Guide

Overview

The HDMI 1x4 Splitter (500421) allows one (1) HDMI source to be distributed to

up to four (4) HDMI displays. The splitter supports up to 4K (3840 X 2160), 8-bit

color and HD audio. The splitter is HDCP 1.3 compliant and features LED

diagnostics. Additionally, all HDMI connectors are on the rear panel for neater

cabling. Applications include; commercial and residential AV systems, classroom

projector systems, digital signage, boardroom systems, collaborative PC systems,

medical information systems.

Pre-Installation Check

Identify the connectors as indicated on the product

Installation

In order to install the HDMI 1X4 Splitter, please follow the steps below:

1. Connect the HDMI video source to the input connector of the splitter.

2. Connect the HDMI display equipment(s) to output connector of the splitter.

3. Connect the 5 VDC power supply to the splitter first, and then plug the power

supply into an AC power outlet.

4. Power on the HDMI equipment and verify the image quality.

5. The following diagram shows the final configuration.

Troubleshooting

The following tables describe some of the symptoms, probable causes and possible solutions

in respect to the installation of the HDMI 1X4 Splitter. If you still cannot diagnose the

problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in

North America) or (+1) 514-905-0588 (International).

Picture/

Sound

Probable Cause Possible Solution

No Image Wiring Check continuity

Check correct wiring

No Image Synchronization Power off the source and the

display. Power on the devices.

Flickering


Synchronization Check HDMI cable length

Choppy

Sound

Synchronization Check HDMI cable length

Noise in


Weak signal Check HDMI cable length

Green or

pink hue

Cable Check HDMI cables and

replace.
