Mycoolman CEP47 Bruksanvisning
Läs nedan 📖 manual på svenska för Mycoolman CEP47 (12 sidor) i kategorin Kylbox. Denna guide var användbar för 10 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/12

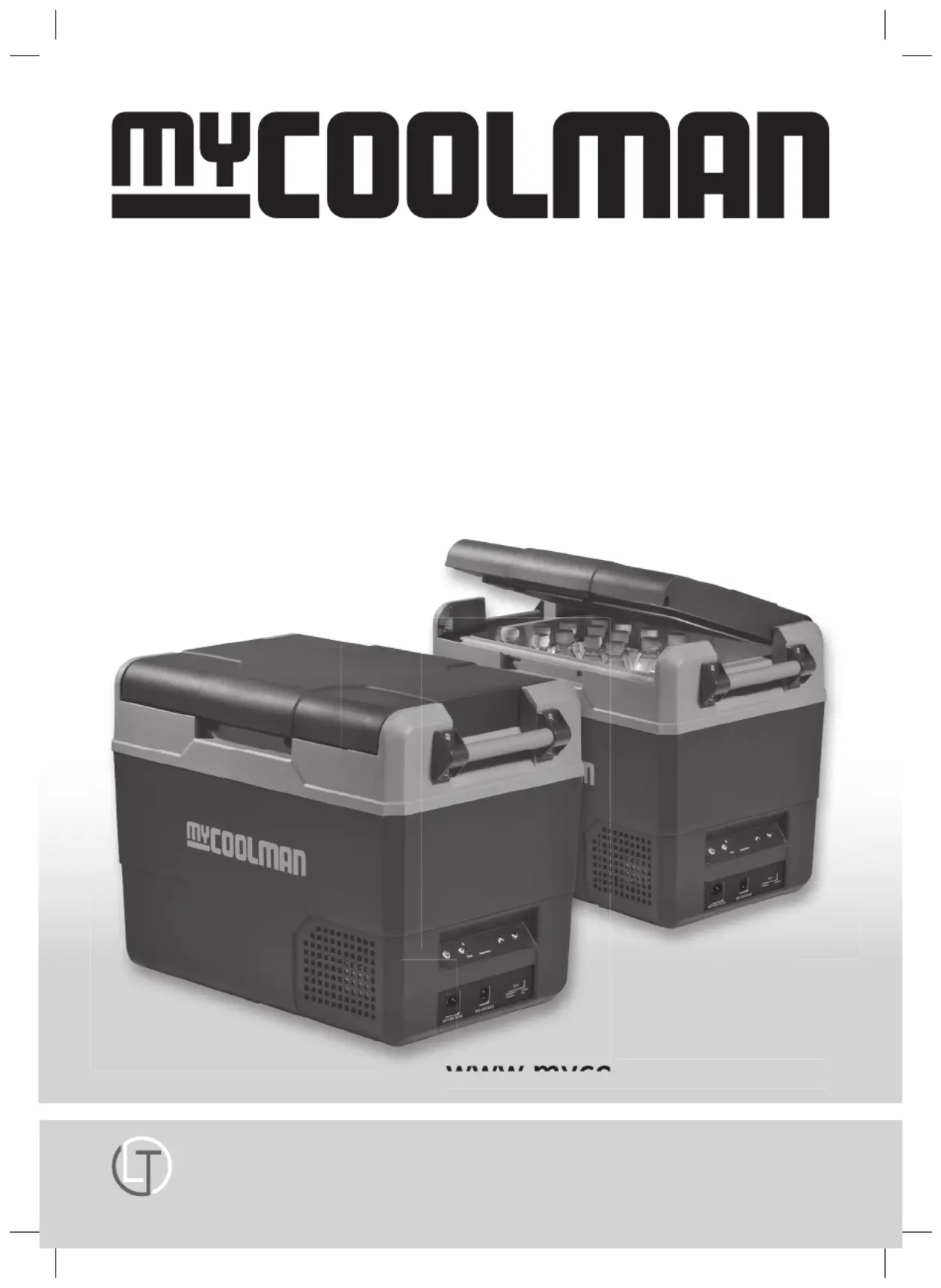

CEP FRIDGE·FREEZER
Operation Manual
for AC/DC Fridge·Freezer
Model CEP 47
LEISURE-TEC Australia Pty Ltd
www.mycoolman.com.au
Important Safety Warnings page 2
Important Product Information page 3
Product Features page 3
LED Control Panel & Operation Instructions page 4-5
Handle Fitting Instructions page 6
Two Way Opening and Removable Lid page 7
Emergency Override page 8
Cleaning & Maintenance page 8
Troubleshooting page 9
Status Indicator page 10
Notes page 11
Product Specications page 12
Warranty Terms & Conditions page 12
• DO NOT use if any of the electrical cables or
plugs are worn or frayed. Replace with original
manufacturers parts.
• ALWAYS check cables for mechanical damage,
cuts in the insulation, heat / moisture
damage before use. If in any doubt REPLACE.
• DO NOT handle electrical exes with wet
hands.
• DO NOT place electrical items in refrigerator.
• If your fridge/freezer has been o with food
stored, do not consume if in any doubt!
• Repairs should only be carried out by a
suitably qualied and authorized person.
Poor repair could be dangerous.
• DO NOT store dangerous items in the
appliance, such as spray cans, explosives,
and ammable liquids / propellants.
• ALWAYS leave room for airow around the
contents stored in the refrigerator to ensure
optimum performance.
• DO NOT operate this appliance in the rain.
• DO NOT allow children to play with the
appliance.
• Small children must be supervised when
around all electrical appliances.
• DO NOT allow children or pets to climb inside
appliance.
• ALWAYS disconnect before cleaning.
• Food must be stored in suitable and
appropriate containers.
• If your appliance is plugged in to a DC vehicle
socket – ensure that you disconnect from
power when you stop. Or use the battery
protection (page 5).
Don’t come back to a at battery!
• DO NOT ll appliance with ICE, WATER
or other liquid.
• DO NOT attempt to remove frost with scraper
or knife. Serious damage to cooling system
could occur.
• Buildup of heat in a vehicle can be extreme,
‘shutdown‘ will occur if cooling is not possible.
CEP FRIDGE·FREEZER
Contents
Important Safety Warnings
page 2
• Best performance is achieved in ambient
temperatures between +10 °C and + 43 °C.
• Temperatures above +32 °C may see a slight per-
formance drop, and power consumption increase.
• The lower the ambient temperature, the lower
the power usage. In order to maximize effi ciency,
keep the unit in a cool location out of direct
sunlight.
• When using the unit ensure the circuit being used
has a fuse or circuit breaker, recommended size
for DC 12 Volt is 10 Amp, DC 24 Volt is 5 Amp.
• Make sure the voltage is within the correct
range for socket and cable being used.
• Do not place any electrical devices inside
the refrigerator as they may be damaged.
• Your unit requires good ventilation, especially
around the vents of the refrigerator; allow a
gap of at least 100 mm around all vents.
• Do not allow a large amount of frost to
build up on the inside walls as this may
impair cooling.
• Defrost by turning the unit o . Once frost
has melted, remove the bung plug to
drain any excess water and wipe out any
remaining moisture with a clean cloth.
• It is recommended to operate the unit on a at
surface, but it will operate at angles up to 30 º.
8
8
75
4
3
2
1
6
1 Powered by 12/24 Volt DC compressor
2 Two way opening lid without tools
3 Multi-voltage system AC (240v) and
DC (12/24v) with battery level protection
4 LED interior light
5 Fully refrigerated stepped compartment
6 Headroom for upright standing bottles
7 47 litre capacity (56 x 375ml cans)
8 Digital display
Damage may occur if the DC cable supply is
undersized. This will cause low voltage.
As a guide, from the battery to the appliance
follow this guide.
Important Product Information
Product Features
page 3
NOTE:
At inclinations of more than 15 ° the
compressor noise level may increase
(without any e ect on the cooling
performance).
CEP FRIDGE·FREEZER
Cable cross
section
12v maximum
cable length
24v maximum
cable length
mm² Metre Metre
2.5 2.5 5
4 4 8
6 6 12
10 10 20
