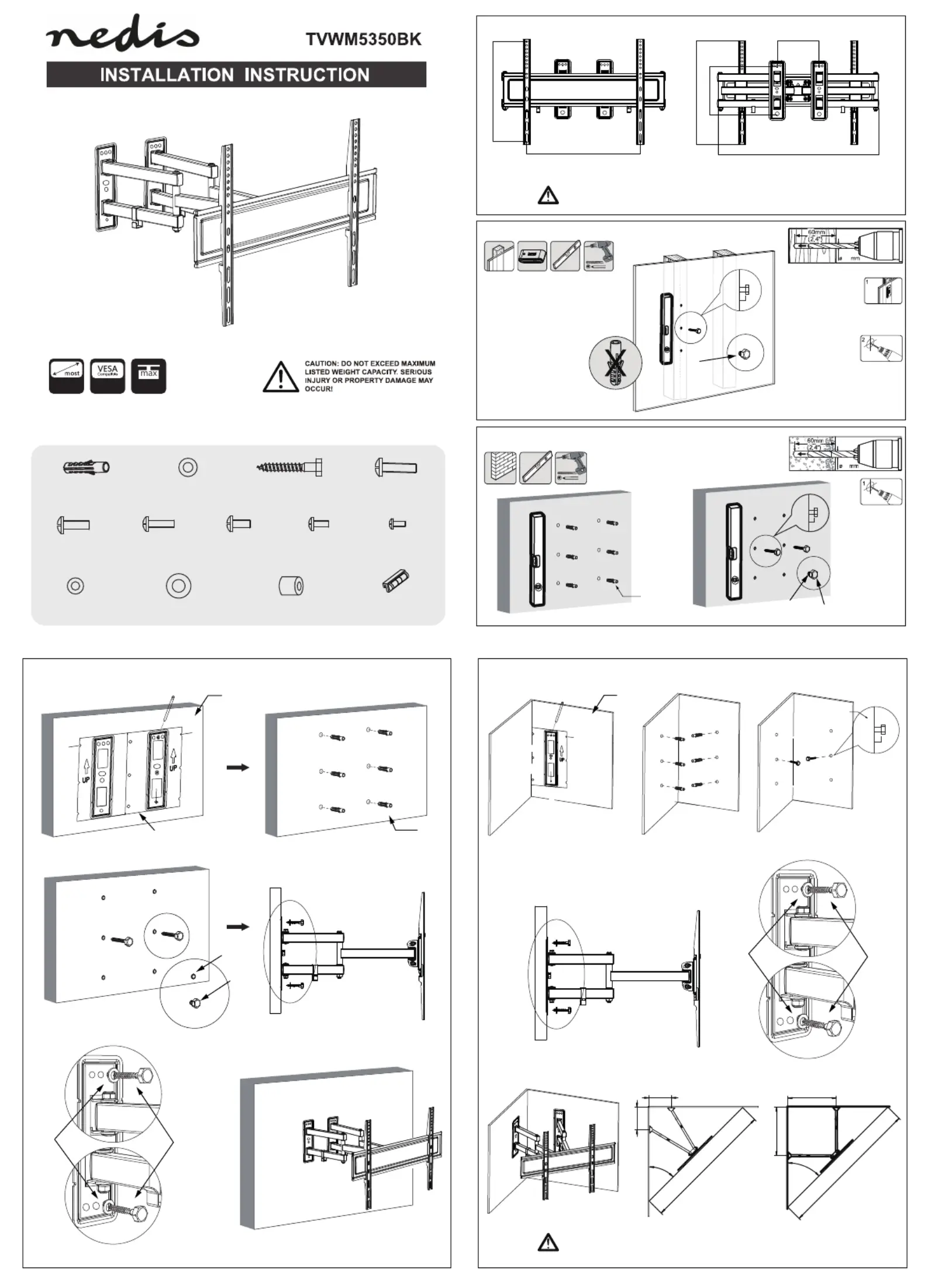

Nedis TVWM5350BK Bruksanvisning
Läs nedan 📖 manual på svenska för Nedis TVWM5350BK (2 sidor) i kategorin TV-skåp. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/2

35kgs/77lbs
32”-70” Max 600X400
For Wood Stud Wall Mounting
Find and mark the
exact location of
mounting holes
Drill pilot holes
For Solid Brick and Concrete Mounting
Wall Panel Installation Wall Panel Installation
I
3mm
BD
B
3mm
4.5
Drill pilot holes
10
Parts List
172
195
560
420
MAX 400
MAX 400
WALL
3mm
If the width of the TV is smaller than the size of the bracket, the bracket will be exposed
outside the TV when the bracket is retracted to the shortest distance from the wall
Pay attention to the length of the TV, so as not to hit the wall
Wallboard Jam
1-a
1-b
2-a 2-b
WALL
B
WALL
0°
0°
D
B
CD
UP
0°
0°
UP UP
1200
45°
200
200
1370
45°
470
470
(C) M6×18 washers (6)
(F)M5×16washers(4) (G)M8×20washers(4) (G)15×8×15 Plastic Sleeve(4)
(D) M6.3×70 Self-tap Screw (6)(B) 10× 60Plastic Anchor (6)
(F)M6×20screws (4)(F)M8×16screws (4)
(F)M8×30screws (4)
(F)M5×20 screws(4) (F)M5×12 screws(4)(F)M6×12 screws(4)
(H)Bubble level(1)
FD

A BA B
AB
Place the product on the wall to determine the location,
and then use the paper card to guide the hole
WALL
3mm
bWith Spacer
aNo Spacer
Ensure both tv brackets are EQUALLY CENTERED
on your TV AND securely fastened in place.
Use spacers between bracket and TV
to increase space, use spacer behind
the bracket to take up additional slack.
F
F
G
+6--12°
LEVEL±3°

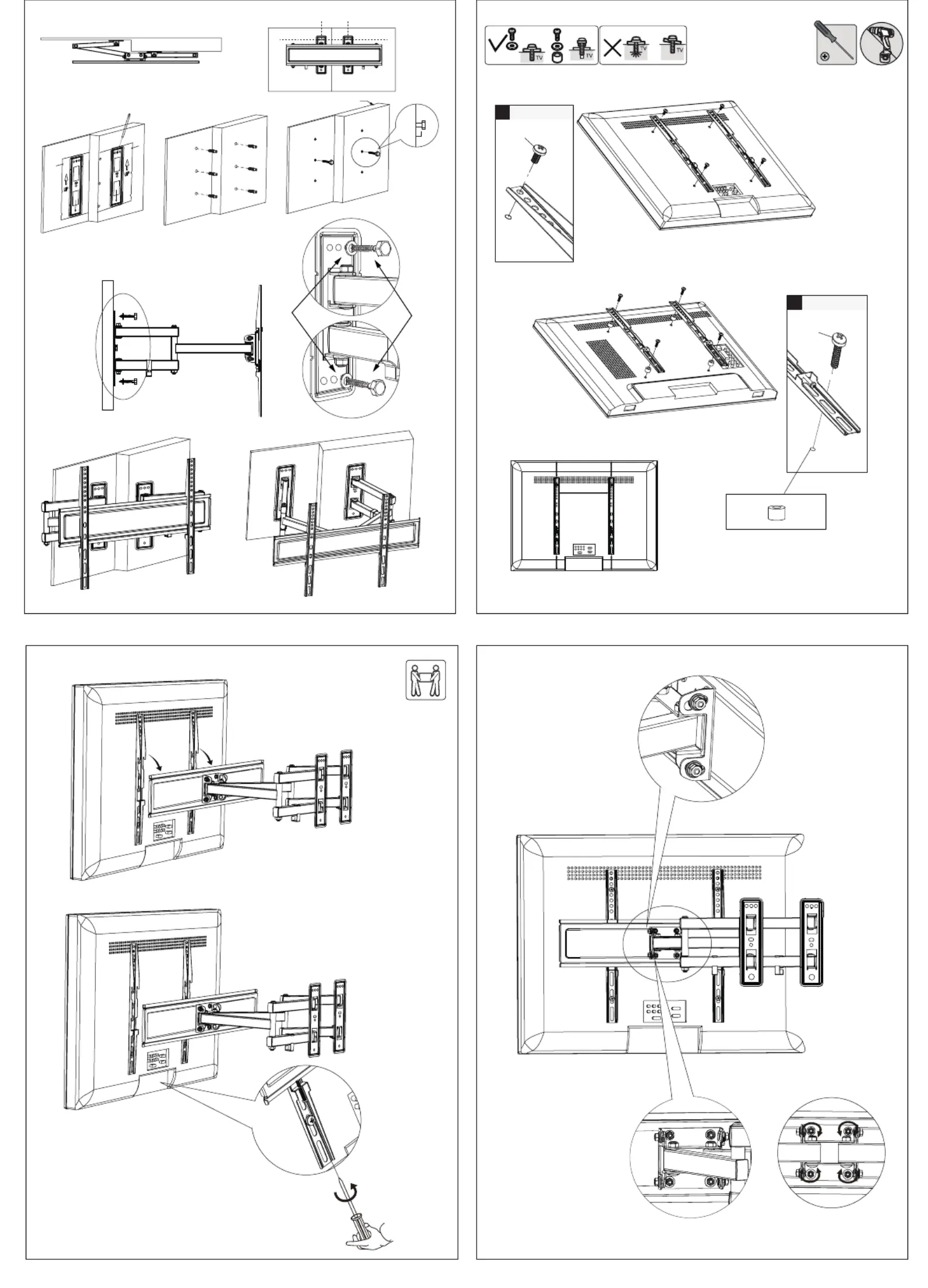

Wall Panel Installation2-c Installing the Display
3-1
Installing the Display3-2 Installing the Display3-3
UP
UP
0°
0°
CD
