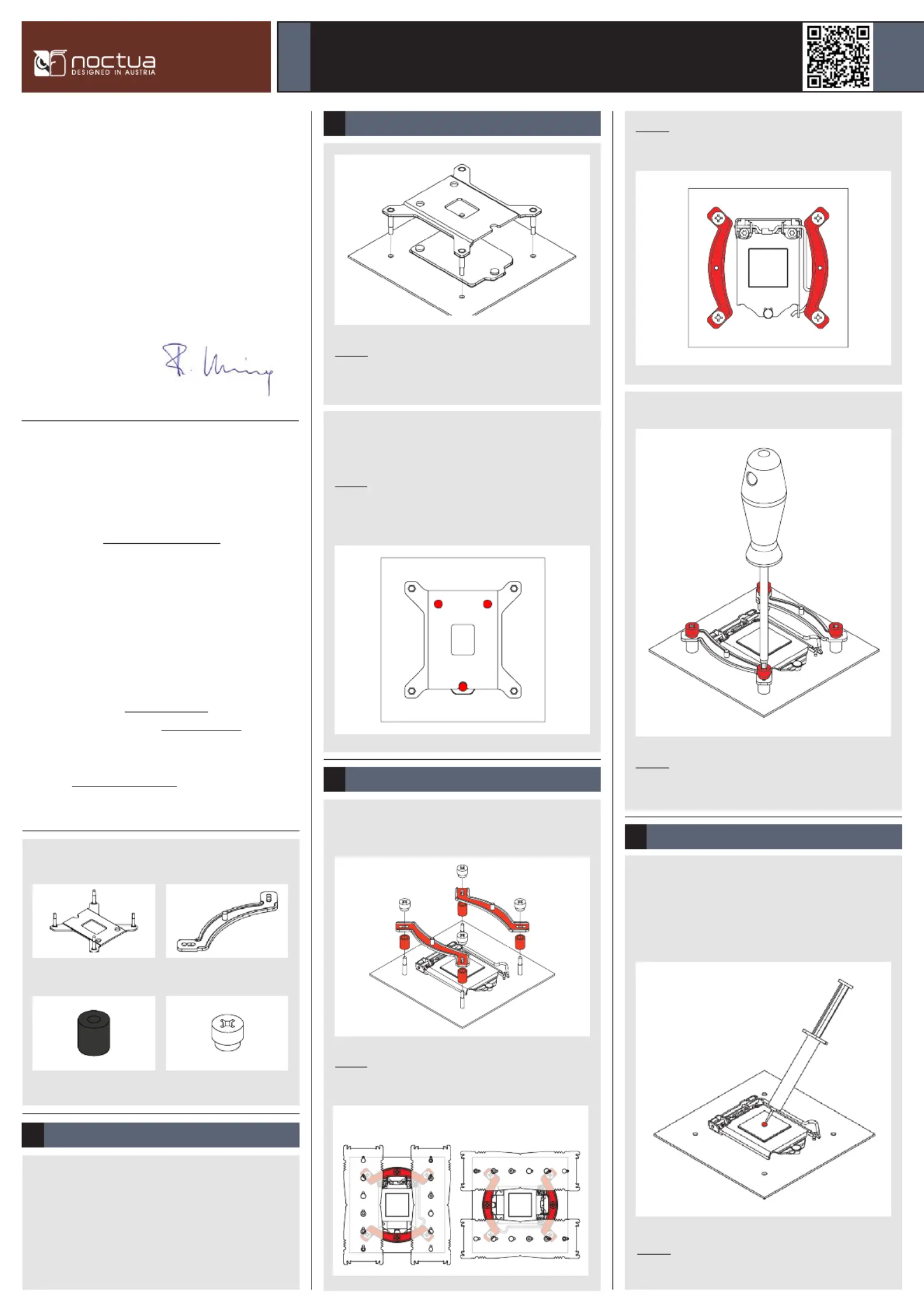

Caution: The supplied backplate will install over the mother-
board’s stock backplate, so the motherboard’s stock backplate
must not be taken off.
Attaching the backplate2
Place the backplate on the rear side of the motherboard so that
the bolts stick through the mounting holes.
Caution: Please make sure that the three cut-outs in the
supplied backplate align with the screws of the motherboard’s
stock backplate.
First put the plastic spacers onto the bolts of the backplate, then
add the mounting bars.
Installing the mounting bars3
Caution: Choose the alignment of the mounting bars according
to the desired nal orientation of the cooler:
Orientation A Orientation B
Caution: Make sure that the curved sides of the mounting bars
are pointing outwards.
Fix the mounting bars using the 4 thumb screws.
Caution: Gently tighten the screws until they stop, but don’t use
excessive force (max. torque 0.6 Nm).
If there are residual traces of thermal paste or thermal pads
on your CPU, please clean them off rst. Then press a small
drop (3-4mm diameter) of NT-H1 onto the centre of the heat-
spreader.
Applying the thermal paste
Caution: Applying too much thermal paste will lower heat
conductivity and cooling performance!
4
Dear customer,
Congratulations on choosing the Noctua NH-D15 chromax.
black. Built on the basis of the legendary NH-D14 and carrying
on its quest for ultimate quiet cooling performance, our agship
model NH-D15 is an elite class dual tower cooler for the highest
demands. I’m condent that you will be able to sense some of the
research, attention and care we’ve put into making this cooler.
Enjoy your NH-D15!
Yours sincerely,
Roland Mossig, Noctua CEO
This manual will guide you through the installation process of
the SecuFirm2™ mounting system step by step.
Prior to installing the cooler, please consult the compatibility list
on our website (www.noctua.at/compatibility) and verify that
the cooler is fully compatible with your motherboard. Please
also make sure that your PC case offers sufcient clearance
for the cooler and that there are no compatibility issues with
any other components (e.g. tall RAM modules). Double check
that the heatsink and fan clips do not make contact with
the VGA card or other PCIe cards. Noctua cannot be held
responsible for any damage or losses caused by compatibility
issues. Should you encounter any difculties, please check the
FAQs on our website (www.noctua.at/faqs) and don’t hesitate
to contact our support team at support@noctua.at.
Multilingual versions of this manual are available on our
website: www.noctua.at/manuals
Required mounting parts:
2x NM-IMB2 mounting bars1x NM-IBP2 backplate
4x NM-ITS1 thumb screws
In case you want to use the cooler on an assembled system
and your case doesn’t have a cut-out at the rear side of the
motherboard tray, you rst have to remove the motherboard
from the case in order to be able to install the supplied
backplate.
Removing the motherboard1
4x NM-IPS1 spacers
NOCTUA NH-D15 chromax.black
INSTALLATION MANUAL
LGA115x
Scan this code to display
multilingual manuals on
your phone.
NOCTUA NH-D15 chromax.black
INSTALLATION MANUAL
LGA115x
Scan this code to display
multilingual manuals on
your phone.

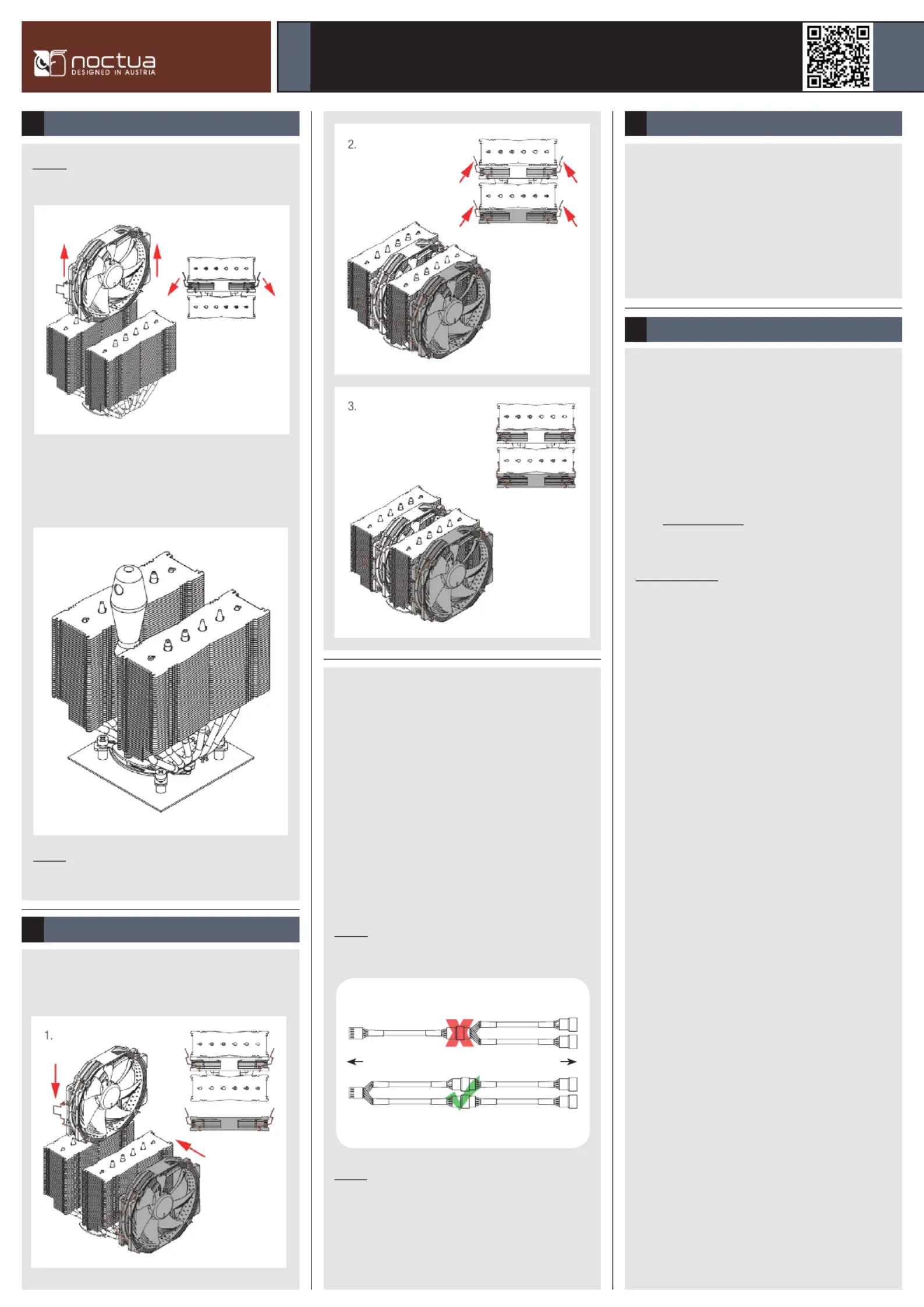

Reattach the centre fan and, optionally, install the second fan (in
grey) using the supplied steel clips:
Fan setup6
Then put the heatsink onto the CPU and screw it to the screw
threads of the mounting bars. Perform 2-3 turns on each
screw, then repeat until both are fully tightened.
Caution: Gently tighten the screws until they stop, but don’t use
excessive force (max. torque 0.6 Nm).
Even with high-grade products and strict quality control, the
possibility of defects cannot be eliminated entirely. Therefore,
we aim at providing the highest possible level of reliability and
convenience by offering a warranty period of 6 years and
direct, fast and straightforward RMA service.
Should you encounter any problems with your NH-D15
chromax.black, please don’t hesitate to contact our support
team (support@noctua.at).
Please also consult the FAQ section on our website:
www.noctua.at/faqs.
Warranty, support and FAQs!
As it is not possible to reliably calculate or control the forces
that act upon a system during transport (e.g. in shipping), we
generally recommend, for safety reasons, taking the cooler off.
Noctua cannot be held responsible for any damage that may
arise due to excessive stress during transport if you keep the
heatsink installed.
Transporting your system!
Use the heatsink with the centre fan only in order to guarantee
best compatibility with tall RAM modules. Add the second fan
to the front n-stack for further improved cooling performance.
Connect the fan(s) to the motherboard’s CPU fan header(s). If
necessary, use the supplied NA-YC1 y-cable to connect both
fans to one fan header.
Depending on your CPU and the temperature inside the case,
you may interconnect the supplied NA-RC7 Low-Noise Adap-
tors (L.N.A.) in order to further reduce the fans’ operating noise.
Connect the fan to the motherboard’s CPU fan header.
Caution: Never use one adaptor for both fans by putting it
before the y-cable.
Motherboard Fans
Low-Noise Adaptor Y-cable
Y-cable Low-Noise Adaptors
Caution: When using the L.N.A.s, check the temperature of your
CPU using appropriate software (e.g. the respective applications
of your motherboard manufacturer), in order to evade automatic
throttling of the CPU due to the increased temperature. If the
cooling performance is insufcient, please increase case ventila-
tion or remove the L.N.A.s.
Caution: Please rst take off the centre fan as well as the
protection cover at the bottom side of the heatsink.
Fastening the heatsink to the CPU5

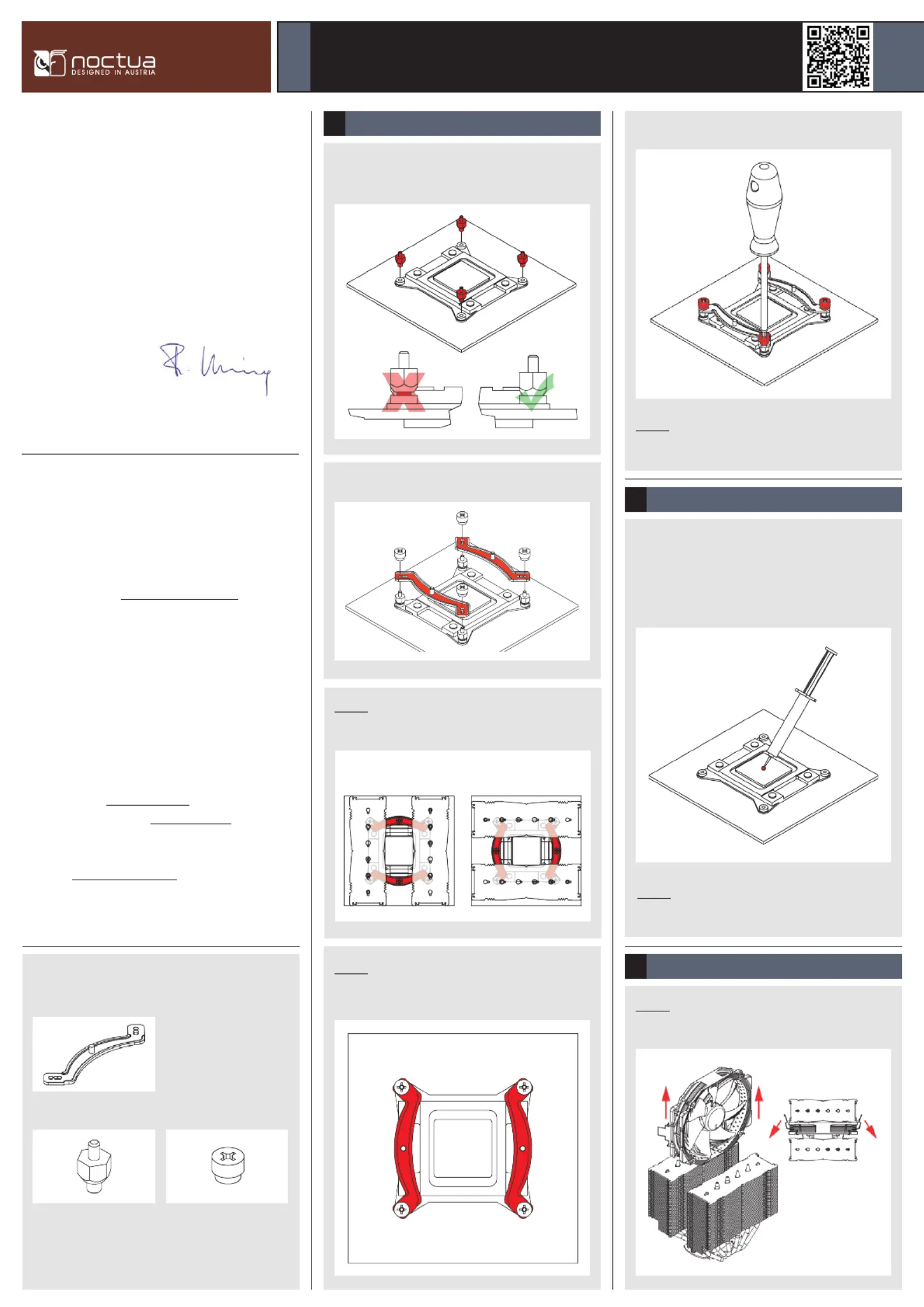

First screw the NM-IBT2 bolts into the screw threads of the
LGA20xx socket frame.
Installing the mounting bars1
Then put the NM-IMB2 mounting-bars onto the bolts.
Caution: Choose the alignment of the mounting bars according
to the desired nal orientation of the cooler:
Orientation A Orientation B
Dear customer,
Congratulations on choosing the Noctua NH-D15 chromax.
black. Built on the basis of the legendary NH-D14 and carrying
on its quest for ultimate quiet cooling performance, our agship
model NH-D15 is an elite class dual tower cooler for the highest
demands. I’m condent that you will be able to sense some of the
research, attention and care we’ve put into making this cooler.
Enjoy your NH-D15!
Yours sincerely,
Roland Mossig, Noctua CEO
This manual will guide you through the installation process of
the SecuFirm2™ mounting system step by step.
Prior to installing the cooler, please consult the compatibility
list on our website (www.noctua.at/compatibility) and verify
that the cooler is fully compatible with your motherboard.
Please also make sure that your PC case offers sufcient
clearance for the cooler and that there are no compatibility
issues with any other components (e.g. tall RAM modules).
Double check that the heatsink and fan clips do not make
contact with the VGA card or other PCIe cards. Noctua cannot
be held responsible for any damage or losses caused by
compatibility issues.
Should you encounter any difculties, please check the FAQs
on our website (www.noctua.at/faqs) and don’t hesitate to
contact our support team at support@noctua.at.
Multilingual versions of this manual are available on our
website: www.noctua.at/manuals
Required mounting parts:
2x NM-IMB2 mounting bars
4x NM-ITS1 thumb screws4x NM-IBT2 bolts
Caution: Make sure that the curved sides of the mounting bars
are pointing outwards.
Fix the mounting bars using the 4 thumb screws.
Caution: Gently tighten the screws until they stop, but don’t use
excessive force (max. torque 0.6 Nm).
If there are residual traces of thermal paste or thermal pads
on your CPU, please clean them off rst. Then press a small
drop (4-5mm diameter) of NT-H1 onto the centre of the
heatspreader.
Applying the thermal paste
Caution: Applying too much thermal paste will lower heat
conductivity and cooling performance!
2
NOCTUA NH-D15 chromax.black
INSTALLATION MANUAL
LGA20xx
Scan this code to display
multilingual manuals on
your phone.
Caution: Please rst take off the centre fan as well as the
protection cover at the bottom side of the heatsink.
Fastening the heatsink to the CPU3
