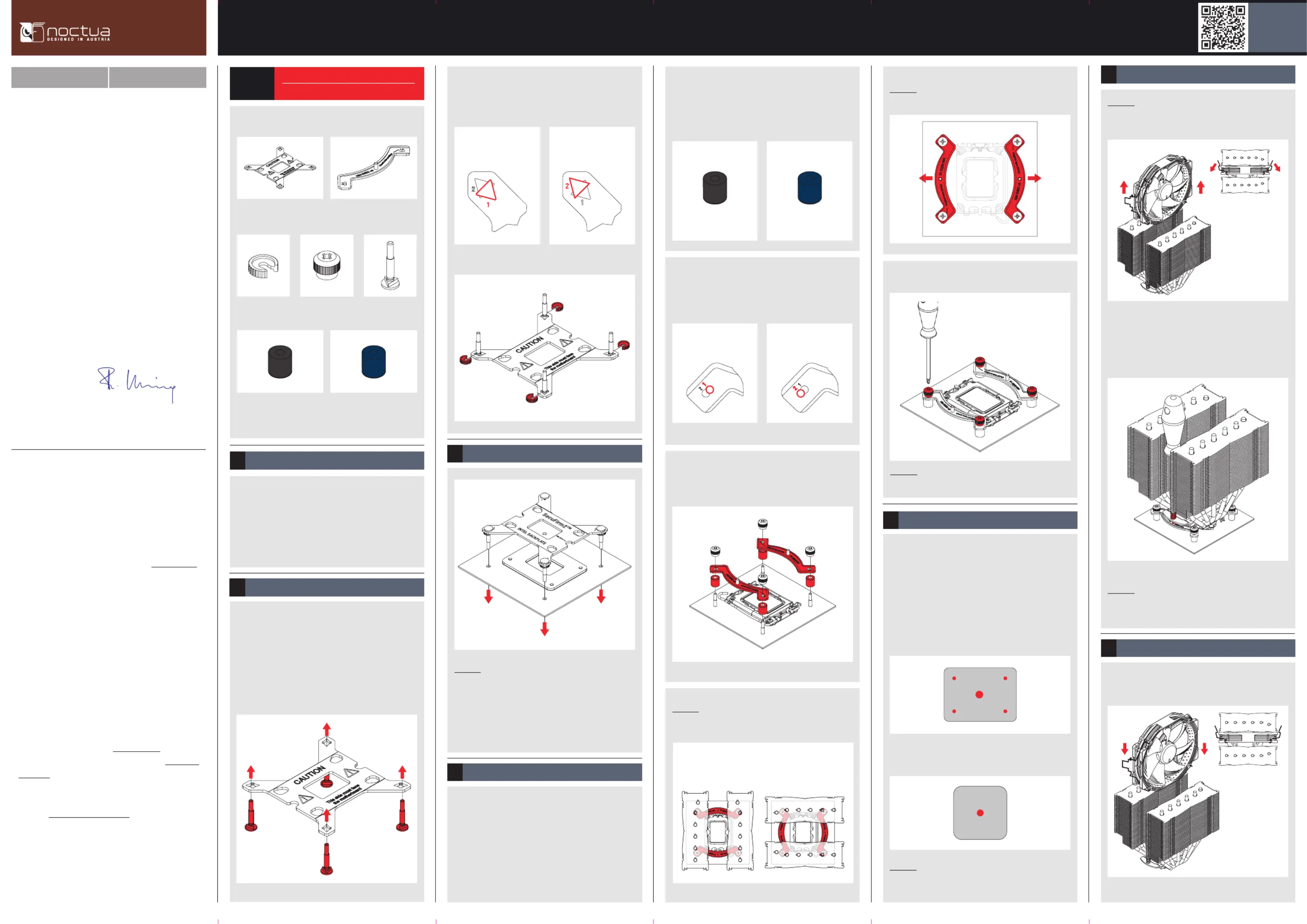

In case you want to use the cooler on an assembled system
and your case doesn’t have a cut-out at the rear side of the
motherboard tray, you rst have to remove the motherboard
from the case in order to be able to install the supplied
backplate.
Removing the motherboard1
NOCTUA NH-D15S chromax.black
INSTALLATION MANUAL
Scan this code to display
multilingual manuals on
your phone.
Required mounting parts:
2x NM-IMB2 mounting bars1x NM-IBP2 backplate
4x NM-ITS1s thumb screws4x NM-IPS1 plastic spacers
Caution: The supplied backplate will install over the mother-
board’s stock backplate, so the motherboard’s stock backplate
must not be taken off.
Attaching the backplate2
Place the backplate on the rear side of the motherboard so that
the bolts stick through the mounting holes.
Caution: Please make sure that the three cut-outs in the
supplied backplate align with the screws of the motherboard’s
stock backplate.
First put the plastic spacers onto the bolts of the backplate, then
add the mounting bars.
Installing the mounting bars3
Dear customer,
Congratulations on choosing the Noctua NH-D15S chromax.
black. Built on the basis of the legendary NH-D14 and carrying
on its quest for ultimate quiet cooling performance, our agship
model NH-D15 is an elite class dual tower cooler for the
highest demands. I’m condent that you will be able to sense
some of the research, attention and care we’ve put into making
this cooler.
Enjoy your NH-D15S chromax.black!
Yours sincerely,
Roland Mossig, Noctua CEO
This manual will guide you through the installation process of
the SecuFirm2™ mounting system step by step.
Prior to installing the cooler, please consult the compatibility
list on our website (www.noctua.at/compatibility) and verify
that the cooler is fully compatible with your motherboard.
Please also make sure that your PC case offers sufcient
clearance for the cooler and that there are no compatibility
issues with any other components (e.g. tall RAM modules).
Double check that the heatsink and fan clips do not make
contact with the VGA card or other PCIe cards. Noctua
cannot be held responsible for any damage or losses caused
by compatibility issues.
Should you encounter any difculties, please check the FAQs
on our website (www.noctua.at/faqs) and don’t hesitate to
contact our support team at .support@noctua.at
Multilingual versions of this manual are available on our
website: www.noctua.at/manuals
LGA115x & LGA1200!
Caution: Make sure that the curved sides of the mounting bars
are pointing outwards.
Fix the mounting bars using the 4 thumb screws.
Caution: Gently tighten the screws until they stop, but don’t use
excessive force (max. torque 0.6 Nm).
If there are residual traces of thermal paste or thermal pads
on your CPU, please clean them off rst. Then press a small
drop (3-4mm diameter) of NT-H1 onto the centre of the heat-
spreader.
Applying the thermal paste
Caution: Applying too much thermal paste will lower heat
conductivity and cooling performance!
4
Orientation A Orientation B
Caution: Choose the alignment of the mounting bars according
to the desired nal orientation of the cooler:
Then put the heatsink onto the CPU and screw it to the screw
threads of the mounting bars. Perform 2-3 turns on each
screw, then repeat until both are fully tightened.
Caution: Gently tighten the screws until they stop, but don’t use
excessive force (max. torque 0.6 Nm).
Caution: Please rst take off the fan as well as the protection
cover at the bottom side of the heatsink.
Fastening the heatsink to the CPU5
Reattach the fan using the supplied steel clips:
Fan setup6
1.
Even with high-grade products and strict quality control, the
possibility of defects cannot be eliminated entirely. Therefore,
we aim at providing the highest possible level of reliability and
convenience by offering a warranty period of 6 years and
direct, fast and straightforward RMA service.
Should you encounter any problems with your NH-D15S
chromax.black, please don’t hesitate to contact our support
team (support@noctua.at).
Please also consult the FAQ section on our website:
www.noctua.at/faqs.
Warranty, support and FAQs!
As it is not possible to reliably calculate or control the forces
that act upon a system during transport (e.g. in shipping), we
generally recommend, for safety reasons, taking the cooler off.
Noctua cannot be held responsible for any damage that may
arise due to excessive stress during transport if you keep the
heatsink installed.
Transporting your system!
Caution:
• It is not possible to install 140mm fans with square frames
(124.5mm hole spacing) such as the NF-A14 or NF-P14s
redux.
• If you add a second fan to the front n stack, it will sit above
the RAM modules. Please verify that you have sufcient room
inside your case before adding a second fan. For example, if
you add a 140mm fan and use RAM modules that are 50mm
high, you will need 190mm of clearance, adding a 120mm
fan while using 50mm RAM requires 170mm, etc.
Connect the fan to the motherboard’s CPU fan header.
Depending on your CPU and the temperature inside the case,
you may interconnect the supplied NA-RC7 Low-Noise Adaptor
(L.N.A.) in order to further reduce the fan’s operating noise.
Caution: When using the L.N.A., check the temperature of
your CPU using appropriate software (e.g. the respective
applications of your motherboard manufacturer), in order to
evade automatic throttling of the CPU due to the increased
temperature. If the cooling performance is insufcient, please
increase case ventilation or remove the L.N.A..
Adding a second fan
The NH-D15S chromax.black includes an extra set of fan clips
for installing a second fan to the front n stack in push/pull
mode in order to further improve cooling performance. The
fan clips support:
• Round frame 140mm fans with 120mm mounting (105mm
hole spacing) such as the NF-A15 PWM or the NF-P14r
redux models
• Standard 120mm fans (105mm hole spacing) such as the
NF-A12x25, NF-F12 or NF-P12 redux models
NOCTUA NH-D15S chromax.black
INSTALLATION MANUAL
Scan this code to display
multilingual manuals on
your phone.
First screw the NM-IBT2 bolts into the screw threads of the
LGA20xx socket frame.
Installing the mounting bars1
Then put the NM-IMB2 mounting bars onto the bolts.
Caution: Choose the alignment of the mounting bars according
to the desired nal orientation of the cooler:
Orientation A Orientation B
Required mounting parts:
2x NM-IMB2 mounting bars
4x NM-ITS1s thumb screws4x NM-IBT2 bolts
Caution: Make sure that the curved sides of the mounting bars
are pointing outwards.
Fix the mounting bars using the 4 thumb screws.
Caution: Gently tighten the screws until they stop, but don’t use
excessive force (max. torque 0.6 Nm).
If there are residual traces of thermal paste or thermal pads
on your CPU, please clean them off rst. Then press a small
drop (4-5mm diameter) of NT-H1 onto the centre of the heat-
spreader.
Applying the thermal paste
Caution: Applying too much thermal paste will lower heat
conductivity and cooling performance!
2
Caution: Please rst take off the fan as well as the protection
cover at the bottom side of the heatsink.
Fastening the heatsink to the CPU3
NOCTUA NH-D15S chromax.black
INSTALLATION MANUAL
Scan this code to display
multilingual manuals on
your phone.
Dear customer,
Congratulations on choosing the Noctua NH-D15S chromax.
black. Built on the basis of the legendary NH-D14 and carrying
on its quest for ultimate quiet cooling performance, our agship
model NH-D15 is an elite class dual tower cooler for the
highest demands. I’m condent that you will be able to sense
some of the research, attention and care we’ve put into making
this cooler.
Enjoy your NH-D15S chromax.black!
Yours sincerely,
Roland Mossig, Noctua CEO
This manual will guide you through the installation process of
the SecuFirm2™ mounting system step by step.
Prior to installing the cooler, please consult the compatibility
list on our website (www.noctua.at/compatibility) and verify
that the cooler is fully compatible with your motherboard.
Please also make sure that your PC case offers sufcient
clearance for the cooler and that there are no compatibility
issues with any other components (e.g. tall RAM modules).
Double check that the heatsink and fan clips do not make
contact with the VGA card or other PCIe cards. Noctua
cannot be held responsible for any damage or losses caused
by compatibility issues.
Should you encounter any difculties, please check the FAQs
on our website (www.noctua.at/faqs) and don’t hesitate to
contact our support team at support@noctua.at.
Multilingual versions of this manual are available on our
website: www.noctua.at/manuals
LGA20xx!
Then put the heatsink onto the CPU and screw it to the screw
threads of the mounting bars. Perform 2-3 turns on each
screw, then repeat until both are fully tightened.
