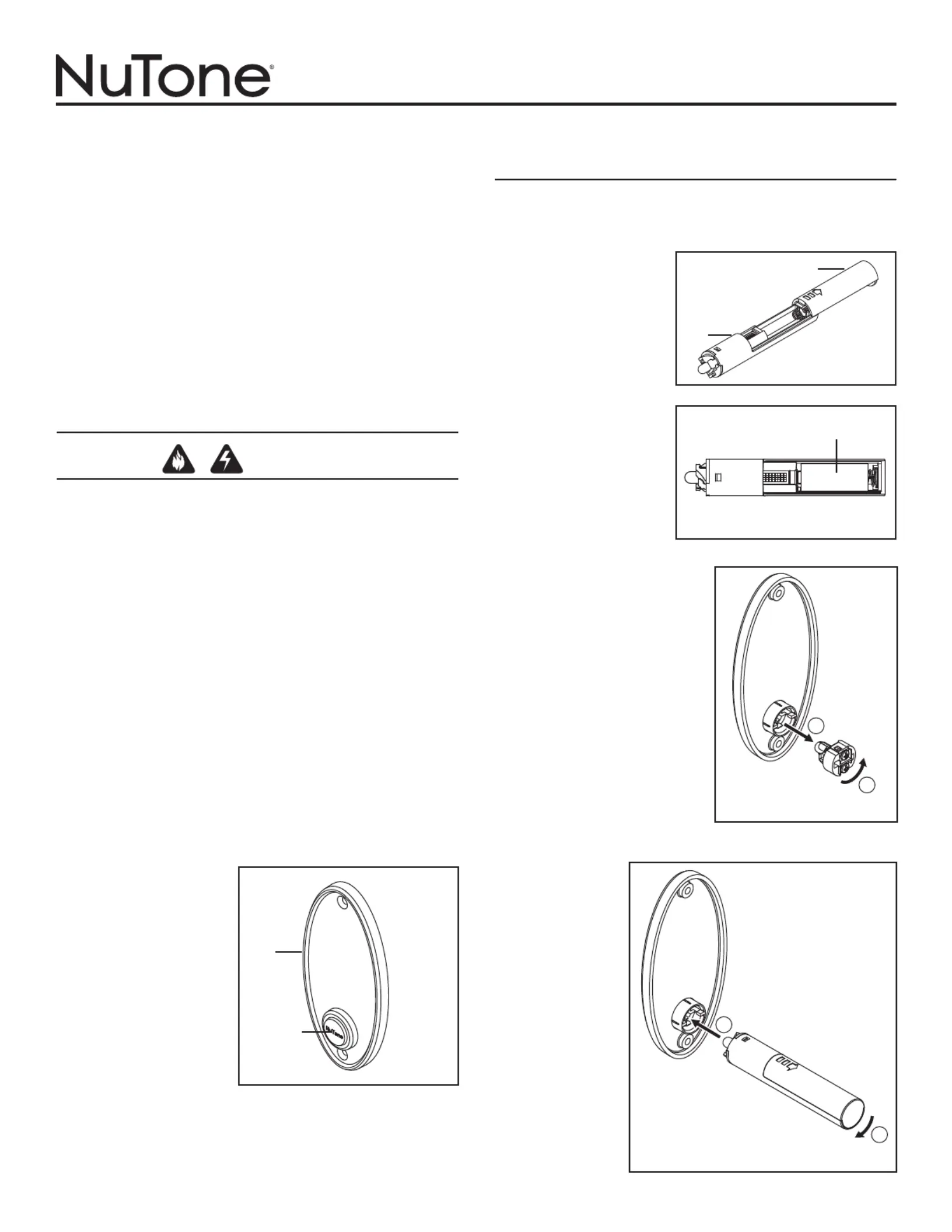

1
WIRED / WIRELESS
DOOR CHIME
PUSHBUTTON
To register this product, visit: www.nutone.com
THIS PACKAGE INCLUDES:
n Cast Metal Escutcheon
n Wired Pushbutton
n Wireless Pushbutton and Battery
n Mounting Hardware
WIRED PUSHBUTTON INSTALLATION
WARNING
• TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
• Use this unit only in the manner intended by the manufacturer. If you
have questions, contact the manufacturer at the address or telephone
number listed in the warranty.
• Before servicing or cleaning unit, switch power off at service panel and
lock the service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
• Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
• When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
• Use NuTone® 16 volt transformer with a minimum rating of 10 VA
(purchase separately).
• When stapling wires to studs or joists, do not allow staples to cut
through wire insulation.
1. Select pushbutton location
and drill a straight and
level 3/4” (19 mm) hole, 1”
(25 mm) deep.
2. Make sure that push button
assembly (A) is inserted
fully into escutcheon (B).
(Figure 1) Install chime
and transformer wires to
pushbutton terminals.
3. Install escutcheon/
pushbutton assembly
into hole and secure with
hardware provided.
4. Restore power at service entrance and press pushbutton to sound
chime.
INSTALLATION & OPERATING INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
WIRELESS PUSHBUTTON
INSTALLATION
The wireless pushbutton (C) is compatible with NuTone wireless
chimes. (Purchase separately) Refer to installation instructions
provided with wireless chime.
1. Open battery cover (D)
by sliding it in direction
indicated by arrow.
(Figure 2)
2. Install battery (E) into
wireless pushbutton.
(Figure 3)
3. Remove wired pushbutton
mechanism from pushbutton /
escutcheon assembly by
turning pushbutton mechanism
counterclockwise and pulling it
out. (Figure 4)
4. Insert wireless
pushbutton
mechanism and
twist clockwise.
(Figure 5)
5. Test operation.
Hold wireless
pushbutton near
chime and press
pushbutton. If
chime does not
sound - see a.
through c. on
page 2.
FIGURE 1
B
A
FIGURE 4
1
2
FIGURE 5
1
2
FIGURE 2
FIGURE 3
C
D
E
+ -
2

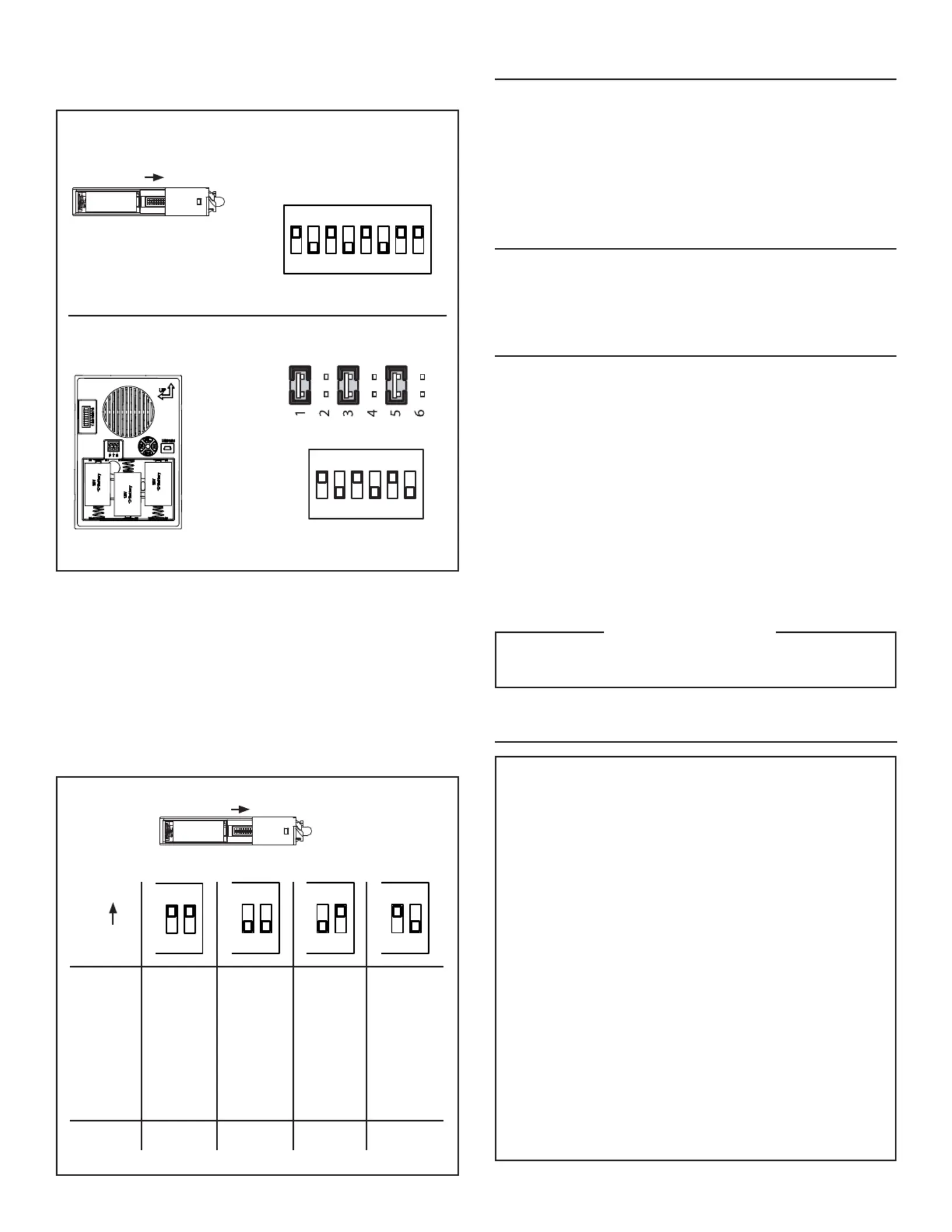

If chime does not sound when wireless pushbutton is pushed:
a. Confirm that code settings on chime mechanism and
wireless pushbutton are the same. (Figure 6)
b. Verify proper installation batteries in chime mechanism and
pushbutton. (Figure 3)
c. Check condition of batteries in chime mechanism and pushbutton.
Replace if required.
6. Close battery cover on wireless pushbutton.
7. To install wireless pushbutton / escutcheon assembly, drill a straight
and level 3/4” diameter x 3-1/2” deep hole.
8. Insert wireless pushbutton / escutcheon assembly into hole and
secure to wall using hardware provided.
More than one pushbutton can be used with NuTone wireless chimes.
Refer to Figure 7 to assign a door or tune to each wireless pushbutton.
BATTERY REPLACEMENT
Wireless Chime
Replace batteries following door chime instructions.
Wireless Pushbutton
Remove wireless pushbutton / escutcheon assembly from wall and follow
Step 1 in section titled “Wireless Pushbutton Installation”. Replace battery
with one N Cell, 1.5V alkaline battery. Close battery cover and re-install
wireless pushbutton / escutcheon assembly with hardware.
ADDITIONAL WIRELESS DOOR
CHIMES & PUSHBUTTONS
When installing other Wireless Door Chime sets, select different code
settings to avoid interference. If you want all chimes to ring at the same
time, set chimes to the same code settings.
TROUBLESHOOTING FOR WIRELESS
INSTALLATIONS
The range of the door chime depends on location, temperature and battery
condition. If you are having problems with this product, please try the
solutions listed below.
Chime rings on its own:
• A neighbor may have a wireless chime set with the same code settings.
Change the chime and pushbutton code settings. (Figure 6)
Chime doesn’t sound:
• Make sure the pushbutton and the chime code settings are the same.
• Check the batteries in the chime and wireless pushbutton. (Figure 3, 6)
Batteries are OK, but chime does not work when installed:
• Mounting the chime or pushbutton directly on metal, concrete or near
metal studs reduces the range.
• Do not mount the chime too close to ground level concrete slabs which
may also reduce the range. Mount the chime away from the floor.
• Try different locations for the chime closer to the pushbutton. Also, try
to orient the chime at a different angle to increase the range. Range is
most effective to the sides of the pushbutton.
Regulatory Information
The user is cautioned that changes or modifications not expressly
approved by the party responsible for regulatory compliance
could void the user’s authority to operate this equipment.
NUTONE ONE YEAR LIMITED WARRANTY
NuTone warrants to the original consumer purchaser of its products that such products
will be free from defects in materials or workmanship for a period of one year from the
date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, NuTone will, at its option, repair or replace, without charge,
any product or part which is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES,
HALOGEN AND INCANDESCENT BULBS, FUSES, FILTERS, DUCTS, ROOF CAPS, WALL
CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal
maintenance and service or (b) any products or parts which have been subject to misuse,
negligence, accident, improper maintenance or repair (other than by NuTone), faulty instal-
lation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the
express warranty. Some states do not allow limitation on how long an implied warranty
lasts, so the above limitation may not apply to you.
NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT NUTONE’S OPTION, SHALL BE
THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. NUTONE
SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES
ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some
states do not allow the exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which
vary from state to state. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify NuTone at the address or telephone
number below, (b) give the model number and part identification and (c) describe the
nature of any defect in the product or part. At the time of requesting warranty service, you
must present evidence of the original purchase date.
Broan-NuTone LLC, 926 W. State Street, Hartford, Wisconsin 53027
www.nutone.com 888-336-6151
WARRANTY
99528433B
123456
ON
WIRELESS CHIME - EXAMPLE CODE SETTING
(Chime will have jumpers or switches)
JUMPERS REMOVED (OFF) FROM 2, 4, 6
SWITCHES 2, 4, 6 IN OFF POSITION
WIRELESS
CHIME
JUMPERS
{
WIRELESS
CHIME
SWITCHES
{
FIGURE 6
123456
ON
7 8
SWITCHES 2, 4, 6
IN OFF POSITION
CODE SET
SWITCHES 1-6
{
WIRELESS PUSHBUTTON - EXAMPLE CODE SETTING
CODE SET
SWITCHES 1-6
{
CODE SET SWITCHES 7 & 8
{
WIRELESS PUSHBUTTON - ASSIGN TUNE(S) OR DOOR(S)
Models 7 8 7 8 7 8 7 8
LA203WH
LA203RWH
LA204WH
LA204RWH
LA205WH 1 Note 2 Note 3 Note 4 Note
LA206WH
LA522WH
LA532WH
LA533WH
LA600WH Front Back Front Back
ON
1 8
1 8
FIGURE 7
3
BOTÓN PARA TIMBRE
DE PUERTA CABLEADO /
INALÁMBRICO
Para registrar este producto, visite: www.nutone.com
ESTE PAQUETE CONTIENE:
n Escudete de metal vaciado
n Botón cableado
n Botón inalámbrico y pila
n Herraje de montaje
INSTALACIÓN DEL BOTÓN
CABLEADO
ADVERTENCIA
• PARA REDUCIR EL RIESGO DE INCENDIOS, DESCARGAS
ELÉCTRICAS O LESIONES PERSONALES, SIGA LAS SIGUIENTES
PRECAUCIONES:
• Use la unidad solo de la manera indicada por el fabricante. Si tiene
preguntas, comuníquese con el fabricante a la dirección o al número
telefónico que se incluye en la garantía.
• Antes de dar servicio a la unidad o de limpiarla, interrumpa el suministro
eléctrico en el panel de servicio y bloquee los medios de desconexión
del servicio para evitar que la electricidad se reanude accidentalmente.
Cuando no sea posible bloquear los medios de desconexión del servicio,
fije firmemente una señal de advertencia (como una etiqueta) en un lugar
visible del panel de servicio.
• Una o más personas calificadas deben realizar el trabajo de instalación
y el cableado eléctrico, de acuerdo con todos los códigos y normas
correspondientes, incluidos los códigos y normas de construcción
específicos de protección contra incendios.
• Al cortar o perforar a través de la pared o del cielo raso, tenga cuidado de
no dañar el cableado eléctrico ni otros servicios ocultos.
• Utilice un transformador NuTone® de 16 voltios con una capacidad nominal
mínima de 10 VA (se compra por separado).
• Cuando engrape los cables a los montantes o a las vigas, no permita que
las grapas perforen el aislamiento de los cables.
1. Seleccione la ubicación del
botón y perfore un orificio
recto y nivelado de ¾ pulg.
(19 mm) y 1 pulg. (25 mm)
de profundidad.
2. Asegúrese de que el
conjunto del botón (A) esté
totalmente insertado en
elescudete (B). (Figura 1)
Instale el timbre y los cables
del transformador en los
terminales del botón.
3. Instale el conjunto del
escudete/el botón en el
orificio y asegure con el
herraje suministrado.
4. Restaure la electricidad en la entrada de servicio y presione el botón
para escuchar el timbre.
INSTRUCCIONES DE INSTALACIÓN Y OPERACIÓN
LEA Y CONSERVE ESTAS INSTRUCCIONES
INSTALACIÓN DEL BOTÓN
INALÁMBRICO
El botón inalámbrico (C) es compatible con los timbres inalámbricos
de NuTone. (Se compra por separado). Consulte las instrucciones de
instalación suministradas con el timbre inalámbrico.
1. Abra la cubierta de la pila
(D) deslizándola en la
dirección señalada por la
flecha. (Figura 2)
2. Instale la pila (E) en el botón
inalámbrico. (Figura 3)
3. Retire el mecanismo del botón
cableado del conjunto de botón/
escudete girando el mecanismo del
botón hacia la izquierda y tirando
de él. (Figura 4)
4. Inserte el
mecanismo del
botón inalámbrico
y gire hacia la
derecha. (Figura 5)
5. Pruebe el
funcionamiento.
Sostenga el
botón inalámbrico
cerca del timbre y
presione el botón.
Si el timbre no
suena, consulte
los puntos a. – c.
en la página 4.
FIGURA 1
B
A
FIGURA 4
1
2
FIGURA 5
1
2
FIGURA 2
FIGURA 3
C
D
E
+ -
Produktspecifikationer
| Varumärke: | NuTone |
| Kategori: | Dörrklocka |
| Modell: | CP2SCSN |
Behöver du hjälp?
Om du behöver hjälp med NuTone CP2SCSN ställ en fråga nedan och andra användare kommer att svara dig
Dörrklocka NuTone Manualer
23 September 2024
23 September 2024
23 September 2024
23 September 2024
23 September 2024
23 September 2024
23 September 2024
19 September 2024
19 September 2024
19 September 2024
Dörrklocka Manualer
- Dörrklocka Philips
- Dörrklocka Panasonic
- Dörrklocka Grundig
- Dörrklocka Honeywell
- Dörrklocka Quigg
- Dörrklocka Alecto
- Dörrklocka Arendo
- Dörrklocka Orbegozo
- Dörrklocka Fagor
- Dörrklocka Silvercrest
- Dörrklocka Nedis
- Dörrklocka Cata
- Dörrklocka Renkforce
- Dörrklocka Sencor
- Dörrklocka Exibel
- Dörrklocka Balay
- Dörrklocka Ezviz
- Dörrklocka Trust
- Dörrklocka Elro
- Dörrklocka EMOS
- Dörrklocka KlikaanKlikuit
- Dörrklocka Imou
- Dörrklocka Hama
- Dörrklocka Byron
- Dörrklocka Elektrobock
- Dörrklocka Infiniton
- Dörrklocka Aspes
- Dörrklocka Velleman
- Dörrklocka Swissvoice
- Dörrklocka Smartwares
- Dörrklocka Profile
- Dörrklocka Marquant
- Dörrklocka Eufy
- Dörrklocka Steren
- Dörrklocka Perel
- Dörrklocka Envivo
- Dörrklocka Olympia
- Dörrklocka Belkin
- Dörrklocka GeoVision
- Dörrklocka Arlo
- Dörrklocka Nest
- Dörrklocka Grothe
- Dörrklocka DIO
- Dörrklocka Netatmo
- Dörrklocka Chacon
- Dörrklocka Reolink
- Dörrklocka Konig
- Dörrklocka Delta
- Dörrklocka Foscam
- Dörrklocka Swann
- Dörrklocka Extel
- Dörrklocka M-e
- Dörrklocka Lorex
- Dörrklocka Gira
- Dörrklocka Lifetec
- Dörrklocka Ring
- Dörrklocka HQ
- Dörrklocka Urmet
- Dörrklocka Geemarc
- Dörrklocka Fanvil
- Dörrklocka Smart
- Dörrklocka REV
- Dörrklocka Friedland
- Dörrklocka X-Sense
- Dörrklocka Doorsafe
- Dörrklocka ORNO
- Dörrklocka Mercury
- Dörrklocka Bitron Video
- Dörrklocka Sinji
- Dörrklocka Apelson
- Dörrklocka Heidemann
- Dörrklocka Unitec
- Dörrklocka Baseline
- Dörrklocka Kogan
- Dörrklocka Legrand
- Dörrklocka Intertechno
- Dörrklocka EKO
- Dörrklocka Intersteel
- Dörrklocka Merlin
- Dörrklocka SecuFirst
- Dörrklocka Ebench
- Dörrklocka Desa
- Dörrklocka ZAMEL
- Dörrklocka Bellman
- Dörrklocka Mr Safe
- Dörrklocka AVANTEK
- Dörrklocka SkyBell
- Dörrklocka ALC
- Dörrklocka Bearware
- Dörrklocka Vibell
Nyaste Dörrklocka Manualer
21 Oktober 2024
20 Oktober 2024
15 Oktober 2024
12 Oktober 2024
10 Oktober 2024
9 Oktober 2024
8 Oktober 2024
7 Oktober 2024
5 Oktober 2024
5 Oktober 2024
