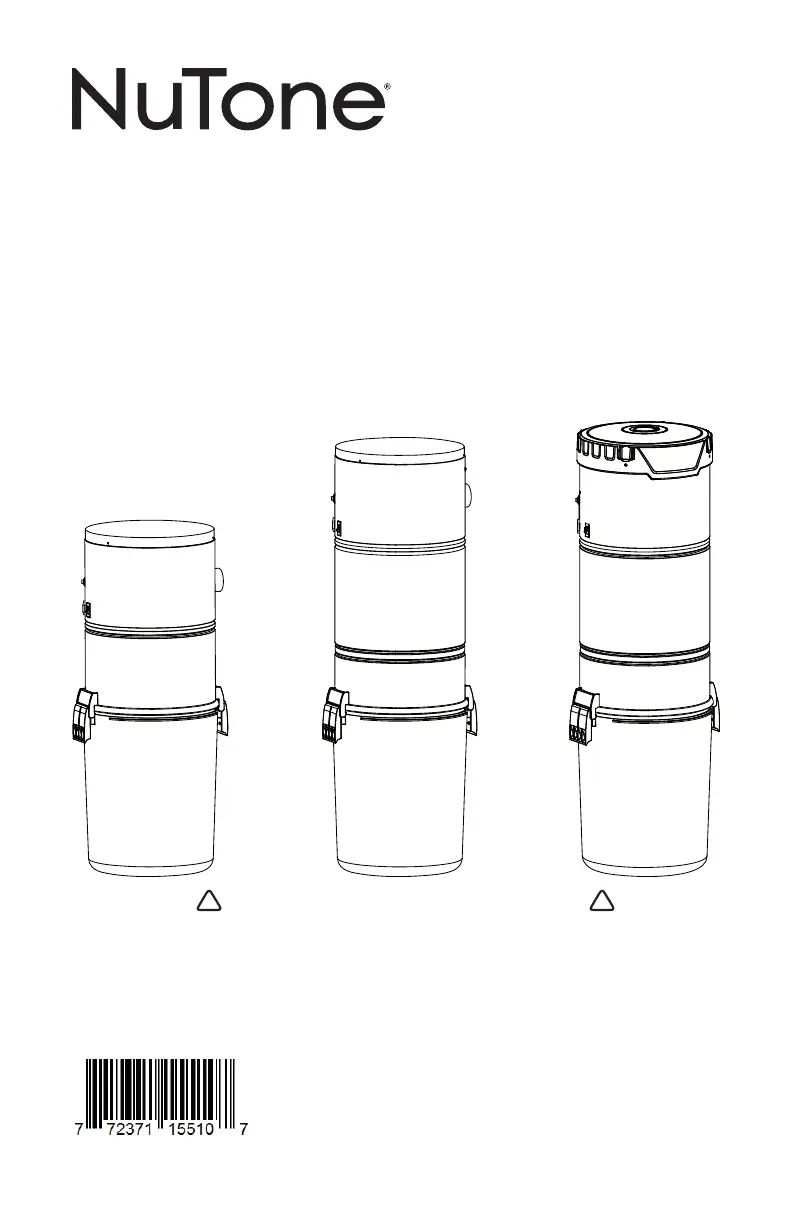

USER GUIDE
CENTRAL VACUUM
POWER UNITS
PP5501, PP6501 & PP7001
AB0039
FOR RESIDENTIAL USE ONLY
24011 rev. B
! !
M SFDB-DQ, SFDB-DR SFDB-DSODELS AND
BROAN-N T LLC; HU ONE ARTFORD, WISCONSIN
WWW.NUTONE COM. 1-888-336-3948
REGISTER YOUR PRODUCT ONLINE WWW NUTONE COM REGISTER AT: . . /
PUREPOWER SERIES
SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
WARNING
To reduce the risk of fire, electric
shock or injury:
1. Do not use on wet surfaces or outdoors.
2. Do not vacuum liquids or fine powders
(such as drywall dust).
3. Do not use to pick up flammable or
combustible liquids such as gasoline or
use in areas where they may be present.
4. Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes.
5. Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
6. Use only as described in this manual.
Use only manufacturer's recommended
attachments.
7. Keep hair, loose clothing, fingers and all
parts of body away from openings and
moving parts.
8. Turn off all controls before unplugging.
9. Use extra care when cleaning on stairs.
10. Do not handle plug or appliance with wet
hands.
11. Do not use with damaged cord or plug.
If appliance is not working as it should,
if it has been dropped, damaged, left
outdoors, or dropped into water, return it
to a Service Center.
12. Keep your work area well lighted.
13. Connect to a properly grounded outlet
only. See grounding instructions shown
on page 3.
14. When performing installation, servicing
or cleaning the unit, it is recommended
to wear safety glasses and gloves.
CAUTION
1. Do not put any object into openings. Do
not use with any opening blocked; keep
free of dust, lint, hair and anything that
may reduce air flow.
2. Ensure air flows freely and exhausts
unobstructed from top or side outlet.
3. Do not use without filter (or filters,
according to the model) in place.
4. Do not use to blow leaves or debris.
5. Do not place any object on top of the unit.
6. Do not install the unit horizontally.
7. Do not use the pail as a wash bucket.
8. Do not use the pail as a stool.
9. Avoid picking up sharp objects.
10. This appliance is for use on a standard
120 VAC, dedicated 20-amp minimum
branch circuit.
11. Do not unplug the unit by pulling on cord.
To unplug, grasp the plug, not the cord.
12. Store your vacuum cleaner indoors in
a clean, dry area, away from extreme
temperatures.
13. Any servicing other than that
recommended in this manual should
be performed by an authorized service
facility.
14. We recommend that your unit be
inspected by a specialized technician
once a year.
!
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
2
GROUNDING INSTRUCTIONS . . . . 3
OPERATION & MAINTENANCE . .4-7
W HEN TO CHANGE BAG
OR EMPTY DEBRIS PAIL . . . . . . . . . . . . . . . 4
HOW TO EMPTY DEBRIS PAIL (PP6501 AND
PP7001 POWER UNITS ONLY ) . . . . . . . . . . 4
DISPOSABLE REPLACEMENT BAG
(MODEL 395) . . . . . . . . . . . . . . . . . . . . . 4
SEALED HEPA P ERMANENT FILTER
(PP6501 AND PP7001 POWER UNITS ONLY) 5
REMOVAL INSTALLATION & OF PERMANENT FILTER
(PP6501 & PP7001 POWER UNITS ONLY) . 5
MOTOR FOAM FILTER ALL UNITS ( ) . . . . . . . . 6
REMOVAL NSTALLATION OF ECONDARY & I S
HEPA ILTER F (PP7001 POWER NIT NLY U O ) 7
SERVICE PARTS . . . . . . . . . . . . . .8-9
TROUBLESHOOTING GUIDE . . 10-11
WARRANTY . . . . . . . . . . . . . . . . . . 12
TABLE OF CONTENTS
3
Grounding Instructions – This appliance must be grounded. If it should malfunction or break
down, grounding provides a path of least resistance for electric current, to reduce the risk
of electric shock. This appliance is equipped with a cord having an equipment-grounding
conductor and grounding plug. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
WIRING
This appliance is for use on a standard 120 VAC, minimum dedicated 20-amp branch circuit
with a NEMA 5-15R receptacle. Make sure that the power unit is connected to an outlet
and has a grounding attachment plug that looks like the plug shown in illustration below. No
adapter should be used with this power unit.
NOTE: Inlet leads to be connected to power unit low voltage tabs using crimp connectors
(included in parts bag) and low voltage harness.
GROUNDING INSTRUCTIONS
WARNING
!
!
!
!!
Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified electrician or service person
if you are in doubt as to whether the outlet is properly grounded. Do not
modify the plug provided with the appliance – if it will not fit the outlet, have
a proper outlet installed by a qualified electrician.
AE0044
INLET
C RIMP
CONNECTORS TO
BE CONNECTED
IN LOW VOLTAGE
TABS
I INLET NLET
T O
OTHER
INLETS
M 376-UL ODEL
(18/2) LOW VOLTAGE
WIRE
I NLET LEADS
G ROUNDED OUTLETS
G ROUNDING PIN
