Sida 1/6

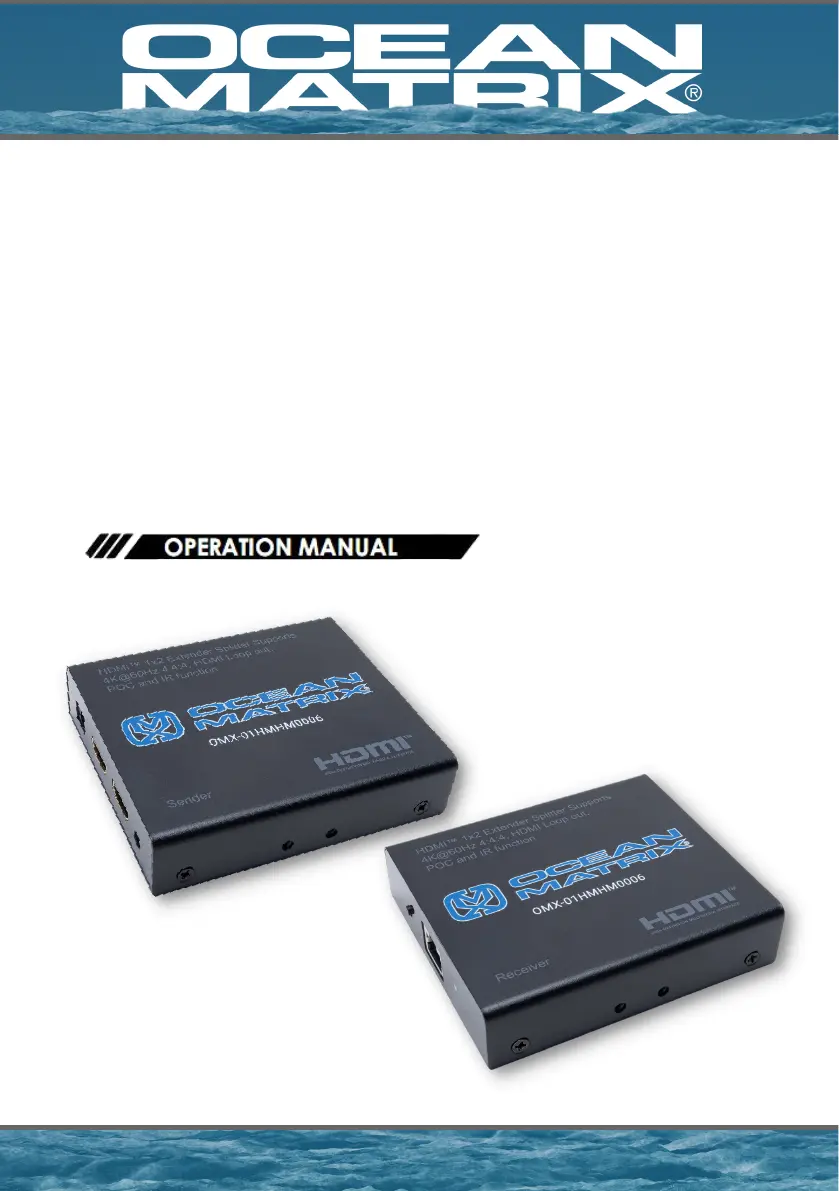

OMX-01HMHM0006
Ocean Matrix OMX-01HMHM0006 HDMI
1x2 Extender Splitter Set with HDMI
Loop Out - POC - IR Function
Supports High Resolutions up to 4K@60Hz YUV 4:4:4
Supports Full 3D Format
HDCP 2.2 & HDCP 1.4
Data Transfer Rate p to 6.0Gbps Per Channel (18Gbps All Channels)
TMDS Clock up to 600MHz
Supports 12bit Per Channel (36bit all Channels) Deep Color
Supports Uncompressed Audio Such as DTS, Dolby Digital (Including DTS-HD Master Audio
and Dolby TrueHD)
Supports 2-Way 12V POC (Power over Cable) from Tx to Rx or Rx to Tx
The Ocean Matrix OMX-01HMHM0006 HDMI is a 1x2 HDMI extender splitter set that combines
splitting and extension functionality, allowing for local displaying and remote viewing. The HDMI
signal is distributed simultaneously to local and remote outputs, making this device ideal for digital
signage applications that require high-quality HDMI video up to 4K@60Hz 4:4:4. Additionally, the
OMX-01HMHM0006 can extend IR signals from remote controls, allowing you to control video
sources directly from the display-end of your setup. For additional convenience, the unit supports
two-way POC (Power Over Cable) enabling either the transmitter or receiver to be powered by a
single 12V power supply.
Description:
Features:
Specifications:
Input Port: HDMI x 1 / RJ45 x 1 / 3.5MM x 1
Output Port: HDMI x 1 / Loop Out x 1 / RJ45 x 1 / 3.5MM x1
Transmission Distance: 4K@60Hz 4:4:4 up to 230 Feet (70m)
Vertical Frequency Range: 50/60Hz
IR Frequency Range: 20-60KHz
Interlaced Resolutions (50 & 60Hz): 480i, 576i, 1080i
Progressive Resolutions (50 & 60Hz): 480p, 576p, 720p, 1080p, 4K@60Hz
Operating Temperature: 32°F to 122°F
Storage Humidity: 5% to 90% RH Non-Condensation
Power Supply: DC 12V
Power Consumption (Max): TX: 1.3W / RX: 1.6W
Power Supply and Extender Certifications: FCC / CE / RoHS
Dimensions (LxWxH): 3.97 x 3.47 x 0.92”
Net Weight: 6.9oz (196g)
Item Includes:
1 x 12V Power Supply
4 x Mounting Ears
IR Sender Cable
IR Receiver Cable
Operation Controls and Functions:
Reset - click to reset sender.
CAT 6 - UTP Cable connection port.
Power - Power LED indicator.
DC 12V In - Power supply input.
HDMI Out - Connect to output devices via HDMI male output port for local loop out.
HDMI In - Connect to input sources via HDMI male input port.
IR Out - IR signal output port.
1.
2.
3.
4.
5.
6.
7.
Sender:
5 6 7
4
2
3
1
