INSTRUCTION / INSTALLATION SHEET
4 X 10 Punchdown Telecom Modules
IS-0360 Rev. O
301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
©Copyright 2005 by On-Q/Legrand All Rights Reserved. Page 1 of 2
1. INTRODUCTION
The On-Q/Legrand 4 X 10 Punchdown Telecom Modules (P/N TM7553 and
TM7554 as shown in Figure 1) are members of our flexible family of Telephone
Distribution Modules, each of which is designed to more closely match
homeowner needs.
2. DESCRIPTION
The 4 X 10 Punchdown Telecom Modules distribute four incoming telephone
lines to as many as 10 locations throughout the home (see Figure 2). The P/N
TM7554 version also includes an RJ-31x security system interface. Both versions
have the following features:
110 punchdown style connectors for user friendly configuration
All ports wired to meet TIA 568A specifications
Accepts four incoming telephone lines
Flexible distribution to 10 telephone locations
Single bay bracket (P/N 364890-01) included for installation in On-Q style
enclosure (see ) Figure 2
50 microns gold plated contact points on RJ-31x interface port (TM7554
only)
3. INSTALLATION
A. MOUNT THE 4 X 10 PUNCHDOWN TELECOM MODULE INTO THE ENCLOSURE
1. Pull out the plungers located at each corner of the 4 X 10 Telecom Module and insert the module into the
included single bay bracket (see Figure 2), depressing the plungers to secure the module to the bracket.
2. Insert the bracket into the On-Q style enclosure by inserting the tabs on the bracket into the slots on the left
hand side of the enclosure and securing the bracket with the push-pin on the right end of the bracket.
TM7553
TM7554
enclosure
mounting tabs
enclosure
mounting
push-pin
Lines #1- #4 in from
phone company
To telephone locations
module
mounting
plunger
Figure 2
Figure 1
INSTRUCTION / INSTALLATION SHEET
4 X 10 Punchdown Telecom Modules
IS-0360 Rev. O
301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
©Copyright 2005 by On-Q/Legrand All Rights Reserved. Page 2 of 2

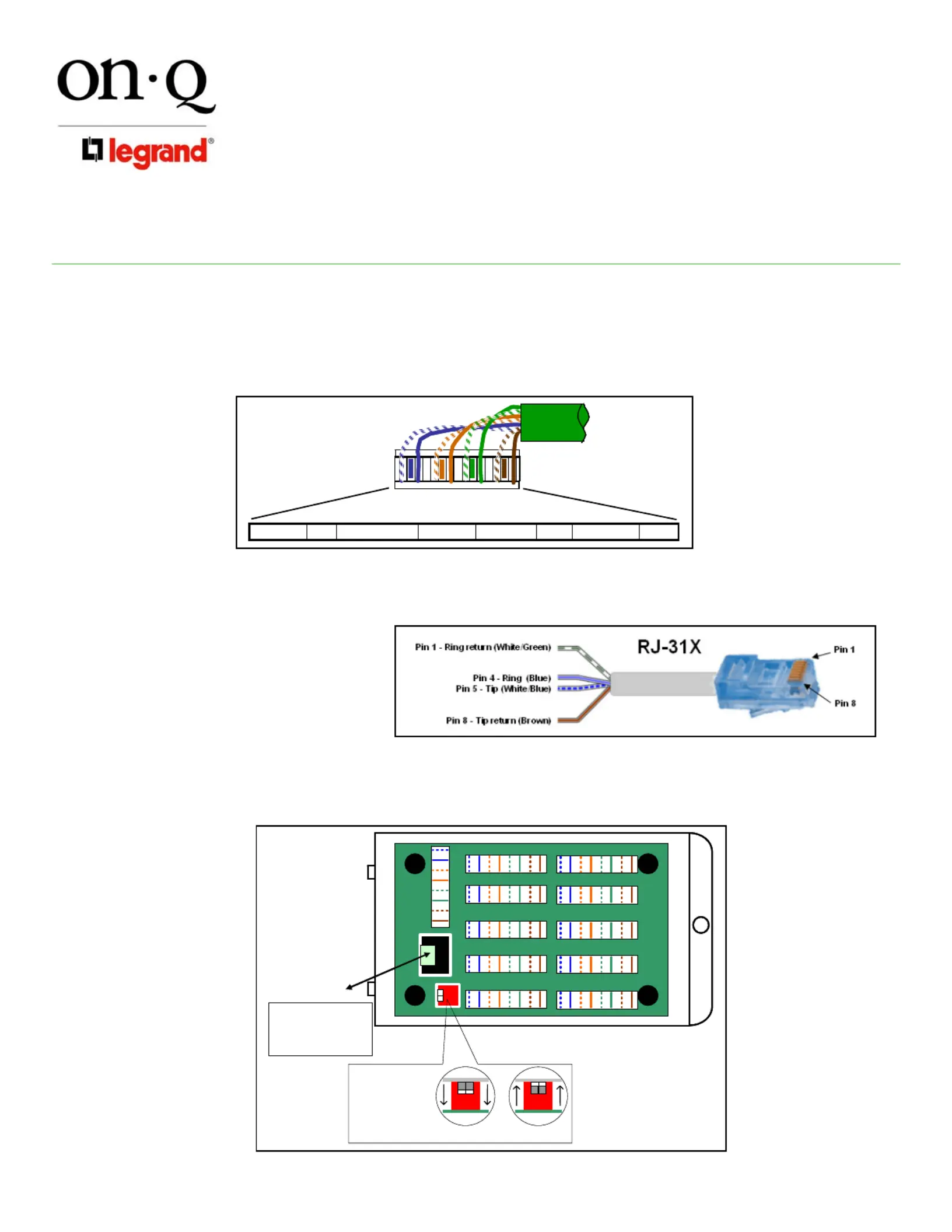

B. TERMINATE WIRING
NOTE: All wiring should be terminated to the T568A wiring standard as shown in Figure 3.
1. Terminate the incoming Cat 5e line from the telephone company NID to the 110 style punchdown connector
that is labeled “LINE IN 1,2,3,4”.
2. Terminate each Cat 5e line (up to 10 total) that will be used for each voice jack location to the 110 style
punchdown connectors that are labeled “OUTLET LOCATIONS”.
C. TERMINATE AND CONFIGURE RJ-31X LINE SEIZURE (TM7554 ONLY)
NOTE: The following steps MUST be followed to use the Line Seizure option as shown in Figures 4 & 5.
1. Terminate a patch cable with a RJ45
on one end and bare-wire connection
on the other (see Figure 4). Connect
the bare-wire end of the patch cable to
the security system according to
manufacturer’s instructions. Insert the
RJ45 connector end of the cable into
the RJ45 jack on the module that is
labeled “LINE SEIZURE”.
2. Activate the Line Seizure function on the module by locating the two white dip switches on the module, peeling off
the protective blue tape, and moving both switches upward to the active position (see Figure 5).
BrownWhite/BrownGreenWhite/GreenOrangeWhite/OrangeBlueWhite/Blue BrownWhite/BrownGreenWhite/GreenOrangeWhite/OrangeBlueWhite/Blue
Figure 3
RJ-31X
Inactive Active
Line Seizure
control
RJ-31X
Inactive Active
Line Seizure
control
Line 1 is fed to security
equipment on pins 4&5.
Line 1 is returned to the
module on pins 1&8.
Figure 5
Figure 4
