Sida 1/24

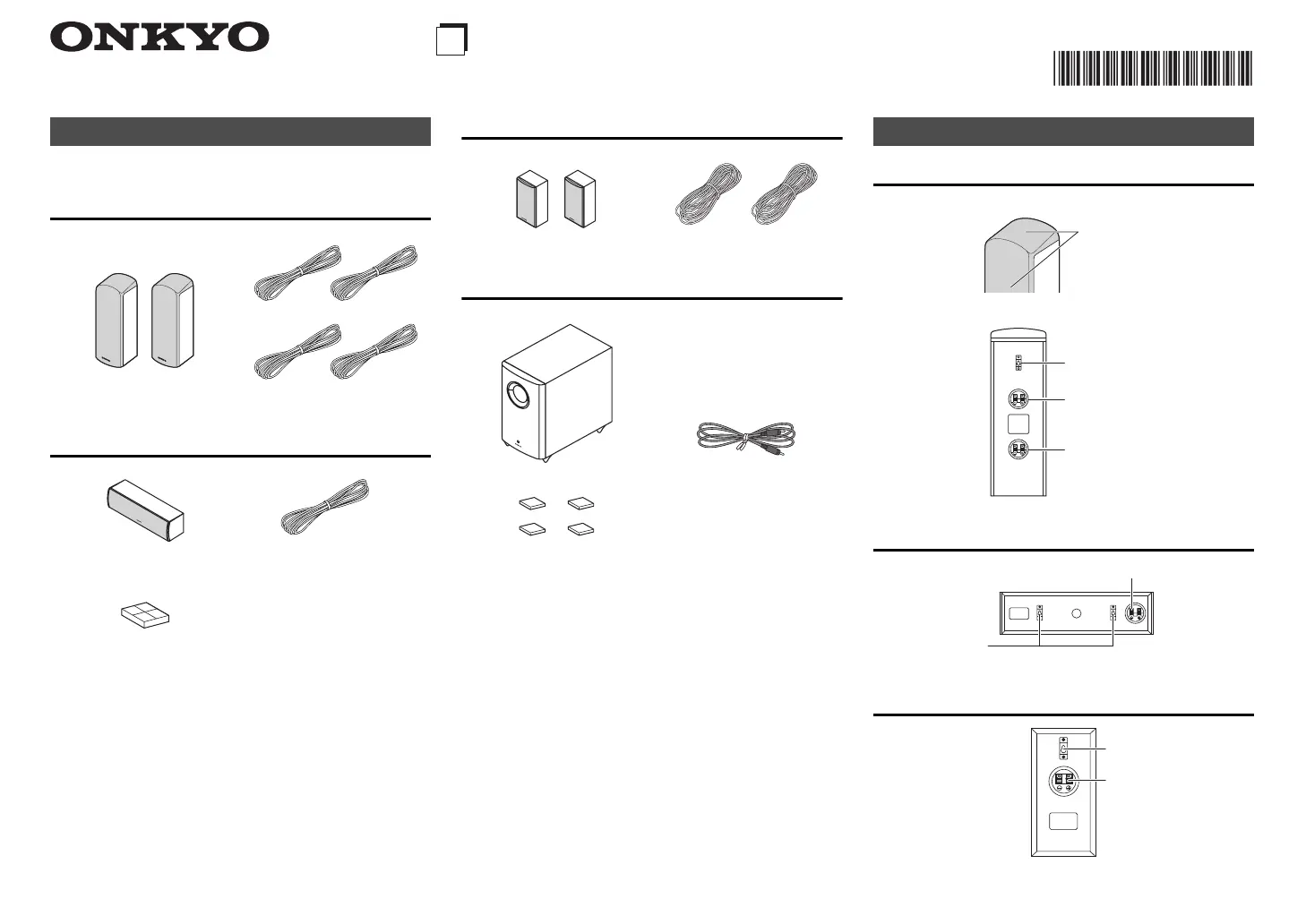

En-1
E
n
5.1.2ch Home Theater Speaker Package
Make sure you have the following accessories.
Front & Height Speakers (SKF-693)
Center Speaker (SKC-591N)
*1 Configuration of the rubber stoppers may be different from the
figure, such as being 2 sheets instead of 1 sheet, but the total
number will be same.
Surround Speakers (SKR-590)
Powered Subwoofer (SKW-658)
Front & Height Speakers (SKF-693)
Center Speaker (SKC-591N)
Surround Speakers (SKR-590)
Supplied Accessories
Front & Height speakers Speaker cables
3.0 m
Center speaker Speaker cable
3.0 m
4 rubber stoppers*1
(White) (Red)
(Brown) (Tan)
(Green)
Subwoofer RCA cable
3.0 m
4 floor pads
(Blue) (Gray)
Part Names
Speaker terminals
(Height)
Keyhole slot
Speaker terminals
(Front)
■Rear
■Front
Speaker unit
Speaker terminals
Keyhole slots
Speaker terminals
Keyhole slot
HTP-678
* 2 9 4 0 1 8 7 8 *
D1406-0
Speaker cables 8.0 m
Surround speakers
En-2
Caution
• The front grilles are not designed to be removed so do not
attempt to remove them forcibly, as this will damage
them.
Powered Subwoofer (SKW-658)
■Front
■Rear
Note
• The Auto Standby function turns the subwoofer on when the
input signal exceeds a certain level. If the Auto Standby function
does not work reliably, try slightly increasing or decreasing the
subwoofer output level on your receiver.
Using the Rubber Stoppers for a More Stable
Platform
We recommend using the supplied rubber stoppers to
achieve the best possible sound from your speakers. The
rubber stoppers prevent the speakers from moving,
providing a more stable platform. Use rubber stoppers for
the center speaker.
Using the Floor Pads for Subwoofer
If the subwoofer is placed on a hard floor (wood, vinyl,
tile, etc.) and playback is very loud, the subwoofer’s feet
may damage the flooring. To prevent this, place the
supplied pads underneath the subwoofer’s feet. The pads
also provide a stable base for the subwoofer.
Setting the Subwoofer Level
To set the level of the subwoofer, use the
OUTPUT LEVEL control. Set it so that bass
sounds are evenly balanced with the treble sounds
from the other speakers. Because our ears are less
sensitive to very low bass sounds, there’s a temptation to
set the level of the subwoofer too high. As a rule of thumb,
set the subwoofer level to what you think is the optimal
level, and then back it off slightly.
Wall Mounting
To mount the front/surround speakers vertically, use the
keyhole slot shown to hang each speaker on a screw that’s
securely screwed into the wall.
To mount the center speaker horizontally, use the two
keyhole slots shown to hang the speaker on two screws that
are securely screwed into the wall.
Tip
• If the center speaker is tilted, loosen the screw on the declined
side to move upward so that the speaker could be adjusted
vertically.
Status indicator
Off: Subwoofer in standby mode or
disconnected from power source
Blue:Subwoofer on
The status indicator lights blue when
low frequency sound is being passed
through the speaker.
The indicator does not light in the
normal dialog or high frequency
sound.
Note
• The indicator does not indicate that
power supply of the subwoofer has
turned on.
With the Auto Standby function, the
SKW-658 automatically turns on
when an input signal is detected in
standby mode. When there’s no input
signal for a while, the SKW-658
automatically enters standby mode.
To AC outlet
OUTPUT LEVEL control
This control is used to adjust the
volume of the subwoofer.
LINE INPUT
This RCA input should be
connected to the subwoofer pre
out on your AV receiver with
supplied RCA cable.
Before Using the Home Theater
Speaker Package
Rubber stoppers
Bottom of the
SKC-591N
Side panel
Floor pad
SKF-693 SKR-590
Keyhole slots for
wall mounting
Keyhole slots for wall mounting
200 mm
SKC-591N
En-3
Caution
• A mounting screw’s ability to support a
speaker depends on how well it’s
anchored to the wall. If you have
hollow walls, screw each mounting
screw into a stud. If there are no studs,
or the walls are solid, use suitable wall
anchors. Use screws with a head
diameter of 9 mm or less and a shank diameter of 4 mm
or less. With hollow walls, use a cable/pipe detector to
check for any power cables or water pipes before making
any holes.
• Leave a gap of between 5 mm and 10 mm between the
wall and the base of the screw head, as shown (We
recommend that you consult a home installation
professional).
The Home Theater means that you can enjoy surround
sound with a real sense of movement in your own home —
just like being in a movie theater or concert hall.
.
Speaker Connection Precautions
Read the following before connecting your speakers:
• Turn off your receiver before making any connections.
• Pay close attention to speaker wiring polarity.
Connect positive (+) terminals to only
positive (+) terminals, and negative (–)
terminals to only negative (–) terminals. If the
speakers are wired incorrectly, the sound will be out of
phase and will sound unnatural.
• Be careful not to short the positive and negative wires.
Doing so may damage your amp.
Enjoying Home Theater
Wall
5 to 10 mm
1Front speakers (SKF-693)
They should be positioned facing the listener at about
ear level, and equally spaced from the TV. Angle
them inward slightly so as to create a triangle, with
the listener at the apex.
Height speakers
This speaker is type of integrated with the front
speakers and height speakers. The height speakers
designed with the top of the front speakers are facing
toward the ceiling to create an elevated audio effect
in the Dolby Atmos and Dolby Surround listening
modes by providing sounds echoing off the ceiling.
2Center speaker (SKC-591N)
Position it close to your TV (preferably on top)
facing forward at about ear level, or at the same
height as the front left and right speakers.
3Surround speakers (SKR-590)
Position them at the sides of the listener, or slightly
behind, about 60 to 100 cm above ear level. Ideally
they should be equally spaced from the listener.
4Subwoofer (SKW-658)
The subwoofer handles the bass sounds of the LFE
(Low-Frequency Effects) channel and bass from the
satellite speakers when a crossover is specified. The
volume and quality of the bass output from your
subwoofer will depend on its position, the shape of
your listening room, and your listening position. In
general, a good bass sound can be obtained by
installing the subwoofer in a front corner, or at one-
third the way along the front wall, as shown.
Corner position
1/3 of wall position
Connecting the Speakers
Front right
speaker
Center speaker
Front left
speaker
Red
Green
Gray Blue
Surround
Left
speaker
Surround
Right
speaker
Powered
subwoofer
*Using the supplied
RCA cable, connect
the subwoofer’s
LINE INPUT to
your AV receiver’s
SUBWOOFER
PRE OUT jack.
Brown
White
Tan
