OptiTrack eSync 2 Bruksanvisning

OptiTrack Inte kategoriserad eSync 2

Läs nedan 📖 manual på svenska för OptiTrack eSync 2 (1 sidor) i kategorin Inte kategoriserad. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF
Sida 1/1

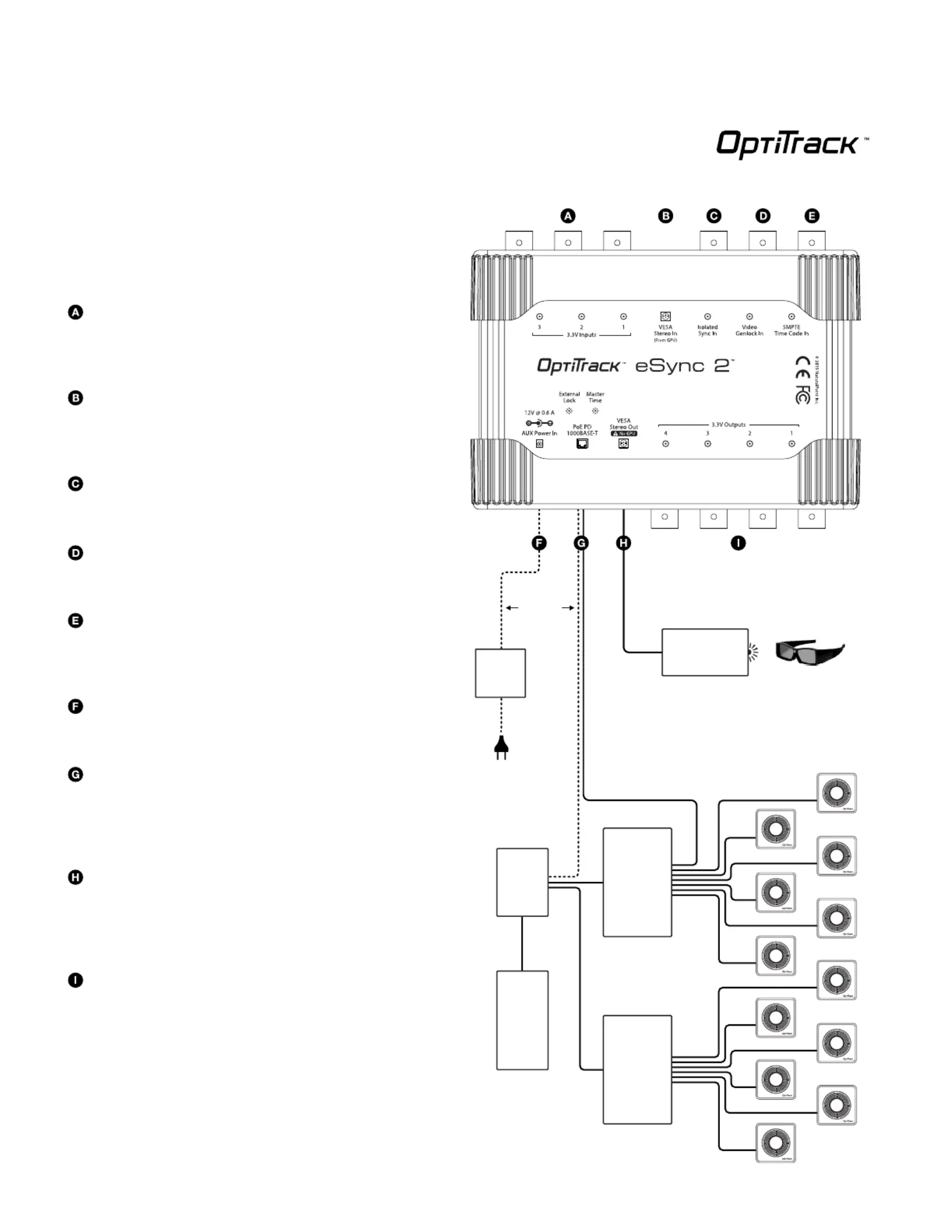

Uplink
Switch
Shutter Glasses
IR Emitter
PC
PoE
Switch
PoE
Switch
12V Power
Supply
Power
Options
Power
Adapter
(optional)
eSync 2
© 2015 NaturalPoint Inc. All rights reserved. P-OT-112.1502
Synchronization and Time Code for your motion capture
data, link up to almost any signal or source. Only one
eSync 2 is needed per mocap system. Compatible with
Ethernet cameras only.
General Purpose Sync In
Three high-impedance digital inputs are available for
sending sync signals from an external device to the
eSync 2.
VESA Stereo In
Connect to a stereo-capable graphics card, equipped
with a 3-pin VESA connector, for applications using
shutter glasses.
Isolated Sync In
Used when the sync source is above normal logic 3.3V,
or has a different ground reference.
Genlock Sync In
Synchronize mocap data with external video devices via
analog input.
SMPTE Time Code In
Stamp recorded and streamed motion tracking data with
SMPTE Time Code for compositing with other media in
post.
AUX Power In (optional)
12V universal power supply for when no PoE port is
available to supply power.
PoE 1000BASE-T Port
Used to connect the eSync 2 to an Ethernet mocap
system, which needs to be on the same network as the
cameras. When connecting to an uplink switch instead
of a PoE switch, the 12V power supply is required.
VESA Stereo Out
Used to pass through the stereo sync signal, and 5V
power, from the graphics card to the IR emitter for
shutter glasses. Warning: Do not connect this output to
the graphics card.
General Purpose Sync Out
Four digital outputs are available for sending sync signals
from the eSync 2 to external devices.
Need help?
Call technical support at 1-888-965-0435 or contact us at
www.optitrack.com/support.
